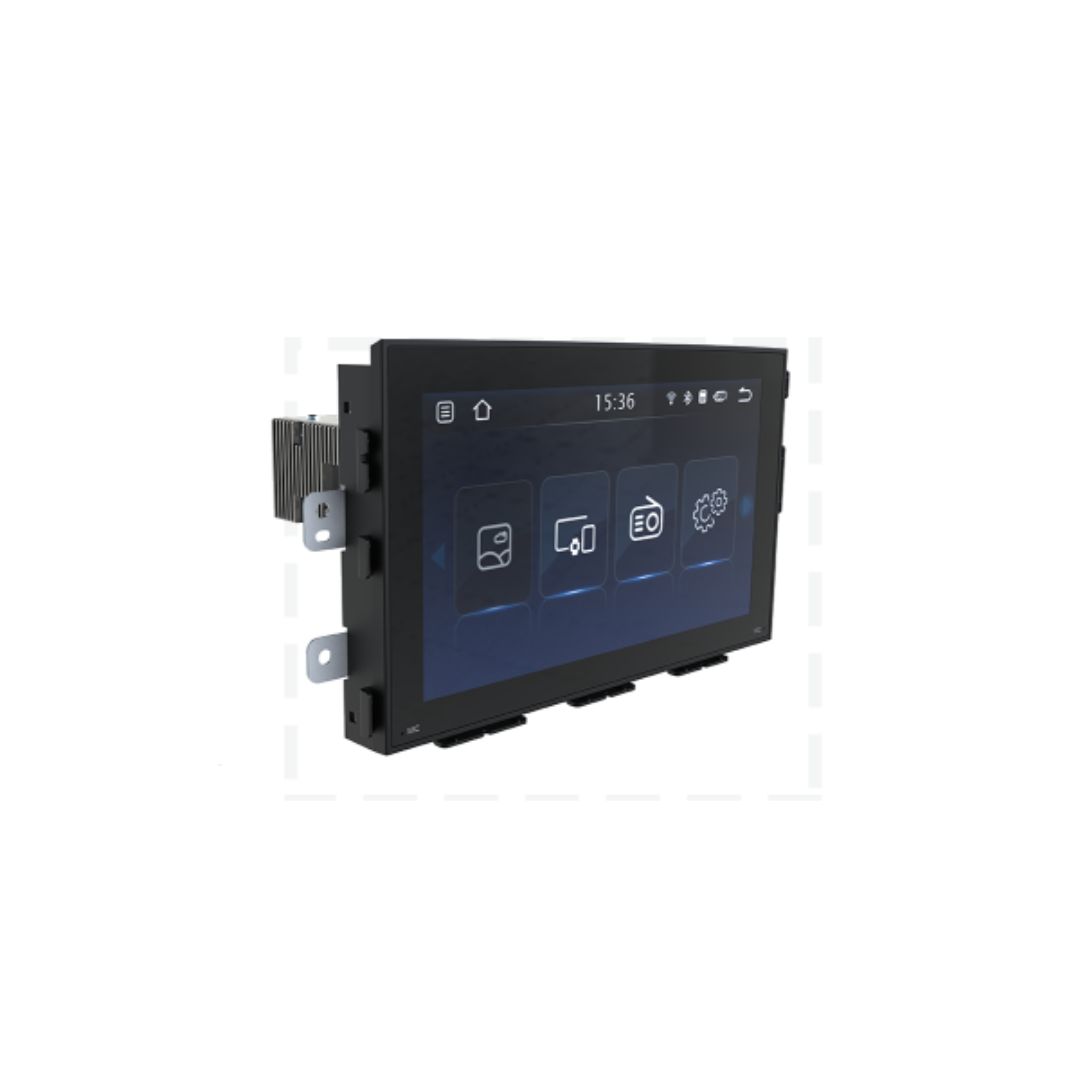

10.1-inch Intelligent Central Control Screen with Android 9.0 ARL-MS-D101AC

10.1-inch Intelligent Central Control Screen with Android 9.0 (ARL-MS-D101AC)

The MS-D101AC is a powerful 10.1-inch all-in-one intelligent central control panel designed for modern vehicle integration. This comprehensive system serves as the central hub for various vehicle functionalities, processing input from the AM/FM radio antenna, GPS antenna, steering wheel shortcut keys, front/left/right/rear view cameras, high-speed CAN bus, USB interface, Bluetooth mobile phone, multimedia sources, T-BOX, and mobile phone interconnection features. The system provides output to the host screen, speaker system, Bluetooth hands-free system, high-speed CAN bus, and multimedia devices. At its core is a robust central control panel host powered by a high-performance processor.

Key Features:

• Large 10.1-inch HD Display: Vibrant screen with a 1024*600 resolution and 16:9 aspect ratio.
• Powerful Quad-Core Processor: AC8257 4-core Coretex-A53 CPU clocked at 2GHz with a built-in ARM9 co-processor for efficient operation.
• High-Performance GPU: Imagination GE8300 GPU supporting OpenGL & OpenCL up to 600MHz for enhanced graphics processing.
• Ample Memory: 4GB DDR4 RAM for smooth multitasking.
• Generous Storage: 32GB EMMC for application and data storage.
• Dual CAN Support: N32A455CEL7 MCU supporting dual CAN bus communication.
• High-Quality Audio: AK7739 audio processing and TDA7576 power amplifier.
• Integrated Radio: Supports TDA7786/TDA7708 radio modules.
• Android 9.0 Operating System: Feature-rich and user-friendly platform.
• FHD Output Display Support: Capable of driving high-resolution displays.
• Four AHD Camera Inputs: Supports input from four AHD cameras (1080P/720P).
• Dual Microphone Inputs: Two sets of MIC inputs with hardware noise reduction and echo cancellation for clear communication.
• Versatile I/O Interface: Supports UART, SPI, I2C, PWM, USB, and other interfaces for flexible connectivity.
• External USB Interface: Conveniently located on the instrument panel switch panel for easy access.

Technical Specifications:

• LCD: 10.1 inches, 16:9 aspect ratio, 1024*600 resolution
• CPU: AC8257 4-core Coretex-A53, 2GHz, built-in ARM9 co-processor
• GPU: Imagination GE8300, supports OpenGL & OpenCL (up to 600MHz)
• DDR: 4GB
• EMMC: 32GB
• MCU: N32A455CEL7, supports dual CAN
• Audio: AK7739
• Power Amplifier: TDA7576
• Radio: TDA7786/TDA7708
• Operating System: Android 9.0
• Memory: LPDDR4
• Storage: EMMC 5.1
• Display Output: Supports FHD output
• Video Input: Supports four AHD camera inputs (1080P, 720P)
• Audio Input: 2 sets of MIC inputs with hardware noise reduction and echo cancellation
• I/O: Supports UART, SPI, I2C, PWM, USB, and other interfaces
• USB Interface: External connection on the instrument panel switch panel

This 10.1-inch Intelligent Central Control Screen provides a powerful and integrated solution for managing various vehicle systems, offering a rich user experience with its high-performance hardware and Android 9.0 operating system.
