2.4GHz Waterproof Wireless Transmitter/Receiver ARL-MS-217TX/RX

SKU: ARL-MS-217TX/RX Categories: Driving Control Systems, TX&RX, Wireless Rear View System

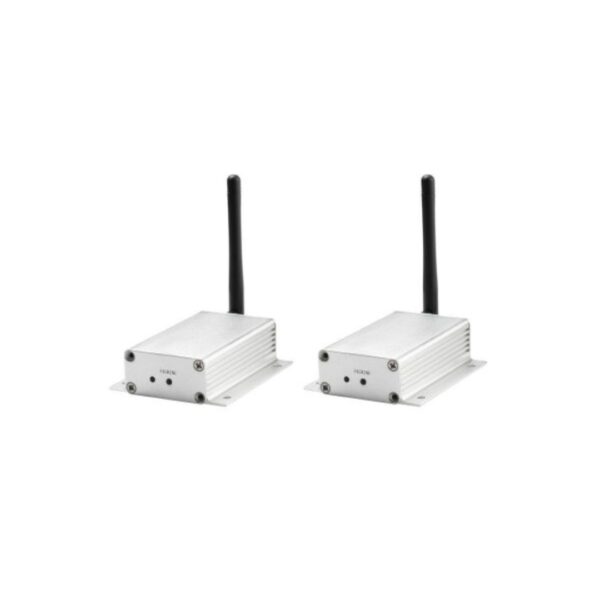

2.4GHz Waterproof Wireless Transmitter/Receiver (ARL-MS-217TX/RX)

The ARL-MS-217TX/RX is a 2.4GHz digital wireless transmitter and receiver system designed for transmitting standard CVBS video signals wirelessly. This waterproof system offers a transmission range of up to 100 meters in open, barrier-free areas and approximately 40 meters with obstructions. 2.4GHz Waterproof Wireless Transmitter/Receiver operates on a rated voltage of DC12/24V and features a quick 1-second pairing time between the transmitter (Tx) and receiver (Rx). The system is built to withstand a wide operating temperature range of -30℃ to +70℃.

Key Features:

Digital Wireless Transmission: Ensures a stable signal.
2.4GHz Operating Frequency: Standard wireless frequency.
Reliable Wireless Range: Up to 100m (barrier-free), 40m (with barrier).
Wide Voltage Compatibility: Supports DC12V and DC24V.
Fast Pairing: Quick 1-second pairing process.
Waterproof Design: Suitable for outdoor and demanding environments.
Wide Operating Temperature: Functions in hot and cold conditions.

Technical Specifications:

Model: ARL-MS-217TX/RX

Feature	Specification
Transmission Type	Digital Wireless
Operating Frequency	2.4GHz
Transmission Range	100m (barrier-free), 40m (with barrier)
Rated Voltage	DC12/24V
Tx/Rx Pairing Time	1S
Operating Temperature	-30℃~+70℃

Transmitter (ARL-MS-217T) Specification:

Feature	Specification
Function	CVBS video to wireless signal transmission
RF Output Power	17dB
Antenna Power	2dB
Input Voltage	12V~32V
Output Voltage	12V
Camera Input Signal	CVBS Video Signal (N/P)
Power	1.92W
Work Temperature	-20℃~+70℃
Transmission Distance	100M(Barrier), 40M(Without barrier)
Pairing Procedure	Button press (3s), indicator flash (1Hz)
Pairing Indicator	Solid light after successful pairing
Dimension	83 * 70 * 24mm

Receiver (ARL-MS-217R) Specification:

Feature	Specification
Function	Wireless signal receive to CVBS video out
RF Receiving Sensitivity	-89dB
Antenna Power	2dB
Input Voltage	8V~16V
Video Signal Output	CVBS Video Signal (N/P)
Work Temperature	-20℃~+70℃
Power	1.92W
Transmission Distance	100M(Barrier), 40M(Without barrier)
Pairing Procedure	Button press (3s), indicator flash (1Hz)
Pairing Indicator	Solid light after successful pairing
Dimension	83 * 70 * 24mm

This 2.4GHz Waterproof Wireless Transmitter/Receiver system provides a reliable solution for wirelessly transmitting standard definition video signals in various applications, especially those requiring a waterproof and robust design.
