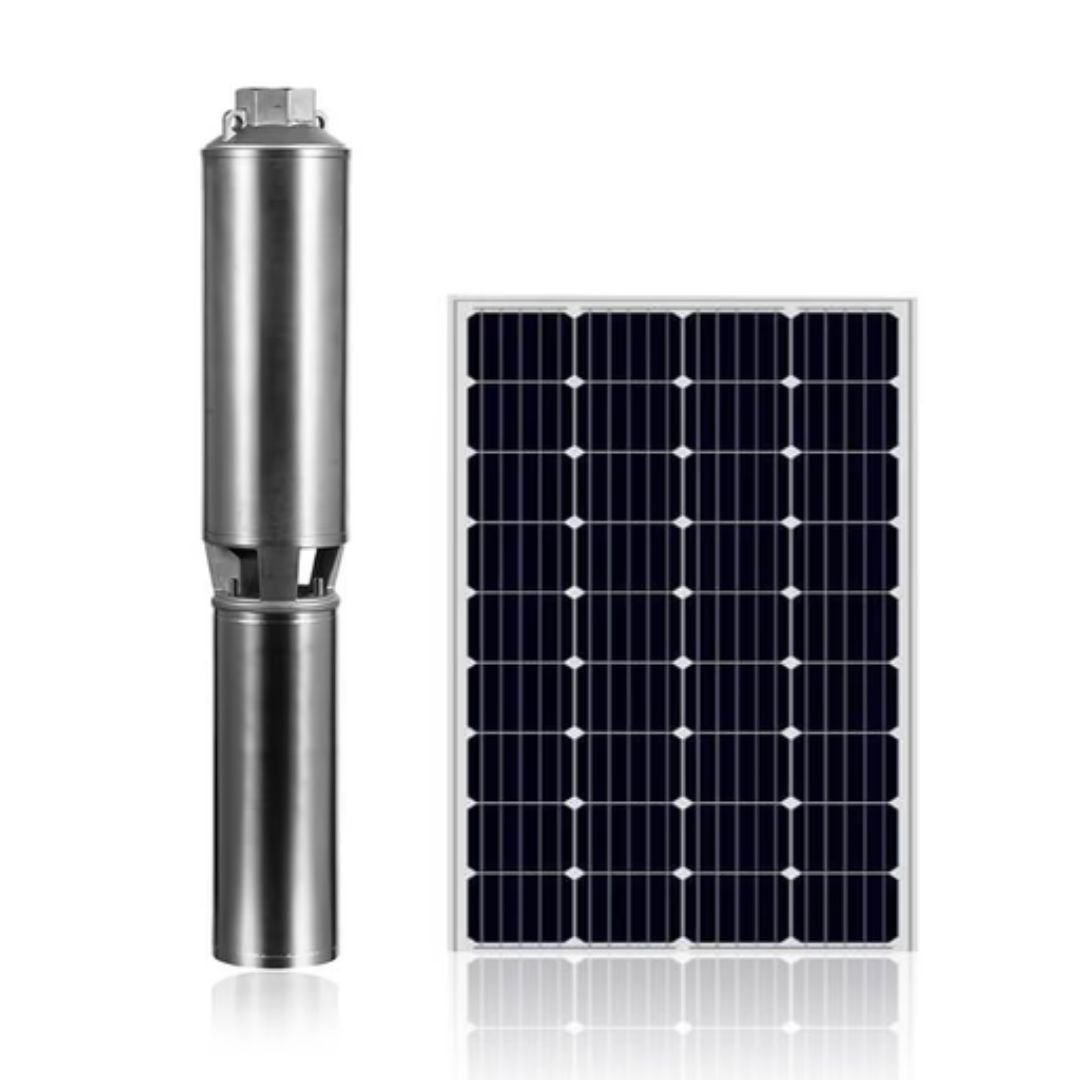

3-inch DC Solar Centrifugal Pump ARL-4SPN4-4P

3-inch DC Solar Centrifugal Pump ARL-4SPN4-4P

The 3-inch DC Solar Centrifugal Pump ARL-4SPN4-4P is a robust and highly efficient 3-inch DC solar centrifugal pump, engineered to deliver exceptional performance in water transfer applications. With a powerful 1200W BLDC motor and an integrated internal controller, this pump can achieve a maximum head of 61 meters and a maximum flow rate of 9 cubic meters per hour. Its construction from durable stainless steel 304, coupled with an encapsulated water-filled motor, ensures both longevity and the prevention of water contamination. This comprehensive system comes with vital accessories and advanced protection features for reliable and extended operation.

Key Features:

• High-Efficiency BLDC Motor: Equipped with a 1200W Permanent Magnet Synchronous Motor (PMSM) made of AISI 304, boasting a motor efficiency of up to 85% and an overall system efficiency of Max. 98%.
• Integrated Internal Controller: Features an internal controller with an impressive MPPT efficiency of Max. 98%, and is IP65 rated for robust performance and protection.
• Durable Stainless Steel Construction: The pump body is crafted from Stainless Steel 304, with AISI 304 motor material, ensuring high resistance to corrosion and wear. AISI 316 is available as an optional material for enhanced durability.
• Comprehensive Protection System: Includes advanced safeguards against dry-run (eliminating the need for an external float sensor), reverse polarity, phase loss, over-voltage, low-voltage, over-current, over-load, over-power, over-temperature, and motor stall. Also features a positive and negative pole reverse connection alarm.
• Encapsulated Water-Filled Motor: Designed to prevent any potential water pollution, making it suitable for a variety of water sources.
• Soft Start Functionality: Gradually increases pump speed upon startup, thereby extending the lifespan of the motor and system components by reducing stress.
• Thrust Bearing System: Enhances the motor’s stability and durability during extended operation.
• Real-time Performance Display: Provides immediate feedback on voltage, current, power, and speed for easy monitoring.
• DC Power Only: Optimized for direct current power sources, making it an ideal solution for solar power integration.
• Inclusive Accessories: Comes complete with a 1.5m pump cable, the MPPT-enabled pump controller, an electric float switch for water tank level control, and various tapes (waterproof adhesive, PVC electrical adhesive, PTFE) for convenient installation.

Technical Specifications:

Essential Infos

• Power: 1200W / 1.61HP
• Power Type: DC
• Max Head: 61m
• Max Flow: 9m³/h
• DC Voltage Range: 80-180V
• Outlet Size: 2 inches
• Pump Length: 0.65
• Impeller Material: Plastic
• Impeller Type: Centrifugal
• Controller: Internal
• Pump Body: Stainless Steel 304
• Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001
• Warranty: 2 Years
• Materials: SS304 / SS
• Motor: Water-Filled, PMSM

Specifications (Pump+Controller)

• Gross Weight: 10.5 KG
• Net Weight: 8.5 KG
• Dimension: 61*36*16 MM
• Length: 0.65

System Overview:

• Head (Max): 61m
• Flow (Max): 9m³/h
• Recommend Max Input: 0.6kW
• Minimum Well Diameter: Min 3inch
• Pump Discharge: Rp 1.25
• Efficient Max: 98%

Motor Data:

• System: Thrust bearing
• Efficiency: Max. 98%
• Enclosure Class: IPX8
• Insulation Class: F
• Water Temp: Max. 40°C
• Submersion: Max. 150m

Controller Data:

• Controller Type: Internal
• MPPT Efficiency: Max. 98%
• Enclosure Class: IP65
• Over-Load Protection: Active
• Losing-Phase Protection: Active
• Over Current Protection: Active

Motor Details:

• Power: 1200W
• Material: AISI 304
• Type: BLDC motor
• Feature: Encapsulated water filled
• Bearing: Thrust bearing system
• Current: Max. DC 15A
• Submersion: Max. 150m
• Water Temp: Max. 40°C
• Efficiency: Max. 85%
• Insulation Class: F
• Max Voltage: DC Max. VOC 100V
• Optimal Voltage: DC Best. Vmp 40-90V
• Max Speed (Plastic): 4500 RPM
• Max Speed (SS304): 4000 RPM
• Max Speed (Helical): 4000 RPM
• Enclosure Class: IPX8
• Required Cooling Flow: 0.5L/s

Controller Details:

• Type: Internal
• Voltage: 40-90Vmp/100Voc
• MPPT Efficiency: Max. 98%
• Enclosure Class: IP65
• Protection Type & Status (All On): Dry-Run, Reverse, Phase Loss, Over-Voltage, Low-Voltage, Over-Current, Over-Load, Over-Power, Over-Temperature, Stall.

What’s Included:

• 1* 3inch DC solar centrifugal pump with 1* 1.5m cable
• 1* Pump controller with MPPT function
• 1* Electric float switch for water tank
• 1* Waterproof adhesive tape
• 1* PVC electrical adhesive tape
• 1* PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels (Recommend using 550W solar panels in series.)
• A stainless steel wire (safety cable) to hold pump in bore.
• Poly pipe from pump to water tank.
• Pump outlet joint connector.
• Wire power cable (2 wires plus earth).

System Reference Notes:

• The Controller is IP65 Rated, however it is recommended that it is not mounted in direct sunlight.
• VOC (V) refers to Volts open circuit (nothing connected); Vmp (V) refers to Volts maximum power point under load.
• Exceeding limits may cause serious harm or irreparable damage.
