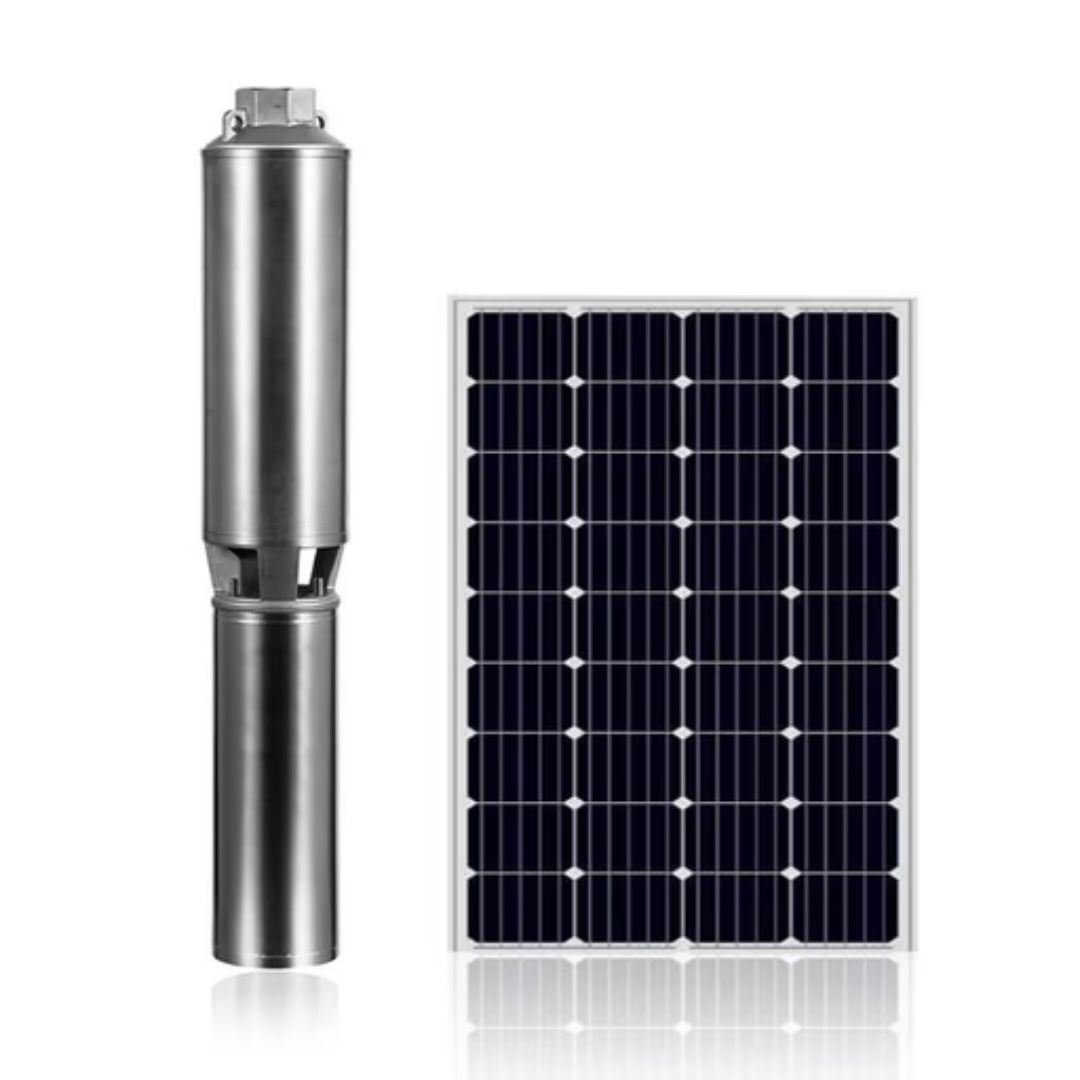

3-inch DC Solar Centrifugal Pump ARL-4SPN8-2P

3-inch DC Solar Centrifugal Pump ARL-4SPN8-2P

The 3-inch DC Solar Centrifugal Pump ARL-4SPN8-2P is a highly efficient 600W DC solar centrifugal pump system, engineered for a variety of water pumping applications. Constructed from durable AISI 304 stainless steel and featuring an encapsulated water-filled BLDC motor, this pump ensures long-lasting performance and environmental safety. With an internal MPPT controller, the system intelligently optimizes solar power input, allowing it to deliver a maximum head of 21 meters and a robust flow rate of 15.1 cubic meters per hour. The pump is designed for easy installation and includes comprehensive protection features to ensure reliable operation. While the controller is IP65 rated, it’s recommended to install it away from direct sunlight for optimal longevity.

Key Features:

• High-Efficiency 600W BLDC Motor: Provides powerful and efficient water pumping.
• Internal MPPT Controller: Maximizes solar power utilization for optimal performance.
• Durable AISI 304 Stainless Steel Construction: Ensures longevity and corrosion resistance.
• Encapsulated Water-Filled Motor: Designed for no pollution risk, promoting environmental safety.
• Comprehensive Protection Features: Includes dry-run, reverse connection, phase loss, over-voltage, low-voltage, over-current, over-load, over-power, over-temperature, and stall protection for enhanced system reliability.
• Thrust Bearing System: Contributes to smooth and stable operation.
• Soft Start Function: Extends the overall lifespan of the pumping system.
• Voltage/Current/Power/Speed Display: Allows for easy monitoring of system parameters.
• Minimum Well Diameter 3 inches: Compatible with various borehole sizes.
• 2-Year Warranty: Provides assurance and support.

Technical Specifications:

• Power: 600W (0.80HP)
• Max Head: 21 meters
• Max Flow: 15.1 m³/h
• Motor Type: BLDC, Encapsulated water filled, PMSM
• Motor Material: AISI 304 (316 Optional)
• Motor Efficiency: Max. 85%
• Motor Enclosure Class: IPX8
• Motor Insulation Class: F
• Max Water Temperature: 40°C
• Max Submersion: 150m
• Motor Current: Max. DC 15A
• Max Voltage: DC Max. VOC 100V
• Optimal Voltage: DC Best. Vmp 40-90V
• Max Speed (Plastic Impeller): 4500 RPM
• Max Speed (SS304/Helical Impeller): 4000 RPM
• Required Cooling Flow: 0.5L/s
• Controller Type: Internal with MPPT function
• Controller Voltage Range: 40-90Vmp/100Voc (DC Voltage Range: 40-90V)
• Controller MPPT Efficiency: Max. 98%
• Controller Enclosure Class: IP65
• Pump Outlet Size: 2 inches
• Pump Length: 0.63 m
• Pump Body Material: Stainless Steel 304
• Impeller Material: Plastic
• Impeller Type: Centrifugal
• Recommended Max Input (Solar Panels): 0.6KW (Recommend using 550W solar panels in series)
• Gross Weight: 10.5 KG
• Net Weight: 8.5 KG
• Dimension (Pump+Controller): 61*36*16 MM
• Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001

What’s Included:

• 1 x 3-inch DC solar centrifugal pump with 1.5m cable
• 1 x Pump controller with MPPT function
• 1 x Electric float switch for water tank
• 1 x Waterproof adhesive tape
• 1 x PVC electrical adhesive tape
• 1 x PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels.
• A stainless steel wire (safety cable) to hold the pump in the bore.
• Poly pipe from the pump to the water tank.
• Pump outlet joint connector.
• Wire power cable (2 wires plus earth).

Notes:

• Recommend using 550W solar panels in series.
• The Controller is IP 65 Rated; however, it is recommended that it is not mounted in direct sunlight.
• VOC (V) Volts open circuit nothing connected; Vmp (V) Volts maximum power point under load.
• Exceeding limits may cause serious harm or irreparable damage.
