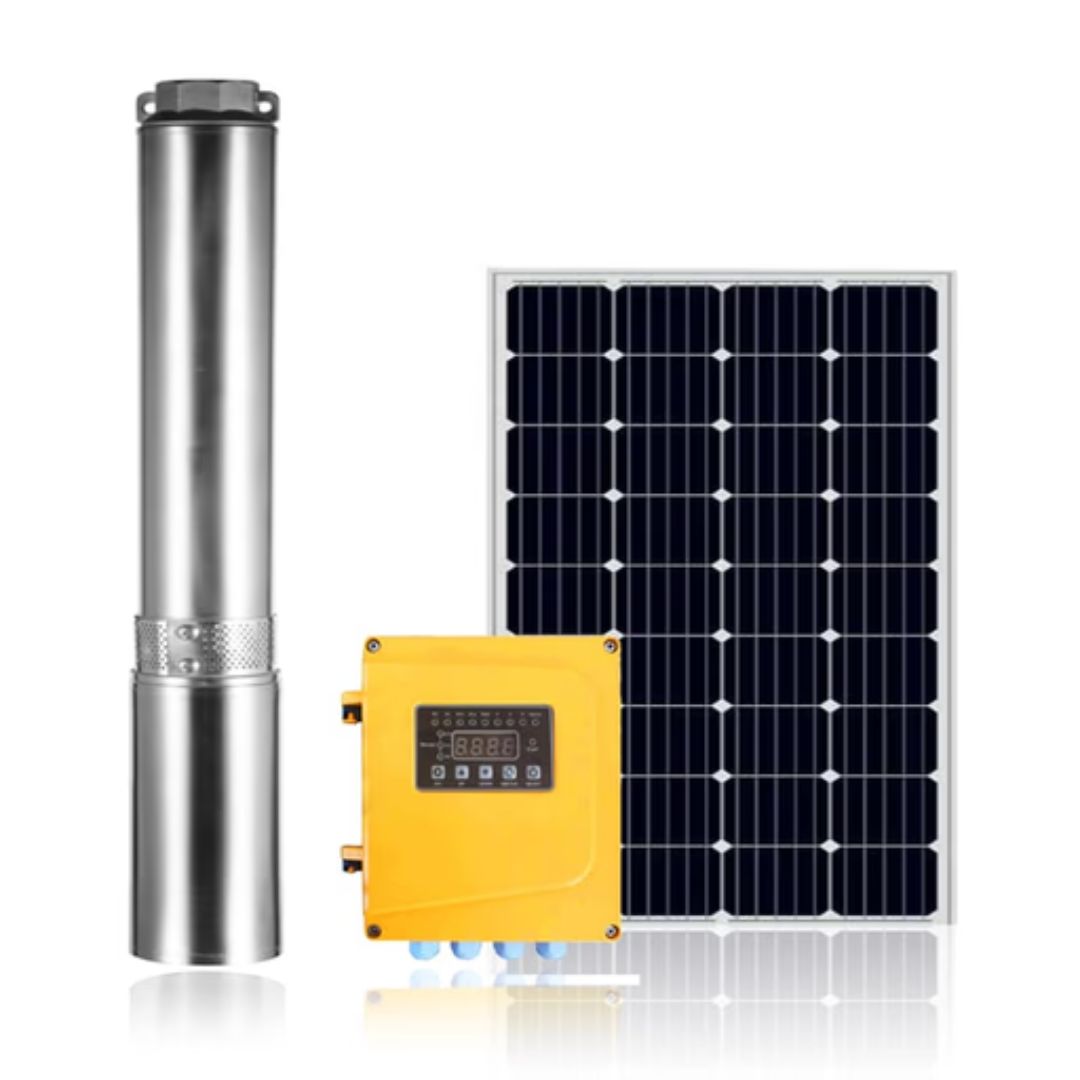

3-inch DC Solar Centrifugal Pump ARL-4SPW16-2P-A

3-inch DC Solar Centrifugal Pump ARL-4SPW16-2P-A

The 3-inch DC Solar Centrifugal Pump ARL-4SPW16-2P-A is an efficient 3-inch DC solar centrifugal pump designed for various water pumping needs. Featuring an 1800W / 2.41HP BLDC motor and an external MPPT controller, this pump provides a maximum head of 21 meters and a substantial flow rate of 27.8 cubic meters per hour. Constructed with a durable stainless steel 304 pump body and a plastic impeller, the ARL-4SPW16-2P-A utilizes an encapsulated water-filled motor for pollution-free operation and extended lifespan, further enhanced by its soft-start running and thrust bearing system. It’s powered by both AC and DC, offering versatile power options.

Key Features:

• High Efficiency Motor: Equipped with an 1800W / 2.41HP BLDC high-efficiency, encapsulated water-filled motor.
• Durable Construction: Features a stainless steel (AISI 304) pump body for corrosion resistance, with 316 stainless steel as an optional material for the pump end.
• External MPPT Controller: Includes an external controller with MPPT function for optimal solar power utilization and comprehensive protections (Dry-Run, Reverse, Phase Loss, Over-Voltage, Low-Voltage, Over-Current, Over-Load, Over-Power, Over-Temperature, Stall, Error Display). The controller is IP65 rated.
• Versatile Power Input: Supports both DC voltage (180-230V range) and AC voltage (150-240V range), offering flexibility in power sources.
• Comprehensive Protection: Offers a range of protective features including positive and negative pole reverse connection alarm, dry protection (no additional float sensor required), over-load, over-current, over-voltage, and low-voltage protection.
• Informative Display: The controller provides a clear display of voltage, current, power, and speed.
• Included Accessories: Comes with a 1* 3inch DC solar centrifugal pump with 1* 1.5m cable, 1* Pump controller with MPPT function, 1* Electric float switch for water tank, 1* Waterproof adhesive tape, 1* PVC electrical adhesive tape, and 1* PTFE tape.
• System Advantages: Includes a non-return valve, soft start running for extended system life, and a wide range of accessories.
• Certifications: CE, TUV, SUD, UL, ISO9001, ISO14001 certified.
• Warranty: 2 Years.

Technical Specifications:

• Product Model: ARL-4SPW16-2P-A
• Power: 1800W / 2.41HP
• Power Type: AC/DC
• Max Head: 21 meters
• Max Flow: 27.8 m³/h
• Outlet Size: 2 inches
• Impeller Material: Plastic
• Impeller Type: Centrifugal
• Pump Body Material: Stainless Steel 304
• Motor Type: Water-Filled, PMSM / BLDC motor
• Motor Material: AISI 304
• Insulation Class: F
• Enclosure Class (Motor): IPX8
• Enclosure Class (Controller): IP65
• DC Voltage Range: 180-230V
• AC Voltage Range: 150-240V
• Optimal Voltage (Controller): 40-90Vmp/100Voc
• Max Voltage (Motor): DC Max. VOC 100V
• Optimal Voltage (Motor): DC Best. Vmp 40-90V
• Max DC Current: 15A
• Max Submersion: 150m
• Max Water Temperature: 40°C
• Motor Efficiency: Max. 85%
• Controller MPPT Efficiency: Max. 98%
• Required Cooling Flow (Motor): 0.5L/s
• Max Speed (Plastic Impeller): 4500 RPM
• Max Speed (SS304 Impeller): 4000 RPM
• Max Speed (Helical Impeller): 4000 RPM
• Recommended Max Input (System): Max. 0.6kW
• Minimum Well Diameter: Min. 3 inches
• Pump Discharge: Rp 1.25
• System Efficient Max: 98%
• Bearing System: Thrust bearing system
• Gross Weight (Pump+Controller): 10.5 KG
• Net Weight (Pump+Controller): 8.5 KG
• Dimension (Pump+Controller): 61mm x 36mm x 16mm

What’s Included:

• 1* 3inch DC solar centrifugal pump with 1* 1.5m cable
• 1* Pump controller with MPPT function
• 1* Electric float switch for water tank
• 1* Waterproof adhesive tape
• 1* PVC electrical adhesive tape
• 1* PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels (Recommend using 550W solar panels in series).
• A stainless steel wire (safety cable) to hold pump in bore.
• Poly pipe from pump to water tank.
• Pump outlet joint connector.
• Wire power cable (2 wires plus earth).

Notes:

• The Controller is IP 65 Rated; however, it is recommended that it is not mounted in direct sunlight.
• VOC (V) Volts open circuit nothing connected; Vmp (V) Volts maximum power point under load.
• Exceeding limits may cause serious harm or irreparable damage.
