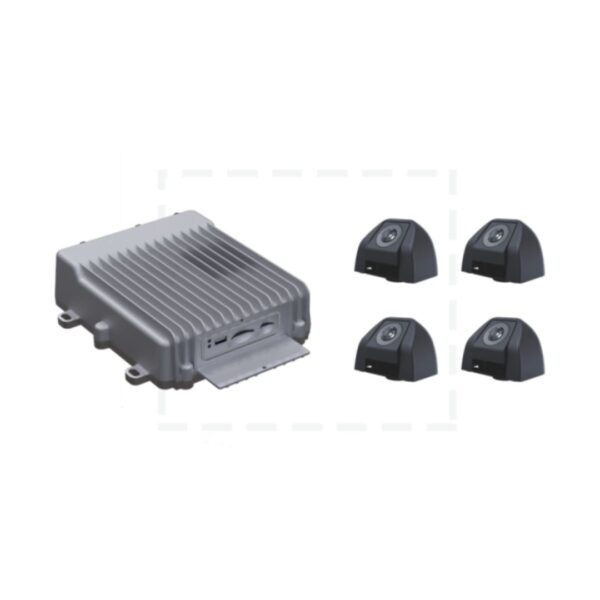

3D 360° Around View Camera System with BSD (ARL-MS-619Q)

3D 360° Around View Camera System with BSD (ARL-MS-619Q)

The 3D 360° Around View Camera System provides a comprehensive 360° panoramic bird’s-eye view, effectively eliminating blind spots and significantly enhancing driving safety. This advanced system allows drivers to intuitively perceive the vehicle’s position and surrounding obstacles, enabling confident maneuvering and navigation through complex road conditions. By providing a complete visual perspective, it significantly reduces the risk of scratches, collisions, and traffic accidents.

Key Features:

• HD 360 Panoramic View: Offers a complete bird’s-eye view of the vehicle’s surroundings.
• 2D/3D Optional Display: Provides flexible viewing modes based on user preference.
• Advanced Algorithms & Splicing: Ensures seamless and accurate stitching of camera feeds for a unified panoramic view.
• Integrated BSD Functionality: Combines 4-channel 360 surround view with a 2-channel BSD (Blind Spot Detection) system for enhanced safety.
• AHD High-Definition Video Input: Supports high-quality video input with PAL/NTSC compatibility.
• Video Recording Function: Allows for recording of the surround view and BSD feeds.
• Configurable Video Output: Supports AHD, CVBS, and VGA video output formats with adjustable frame rates.
• Dual CAN & I/O Trigger Lines: Features 2 channels of built-in CAN and 3 channels of I/O trigger lines for versatile integration.
• USB & Infrared Operation: Supports USB system upgrades, USB mouse operation, and infrared remote control operation.
• Customizable Interface: Allows for customization of the startup screen, car model display, and multiple language options.
• Robust Camera Design: Special camera design tailored for commercial vehicles, offering waterproof, anti-shock, anti-collision, moisture-proof, and anti-corrosion properties.
• Secure Connections: Utilizes car-grade sockets, aviation adapter cables, and extension cables for firm and reliable connections.
• Comprehensive Protection: Features over-current, reverse connection, and short-circuit protection for system safety.

Technical Specifications:

• View: 360° Panoramic Bird-View
• Display: 2D/3D Optional
• Video Input: 4-channel 360 Surround View + 2-channel BSD, AHD High-Definition, PAL/NTSC
• Recording: Supported
• Video Output: AHD, CVBS, VGA (configurable frame rate)
• CAN: 2 Built-in Channels
• I/O Trigger Lines: 3 Channels
• Upgrade/Operation: USB System Upgrade, USB Mouse Operation, Infrared Remote Control
• Customization: Startup Screen, Car Model, Multiple Languages
• Camera Features: Waterproof, Anti-shock, Anti-collision, Moisture-proof, Anti-corrosion (Commercial Vehicle Grade)
• Connectors: Car-grade Sockets, Aviation Adapter Cables, Extension Cables
• Protection: Over-current, Reverse Connection, Short-circuit

Warranty and Support:

• 18 months warranty.
• Prompt and full set after-sales service.

This 3D 360° Around View Camera System with integrated Blind Spot Detection offers a comprehensive safety solution, providing drivers with a complete visual understanding of their surroundings to prevent accidents and damage.
