    4 Ton Electric Forklift ARL-CPD40

    • Warranty Period: 12 months or 2000 working hours
    • Lead Time: 3 To 6 Weeks
    • Load Capacity: 4 Ton
    • Flexible Operation
    • Free-maintenance Guidance
    • Zero-pollution Emissions
    • High Efficiency
    • Certifications: Europe EN Standard; ISO, CE, EU Certificates
    11 People watching this product now!

    Contact Now
    Call Now Or WhatsApp
    Enquire Now
    Add to wishlist
    SKU: ARL-CPD40 Categories: ,

    🥳 Get 10%* Off on Manual Stackers

    Use the coupon code ARL10 at checkout to get 10%* off the Robust Manual Pallet Stacker.

    All products

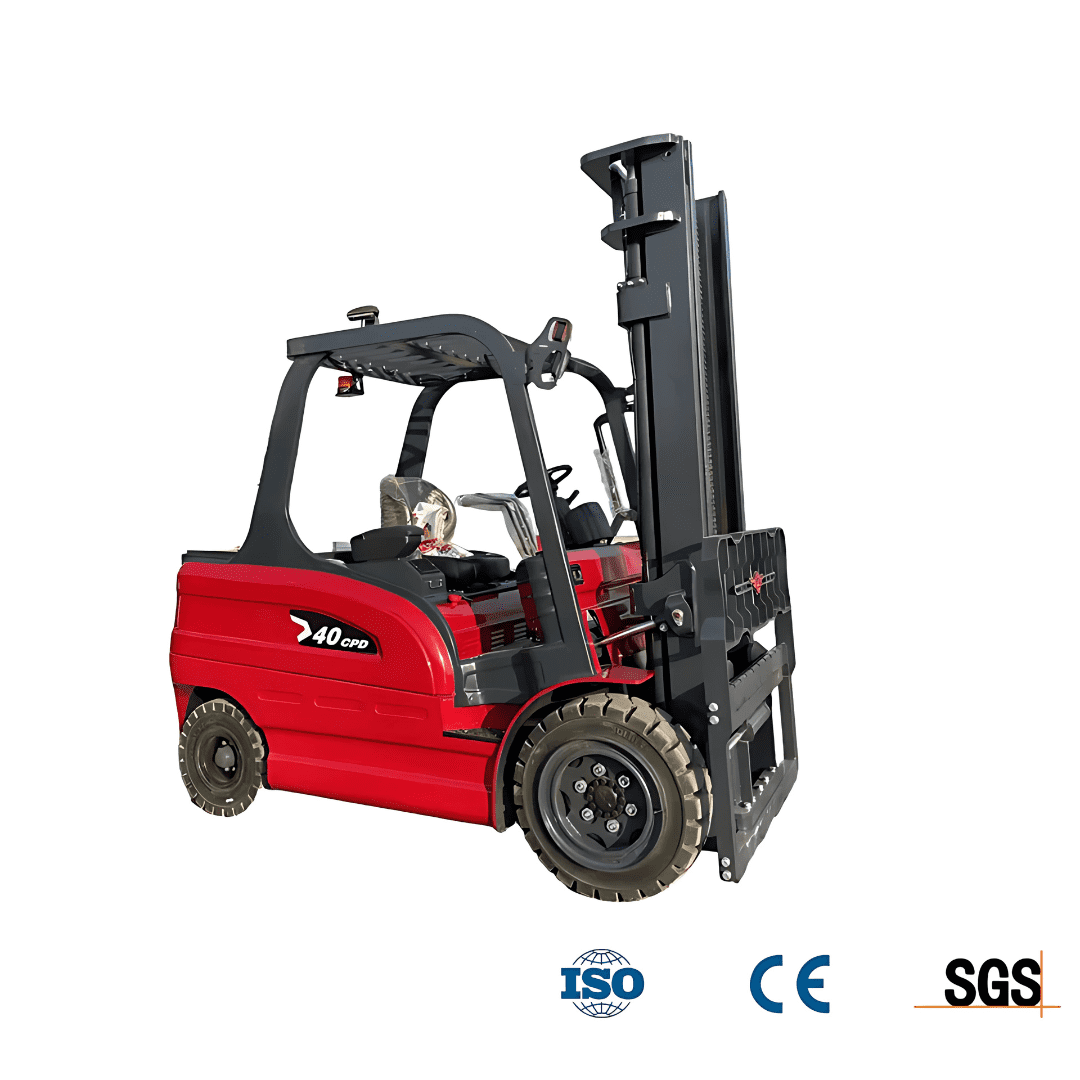

    4 Ton Electric Forklift ARL-CPD40

    This 4 Ton Electric Forklift offers a powerful and environmentally conscious solution for material handling needs. Designed for flexible operation, it provides free-maintenance guidance and boasts zero-pollution emissions, making it an eco-friendly choice for indoor and outdoor tasks. The forklift delivers high efficiency in its operations. It meets European EN Standard, holding ISO, CE, and EU Certificates, and has various utility model patents. OEM/ODM options are also accepted.

    Key Features:

    • Load Capacity: 4 Ton
    • Flexible Operation
    • Free-maintenance Guidance
    • Zero-pollution Emissions
    • High Efficiency
    • Certifications: Europe EN Standard; ISO, CE, EU Certificates
    • Patents: Various Utility Model Patents
    • OEM/ODM Acceptance

    Warranty & Support:

    • Warranty Period: 12-month or 2000 working hours
    • Support During Warranty: Technical and spare parts support for defects or quality problems.
    • Online Service: 7×24 online service available to ensure equipment is in excellent working condition.
    • Spare Parts: Diding provides genuine spare parts of Full Electric Pallet Stacker with high quality and good price.
    • Spare Parts Network: Strong spare parts support network in China for continuous parts support with fast delivery and on-time service.
    • Guarantee: Spare parts requests are handled quickly and appropriately.
    Technical parameter of 4 Ton Electric Forklift ARL-CPD40
    Feature
    Model ARL-CPD40
    Power type Electric
    Operation Way Seat
    Load Capacity Q kg 4000
    Load Center C mm 600
    Overhang X mm 460
    Axles Distance y mm 1885
    Weight
    Weight（with Battery） kg 5300
    Wheels
    Tyre Solid Tyre
    Drive wheel size (diameter × Width) mm 250-15
    Steering wheel size (diameter × Width) mm 23X10-12
    Number of driving wheels and steering wheels (x= driving wheels) mm 2X/2
    Driving wheel tread b10 mm 1140
    Steering wheel tread b11 mm 1080
    Dimension
    Mast Tilting Degree α/ β (°) 5/9
    Height of mast closed h1 mm 2310
    Standard Lifting Height h3 mm 3000
    Max. height when mast extended h4 mm 4250
    Overhead guards height h6 mm 2260
    Height of seat h7 mm 1180
    Center height of traction pin h10 mm 620
    Overall length with fork l1 mm 4195
    Overall length without fork l2 mm 2920
    Overall width b1/ b2 mm 1360
    Fork size s/ e/ l mm 50X150X1220
    Outer width of fork rack b3 mm 1290
    Ground clearance of mast (full load) m1 mm 175
    Min. ground clearance of vehicle body m2 mm 160
    Aisle width (tray 1200 ×  1000) Ast mm 4420
    Aisle width (tray 800 ×  1200) Ast mm 4600
    Turning radius Wa mm 2720
    Performance
    Travel speed,  full load/no load km/ h 12/13.5
    Lifting speed,  full load/no load m/ s 0.28/0.4
    Descent speed, full load/no load m/ s 0.45/ 0.4
    Max.grade capacity, full load/no load % 15
    Brake Type Hydraulic+Mechanical
    Park Type Mechanical
    Motor
    Drive motor kW 12
    Lifting motor kW 13.5
    Battery Ah 80V400 Lead Acid
    Drive controlling type AC
