5 INCH WIRELESS BACKUP CAMERA SYSTEM ARL-MS-508RSW

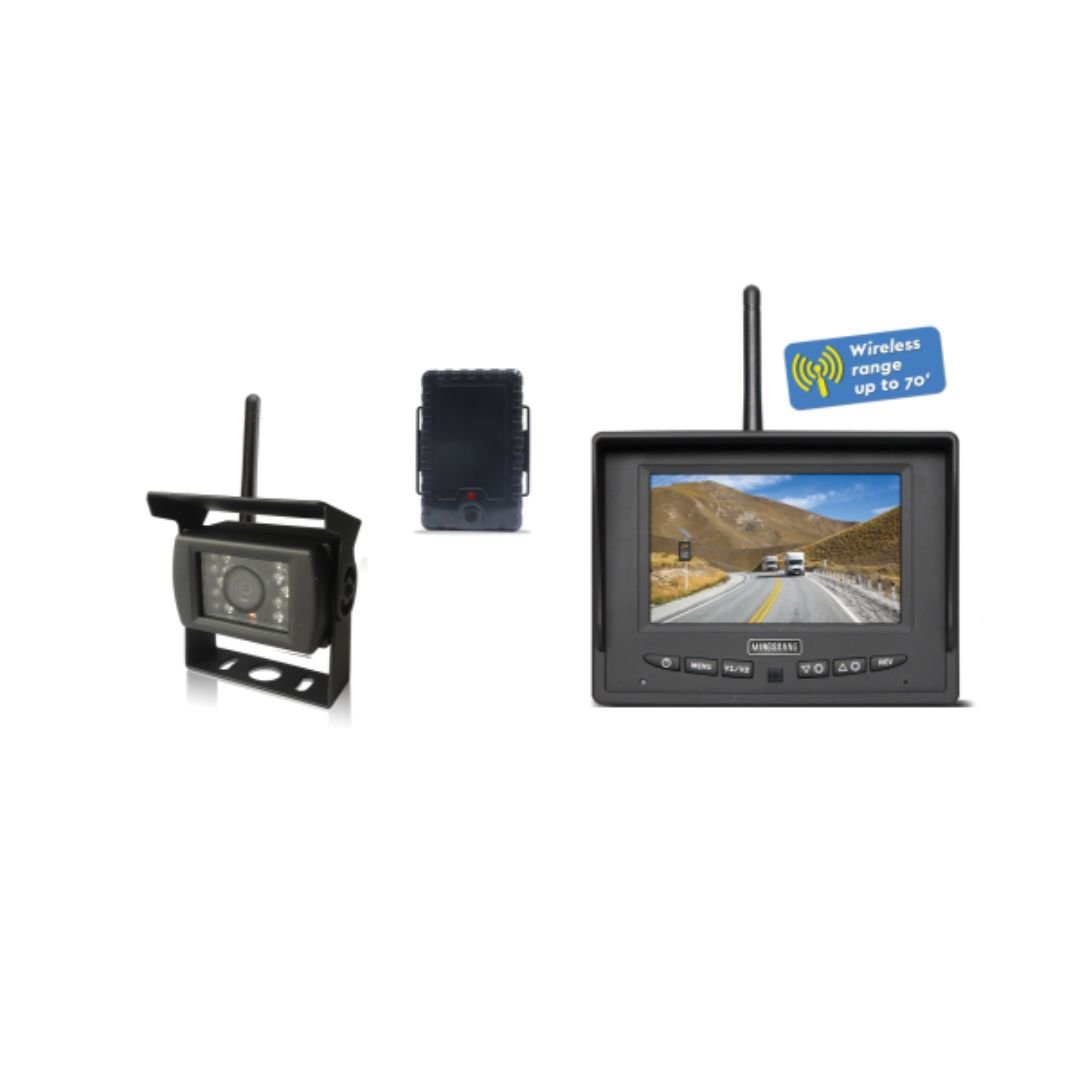

5 INCH WIRELESS BACKUP CAMERA SYSTEM (ARL-MS-508RSW)

The ARL-MS-508RSW is a compact and reliable wireless backup camera system featuring a high-performance digital wireless color camera. 5 INCH WIRELESS BACKUP CAMERA SYSTEM (ARL-MS-508RSW) utilizes digital wireless transmission within the 2400-2500MHz frequency band. The monitor supports automatic NTSC/PAL video system detection and offers a clear display with a resolution of 480 x 272. It features a 16:9 screen mode and a wide field of view. The system supports automatic pairing between the monitor and camera. Both the monitor and camera are designed to operate in a wide temperature range and are built to withstand humid environments. The included color camera boasts an effective pixel array of 976 x 496, a wide-angle lens, and an IP69K waterproof rating for excellent durability. It also features automatic white balance and IR control for optimal image quality in various lighting conditions.

Key Features:

Compact 5 Inch Monitor: Bright LED digital panel display.
Reliable Digital Wireless: Interference-free transmission within 2.4-2.5GHz.
Long Wireless Range: Up to 300 meters in open areas.
Automatic Pairing: Simple and quick setup.
Dual Video Input: Supports connection of up to two wireless cameras.
Wide Viewing Angle: Monitor offers excellent visibility.
Durable Camera: IP69K waterproof rating for harsh environments.
Excellent Image Quality: High-resolution color camera with automatic adjustments.
Wide Operating Voltage: Both monitor and camera support DC 10-32V.

Technical Specifications:

Wireless Monitor:

Feature	Specification
Panel Size	5” LED Digital Panel
Video System	NTSC / PAL Automatic detection
Resolution	480 X 3 (RGB) X272
Brightness	350 cd/㎡
Contrast Ratio	500:1
Screen Mode	16:9
Field of View (U/D/L/R)	Top 50° / Bottom 70° / Left 70° / Right 70°
Audio Output	Optional: 0.5W speaker
Dot Pitch	0.077(W) × 0.231(H) mm
Active Area	110.000(W) × 62.832(H) mm
Power Input	DC 10-32V
Operating Temp.	-20°C ~ +70°C RH 90% MAX
Storing Temp.	-30°C ~ +80°C RH 90% MAX
Frequency	2400-2500MHZ
Transmission Type	Digital Wireless
Transmission Range	300m (barrier-free)
Video Input	2 channel
Video Source	1VP-P 75Ω
AUTO Pair	Yes
Power Consumption	About 4W
Power Supply	DC9-32V

Wireless Camera:

Feature	Specification
Camera Type	1099 Color Camera
Video System	Internal
Effective Pixel Array	976 (H) x 496(V)
Camera Correction	R=0.45-1.0
Lens	F=2.5mm
Waterproof Rate	IP69K
Power Consumption	About 3.5W(IR ON)
Power Input	DC10-32V
Operating Temp.	-20°C ~ +70°C RH 90% MAX
Storing Temp.	-30°C ~ +80°C RH 90% MAX
Frequency	2400-2500MHZ
Transmission Type	Digital Wireless
Transmission Range	300m (barrier-free)
Video Source	1VP-P 75Ω
S/N Ratio	More than 48 DB
White Balance	Auto
IR Control	Auto
