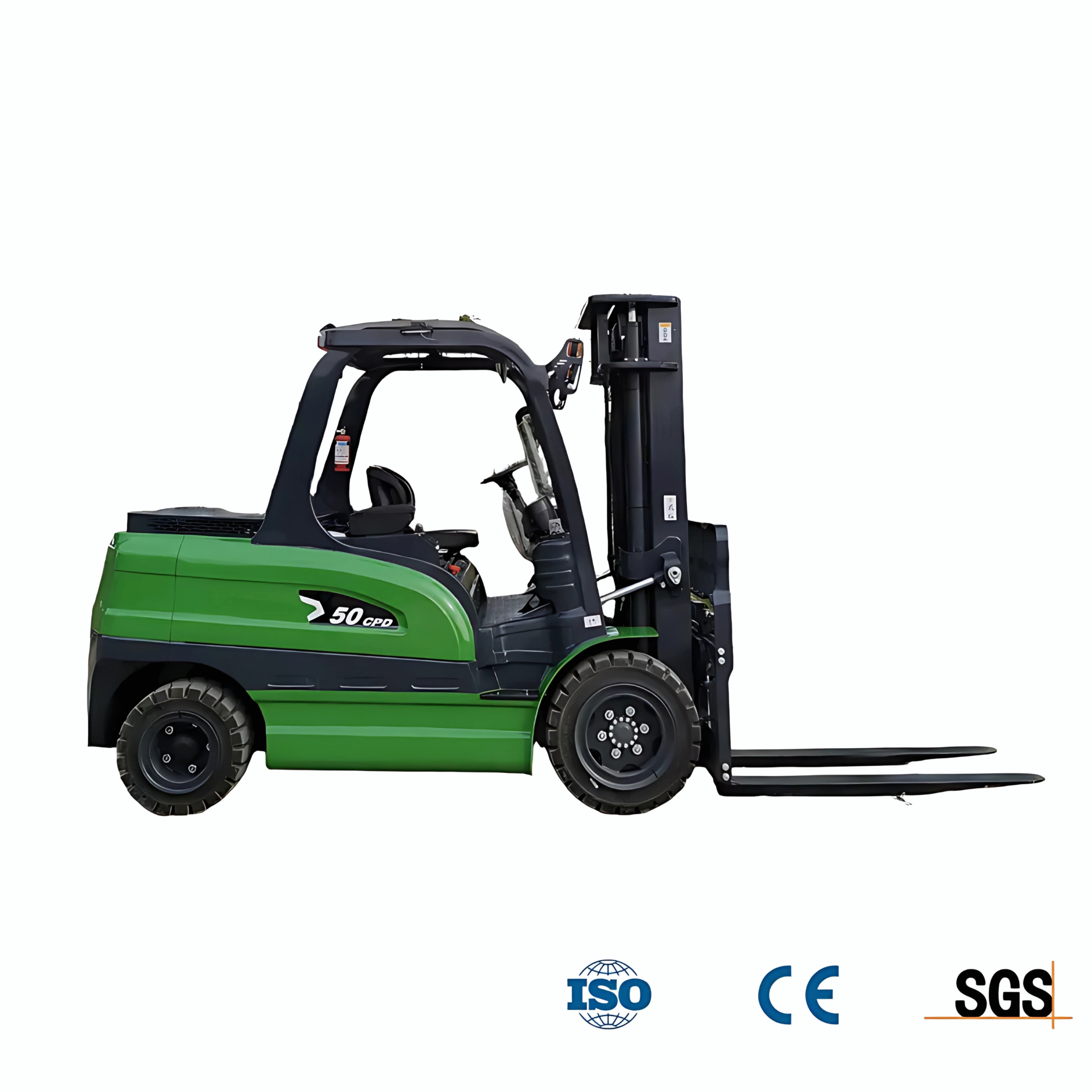

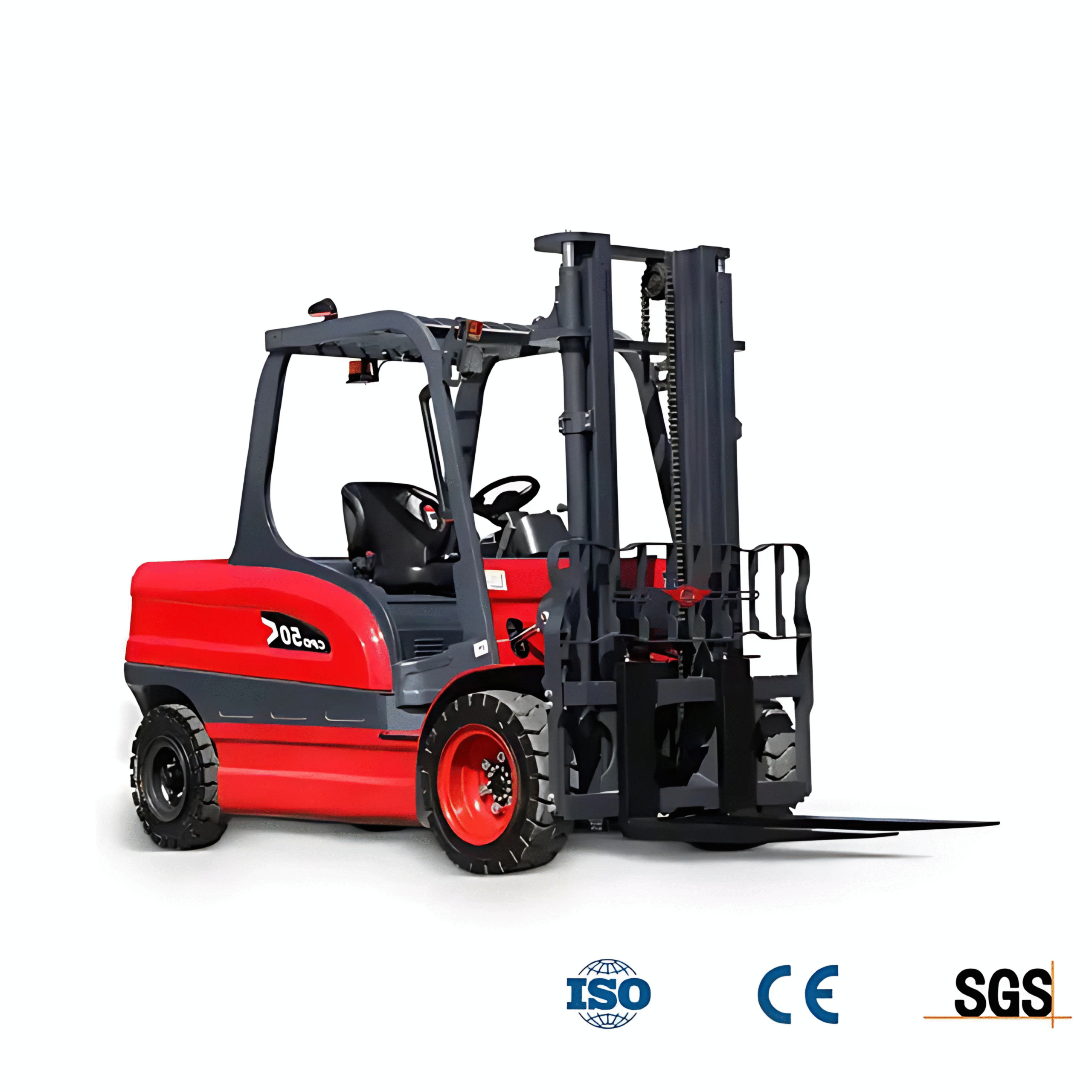

5 Ton Electric Forklift ARL-CPD50
The 5 Ton Electric Forklift ARL-CPD50 is an advanced and environmentally friendly solution for heavy-duty material handling. It is designed for flexible operation and offers free-maintenance guidance. This forklift boasts zero-pollution emissions and high efficiency, making it an ideal choice for sustainable operations. The product adheres to stringent quality standards, including Europe EN Standard, ISO, CE, and EU Certificates, and benefits from various utility model patents. OEM/ODM services are also available
Key Features:
- Load Capacity: 5 Ton
- Flexible Operation
- Free-maintenance Guidance
- Zero-pollution Emissions
- High Efficiency
- Certifications: Europe EN Standard; ISO, CE, EU Certificates
- Patents: Various Utility Model Patents
- OEM/ODM Acceptance
Warranty & Support:
- Warranty Period: 12-month or 2000 working hours
- Support During Warranty: Technical and spare parts support for defects or quality problems.
- Online Service: 7X24 online service is ready to ensure equipment in excellent working condition.
- Spare Parts: Genuine spare parts for Full Electric Pallet Stacker are provided with high quality and good price.
- Spare Parts Network: Strong spare parts support network in China ensures continuous parts support with fast delivery and on-time service.
- Guarantee: Spare parts requests will be handled quickly and appropriately.
Technical parameter of 5 ton electric forklift
| Feature | Model No. | | ARL-CPD50 |
| Power type | | Full-electric |
| Operation type | | Seated type |
| Load capacity | Q(kg) | 5000 |
| Load center | C(mm) | 500 |
| Front overhang | X(mm) | 460 |
| wheelbase | Y(mm) | 2080 |
| Weight | Total weight(including battery) | kg | About 5600 |
| Axle load (full load), drive wheel / steering wheel | kg | 1015/1333 |
| Axle load (no load), drive wheel / steering wheel | kg | 3493/3855 |
| Wheel | Tire type | | Solid tire |
| Drive wheel size (diameter × Width) | mm | 28×9-15 |
| Steering wheel size (diameter × Width) | mm | 700-12 |
| Number of driving wheels and steering wheels (x= driving wheels) | mm | 2X/2 |
| Driving wheel tread | b10(mm) | 1120 |
| Steering wheel tread | b11(mm) | 1100 |
| Size | Height of mast closed | h1(mm) | 2250 |
| Free-lifting height | h2(mm) | 100 |
| Lifting height | h3(mm) | 3000 |
| Max. height when mast extended | h4(mm) | 4200 |
| Overhead guards height | h6(mm) | 2250 |
| Height of seat | h7(mm) | 1208 |
| Center height of traction pin | h10(mm) | 375 |
| Overall length with fork | l1(mm) | 4020 |
| Overall length without fork | l2(mm) | 2950 |
| Overall width | b1(mm) | 1320 |
| Fork size | s/e/l(mm) | 55X150X1220 |
| Outer width of fork rack | b3(mm) | 1350 |
| Ground clearance of mast (full load) | m1(mm) | 130 |
| Min. ground clearance of vehicle body | m2(mm) | 140 |
| Channel width (tray 1200 ×  1000) | Ast(mm) | 4450 |
| Channel width (tray 800 ×  1200) | Ast(mm) | 4650 |
| Turning radius | Wa(mm) | 2750 |
| Tilt angle (front/rear) | α/ β (°) | 5/9 |
| Performance | Travel speed, Â full load/no load | km/h | 12/13.5 |
| Lifting speed, Â full load/no load | m/s | 0.26/0.4 |
| Descent speed, full load/no load | m/s | 0.45/ 0.4 |
| Max.grade capacity, full load/no load | % | 14/15 |
| Brake | | Hydraulic + mechanical |
| Motor | Drive motor | kw | 18 |
| Lifting motor | kw | 21.5 |
| Battery type | | Lead acid |
| Battery capacity | V/Ah | 80V/700Ah |
| Other | Drive controlling type | | AC |
| Driver’s ear noise level according to en12053 | dB(A) | 75 |
