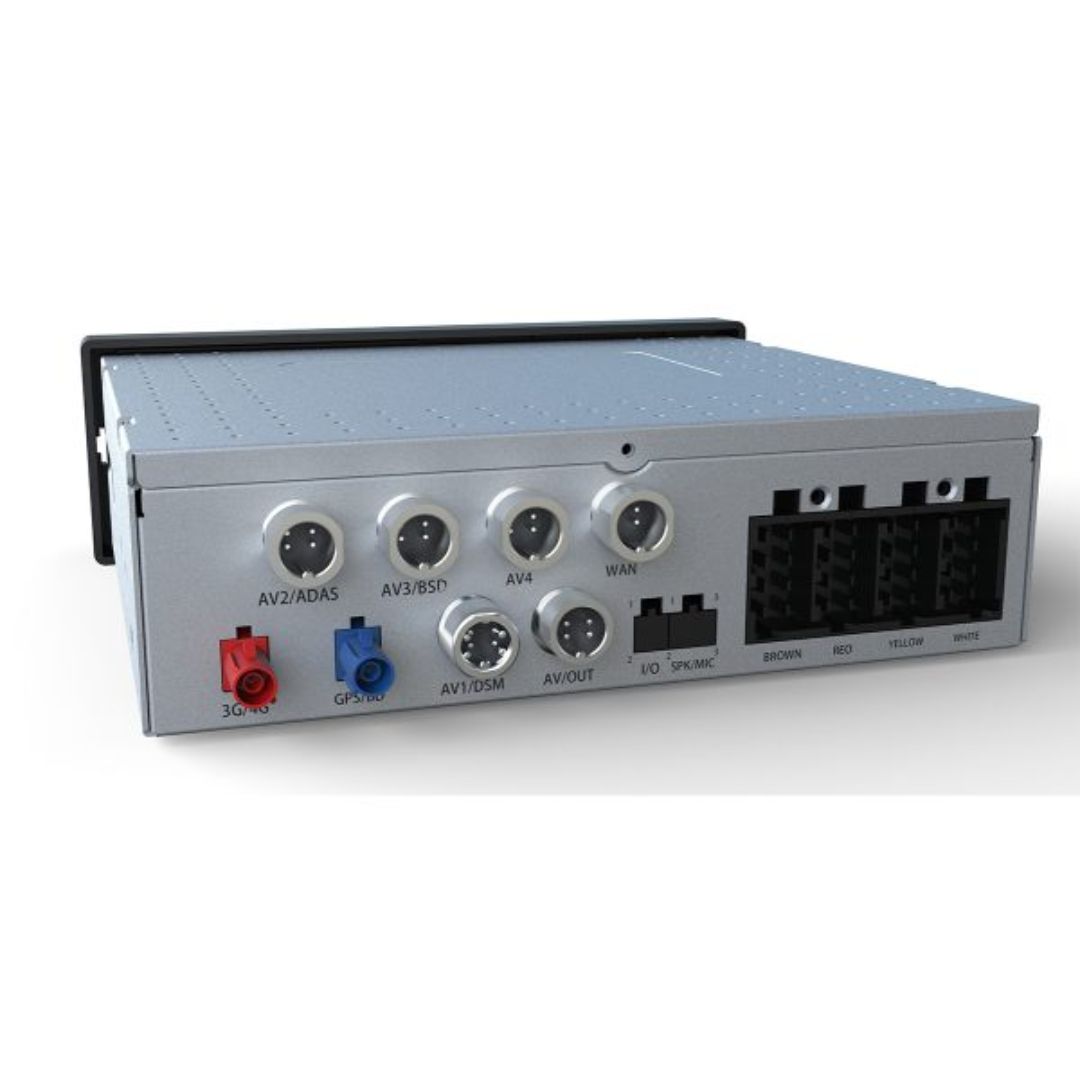

6-Channel Video + ADAS + DSM + BSD Four-in-One Machine ARL-MS-585

 6-Channel Video + ADAS + DSM + BSD Four-in-One Machine (ARL-MS-585)

The MS-585 is a cutting-edge, feature-rich mobile DVR system compliant with the national standard GB/T 19056-2021, integrating 6 channels of high-definition video recording with advanced driver assistance (ADAS), driver status monitoring (DSM), and blind spot detection (BSD) functionalities in a single unit. 6-Channel Video + ADAS + DSM + BSD Four-in-One Machine (ARL-MS-585) supports up to 6 video channels (optional 1 channel IPC) with a flexible configuration of 4 channels at 720P and 2 channels at 1080P, utilizing the efficient H.265 compression standard. Built on a highly integrated single-chip motherboard, the MS-585 offers exceptional stability and reliability. Its powerful algorithm processing capabilities drive the integrated intelligent early warning systems for ADAS, DSM, and optional BSD or HOD (Hands-Off Detection). The system supports convenient O&W debugging and maintenance. It accepts various video inputs including AHD/TVI/CVI/IPC/Analog and allows for vertical and horizontal mirror adjustment, as well as reversing image ranging assistance.

Key Features:

• GB/T 19056-2021 Compliant: Meets national standards for vehicle video recording systems.
• 6 CH HD Video Input: Supports up to 6 channels of high-definition video with optional 1 CH IPC.
• Flexible Resolution Support: Compatible with 4 CH 720P + 2 CH 1080P recording.
• Efficient H.265 Compression: Provides high-quality video with reduced storage requirements.
• Integrated Single-Chip Motherboard: Ensures high stability and reliability.
• Four-in-One Functionality: Combines video recording with ADAS, DSM, and optional BSD/HOD.
• Powerful Algorithm Processing: Drives advanced intelligent early warning systems.
• O&W Debugging & Maintenance: Supports Over-the-Air and Wired debugging and maintenance.
• Versatile Video Inputs: Compatible with AHD/TVI/CVI/IPC/Analog cameras.
• Video Mirror Adjustment: Supports vertical and horizontal image mirroring.
• Reversing Image Assistance: Provides ranging assistance when reversing.
• Built-in Bluetooth: Enables wireless connectivity.
• IC Card Sign-in: Supports driver identification via IC cards.
• Wide Power Input: Professional in-vehicle power design supports 8-36V DC.
• Comprehensive Power Protection: Includes under-voltage, short circuit, and reversed plug-in protection.
• Smart Power Management: Features low voltage shutdown and low standby power consumption.
• Secure File Management: Encrypts and protects recorded data.
• Proprietary SD Card Protection: Detects bad tracks and extends SD card lifespan.
• Built-in Ultra Capacitor: Prevents data loss and SD card damage during sudden power drops.
• Large Storage Capacity: Supports up to 2TB HDD and 256GB SD cards.
• Advanced Driver Assistance System (ADAS): Includes collision, vehicle distance, and lane departure warnings.
• Driver Status Monitoring System (DSM): Detects fatigue, distraction, smoking, phone calls, infrared blocking sunglasses, driver abnormality, obstruction, driver comparison, etc.
• Blind Spot Monitoring System (BSD) (Optional): Provides 3 levels of alarm classification.
• Hands-Off Detection System (HOD) (Optional): Detects playing mobile phone, hands off the steering wheel, and seat belt usage.

Technical Specifications:

• Video Channels: Up to 6 (4 CH HD + 2 CH FHD, Optional 1 CH IPC)
• Video Compression: H.265
• Video Inputs: AHD/TVI/CVI/IPC/Analog
• Storage: Up to 2TB HDD + Up to 256GB SD Card
• Power Input: 8-36V DC
• ADAS: Built-in (Collision Warning, Vehicle Distance Warning, Lane Departure Warning)
• DSM: Built-in (Fatigue, Distraction, Smoking, Phone Call, etc.)
• BSD: Optional (3-Level Alarm)
• HOD: Optional (Mobile Phone, Hands Off, Seat Belt)
• Bluetooth: Built-in
• IC Card: Supported

Warranty and Support:

• 18 months warranty.
• Prompt and full set after-sales service.

This 6-channel four-in-one machine offers a comprehensive safety and monitoring solution for vehicles, integrating advanced video recording with intelligent driver assistance and safety features.
