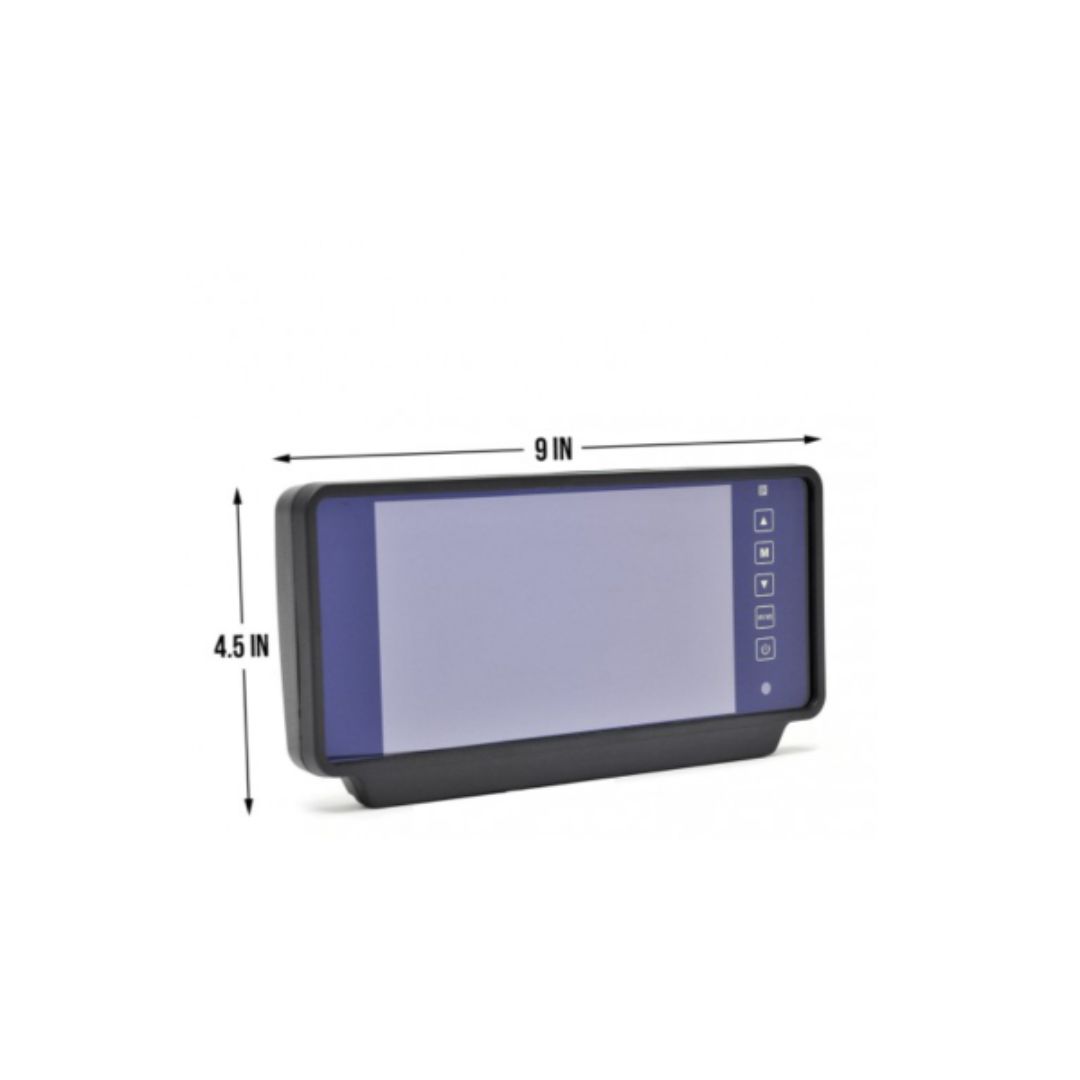

7″ Digital Color LCD Quad Mirror Monitor with Touch Screen (ARL-MS-758Q)

The ARL-MS-758Q is a 7-inch digital color LCD mirror monitor designed to support up to four video channels. 7″ Digital Color LCD Quad Mirror Monitor with Touch Screen (ARL-MS-758Q) features a 16:9 picture display format and a versatile quad system, offering single, dual, triple, and quad image viewing options. The monitor automatically detects PAL and NTSC video systems and provides a contrast ratio of 500:1 with a brightness of 400cd/m2. An IR remote control is included for convenient operation. It operates on a wide power supply range of DC10-36V and includes one channel of audio. The operating temperature range is -25℃ to +70℃, with a storage temperature range of – 30℃ to + 80℃. Users can easily select between full image, 2 images, 3 images, or 4 images display modes.

This 7-inch digital mirror monitor also features a responsive touch screen with a resolution of 800 x 3(RGB) x 480. It offers a brightness of 350 cd/㎡ and a contrast ratio of 300:1. The monitor is designed for a wide operating temperature range of -30℃ to 80℃ and supports both 16:9 and 4:3 picture display formats. Five touch keys provide quick access to the menu. The system automatically detects PAL/NTSC video signals. Its dimensions are 175mm (W) x 128mm (H) x 22mm (T). It utilizes a USA Techwell car regulation dedicated digital video processor and has a low power consumption of under 500mA with a built-in 24V system. The display features three video frequency inputs (AV1, AV2, AV3) with automatic/manual switching. The software includes a trigger delay for left and right side cameras and comes with an original bracket for installation. The on-screen display (OSD) menu supports nine languages.

Key Features:

7″ Digital Color LCD Mirror Monitor with Touch Screen
Supports 4 Video Channels
Quad Display System (Single, Dual, Triple, Quad)
Automatic PAL/NTSC Detection
Good Brightness and Contrast
IR Remote Control
Wide Voltage Input (DC10-36V)
1 Channel Audio
Multiple Image Display Options
Responsive Touch Screen Interface
High-Quality Digital Video Processor
Trigger Delay for Side Cameras
Includes Original Bracket
9 Language OSD Menu

Technical Specifications:

Feature	Specification
Model	ARL-MS-758Q
Screen Size	7 inch
Display Type	Digital Color LCD Mirror Monitor with Touch Screen
Video Input	4 Channels (3 Inputs Available)
Picture Display Format	16:9 (Supports 4:3)
Display Modes	Single, Dual, Triple, Quad
Video System	PAL, NTSC Automatically
Contrast Ratio	500:1 (Listed as 300:1)
Brightness	400cd/m2 (Listed as 350 cd/㎡)
IR Remote Control	Yes
Power Supply	DC10-36V (Built-in 24V)
Audio Input	1 Channel
Operation Temperature	-25℃ ~ +70℃ (Listed as -30℃~80℃)
Storage Temperature	– 30℃ ~ + 80℃
Resolution	800 x 3 (RGB) x 480
Touch Screen	Yes
Touch Keys	5 for menu
Video Processor	USA Techwell car regulation dedicated
Power Consumption	< 500mA
Video Input Switching	Automatic/Manual (AV1, AV2, AV3)
Trigger Delay	For left and right side cameras
Bracket	Original bracket included
OSD Menu Languages	9 languages
