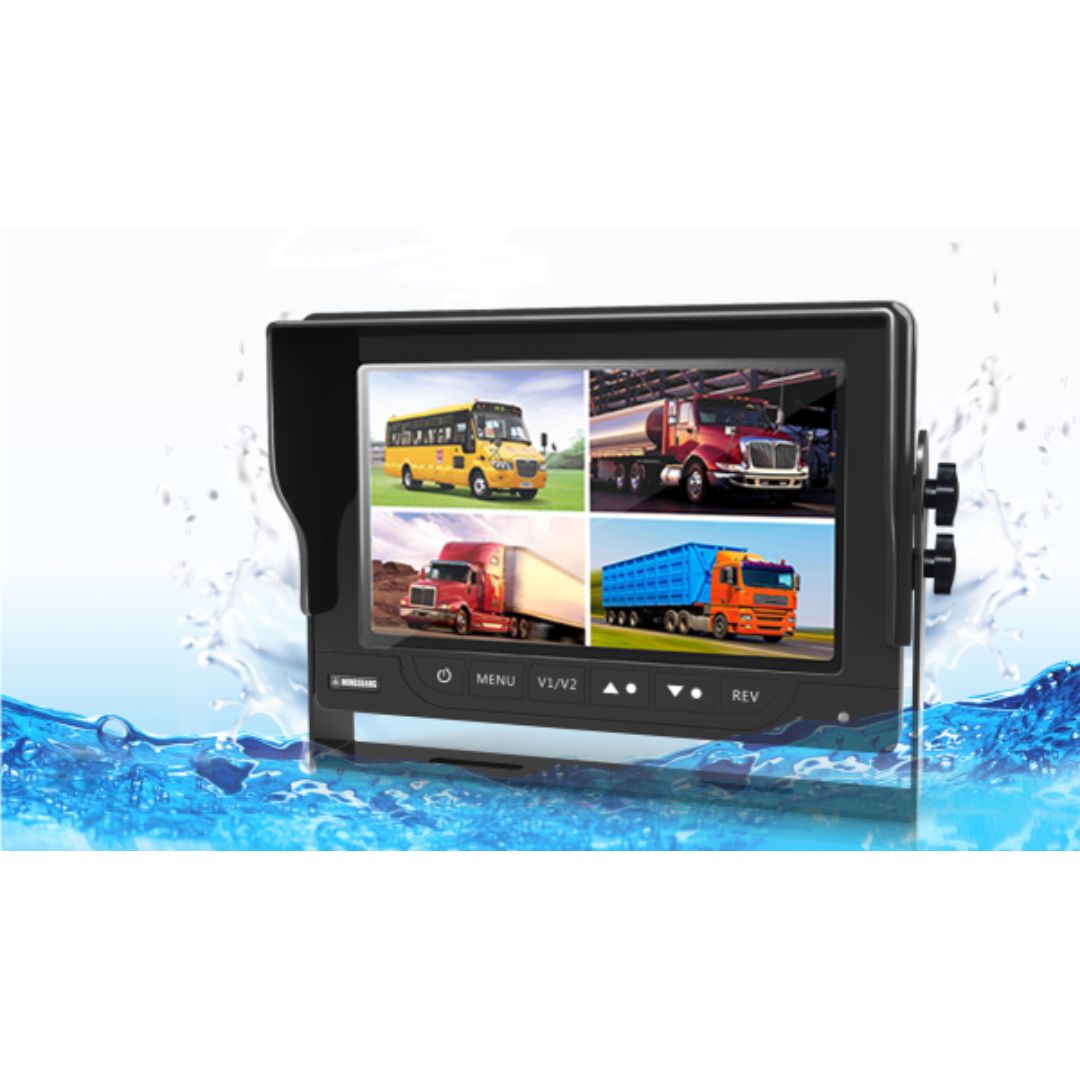

7″ Waterproof HD Quad View Monitor with Auto Switching – 4-Channel 1080P Support ARL-MS-716HDQ

The ARL-MS-716HDQ is a rugged 7-inch waterproof HD monitor designed for industrial and outdoor applications, supporting a wide input voltage range of 10VDC to 36VDC. 7″ Waterproof HD Quad View Monitor with Auto Switching – 4-Channel 1080P Support (ARL-MS-716HDQ) features 4 camera inputs and corresponding trigger inputs, enabling comprehensive multi-camera monitoring. The IP69K-rated waterproof housing ensures reliable performance in harsh environments. A sun visor is attachable for enhanced visibility in bright conditions. The display mode can be adjusted for mirror or normal viewing for each camera. A U-bracket and sun visor are included, with a fan bracket available as an option. Built to endure the demands of industrial use, it withstands significant shock (100G) and vibration (20G). The dustproof and waterproof design extends to all connectors, ensuring durability in challenging weather conditions.

The monitor boasts a high-definition pixel resolution of 1024(H) x 3(RGB) x 600(V) and supports 4-channel input, including 4CH 1080P signal input. It features four triggers for rear view, front view, left view, and right view cameras, enabling automatic switching. The system automatically detects PAL/NTSC video signals and operates on a wide DC10V~36V power supply with automatic power on/off by ACC. The mirror function can be set up independently for each camera. The 7-inch screen has a 16:9 picture display format with a contrast ratio of 450:1 and a brightness of 400cd/m2. It includes a 0.5W speaker for audio input and supports image rotation (Left/Right/Up/Down). The operating temperature range is -20 to 70 degrees Celsius, with a storage temperature range of -30 to 85 degrees Celsius. It offers wide viewing angles of 85 degrees in all directions and automatic or manual dimming via a CDS sensor.

Key Features:

• 7 inch Waterproof HD Quad View Monitor (1024×600)
• Wide Input Voltage (10VDC to 36VDC)
• Supports 4CH Camera & Trigger Inputs
• IP69K Waterproof Housing
• Mirror/Normal Display Mode per Camera

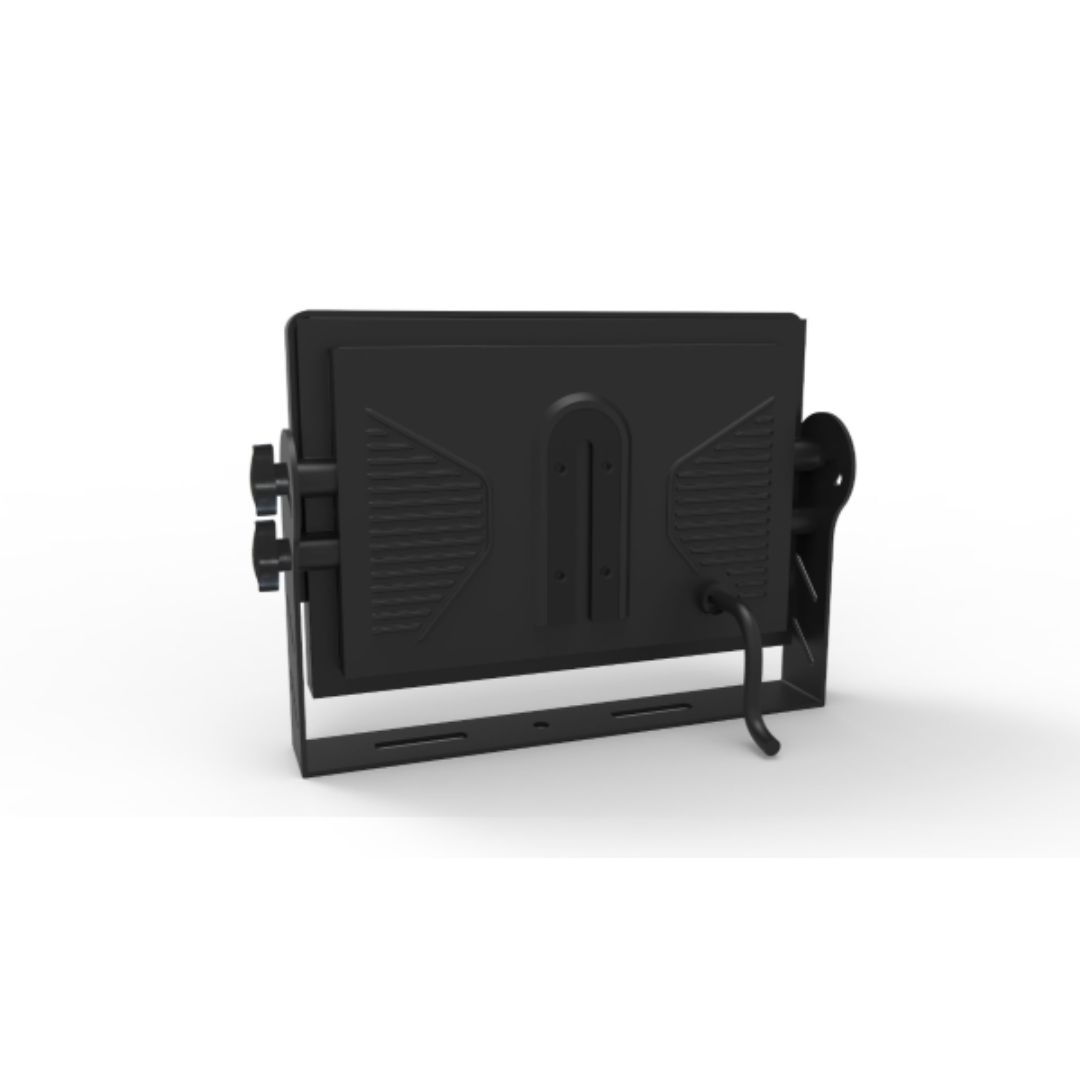

• U-Bracket & Sun Visor Included
• Industrial-Grade Shock and Vibration Resistance
• Automatic PAL/NTSC Detection
• Automatic Power On/Off by ACC
• Wide Viewing Angles
• Automatic/Manual Dimming
