7’’ HD Quad Split View Mirror Monitor ARL-MS-758HDQ

7’’ HD Quad Split View Mirror Monitor (ARL-MS-758HDQ)

The ARL-MS-758HDQ is a versatile 7-inch HD LCD mirror monitor designed to support up to four high-definition camera inputs (1080P/720P). 7’’ HD Quad Split View Mirror Monitor (ARL-MS-758HDQ) allows for simultaneous display of multiple cameras on a single screen with various split-screen modes including single, double, triple, and quad views. The monitor automatically identifies PAL/NTSC camera input formats. Each camera’s display parameters can be independently adjusted, and it supports horizontal mirroring and vertical flip. Featuring three trigger line inputs with adjustable delay, it can be configured to display reversing marking lines. The user-friendly OSD menu supports both Chinese and English languages. With a wide 9-36V input range, it is compatible with both 12V and 24V power systems.

Key Features:

7-inch HD LCD Screen: High-resolution display (1024×600).
4-Channel HD Input: Supports 1080P/720P cameras.
Multiple Display Modes: Single, dual, triple, and quad view.
Independent Image Adjustment: Customizable parameters and mirroring/flip for each camera.
3 Trigger Line Inputs: With adjustable trigger delay.
Reversing Marking Line Support: Enhances parking and maneuvering.
Multi-Language OSD: Supports Chinese and English.
Wide Voltage Input: Compatible with 9-36V systems.

Technical Specifications:

Feature	Specification
Screen Size	7 inch LCD screen
Screen Type	TFT-LCD
Screen Ratio	16:9
Resolution	1024 * 600
Contrast	500:1
Dot Pitch	0.05 (W) * 0.15 (H)
Color Display	R.G.B
Brightness	400cd/m2
Viewing Angle	U:70/D:80, L/R:80
Luminous Source	LED
Menu Adjustment Display	English language optional in OSD
Analog Adjustment	Brightness, contrast, chroma (0～100L)
Color System	PAL/NTSC Auto
Video Input	Support 4 video inputs, CVBS/AHD, 1VP-P, 75Ω
Image Reversal	Up/down, left/right: manual (optional), independent mirroring adjustable
Connection Port	Power, video (AV) aviation head input
Using Electric	DC +9～+36V
Operating Temperature	-20～70 Degree
Storage Temperature	-30～85 Degree
Power Consumption	Less than 6W

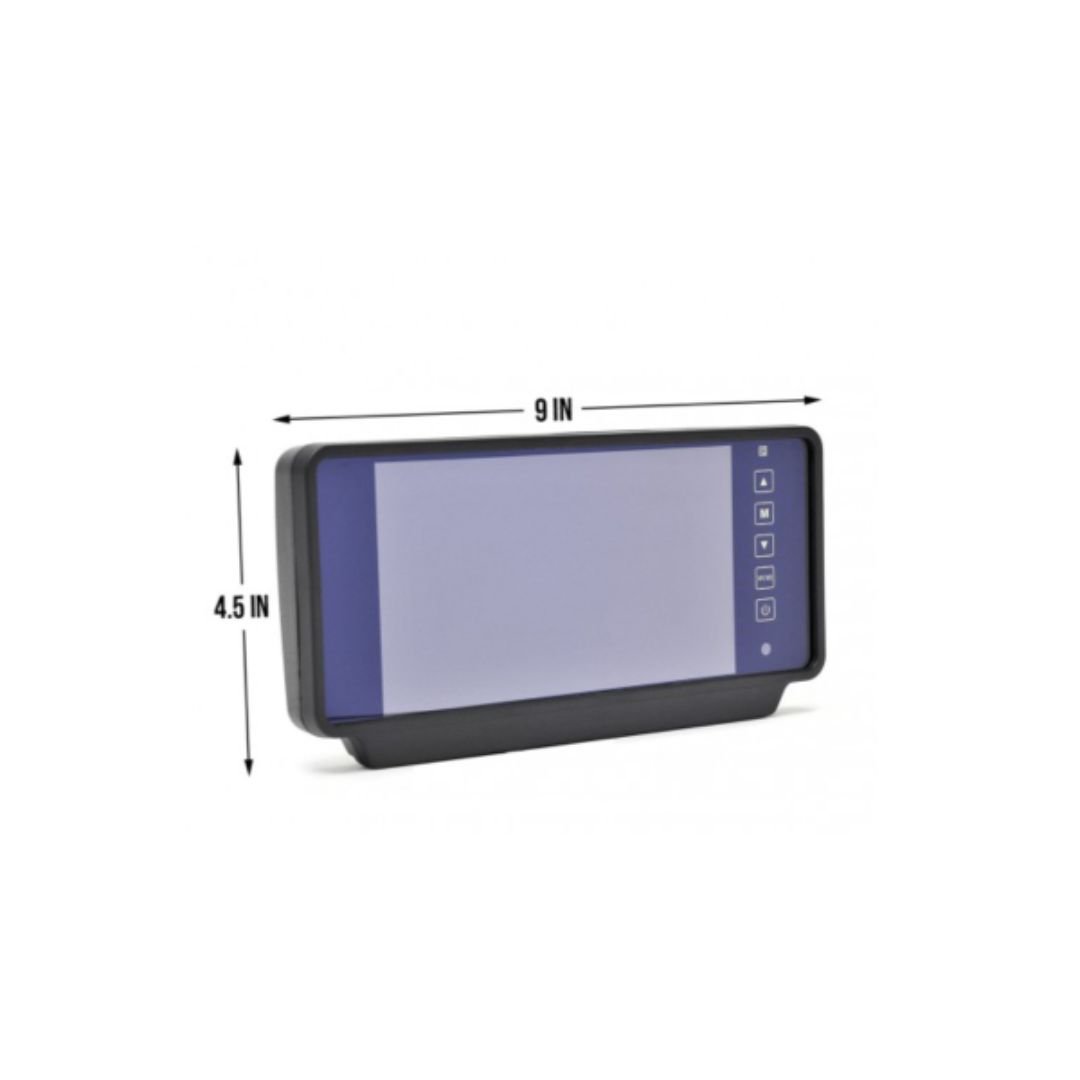

Dimension (mm)	Length：226mm × Width：110mm × Height：36.4mm
Weight	About 500g
HD Camera Input Support	1080P/720P (4 Channels)
Picture Display Mode	Single picture, double picture, three picture, four picture
Trigger Line Input	3
Trigger Delay	Settable
Reversing Marking Line	Suitable for setting
Language Support	Chinese and English
