7 Inch HD Digital Wireless Monitoring System ARL-MS-708RSW

SKU: ARL-MS-708RSW Categories: 7 Inch Wireless system, Driving Control Systems, Wireless Rear View System

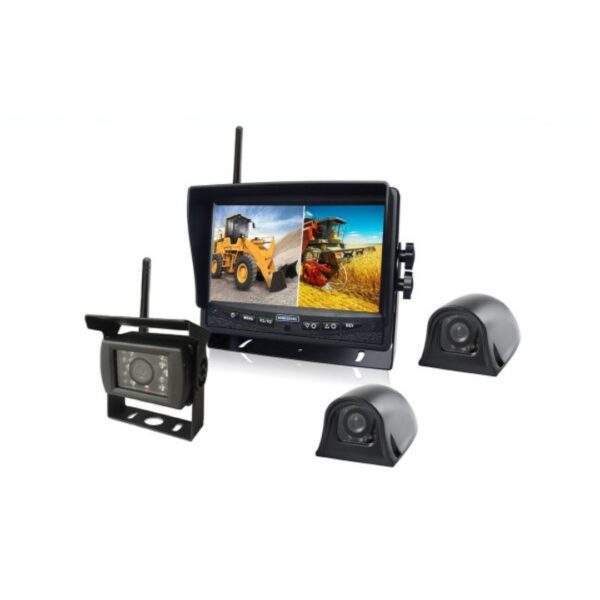

7 Inch HD Digital Wireless Monitoring System (ARL-MS-708RSW)

The ARL-MS-708RSW is a cutting-edge digital wireless monitoring system featuring a high-definition 7-inch digital panel monitor and a robust wireless HD camera. Utilizing a secure, interference-free digital signal within the 2400MHz~2483.5MHz frequency band, the system offers automatic scanning and pairing for easy setup. It boasts an impressive transmission distance of up to 500 meters in open areas. The monitor supports 4CH HD video input with quad-screen display capabilities. Built to withstand demanding industrial environments, the system is highly resistant to shock and vibration (20G vibration, 100G shock) and features a dust and waterproof design with waterproof connectors, ensuring reliable operation in extreme temperatures.

Key Features:

Interference-Free Digital Signal: Ensures stable and reliable transmission.
Long Wireless Range: Up to 500M in open areas.
Automatic Pairing: Simple and quick setup.
4CH HD Video Input: Supports up to four wireless cameras.
Quad Screen Display: View feeds from multiple cameras simultaneously.
Heavy-Duty Design: Withstands shock and vibration for industrial use.
Dust & Waterproof: IP69K rated camera and waterproof connectors.
Wide Operating Temperature: Suitable for hot and cold climates.

Technical Specifications:

Wireless HD Monitor:

Feature	Specification
Panel Size	7” Digital HD Panel
Screen Ratio	16:9
Resolution	1024 * 3(RGB) * 600
Back Light / Luminance	LED / 350cd/m2
Contrast	1000:1
Viewing Angle (U/D/L/R)	UP–50º, DOWN–70º, LEFT–70º, RIGHT–70º
Transmitting Distance	1500M in Open Area (Note: System range is 500M)
Power Supply	DC 10-36V
Power Consumption	<5W
Maximum Current	<550mA
Working Temperature	-20 to 60 ºC
Storage Temperature	-20 to 70 ºC

Wireless HD Camera:

Feature	Specification
Image Sensor	1/3” Color
Active Pixels	1292 * 968V
Chief Ray Angle	9 Degrees Linear
Night Vision Range	About 5M
Audio Input	High Sensitivity, -36DB Microphone
Waterproof Level	IP69K
Wireless Trans. Dist.	1500M in Open Area (Note: System range is 500M)
Power Supply	DC 10-36V
Power Consumption	<5W
Viewing Angle	120 Degree
S/N Ratio	More than 48 Db
Electron Shutter	1/100,000(s), ON/OFF
Video Output	1Vp-p 75Ω
Maximum Current	<250mA
Working Temperature	-20 to 60 ºC
Storage Temperature	-20 to 70 ºC
Frequency	2400MHZ~2483.5MHZ

This 7 Inch HD Digital Wireless Monitoring System offers a reliable and high-performance wireless solution for various monitoring needs, with excellent image quality and robust design for demanding applications.
