720P HD Infrared Camera – AHD Camera ARL-MS-C783NC

SKU: ARL-MS-C783NC Categories: AHD Cameras, Cameras, Driving Control System

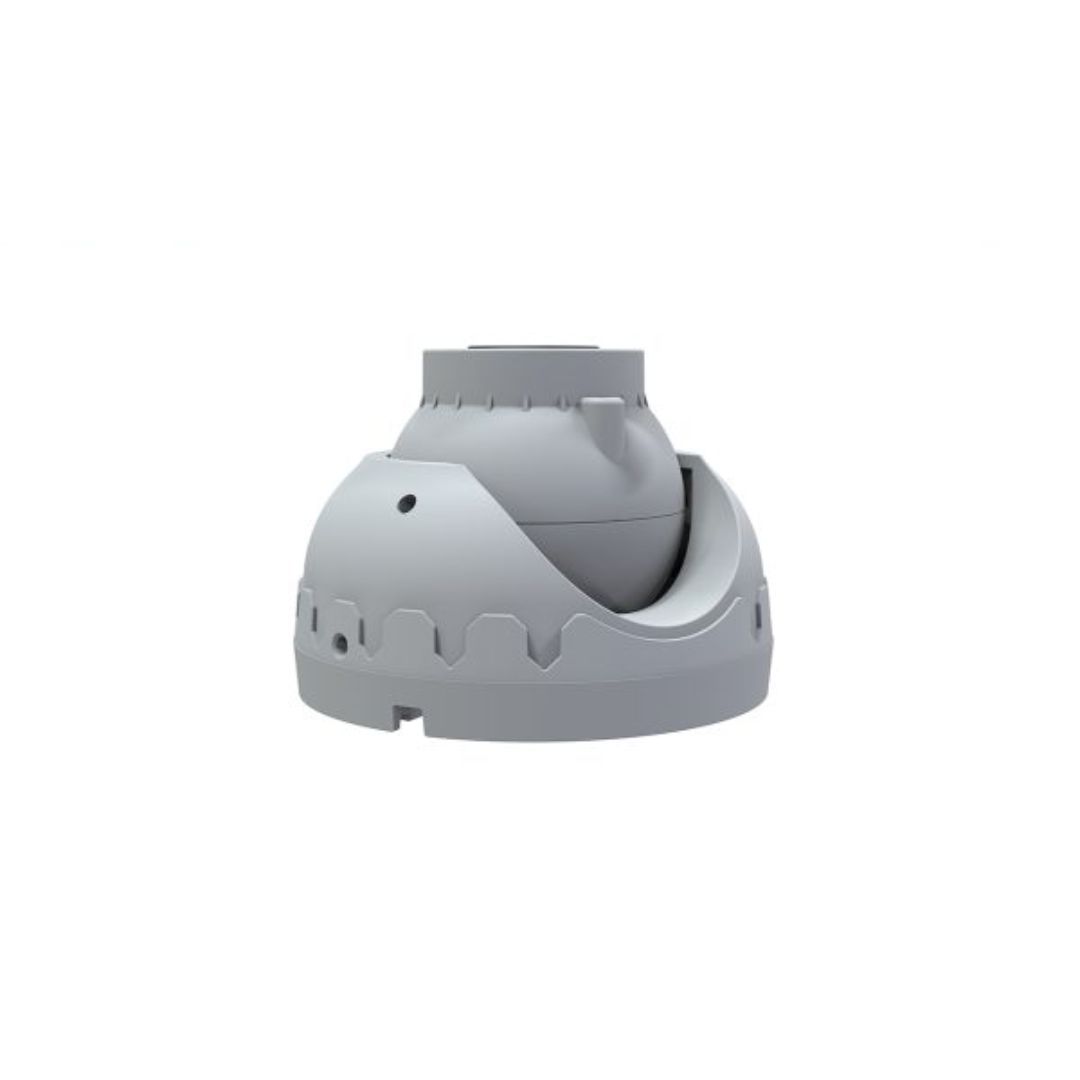

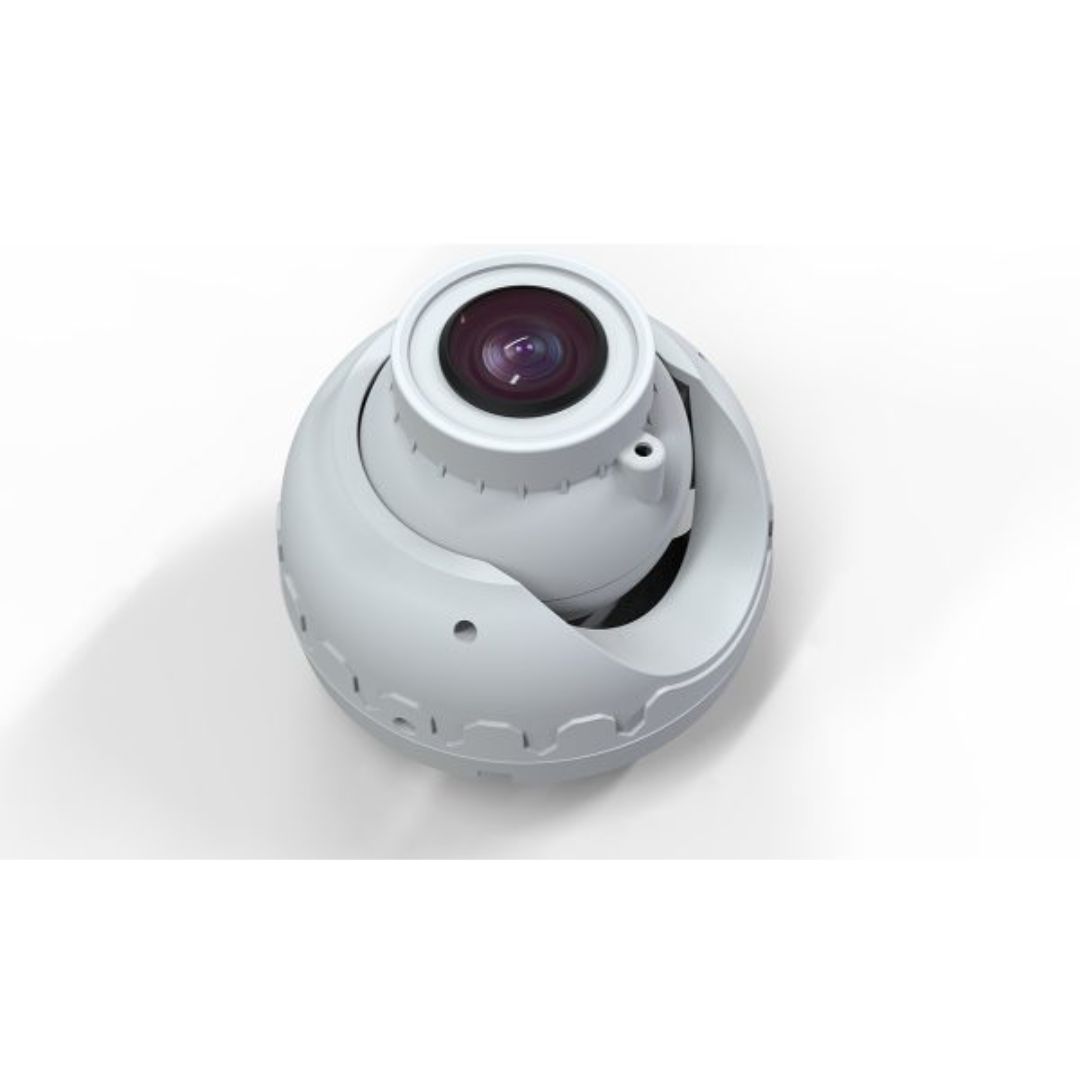

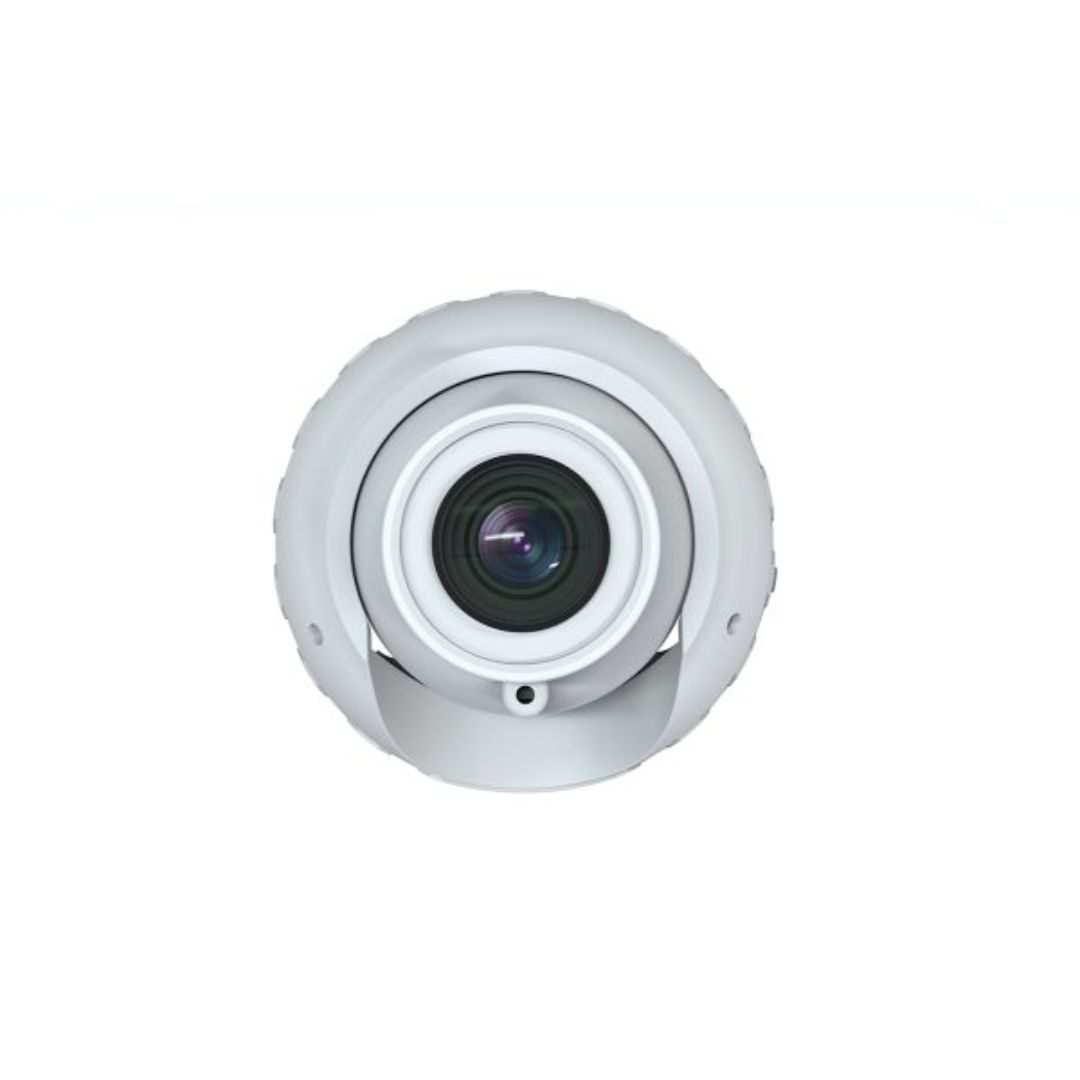

720P HD Infrared Camera – AHD Camera (ARL-MS-C783NC)

The ARL-MS-C783NC is a high-definition infrared camera designed for reliable surveillance with good low-light performance.720P HD Infrared Camera – AHD Camera captures images with an effective pixel count of 1280 horizontal and 960 vertical, delivering a 720P resolution at 25 frames per second. The camera boasts excellent low-light sensitivity with a minimum illumination of 0.01Lux (at F1.2, AGC ON). It outputs a standard video signal of 1Vp-p at 75 ohms and has a signal-to-noise ratio of ≥46dB. 3D noise reduction is supported for clearer images. The lens offers a viewing angle of 90°±5 horizontally and 70°±5 vertically. Designed for durability in various environments, it has an IP66 waterproof rating and can operate in temperatures from -30℃ to +70℃, with a storage temperature range of -40℃ to +80℃. This camera operates on a rated voltage of 12V and consumes ≤180mA with the infrared LEDs on.

Key Features:

HD 720P Resolution: Clear and detailed images.
Excellent Night Vision: Infrared LEDs with a range greater than 10 meters.
Operates in Complete Darkness: 0 Lux with IR on.
Good Low Light Sensitivity: 0.01Lux minimum illumination.
3D Noise Reduction: For clearer images.
Wide Operating Voltage Range: 9-24V compatibility.
Durable Design: IP66 waterproof rating and 6G seismic grade.
Wide Operating Temperature: Reliable performance in various climates.

Technical Specifications:

Feature	Specification
Camera Type	AHD Camera
Sensor Type	1/3-inch IMX225 (or SONY HD)
Effective Pixel	1280(H) x 960(V)
Infrared Fill Light	Night vision > 10 meters
Minimum Illumination	0.01Lux@(F1.2,AGC ON), 0LUX with IR
Frequency	720P@25fps
Video Output	1Vp-p, 75 ohm
SNR	≥46 (db)
Noise Reduction	3D noise reduction supported
Viewing Angle (Horizontal)	90° ± 5°
Viewing Angle (Vertical)	70° ± 5°
Operating Voltage	Rated: 12V, Operating range (9-24V)
Operating Current (IR On)	≤180mA
Waterproof Level	IP66
Operating Temperature	-30℃ — +70℃
Storage Temperature	-40℃ – +80℃
Seismic Grade	6G
