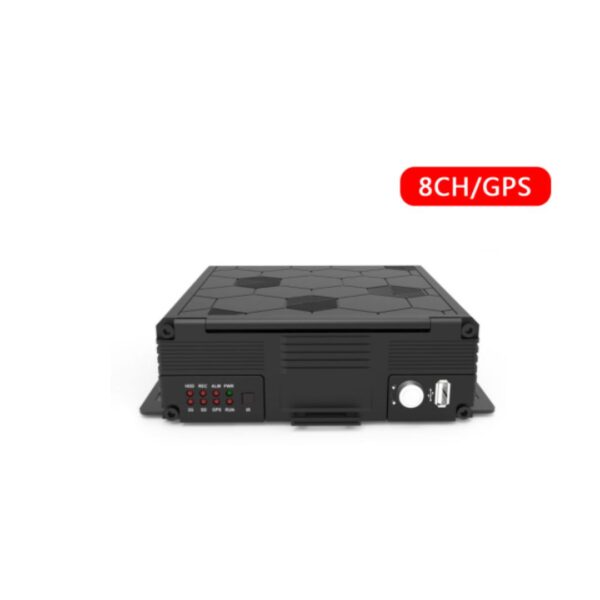

8CH AHD HDD Mobile DVR System with GPS & 4G ARL-MS-586-8CH(GPS+4G)

SKU: ARL-MS-586-8CH(GPS+4G) Categories: , ,

8CH AHD HDD Mobile DVR System with GPS & 4G ARL-MS-586-8CH(GPS+4G)

The ARL-MS-586-8CH(GPS+4G) is a high-performance 8-channel AHD HDD Mobile Digital Video Recorder (DVR) system engineered for reliable video surveillance in vehicles with integrated GPS and 4G connectivity. Powered by robust Hisilicon chipsets and utilizing the efficient H.264 video compression standard, it delivers high compression rates and excellent image quality. This system supports 8 AV inputs compatible with AHD (1080N/720P/960H) and standard analog (D1/CIF) cameras. It features 1 synchronized AV output and 1 VGA output for flexible monitoring options. The DVR enables real-time local recording on all 8 channels at up to 1080N resolution. Designed for the demanding automotive environment, it boasts a wide 8-36V DC power input with comprehensive protection circuits and intelligent power management. Integrated GPS provides accurate location tracking capabilities, while built-in 4G support enables live remote viewing and management.

Key Features:

  • High-Performance Hisilicon Chipsets: Ensures reliable and efficient operation.
  • Efficient H.264 Encoding: Provides high compression with excellent image quality.
  • Versatile Camera Support: Compatible with AHD (up to 1080N) and analog (D1/CIF) cameras.
  • Multiple Video Outputs: Features 1 synchronized AV output and 1 VGA output.
  • Real-time 8CH Recording: Records all 8 channels simultaneously at up to 1080N resolution.
  • Integrated 4G Connectivity: Enables live remote viewing and management.
  • Built-in GPS: Provides accurate vehicle location tracking.
  • Wide Power Input Range: Supports 8-36V DC input, suitable for various vehicle power systems.
  • Comprehensive Power Protection: Includes under-voltage, short circuit, and reversed plug-in protection.
  • Intelligent Power Management: Features low voltage shutdown and low power consumption.
  • Secure File Management: Employs a special file system to encrypt and protect data.
  • Proprietary Bad Track Detection: Ensures continuous video recording and extends HDD lifespan.
  • Built-in Ultra Capacitor: Prevents data loss and SD card damage during sudden power outages.
  • Large HDD/SSD Support: Supports 2.5 inch HDD/SSD up to 2TB for primary recording.
  • SD Card Support: Offers additional storage options via SD cards.
  • High-Speed USB Backup: Supports USB 2.0 for fast data transfer.
  • Data Recovery Technology: Aids in retrieving lost video data.
  • G-sensor Support: Detects impacts and sudden movements.
  • Hard Disk Heating Support: Ensures reliable HDD operation in cold temperatures.
  • 24-Hour Delayed Power Off: Allows for configurable delayed shutdown.
  • Optional GPS/BD: Supports both GPS and Beidou navigation systems for high sensitivity and fast positioning.

Technical Specifications:

  • Main Processor: Hisilicon Chipsets
  • Video Compression: H.264
  • Video Input: 8CH AV (AHD 1080N/720P/960H/D1/CIF)
  • Video Output: 1CH Synchronized AV, 1CH VGA
  • Recording Resolution: Up to 1080N (Real-time, 8CH)
  • Storage (Main): 2.5 inch HDD/SSD (up to 2TB)
  • Additional Storage: SD Card Support
  • USB: USB 2.0 High-Speed Backup
  • GPS: Built-in, Optional GPS/BD
  • 4G: Built-in for live view and remote management
  • G-sensor: Supported
  • Power Input: 8-36V DC
  • Operating Temperature: (Not specified)
  • Dimensions: (Not specified)
  • Weight: (Not specified)

Warranty and Support:

  • 18 months warranty.
  • Prompt and full set after-sales service.

This 8CH AHD HDD Mobile DVR System with integrated GPS and 4G offers a robust and feature-rich solution for remote mobile video surveillance, providing high-quality recording, reliable storage options, and accurate location tracking with real-time remote access capabilities.
