9 Inch HD Industrial Grade Rear View System ARL-MS-796RSCHD

3 People watching this product now!

🥳 Get 10%* Off on Manual Stackers

Use the coupon code ARL10 at checkout to get 10%* off the Robust Manual Pallet Stacker.

9 Inch HD Industrial Grade Rear View System (ARL-MS-796RSCHD)

The ARL-MS-796RSCHD is a robust, high-definition rear view system designed for industrial applications such as garbage trucks, mining trucks, waste management vehicles, school buses, and animal transportation vehicles. 9 Inch HD Industrial Grade Rear View System features a bright 9-inch HD LCD monitor and offers optional high-definition rear and side view cameras. The monitor delivers a crisp resolution of 1024 x 600 and supports automatic PAL/NTSC video system detection. It boasts a wide viewing angle (85° in all directions) for comprehensive visibility and operates on a versatile DC9V-32V power supply. A sunshade is included for enhanced viewing in bright conditions. The optional rear view HD camera features a built-in microphone, excellent night vision with 18 IR LEDs, and a wide 130-degree viewing angle, all within a durable IP69K waterproof housing. The optional side view HD camera also includes night vision with 9 IR LEDs, with the same IP69K waterproof rating.

Key Features:

  • Bright 9 Inch HD Monitor: High resolution (1024 x 600) for clear visuals.
  • Wide Viewing Angle: 85° viewing angle in all directions for the monitor.
  • Wide Voltage Input: Compatible with DC9V-32V power systems.
  • Included Sunshade: Reduces glare for better visibility.
  • Optional HD Rear View Camera: Wide 130° angle, 18 IR LEDs, built-in microphone, IP69K.
  • Optional HD Side View Camera: Wide 120° angle, 9 IR LEDs, built-in microphone, IP69K.
  • Waterproof Cameras: IP69K rating for reliable performance in harsh conditions.
  • Built-in Microphones: For audio recording with optional cameras.
  • Designed for Industrial Use: Suitable for various heavy-duty vehicles.

Technical Specifications:

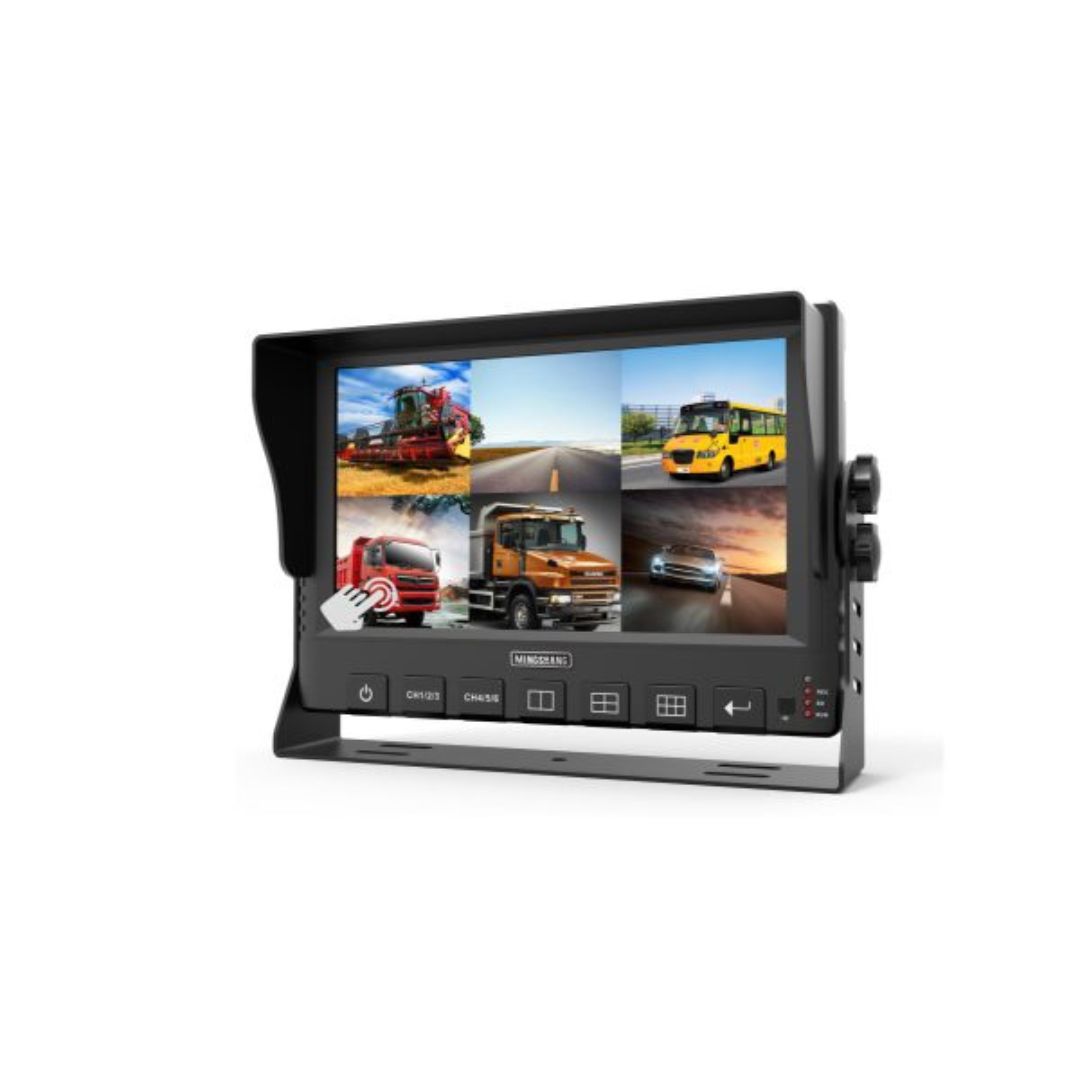

9” HD LCD Monitor (ARL-MS-796):

Feature Specification
Picture Display Format 16:9
Resolution 1024 * 3(RGB) * 600
Video System PAL / NTSC Automatically
Contrast 450:1
Brightness 400cd/m2
View Angle (U/D/L/R) 85/85/85/85
Power Supply DC9V~32V
Sunshade With Sunshade
Operation Temperature – 20℃~+70℃

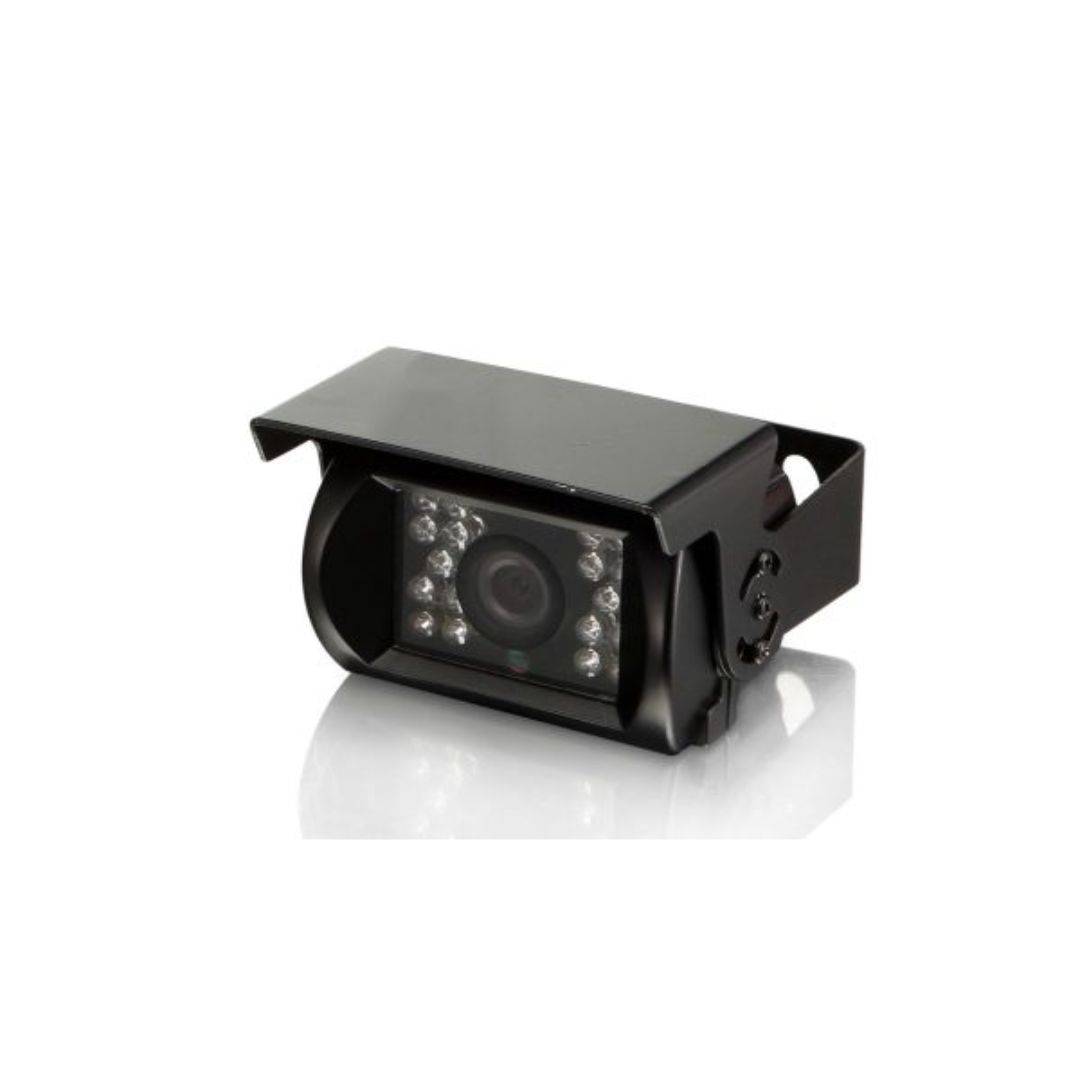

Optional Rear View HD Camera (ARL-MS-750HD):

Feature Specification
Waterproof Rating IP69K
Sensor LED Auto On/Off CDS Sensor
Microphone Built-in Microphone
Pixels 1288 ( H ) X 728 ( V)
Minimum Light 0 Lux (LED ON)
S/N Ratio More than 50 Db
Video Output 1Vp-p 75Ω
Voltage DC12V(+/-15%)
View Angle 130 Degree
Night Vision 18pcs IR LED

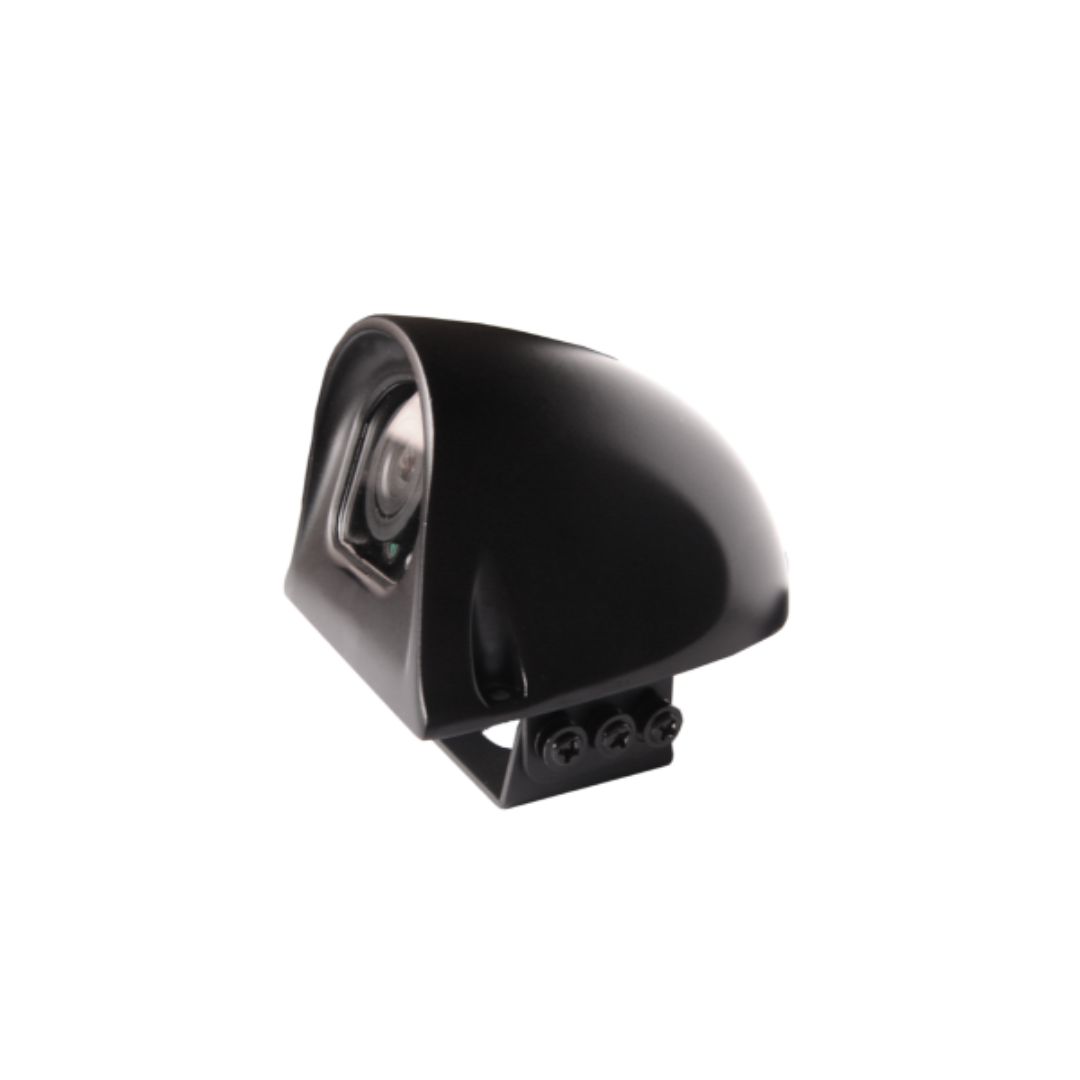

Optional Side View HD Camera (ARL-MS-780HD):

Feature Specification
Waterproof Rating IP69K
Sensor LED Auto On/Off CDS Sensor
Microphone Built-in Microphone
Pixels 1288 ( H ) X 728 ( V)
Minimum Light 0 Lux (LED ON)
S/N Ratio More than 50 Db
Video Output 1Vp-p 75Ω
Voltage DC12V(+/-15%)
View Angle 120 Degree
Night Vision 9pcs IR LED

This 9 Inch HD Industrial Grade Rear View System offers a robust and versatile solution for enhancing safety and visibility in a wide range of industrial vehicles, with high-quality imaging and durable construction.
