AC/DC Hybrid Solar Centrifugal Pump Kit ARL-4SPW14-2-A

AC/DC Hybrid Solar Centrifugal Pump Kit ARL-4SPW14-2-A

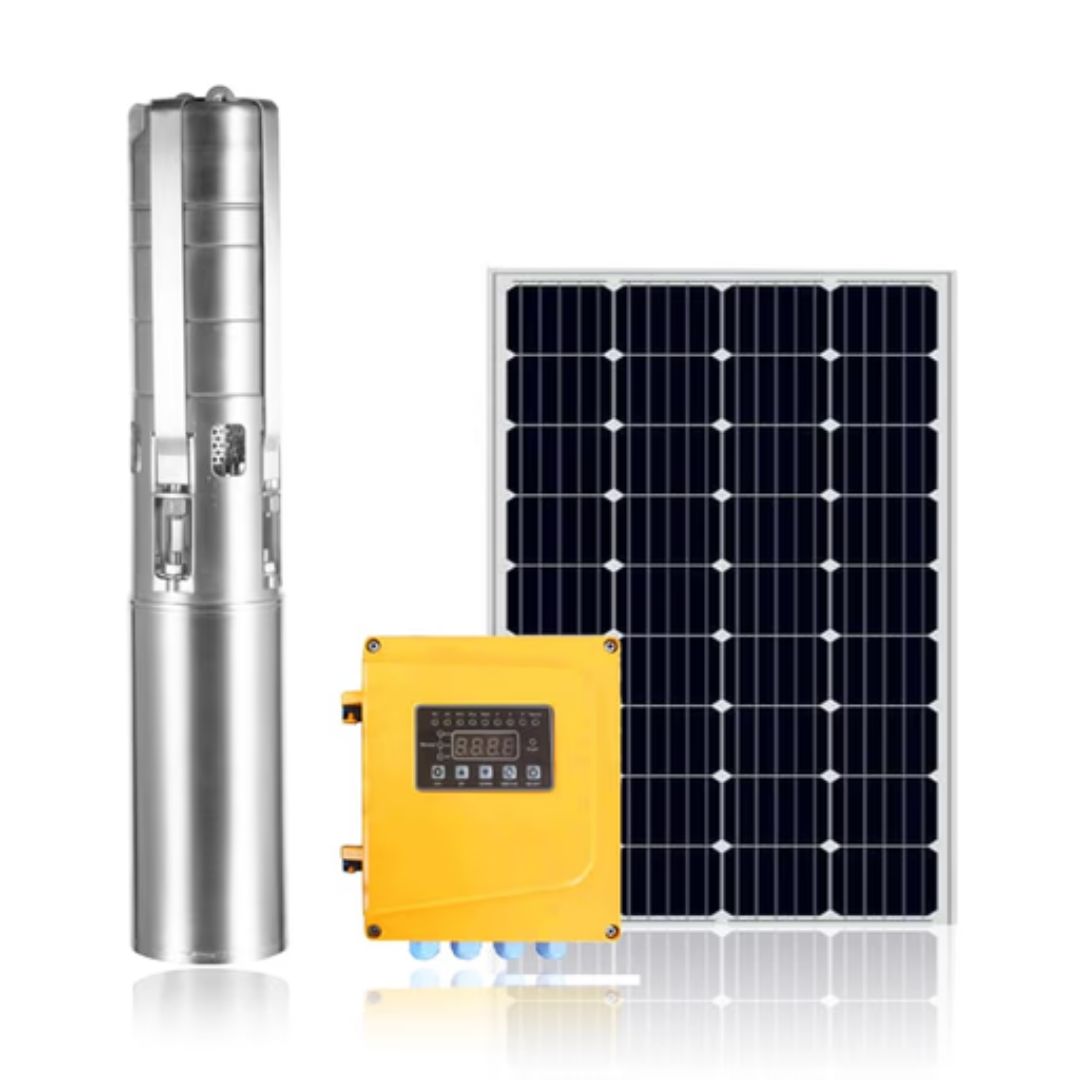

The AC/DC Hybrid Solar Centrifugal Pump Kit ARL-4SPW14-2-A is a high-performance 2200W AC/DC hybrid solar centrifugal pump, meticulously engineered for efficient and flexible water transfer. This comprehensive kit includes a 3-inch pump, an external MPPT controller, and essential installation accessories. Featuring a high-efficiency BLDC motor and robust stainless steel construction for both the impeller and pump body, it delivers reliable performance with a maximum head of 24m and an impressive flow rate of 27.2m³/h. Designed for various water pumping applications with both solar DC and AC grid power options, this system ensures long-lasting reliability with advanced protection features.

Key Features:

• High-efficiency 2200W BLDC motor with encapsulated water-filled design (no pollution risk)
• Durable Stainless Steel 304 impeller and pump body (316 optional)
• External MPPT controller for optimized solar power utilization
• AC/DC Hybrid power compatibility
• Max Head of 24m and Max Flow of 27.2m³/h
• Advanced protections: Over-load, Over-current, Over-voltage, Low-voltage, Dry protection (no additional float sensor required), Phase loss, Reverse connection alarm, Over-Power, Over-Temperature, Stall, Error Display
• Soft start running for extended system life
• Thrust bearing system for reliable performance
• Voltage/Current/Power/Speed display for easy monitoring
• Controller is IP65 Rated
• Non-return valve

What’s Included:

• 1* 3inch DC solar centrifugal pump with 1* 1.5m cable
• 1* Pump controller with MPPT function
• 1* Electric float switch for water tank
• 1* Waterproof adhesive tape
• 1* PVC electrical adhesive tape
• 1* PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels. (recommend using 550W solar panels in series)
• A stainless steel wire (safety cable) to hold pump in bore.
• Poly pipe from pump to water tank.
• Pump outlet joint connector
• Wire power cable (2 wires plus earth).

Technical Specifications:

• Power: 2200W / 2.95HP
• Power Type: AC/DC
• Max Head: 24m
• Max Flow: 27.2m³/h
• DC Voltage Range: 220-300V
• AC Voltage Range: 150-240V
• Optimal Voltage (DC Vmp): 40-90V
• Max Voltage (DC VOC): 100V
• Motor Type: BLDC motor, Water-Filled, PMSM
• Motor Material: AISI 304
• Impeller Material: Stainless Steel
• Impeller Type: Centrifugal type
• Pump Body Material: Stainless Steel 304
• Outlet Size: 2 inches
• Max Submersion: 150m
• Max Water Temperature: 40°C
• Efficiency (Motor/MPPT): Max 85% (Motor), Max 98% (MPPT Controller)
• Insulation Class: F
• Max Current: DC 15A
• Required Cooling Flow: 0.5L/s
• Enclosure Class: IPX8 (Motor), IP65 (Controller)
• Max Speed (Plastic Impeller): 4500 RPM
• Max Speed (SS304/Helical Impeller): 4000 RPM
• Warranty: 2 Years
• Gross Weight (Pump+Controller): 10.5 KG
• Net Weight (Pump+Controller): 8.5 KG
• Dimension (Pump+Controller): 61*36*16 MM
• Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001
• Recommend Max Input: 0.6kW
• Minimum Well Diameter: 3inch
• Pump Discharge: Rp 1.25
