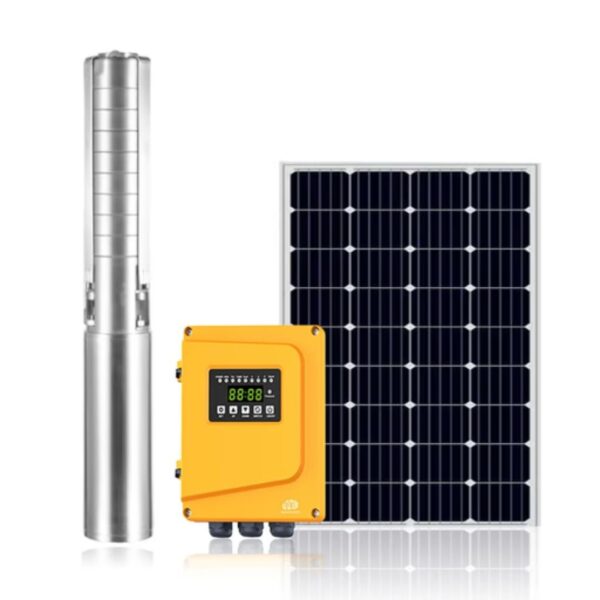

AC/DC Solar Centrifugal Pump ARL-3SPW2-9-A

AC/DC Solar Centrifugal Pump ARL-3SPW2-9-A

The AC/DC Solar Centrifugal Pump ARL-3SPW2-9-A is a versatile and high-performance pumping solution designed for both AC and DC power inputs, making it highly adaptable for various water pumping applications, especially those integrating solar energy. It features a durable stainless steel 304 pump body and impeller, and is powered by an encapsulated water-filled PMSM motor, ensuring high efficiency and environmental safety. The external controller comes with MPPT functionality to optimize energy harvesting from solar panels.

Key Features:

• AC/DC Power Compatibility: Operates on both DC (110-180V) and AC (150-240V) power, offering significant flexibility in power source options.
• High Efficiency BLDC Motor: Equipped with an encapsulated water-filled BLDC motor made of AISI 304, delivering up to 85% efficiency and eliminating pollution risk.
• External Controller with MPPT: The included external controller provides Maximum Power Point Tracking (MPPT) with up to 98% efficiency, ensuring optimal power extraction from solar panels.
• Durable Construction: Manufactured with stainless steel 304 for both the pump body and impeller, ensuring excellent corrosion resistance and long-term durability. An SS316 option is available for the pump end.
• Comprehensive Protection Features: Includes protection against dry-run (no additional float sensor required), reverse polarity, phase loss, over-voltage, low-voltage, over-current, over-load, over-power, over-temperature, and stall, with an error display for easy troubleshooting.
• High Performance: Delivers a Max Head of 60m and a Max Flow of 5.7 m³/h, suitable for diverse water transfer and irrigation requirements.
• Soft Start Functionality: Contributes to a longer system lifespan by reducing mechanical stress during startup.
• Thrust Bearing System: Enhances the motor’s durability and operational efficiency.
• Digital Display: The controller displays voltage, current, and power, allowing for convenient monitoring of system performance.
• Certifications: Holds CE, TUV, SUD, UL, ISO9001, and ISO14001 certifications, indicating adherence to international quality and safety standards.

Technical Specifications:

• Model Number: 3SPW2-9-A
• Power: $1200\text{W / 1.61 Hp}$
• Power Type: AC/DC
• Max Head: $60\text{m}$
• Max Flow: $5.3\text{m³/h}$
• Outlet Size: $1.25\text{ inches}$
• Impeller Type: Centrifugal
• Impeller Material: Stainless Steel 304
• Pump Body Material: Stainless Steel 304
• Motor Type: BLDC motor, Water-Filled, PMSM, Encapsulated
• Motor Material: AISI 304
• Max. Motor Current: $15\text{A (DC)}$
• Max. Submersion: $150\text{m}$
• Max. Water Temperature: $40\text{°C}$
• Motor Efficiency: Max. 85%
• Motor Insulation Class: F
• Motor Enclosure Class: IPX8
• Required Cooling Flow (Motor): $0.5\text{L/s}$
• Controller Type: External
• Controller DC Voltage Range: 96-130V
• Controller AC Voltage Range: 150-240V
• Controller MPPT Efficiency: Max. 98%
• Controller Enclosure Class: IP65
• Minimum Well Diameter: $3\text{ inches}$
• Pump Discharge: Rp 1.25
• Warranty: 2 years

Physical Dimensions & Weight (Pump+Controller):

• Gross Weight: $10.5\text{ KG}$
• Net Weight: $8.5\text{ KG}$
• Dimension (Controller): $61\times 36\times 16\text{ MM}$

What’s Included:

• 1 x 3-inch DC solar centrifugal pump with a 1.5m cable.
• 1 x Pump controller with MPPT function.
• 1 x Electric float switch for water tank.
• 1 x Waterproof adhesive tape.
• 1 x PVC electrical adhesive tape.
• 1 x PTFE tape.

Not Included (Self-Prepare):

• Suitable solar panels (Recommend using 550W solar panels in series).
• A stainless steel wire (safety cable) to hold the pump in the bore.
• Poly pipe from pump to water tank.
• Pump outlet joint connector.
• Wire power cable (2 wires plus earth).
