AC/DC Solar Water Pump ARL-4SPW2-13-A

AC/DC Solar Water Pump ARL-4SPW2-13-A

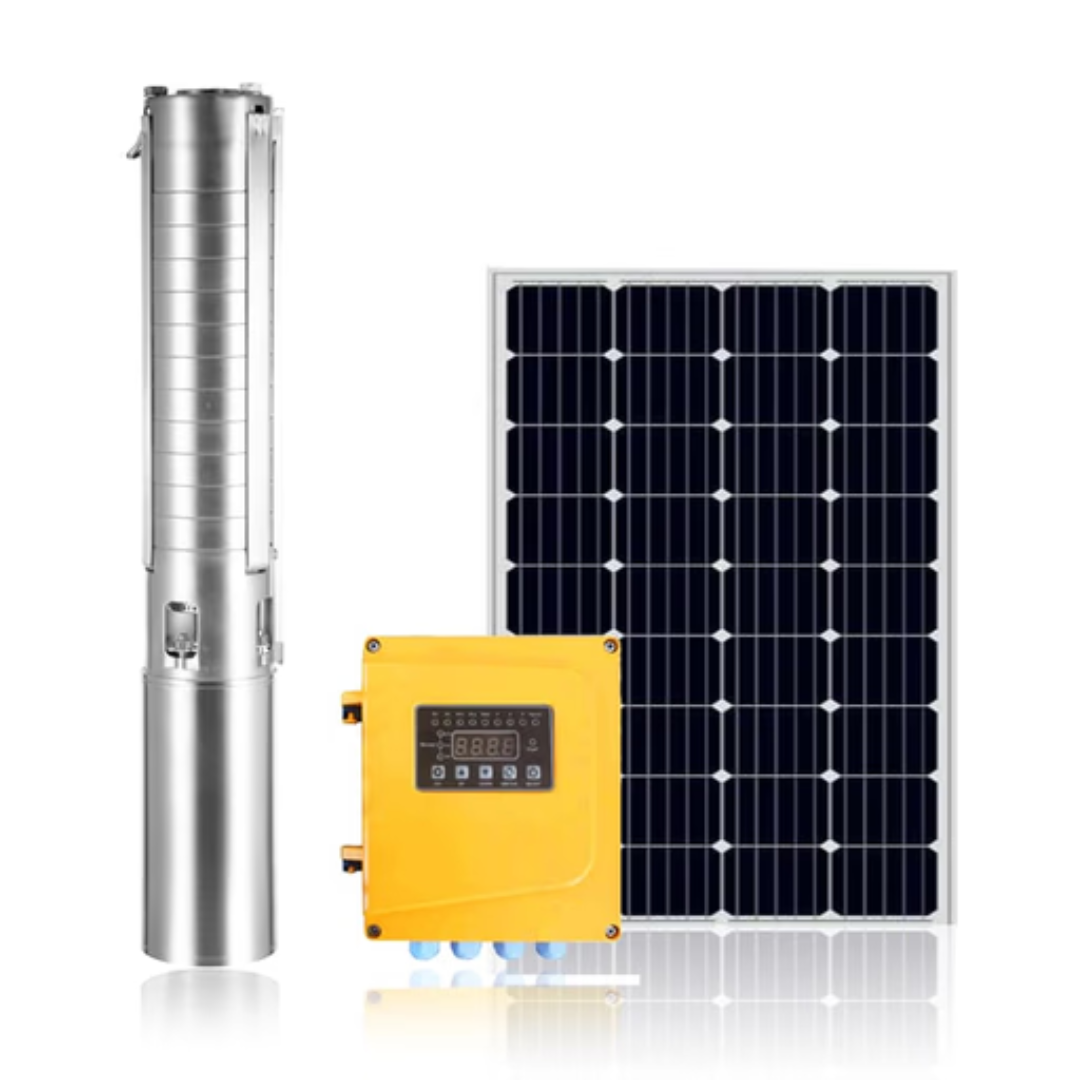

AC/DC Solar Water Pump ARL-4SPW2-13-A. The ARL-4SPW2-13-A is a versatile solar submersible pump engineered for home garden irrigation and water supply. Unlike standard DC solar pumps, this model is designed to operate on both solar DC power and standard grid AC power, providing a reliable water source even during cloudy days or at night. The system features a centrifugal, water-filled motor and an external controller to manage power input and protect the system.

Key Features

• Dual Power Input: Operates on both DC (solar) and AC (grid) power, ensuring a consistent water supply.
• High Efficiency: The system is powered by a high-efficiency BLDC motor with a thrust bearing system.
• Durable Construction: Built with Stainless Steel for the pump body and impeller for long-lasting performance.
• External Controller: The external controller with MPPT function efficiently manages power and provides voltage/current/power/speed display.
• Comprehensive Protection: Features active protection against over-load, losing-phase, over-current, over-voltage, and dry-run to ensure the system’s longevity.
• Broad Application: Ideal for various uses including garden irrigation, rural water supply, and pool circulation.

Technical Specifications

• Model: ARL-4SPW2-13-A
• Power: 2200W (2.95HP)
• Power Type: AC/DC
• Max Head: 130m
• Max Flow: 5.5 m³/h
• DC Voltage Range: 220-300V
• AC Voltage Range: 150-240V
• Minimum Well Diameter: 3 inches
• Pump Discharge: 1.25 inches
• Impeller Material: Stainless Steel
• Pump Body Material: Stainless Steel 304
• Motor: Water-Filled, PMSM
• Controller: External
• Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001
• Enclosure Class (Controller): IP65
• Enclosure Class (Motor): IPX8
• Recommended Max Input: 0.6kW
• Submersion: Max. 150m
• Water Temp: Max. 40°C
• Gross Weight: 10.5 kg
• Net Weight: 8.5 kg
• Dimensions: 61 x 36 x 16 mm

What’s Included in the Kit

• 1 x 3-inch DC solar centrifugal pump with a 1.5m cable
• 1 x Pump controller with MPPT function
• 1 x Electric float switch for water tank
• 1 x Waterproof adhesive tape
• 1 x PVC electrical adhesive tape
• 1 x PTFE tape

Items Not Included (Self-Prepare)

• Suitable solar panels.
• A stainless steel wire (safety cable) to hold the pump in the bore.
• Poly pipe from the pump to the water tank.
• Pump outlet joint connector.
• Wire power cable (2 wires plus earth).

Important Notes

• It is recommended to use 550W solar panels in series.
• The controller is IP65 rated, but it is recommended not to mount it in direct sunlight.
• Exceeding operational limits may cause serious harm or irreparable damage.
