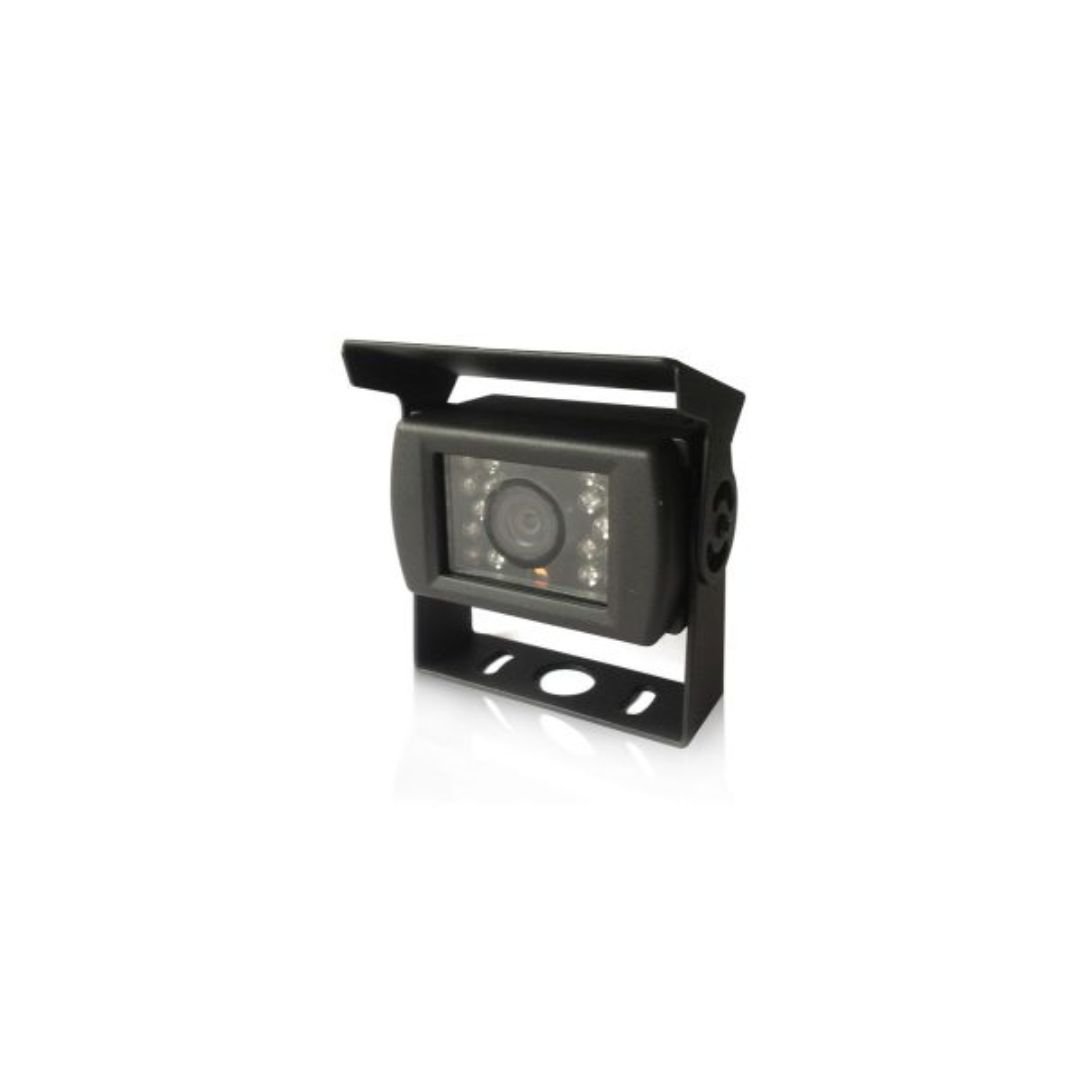

AHD Rear View Camera ARL-MS-753HD
AHD Rear View Camera (ARL-MS-753HD)
The ARL-MS-753HD is a high-definition analog rear view camera providing a clear resolution of 1280 horizontal and 720 vertical pixels. It is built to withstand harsh conditions with a complete IP69K waterproof rating. AHD Rear View Camera (ARL-MS-753HD) features a built-in high-gain microphone for audio recording. The video output utilizes SONY’s IMX225 AHD sensor. It supports both NTSC and PAL formats and operates at a frame rate of 720P@25fps or 720N@30fps. The camera has a wide operating voltage range of DC12V (±20%) and a low current consumption of 150mA. The shutter automatically adjusts, and the day/night mode can be controlled externally (default IR-cut), automatically, or set to color or black and white. It employs internal synchronization and offers exceptional low-light sensitivity with a minimum illumination of 0.005Lux (at F1.6, AGC ON), and 0 Lux with the IR LEDs active. The 18-piece SMD IR LEDs ensure good night vision.
Key Features:
- Analog HD Resolution: Crisp 1280(H) x 720(V) image quality.
- IP69K Waterproof: Withstands high-pressure water and dust.
- Built-In Microphone: Captures audio along with video.
- Excellent Night Vision: 18 IR LEDs for clear visibility in darkness.
- Wide Viewing Angle: 120-degree lens captures a broad area.
- Wide Voltage Range: Compatible with DC 12V (±20%).
- Automatic Day/Night Mode: Adapts to changing lighting conditions.
- Low Light Sensitivity: Operates in near darkness (0.005 Lux).
- Durable Construction: Aluminum alloy housing for longevity.
Technical Specifications:
Feature | Specification |
---|---|
Video Output | SONY IMX225 AHD |
Pixels | 1280(H) x 720(V) |
Format | NTSC/PAL |
FPS | 720P@25fps / 720N@30fps |
Power Supply | DC12V (±20%) |
Current | 150MA |
Waterproof | IP69K |
Shutter | Auto |
Day and Night Mode | External control (default IR-cut control)/automatic/color/black and white |
Synchronization Mode | Internal Synchronization |
Min Illumination | 0.005Lux@(F1.6,AGC ON), 0LUX with IR |
IR LED | 18-piece SMD IR LED |
Night Vision | Good |
Angle | 120 degree |
Operating Temperature | -30°C – 70°C / RH 95% Max |
Storage Temperature | -40°C – 80°C / RH 95% Max |
Material | Aluminum alloy |
Microphone | Built-In High Gain Microphone |
