All-Metal Duct Ventilation Fan ARL-BPT Series

All-Metal Duct Ventilation Fan ARL-BPT Series

The All-Metal Duct Ventilation Fan ARL-BPT series is a robust and fire-proof solution, featuring a complete all-metal body and structure, including the wind wheel, air outlet, and panel. Designed for durability and safety, these fans provide efficient ventilation for various applications. Their rust-proof construction ensures long-lasting performance in demanding environments, making them a reliable choice for comprehensive air circulation.

Key Features:

• Rust-proof and fire-proof all-metal body
• All-metal structure including wind wheel, air outlet, and panel
• Durable construction for long-lasting performance
• Efficient duct ventilation
• Suitable for various applications requiring robust air circulation

Technical Specifications:

• Model -ARL-BPT10-23B:
  • Take over specifications: 100 mm
  • Rated Power: 22 W
  • Nominal Air Volume: 150 m³/h
  • Nominal Pressure: 77 Pa
  • Speed: 1150 r/min
  • Noise: 41 dB(A)
  • Opening size: 240×240 mm
  • Applicable Area: 15-20 m²
  • Quantity: 4 Pc
  • Gross Weight: 18 kg
  • Packing size (length, width and height): 650x405x540 mm
  • 3C Certification: Yes
  • Energy Efficiency Rating: 1

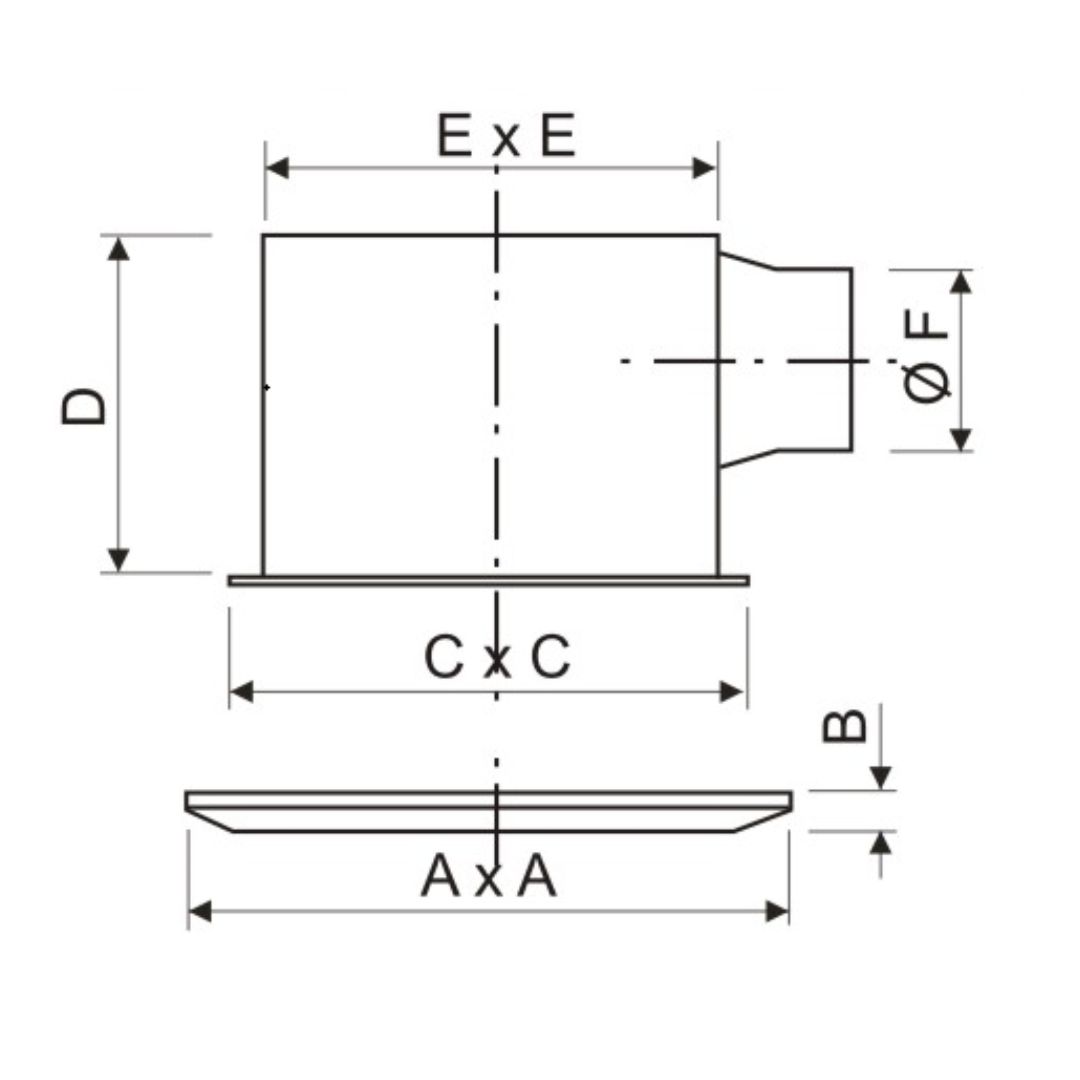

  • Dimensions (A x B x C x D x E): 288 x 18 x 271 x 190 x 233 mm
  • Pipe Diameter (F): 100 mm

• ARL-BPT15-33B:

  • Take over specifications: 150 mm
  • Rated Power: 38 W
  • Nominal Air Volume: 240 m³/h
  • Nominal Pressure: 105 Pa
  • Speed: 900 r/min
  • Noise: 44 dB(A)
  • Opening size: 270×270 mm
  • Applicable Area: 25-30 m²
  • Quantity: 4 Pc
  • Gross Weight: 27.5 kg
  • Packing size (length, width and height): 741x489x560 mm
  • 3C Certification: Yes
  • Energy Efficiency Rating: 2
  • Dimensions (A x B x C x D x E): 320 x 15 x 300 x 235 x 260 mm
  • Pipe Diameter (F): 150 mm

• ARL-BPT15-33C:

  • Take over specifications: Medium 3150 mm
  • Rated Power: 42 W
  • Nominal Air Volume: 270 m³/h
  • Nominal Pressure: 115 Pa
  • Speed: 850 r/min
  • Noise: 44 dB(A)
  • Opening size: 270×270 mm
  • Applicable Area: 25-30 m²
  • Quantity: 4 Pc
  • Gross Weight: 27.5 kg
  • Packing size (length, width and height): 741x498x560 mm
  • 3C Certification: Yes
  • Energy Efficiency Rating: 2
  • Dimensions (A x B x C x D x E): 320 x 15 x 300 x 235 x 260 mm
  • Pipe Diameter (F): 150 mm
• ARL-BPT15-44B:
  • Take over specifications: 150 mm
  • Rated Power: 45 W
  • Nominal Air Volume: 400 m³/h
  • Nominal Pressure: 180 Pa
  • Speed: 750 r/min
  • Noise: 44 dB(A)
  • Opening size: 320×320 mm
  • Applicable Area: 30-35 m²
  • Quantity: 2 Pc
  • Gross Weight: 16.7 kg
  • Packing size (length, width and height): 865x450x320 mm
  • 3C Certification: Yes
  • Energy Efficiency Rating: 1
  • Dimensions (A x B x C x D x E): 380 x 15 x 350 x 235 x 310 mm
  • Pipe Diameter (F): 150 mm
• ARL-BPT15-54B:
  • Take over specifications: Medium 150 mm
  • Rated Power: 100 W
  • Nominal Air Volume: 606 m³/h
  • Nominal Pressure: 200 Pa
  • Speed: 1000 r/min
  • Noise: 51 dB(A)
  • Opening size: 320×320 mm
  • Applicable Area: 30-35 m²
  • Quantity: 2 Pc
  • Gross Weight: 19 kg
  • Packing size (length, width and height): 865x450x320 mm
  • 3C Certification: Yes
  • Energy Efficiency Rating: 2
  • Dimensions (A x B x C x D x E): 380 x 15 x 350 x 235 x 310 mm
  • Pipe Diameter (F): 150 mm
