ARL-HN-VD32 Automatic Pouch Bag Packing Machine
ARL-HN-VD32 Automatic Pouch Bag Packing Machine

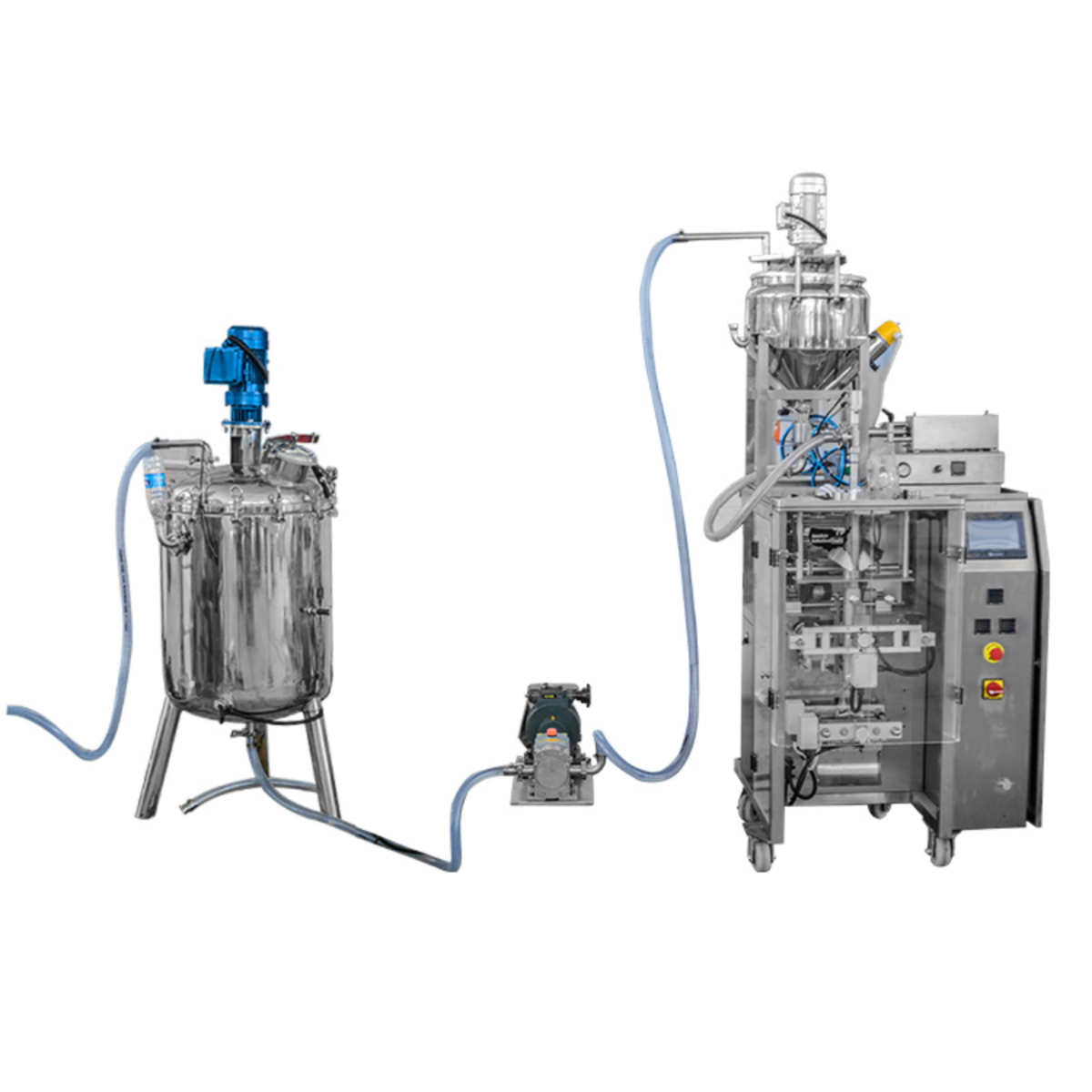

Product Description: The ARL-HN-VD32 Automatic Pouch Bag Packing Machine is a high-speed and efficient automatic pouch bag packing machine designed for packaging liquids such as oil, sauce, water, and fruit juice. This machine automates the entire packaging process, from measuring and filling to sealing, date printing, counting, and transporting, ensuring a streamlined and productive operation. Its famous brand PLC control system and large touch screen provide user-friendly operation and precise control. The HN-VD32 is constructed with 304 high-quality stainless steel for food safety, and 316 stainless steel is available for salt or vinegar packaging.
Key Features:
- High Speed and Efficiency: Maximizes packaging output.
- PLC Control System: Famous brand PLC control system for precise and reliable operation.
- Large Touch Screen: User-friendly interface for easy operation.

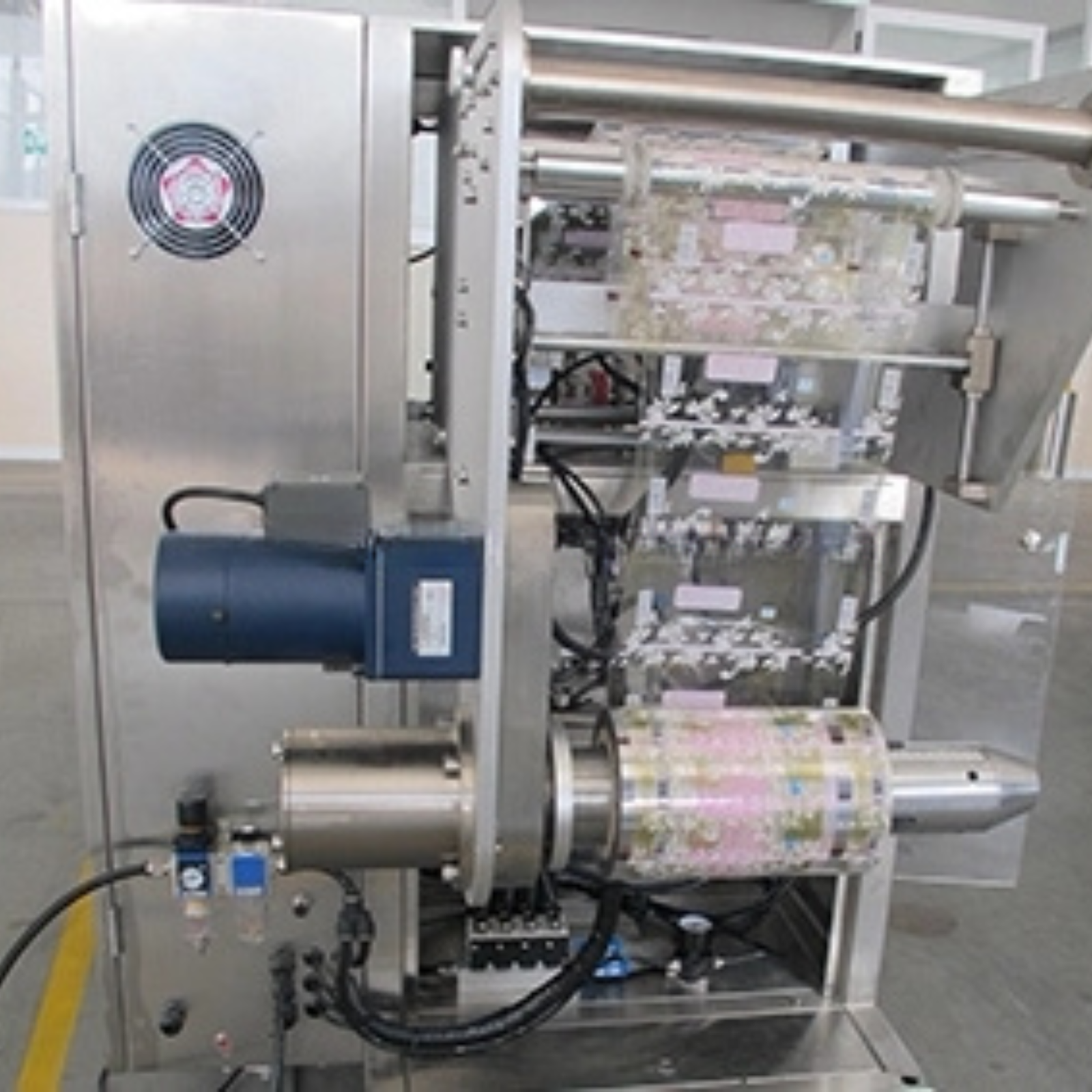

- Servo Motor Film Drawing: Minimizes film loss and provides complete automatic warn protection function.
- Optional Servo Motor Horizontal Sealing: Offers versatility in sealing methods.
- Fully Automatic Process: Completes measuring, filling, sealing, date printing, counting, and transporting automatically.
- 304 Stainless Steel Construction: Ensures food safety with high-quality stainless steel contact parts.
- 316 Stainless Steel Option: Available for salt or vinegar packaging to enhance corrosion resistance.

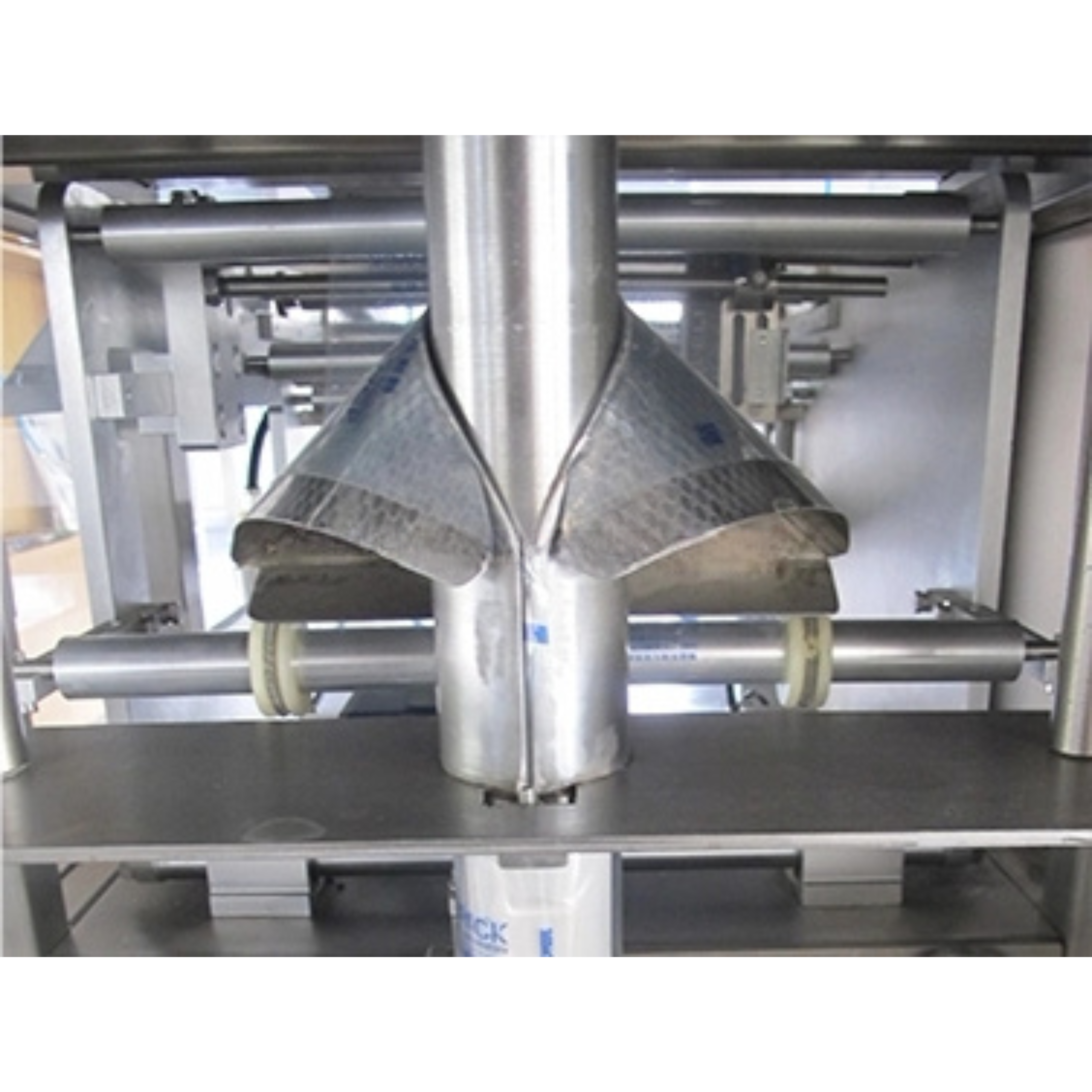

- Stable Bag Former: Improved design for durability and longevity, especially for small bag packing (10-500g).
- Strong Film Roll Support: Large film roller supporter for stable and continuous high-speed operation.
- Well-Organized Electrical Cabinet: Durable and high-performance electrical components.
Technical Parameters:
- Model: HN-VD32
- Capacity: ≤70 Bags/min
- Bag Size (L x W): 50-190 mm x 50-150 mm
- Film Width: 100-320 mm
- Bag Type: Pillow Bags, Gusset Bags
- Film Thickness: 0.04-0.09 mm
- Air Consumption: 0.8ps 0.3 m³/min
- Total Power: 2.2KW 220V 50/60HZ
- Dimension (L x W x H): L1350×W820×H1150 mm
- Net Weight: 300 kg
Applications:
- Packaging of liquid sauces
- Packaging of oils
- Packaging of water
- Packaging of fruit juice
- Packaging of other liquids
Benefits:
- High-speed and efficient liquid packaging
- Accurate filling and sealing
- User-friendly operation with PLC and touch screen
- Durable construction and reliable performance
- Versatile for different bag types and sizes
- Ensures food safety with stainless steel construction
