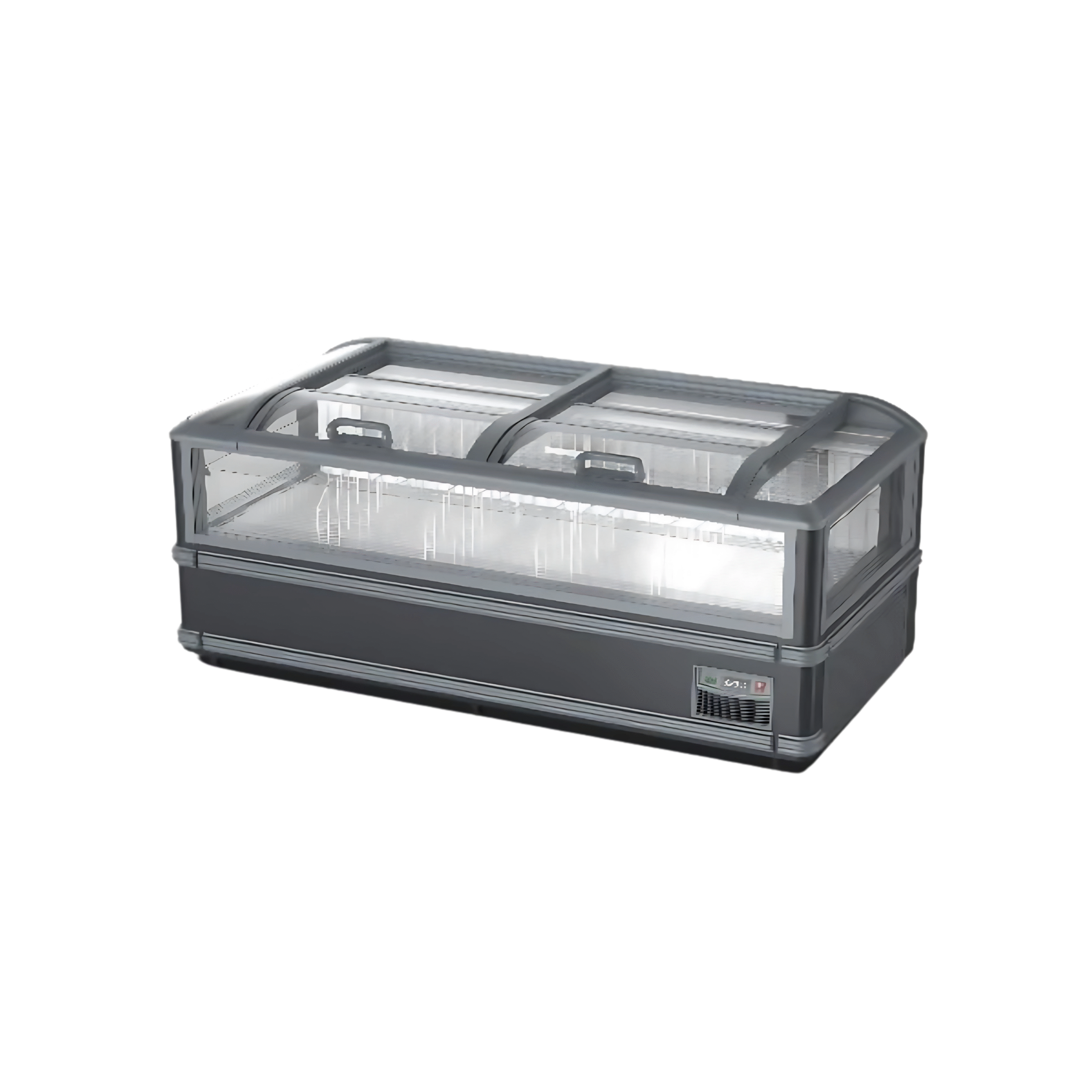

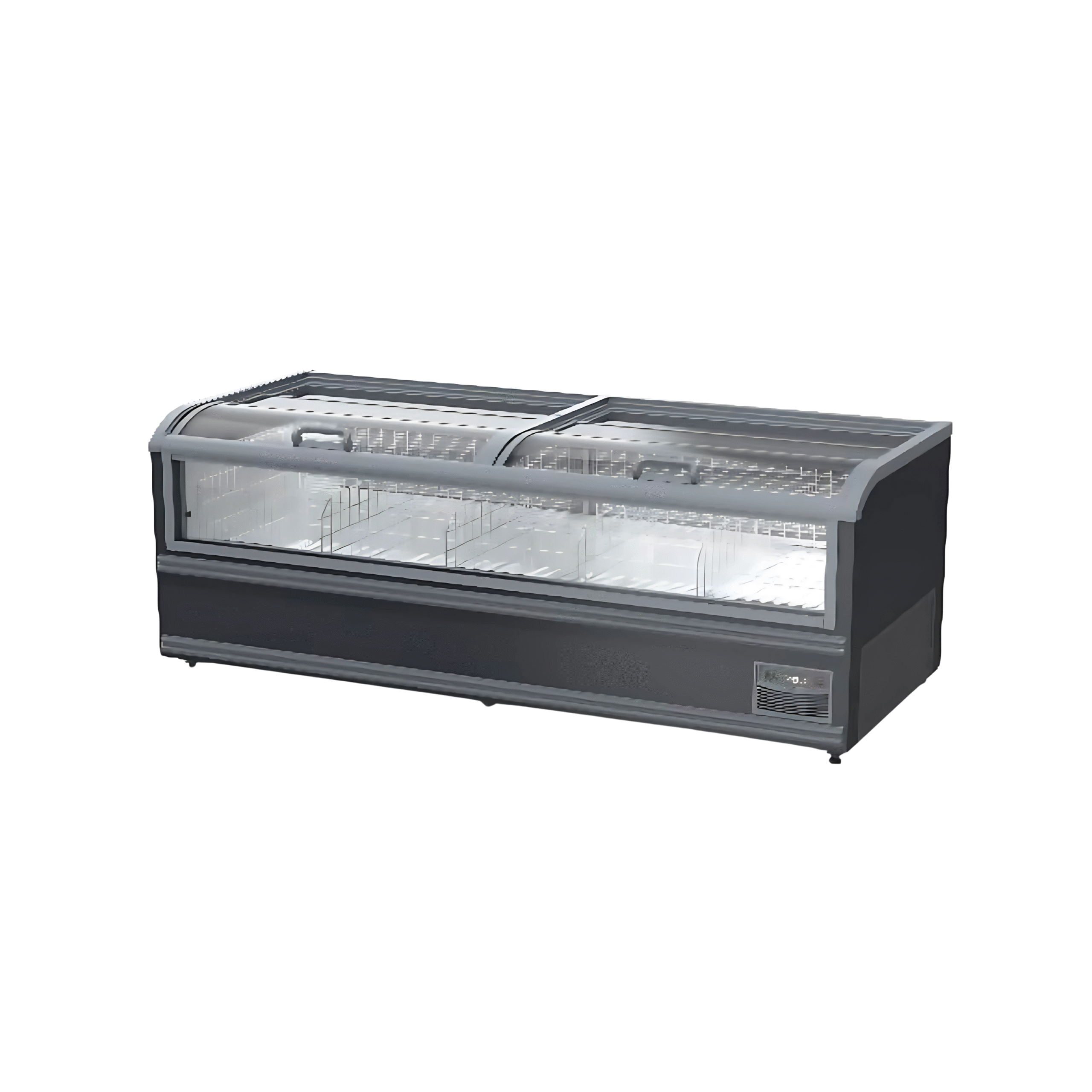

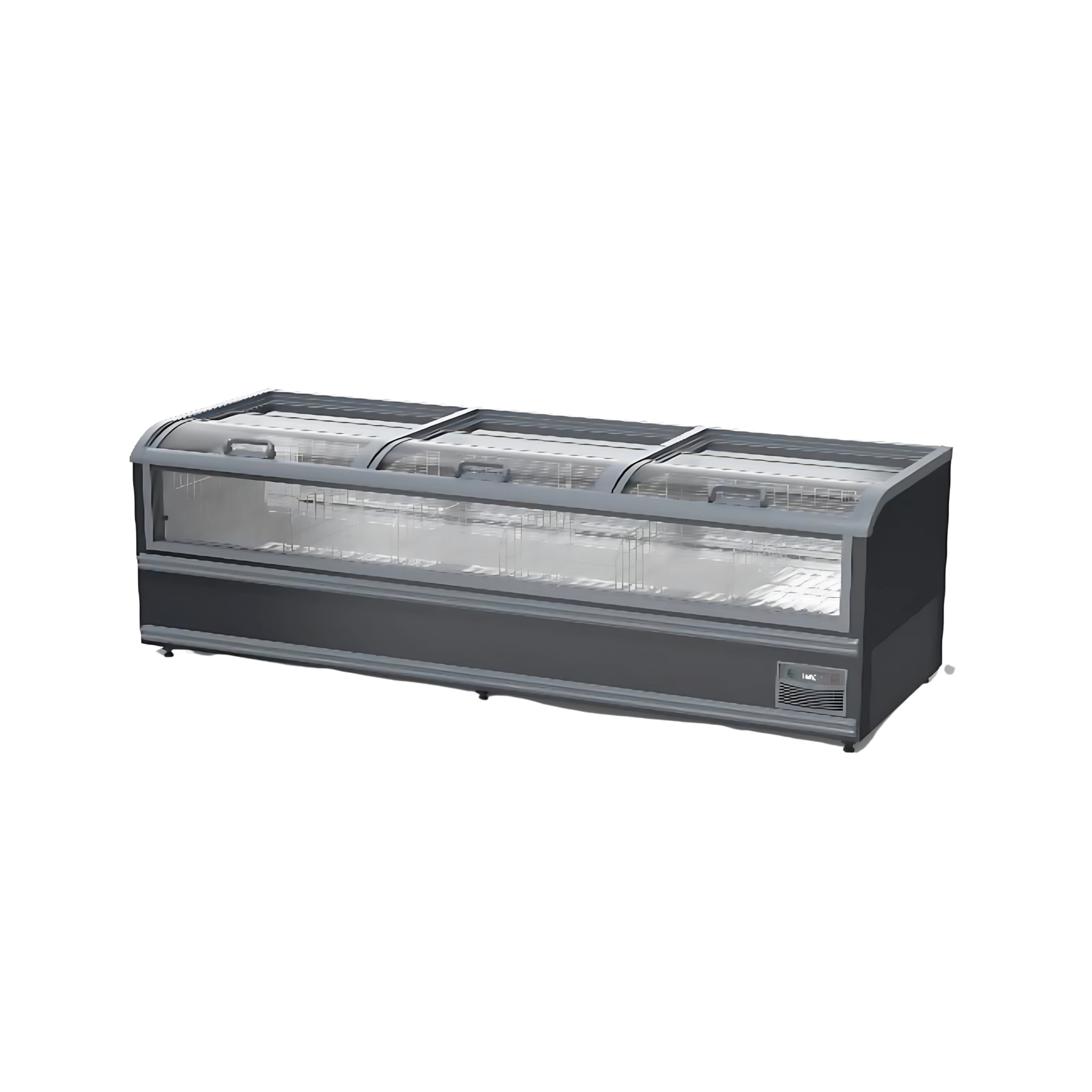

Asia Style Transparent Island Freezer

Asia Style Transparent Island Freezer

The ASIA STYLE TRANSPARENT ISLAND FREEZER is a cutting-edge commercial refrigeration solution designed for optimal display and preservation of frozen food items. It features a unique no-frost system that generates cold air via an evaporator, eliminating frost build-up on the interior walls and ensuring fast, uniform cooling. Its newest patent design includes a 3-piece glass top door, allowing up to 2/3 of the space to be opened for easy access to even the innermost products, facilitating better food circulation and easier refilling. This freezer is built for energy efficiency, thanks to its 4-layer, low-E side glasses, and offers a large volume for maximum food storage. It significantly enhances product promotion and visual impact at the point of sale, making it an ideal choice for supermarkets, convenience stores, and other retail environments.

Key Features:

• No Frost System: Evaporator-based cold air generation, no copper tubes in the body, ensuring fast cooling and uniform temperature.
• Newest Patent Design: 3-piece top glass door allowing 2/3 opening for easy food access and circulation.
• Energy Saving: Equipped with 4 layers of low-E side glasses to reduce energy consumption.
• Large Volume: Maximizes storage capacity for various frozen products.
• Enhanced Visibility: Transparent design and LED lighting promote product appeal and visual impact.
• Optimal Temperature Control: Maintains a temperature capacity of ≤-18°C.
• Reliable Components: Features Embraco compressor, EBM fan motor, and digital HK controller.
• Eco-Friendly Refrigerant: Uses R290.
• Automatic Defrost: Auto and hot gas defrosting system for hassle-free maintenance.
• Durable Construction: Side panels made of C-PENTANE foam.
• Top Glass Door: Up and Down movement, Low-E glass.
• Side Window: 4 layers, low-E glasses.

Specifications:

• Voltage/Hertz: 220V/50Hz
• Surrounding: Ⅲ（25℃/60%）
• Evaporator: Copper Tube with Wings
• Condenser: Wire mesh condenser
• Foaming Agent: Cyclopentane (38~40kg/m³)
• Controller: Digital controller–HK
• Refrigeration Type: Evaporator
• Packing Way: Steel /Plywood
• Defrost System: Auto and hot gas defrosting
• Compressor: Embraco
• Refrigerant: R290

Model-Specific Specifications:

Key Takeaways:

• Unique Design: The “Asia-Style” and “Transparent” elements suggest a visually appealing design with a focus on product visibility.
• Size Variations: Offers four different sizes to suit various needs and available space.
• Temperature Control: Maintains a consistent temperature of -18°C or lower for optimal food preservation.
• Energy Efficiency: The use of a high-efficiency compressor and R290 refrigerant contributes to energy savings.
• Display Area: The large display area allows for effective product presentation and visibility, enhancing sales.

Possible Applications:

• Supermarkets
• Convenience stores
• Restaurants
• Hotels
• Cafeterias
