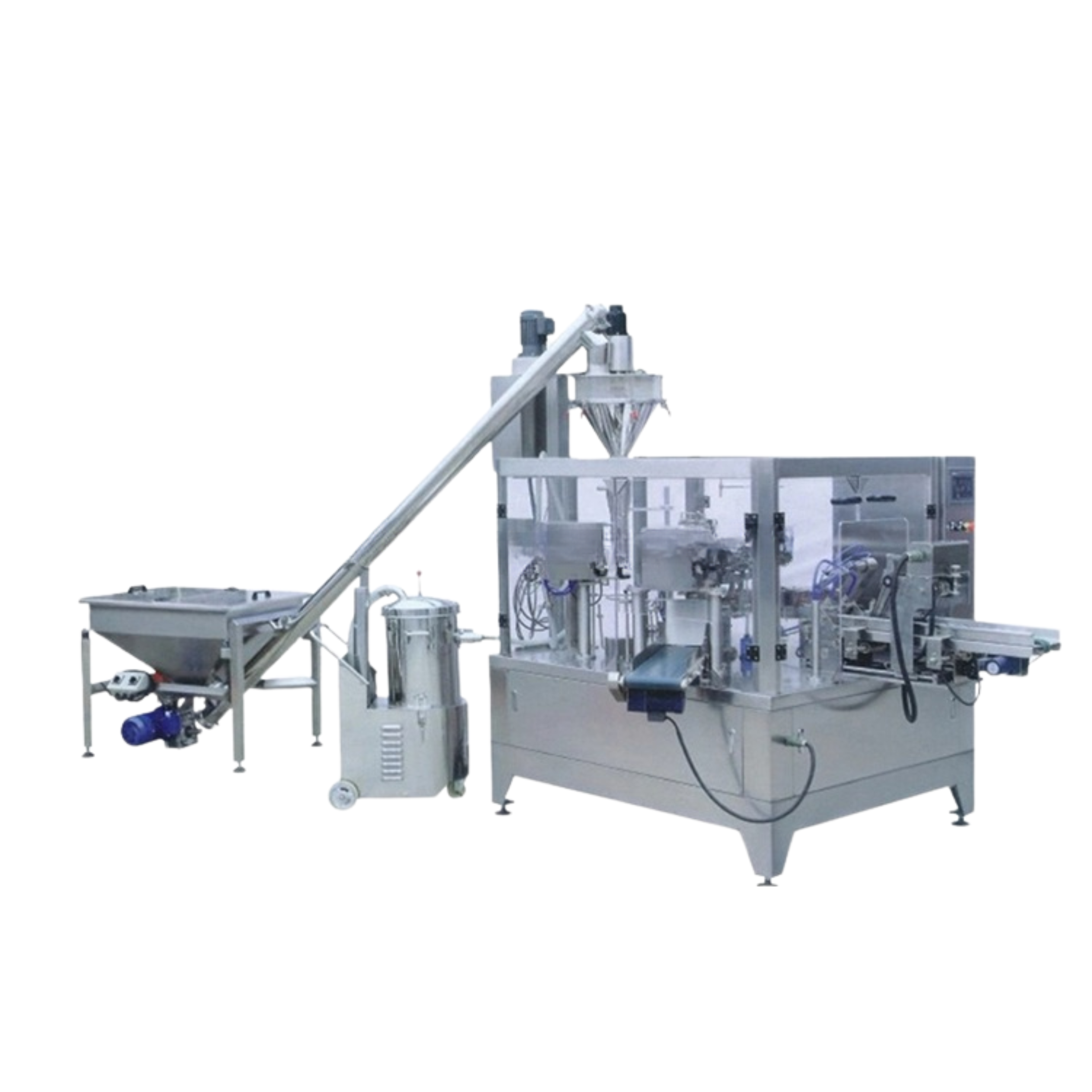

Automatic Premade Bag Rotary Packing Machine for Powder ARL-HN-RBF-6200/8200

Product Description: The Automatic Premade Bag Rotary Packing Machine for Powder ARL-HN-RBF-6200/8200 is a highly efficient automatic rotary packing machine designed for packaging powder into premade pouches. This machine is suitable for various premade pouch types, including zipper bags, stand-up bags, 3/4-side-seal pouches, and other special bags. The system includes a large auger filler, a large screw conveyor, and the HN-RBF basic packing machine, providing a complete and automated solution for powder packaging.

System Components:

HN-RBF Basic Packing Machine:
- Six/Eight position rotary packing machine for efficient operation (HN-RBF-6200 is six-position, HN-RBF-8200 is eight-position).
- Equipped with an automatic diagnostic & safety & alarm system to ensure personal safety and reduce material loss.
- Constructed with a highly strict manufacturing process, using components from international top brands.
- Complies with International Safety & Hygienic Regulations, passing safety, RoHs, physical property, and function tests.
- Attractive appearance, simple operation, reliable performance, and low failure rate.

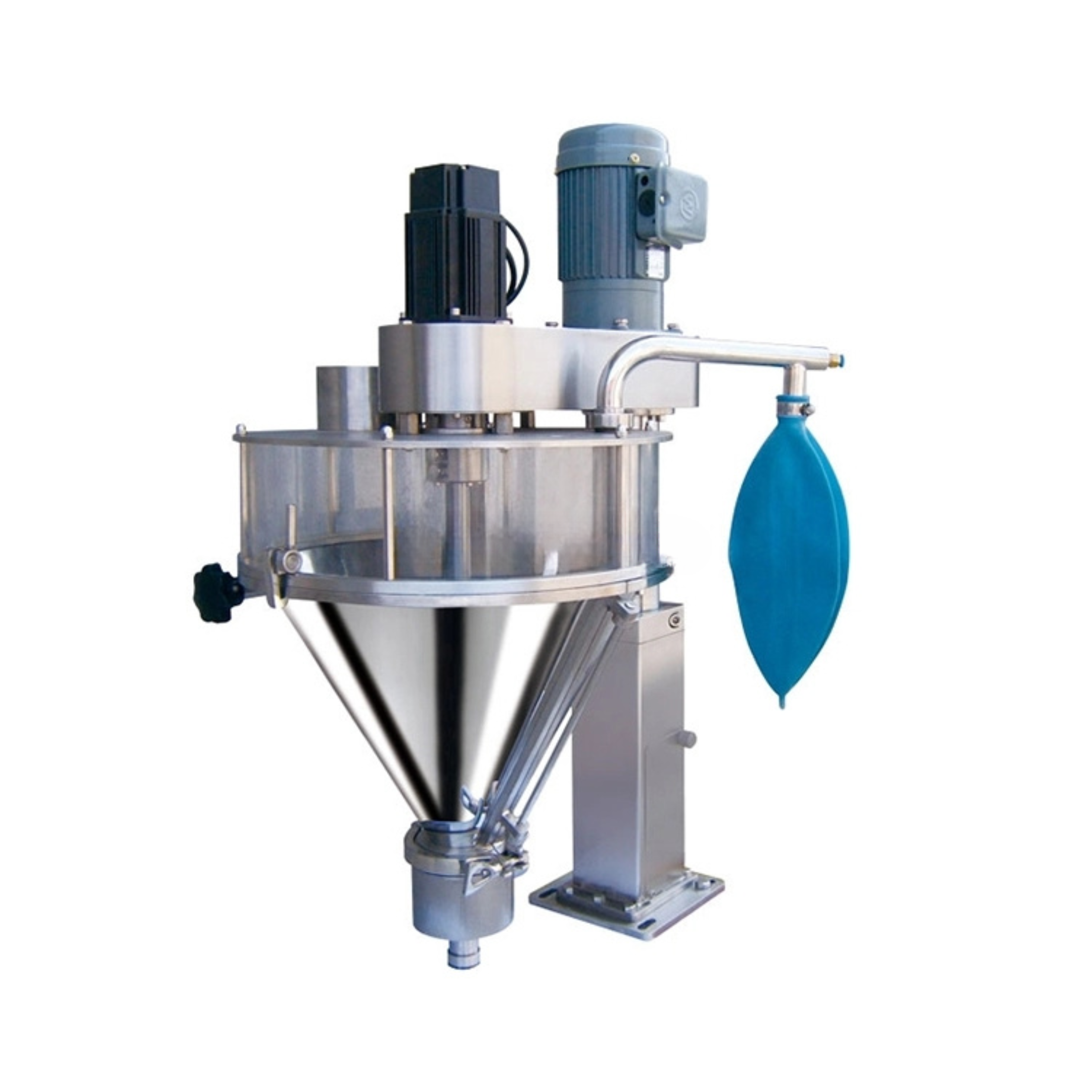

HN-3BL Large Auger Filler:
- Automatically completes measuring, bagging, and filling.
- Auger filler is driven by a servo motor for accurate measurement and filling of materials.
- Suitable for packaging free-flowing or poor-flowing powder.
- Food contact parts are made of high-quality stainless steel.

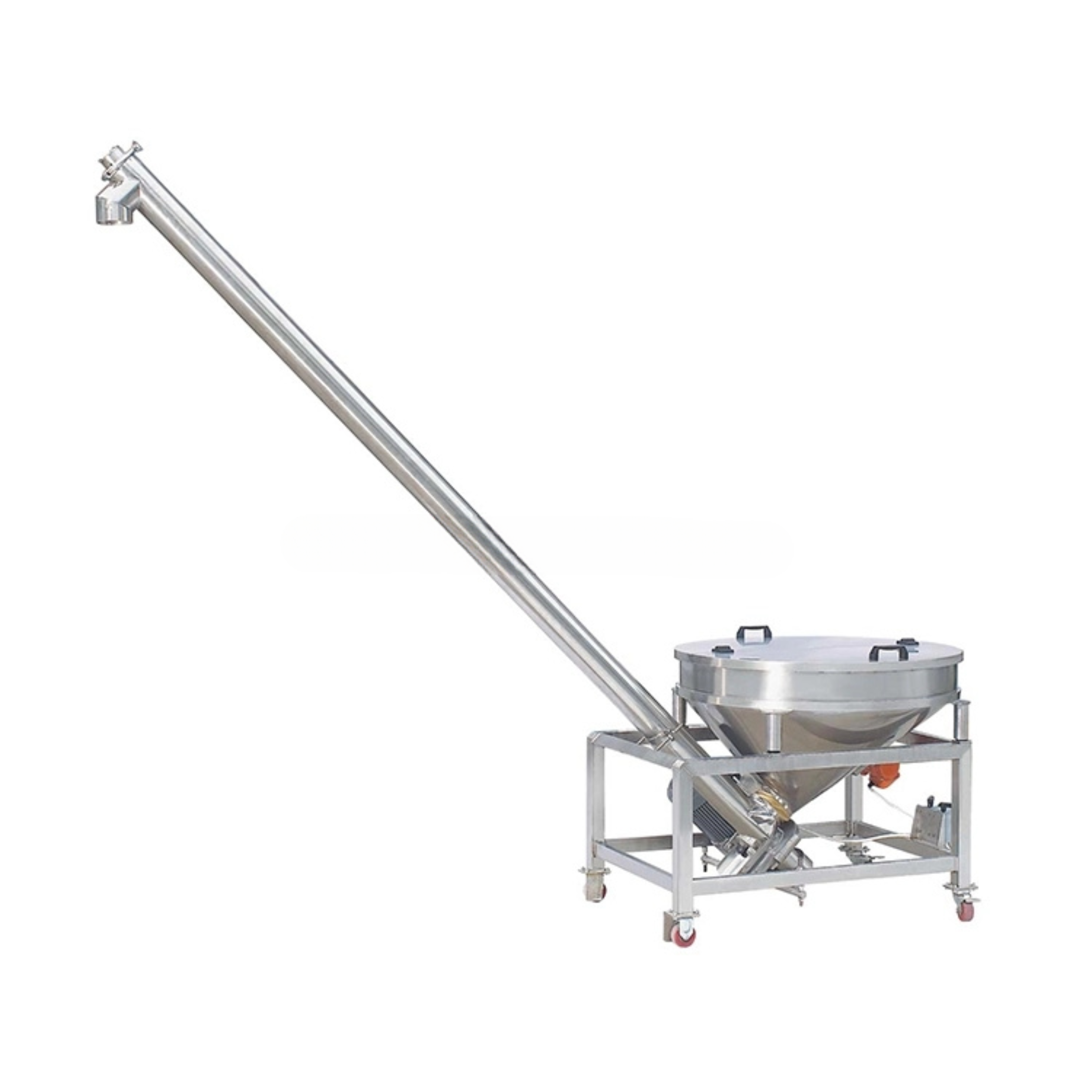

Large Screw Conveyor:
- Made of high-quality stainless steel, with a vibrating storage.
- Suitable for conveying various powders and small pellets.
- Size can be customized.

Technical Parameters (HN-RBF-6200/8200):

Name: HN-RBF-6200/8200
Capacity: 35-55 bags/min (depending on the material)
Machine Position: Six/Eight position
Bag Size (L x W): 100-350mm x 100-210mm
Film Weight: Max. 1.5Kg/bag
Film Thickness: 0.06-0.09mm
Air Consumption: 0.6Mpa 0.6 m³/min
Total Power: 2.5Kw 380V/220V 50/60HZ
Dimension (L x W x H): L1650W1500H1450
Unit Weight: 1200kg
Bag Type: Preformed bag: zipper bag, stand-up bag, 3/4-side-seal pouch, special bag, etc.

Applications:

Packaging of various powders into premade pouches.
Suitable for a wide range of industries requiring automated powder packaging.

Advantages:

Automated powder packaging with high efficiency.
Versatile for different premade bag types.
Accurate filling with servo-driven auger filler.
User-friendly operation and reliable performance.
Customizable conveyor size.
Safety and hygiene compliance
