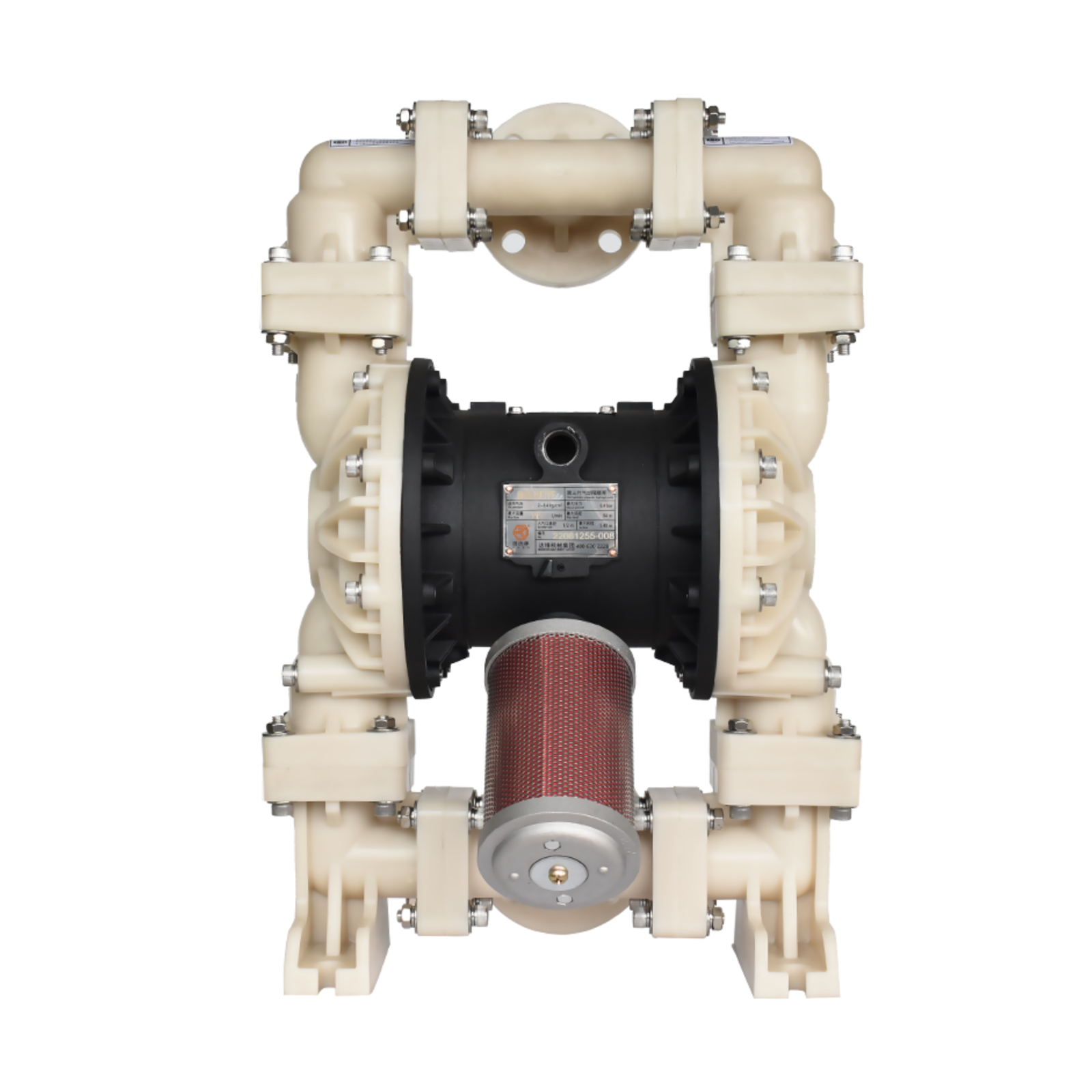

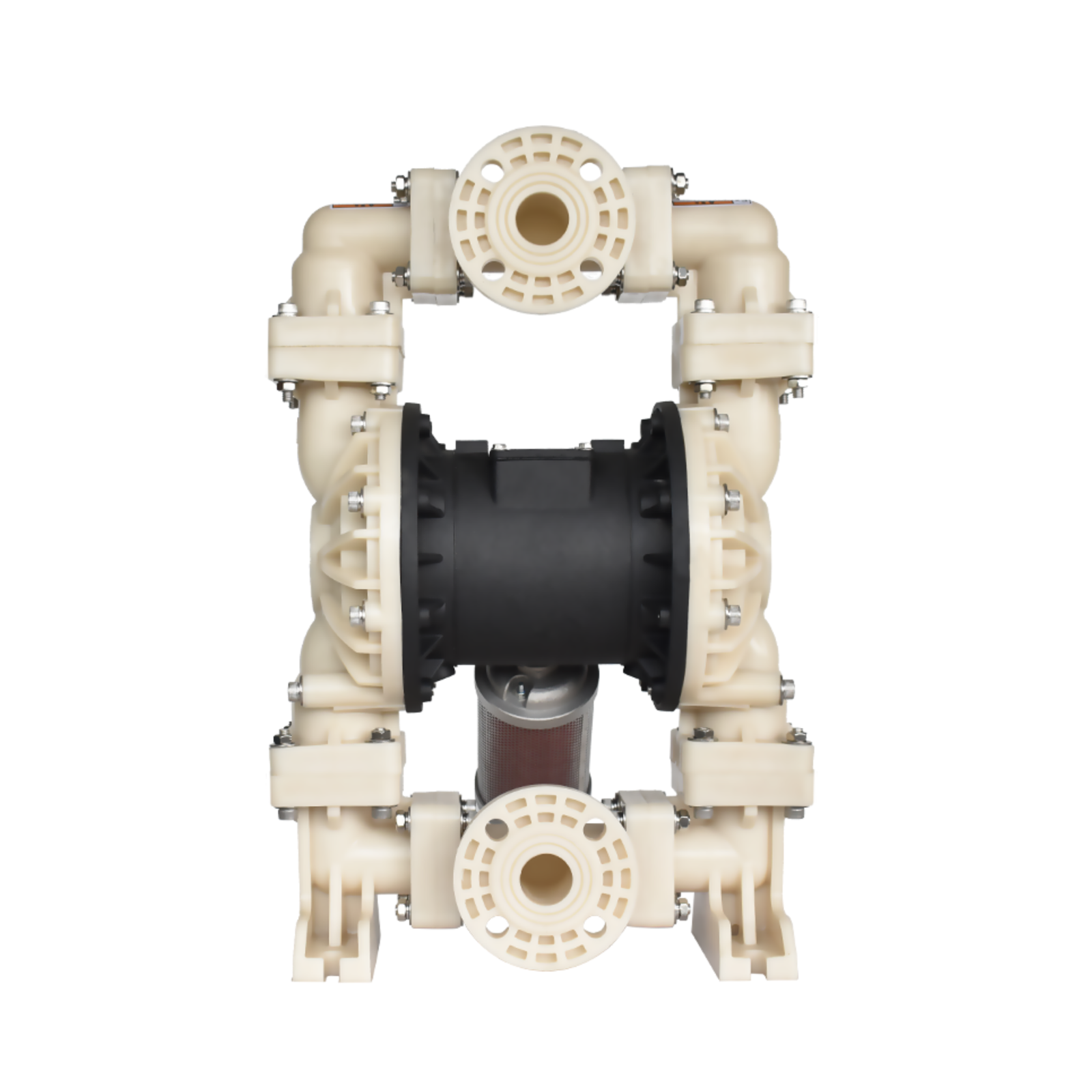

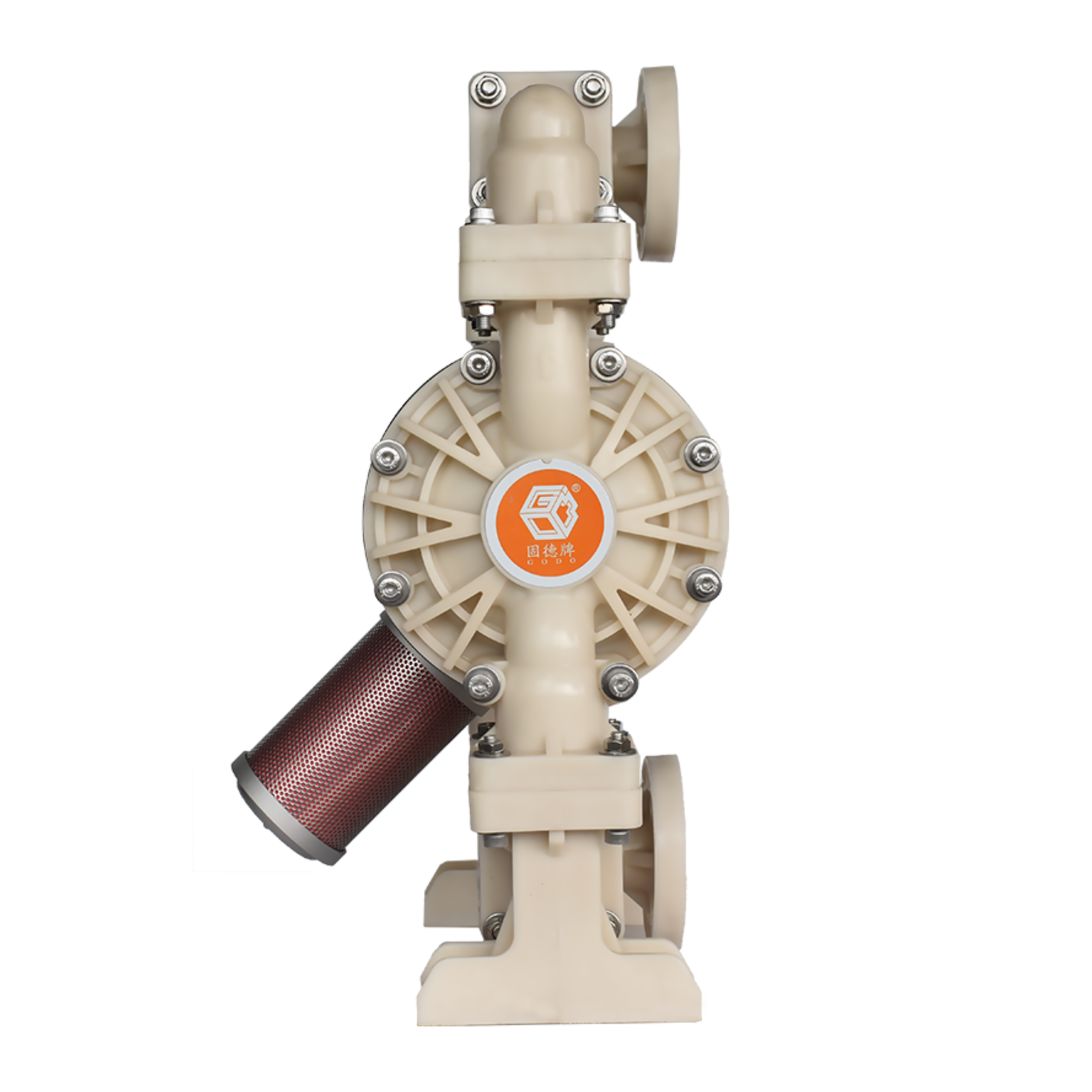

BFQ-25F 1” PVDF Air Operated Diaphragm Pump
| Model | BFQ-25F | Pump Material | PVDF |
| Max. Flow Rate (L/min) | 116 | Fluid Inlet/Outlet Size (in) | DN25 (1” Flange/ANSI Flange) |
| Max. Head (m) | 84 | Air Inlet Size (in) | 1/2” BSP/NPT |
| Max. Suction Height (m) | 5.48 | Max. Particle Size (mm) | 3.2 |
| Max. Working Pressure (bar) | 8.4 | Air Comsumption (m3/min) | 0.67 |
-
