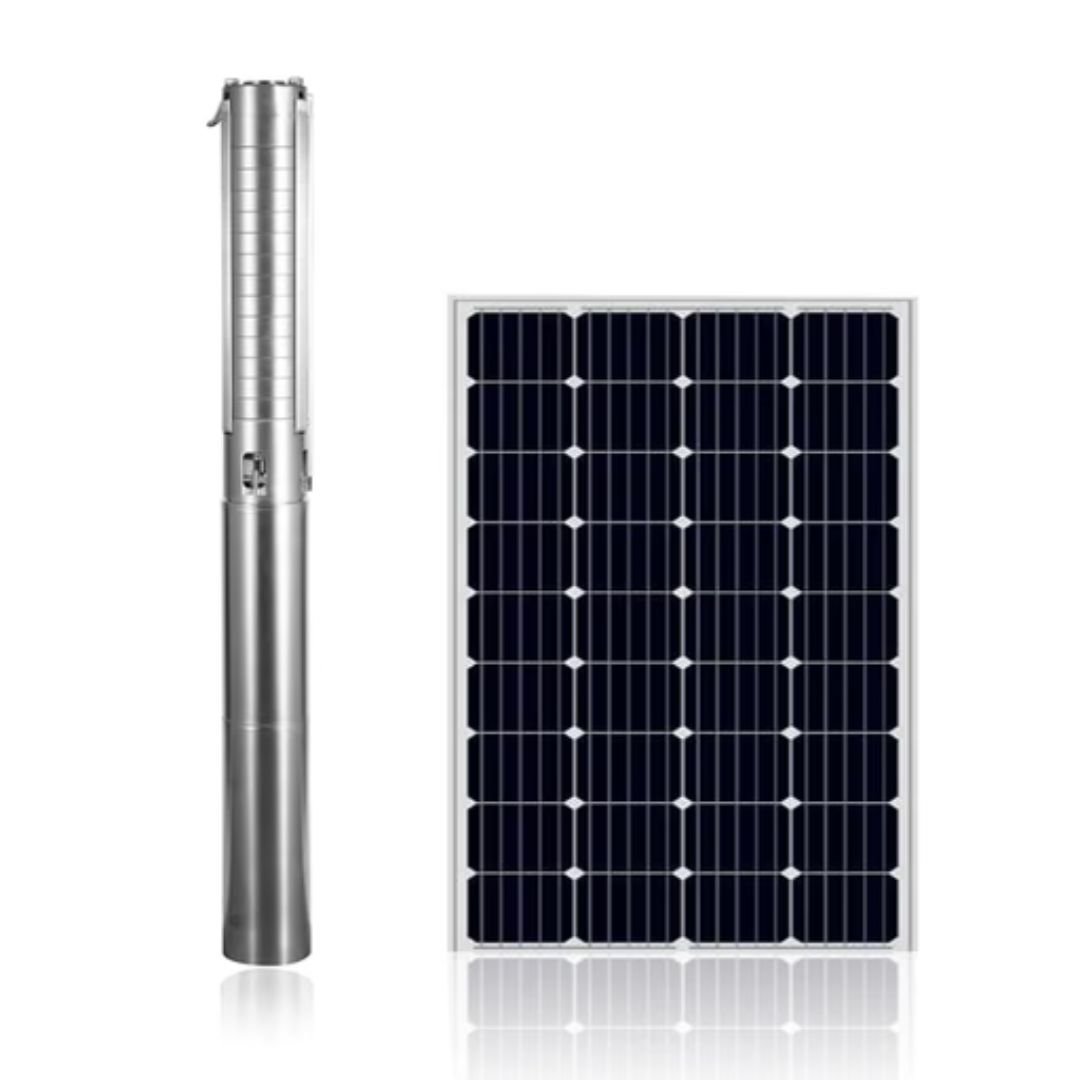

DC/AC Hybrid Solar Centrifugal Pump ARL-4SPN2-13-A

DC/AC Hybrid Solar Centrifugal Pump ARL-4SPN2-13-A

The DC/AC Hybrid Solar Centrifugal Pump ARL-4SPN2-13-A is a high-performance DC/AC hybrid solar centrifugal pump, featuring a robust Stainless Steel 304 pump body and impeller, and a powerful 2200W BLDC motor. Designed with an internal MPPT controller, this pump offers reliable performance for applications requiring a high head and the flexibility of both DC and AC power. Its encapsulated water-filled motor ensures no pollution risk, while soft start running prolongs the system’s life. This model comes with comprehensive protection features including dry-run, over-load, over-current, and over-voltage protection, making it a dependable choice for sustainable high-head water solutions.

Key Features:

• High-efficiency BLDC motor with encapsulated water-filled design
• Internal MPPT controller for optimal performance (IP65 rated)
• Durable Stainless Steel AISI 304 pump end and body
• Comprehensive protection: Dry-run, Reverse, Phase Loss, Over-Voltage, Low-Voltage, Over-Current, Over-Load, Over-Power, Over-Temperature, Stall
• Thrust bearing system for enhanced durability
• Soft start running for extended system life
• Positive and negative pole reverse connection alarm
• Certified with CE, TUV, SUD, UL, ISO9001, ISO14001
• Voltage/Current/Power/Speed Display
• Capable of operating on both DC and AC power

What’s Included:

• 1x 3-inch DC solar centrifugal pump with 1.5m cable
• 1x Pump controller with MPPT function
• 1x Electric float switch for water tank
• 1x Waterproof adhesive tape
• 1x PVC electrical adhesive tape
• 1x PTFE tape

Technical Specifications: Pump+Controller:

• Power: 2200W / 2.95HP
• Power Type: AC/DC Hybrid
• Max Head: 130m
• Max Flow: 5.5m³/h
• DC Voltage Range: 60-450V
• AC Voltage Range: 150-240V
• Outlet Size: 1.25 inches
• Pump Length: N/A
• Impeller Material: Stainless Steel
• Impeller Type: Centrifugal
• Controller Type: Internal (IP65 Enclosure Class)
• Gross Weight: 10.5 KG
• Net Weight: 8.5 KG
• Dimension: 61*36*16 MM
• Length: N/A

Motor Details:

• Power: 2200W
• Material: AISI 304
• Type: BLDC motor, Encapsulated water filled
• Bearing: Thrust bearing system
• Current: Max. DC 15A
• Submersion: Max. 150m
• Water Temp: Max. 40°C
• Efficiency: Max. 85%
• Insulation Class: F
• Max Voltage: DC Max. VOC 100V
• Optimal Voltage: DC Best. Vmp 40-90V
• Max Speed (Plastic/SS304/Helical): 4500 RPM / 4000 RPM / 4000 RPM
• Enclosure Class: IPX8
• Required Cooling Flow: 0.5L/s

Controller Details:

• Type: Internal
• Voltage: 40-90Vmp/100Voc
• MPPT Efficiency: Max. 98%
• Protection Type: Dry-Run (On), Reverse (On), Phase Loss (On), Over-Voltage (On), Low-Voltage (On), Over-Current (On), Over-Load (On), Over-Power (On), Over-Temperature (On), Stall (On)

System Overview:

• Recommend Max Input: 0.6kW
• Minimum Well Diameter: Min 3 inch
• Pump Discharge: Rp 1.25
• Efficient Max: 98%

Not Included (Self-Prepare):

• Suitable solar panels.
• A stainless steel wire (safety cable) to hold pump in bore.
• Poly pipe from pump to water tank.
• Pump outlet joint connector
• Wire power cable (2 wires plus earth).

Notes:

• Recommend using 550W solar panels in series.
• The Controller is IP65 Rated; however, it is recommended that it is not mounted in direct sunlight.
• VOC (V) Volts open circuit nothing connected; Vmp (V) Volts maximum power point under load.
• Exceeding limits may cause serious harm or irreparable damage.
