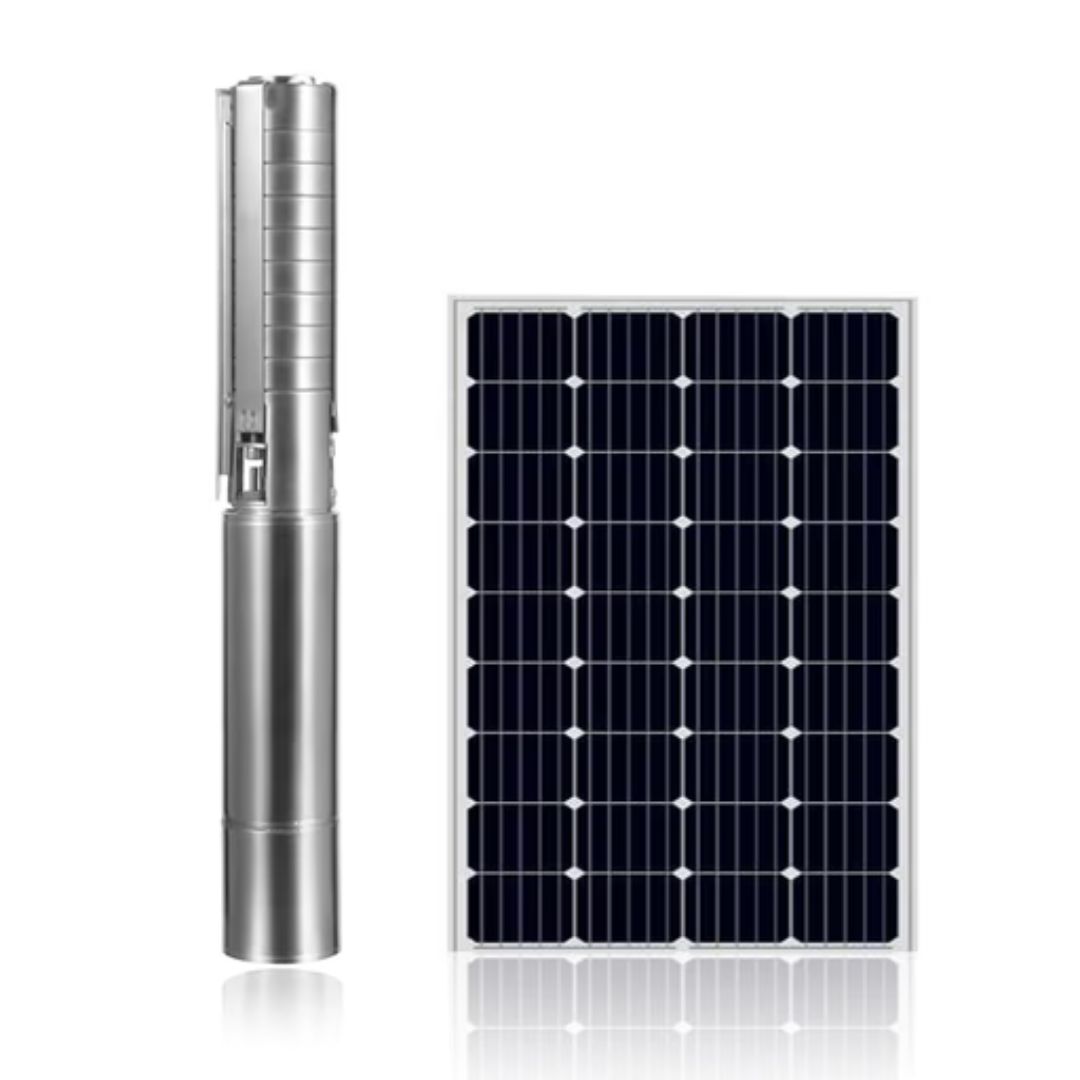

DC Solar Centrifugal Pump ARL-3SPN2-11

DC Solar Centrifugal Pump ARL-3SPN2-11

The DC Solar Centrifugal Pump ARL-3SPN2-11 is a highly efficient and robust submersible pump system, ideal for various water supply applications. Designed for direct current (DC) operation, it features an internal controller with MPPT function for optimized solar power utilization. Constructed primarily from stainless steel (SS304/SS) with a water-filled BLDC motor, this pump ensures durability, high performance, and environmental safety.

Key Features:

• High Efficiency BLDC Motor: Features an encapsulated water-filled Permanent Magnet Synchronous Motor (PMSM) made of AISI 304, offering up to 85% efficiency and no pollution risk.
• Integrated Internal Controller: The pump includes an internal controller with Maximum Power Point Tracking (MPPT) efficiency of up to 98%, optimizing power conversion from solar panels.
• Robust Construction: Made with stainless steel 304 for both the pump body and impeller, ensuring durability and corrosion resistance. (SS316 optional for pump end).
• Comprehensive Protection Features: Built-in safeguards against dry-run (no additional float sensor required), reverse polarity, phase loss, over-voltage, low-voltage, over-current, over-load, over-power, over-temperature, and stall.
• High Performance: Capable of a Max Head of 75m and a Max Flow of 5.0m³/hr, making it suitable for significant water lifting requirements.
• Soft Start Running: Extends the system’s lifespan.
• Thrust Bearing System: Enhances motor durability and efficiency.
• Digital Display: Provides real-time voltage, current, power, and speed display for easy monitoring.
• Wide DC Voltage Range: Operates effectively within an 80-150V DC voltage range, with an optimal voltage of 40-90Vmp.
• Certifications: CE, TUV, SUD, UL, ISO9001, ISO14001, ensuring quality and compliance.

Technical Specifications:

• Model Number: ARL-3SPN2-11
• Power: $1200\text{W / 1.61 Hp}$
• Power Type: DC
• Max Head: $75\text{m}$
• Max Flow: 5.0m3/hr
• Outlet Size: $1.25\text{ inches}$
• Pump Length: $0.64\text{m}$
• Impeller Type: Centrifugal
• Impeller Material: Stainless Steel
• Pump Body Material: Stainless Steel 304
• Motor Type: BLDC motor, Water-Filled, PMSM, Encapsulated
• Motor Material: AISI 304
• Max. Motor Current: $15\text{A (DC)}$
• Max. Submersion: $150\text{m}$
• Max. Water Temperature: $40\text{°C}$
• Motor Efficiency: Max. 85%
• Motor Insulation Class: F
• Motor Enclosure Class: IPX8
• Required Cooling Flow (Motor): $0.5\text{L/s}$
• Controller Type: Internal
• Controller Voltage: $40-90\text{Vmp/100Voc}$
• Controller MPPT Efficiency: Max. 98%
• Controller Enclosure Class: IP65
• Minimum Well Diameter: $3\text{ inches}$
• Pump Discharge: Rp 1.25
• Warranty: 2 years

Physical Dimensions & Weight (Pump+Controller):

• Gross Weight: $10.5\text{ KG}$
• Net Weight: $8.5\text{ KG}$
• Dimension: $61\times 36\times 16\text{MM}$
• Length (Pump): $0.64\text{ M}$

What’s Included:

• 1 x 3-inch DC solar centrifugal pump with a 1.5m cable
• 1 x Pump controller with MPPT function
• 1 x Electric float switch for water tank
• 1 x Waterproof adhesive tape
• 1 x PVC electrical adhesive tape
• 1 x PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels (Recommended: $550\text{W}$ solar panels in series)
• A stainless steel wire (safety cable) to hold pump in bore
• Poly pipe from pump to water tank
• Pump outlet joint connector
• Wire power cable (2 wires plus earth)
