DC Solar Centrifugal Pump ARL-3SPW1-14P

DC Solar Centrifugal Pump ARL-3SPW1-14P

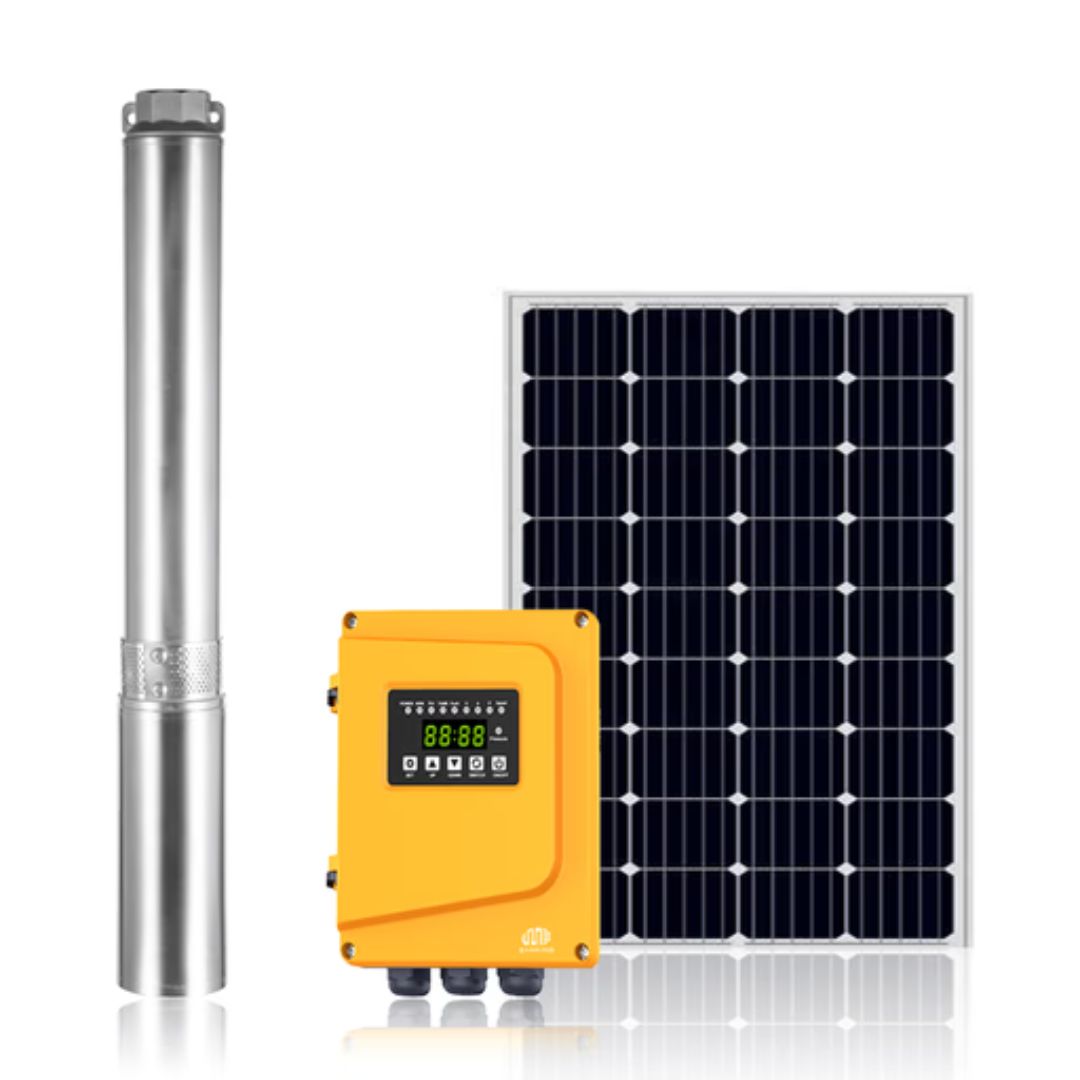

The DC Solar Centrifugal Pump ARL-3SPW1-14P is a robust and efficient submersible pump system specifically designed for solar-powered water supply applications. It features an external controller with MPPT function for optimized energy harvesting and a durable stainless steel 304 pump body with a water-filled BLDC motor, ensuring reliable operation and environmental safety.

Key Features:

• DC Power Only: Designed to operate solely on DC power (80-180V), making it ideal for direct solar panel integration.
• High Efficiency BLDC Motor: Equipped with an encapsulated water-filled Permanent Magnet Synchronous Motor (PMSM) made of AISI 304, offering high efficiency (up to 85%) and no pollution risk.
• External Controller: The pump includes an external controller with Maximum Power Point Tracking (MPPT) efficiency of up to 98%, maximizing power conversion from solar panels.
• Durable Construction: Made with stainless steel 304 for the pump body, ensuring excellent corrosion resistance. (SS316 optional for pump end).
• Comprehensive Protection Features: Equipped with safeguards against dry-run (no additional float sensor required), reverse polarity, phase loss, over-voltage, low-voltage, over-current, over-load, over-power, over-temperature, and stall, with error display.
• High Performance: Achieves a Max Head of 120m and a Max Flow of 60 L/min, suitable for demanding water lifting applications.
• Soft Start Running: Contributes to a longer system lifespan.
• Thrust Bearing System: Enhances motor durability and efficiency.
• Digital Display: Provides real-time voltage, current, power, and speed display for easy monitoring.
• Certifications: CE, TUV, SUD, UL, ISO9001, ISO14001, ensuring quality and compliance.

Technical Specifications:

• Model Number: ARL-3SPW1-14P
• Power: $1200\text{W / 1.61 Hp}$
• Power Type: DC
• Max Head: $120\text{m}$
• Max Flow: $60\text{L/min}$
• Outlet Size: $1.5\text{ inches}$
• Impeller Type: Centrifugal
• Impeller Material: Plastic
• Pump Body Material: Stainless Steel 304
• Pump Length: $0.76$
• Motor Type: BLDC motor, Water-Filled, PMSM, Encapsulated
• Motor Material: AISI 304
• Max. Motor Current: $15\text{A (DC)}$
• Max. Submersion: $150\text{m}$
• Max. Water Temperature: $40\text{°C}$
• Motor Efficiency: Max. 85%
• Motor Insulation Class: F
• Motor Enclosure Class: IPX8
• Required Cooling Flow (Motor): $0.5\text{L/s}$
• Controller Type: External
• Controller Voltage (DC Range): 80-180V
• Controller MPPT Efficiency: Max. 98%
• Controller Enclosure Class: IP65
• Minimum Well Diameter: $3\text{ inches}$
• Pump Discharge: Rp 1.25
• Warranty: 2 years

Physical Dimensions & Weight (Pump+Controller):

• Gross Weight: $10.5\text{ KG}$
• Net Weight: $8.5\text{ KG}$
• Dimension (Controller): $61\times 36\times 16\text{ MM}$
• Length (Pump): $0.76$

What’s Included:

• 1 x 3-inch DC solar centrifugal pump with a 1.5m cable
• 1 x Pump controller with MPPT function
• 1 x Electric float switch for water tank
• 1 x Waterproof adhesive tape
• 1 x PVC electrical adhesive tape
• 1 x PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels.
• A stainless steel wire (safety cable) to hold pump in bore.
• Poly pipe from pump to water tank.
• Pump outlet joint connector.
• Wire power cable (2 wires plus earth).
