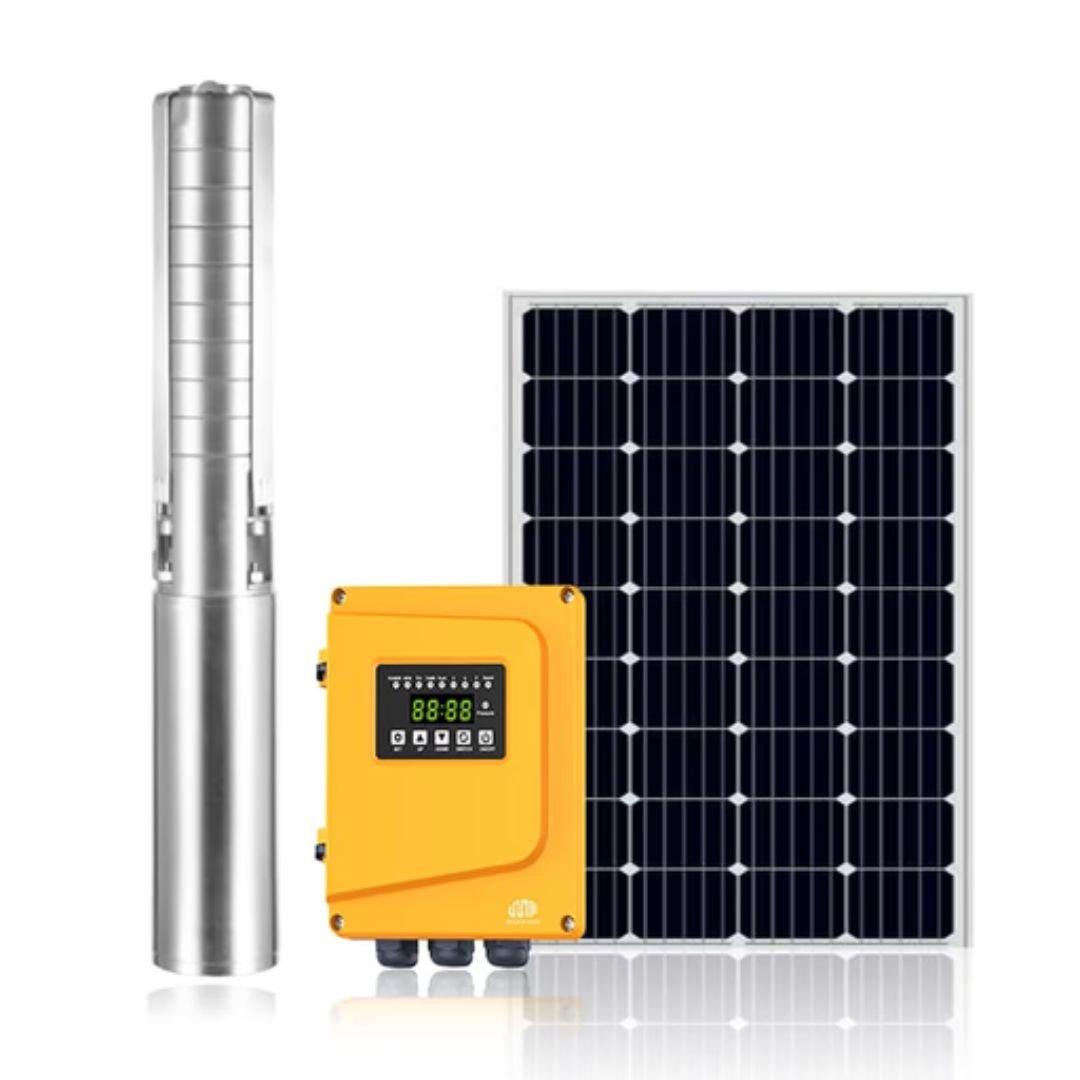

DC Solar Centrifugal Pump ARL-3SPW2-3
The DC Solar Centrifugal Pump ARL-3SPW2-3Â is an efficient and environmentally friendly solution for water pumping, designed for exclusive operation with DC power. It features a durable stainless steel 304 pump body and impeller, powered by a water-filled PMSM motor for high efficiency and minimal environmental impact. The external controller with MPPT functionality ensures optimal performance from solar panels.
Key Features:
- DC Power Only: Designed to operate efficiently using only DC power, with a voltage range of 20-40V.
- High Efficiency BLDC Motor: Equipped with an encapsulated water-filled BLDC motor made of AISI 304, offering high efficiency (up to 85%) and eliminating pollution risk.
- External Controller with MPPT: The included external controller provides Maximum Power Point Tracking (MPPT) with up to 98% efficiency, optimizing power extraction from solar panels.
- Durable Construction: Built with stainless steel 304 for both the pump body and impeller, ensuring excellent corrosion resistance and longevity. An SS316 option is available for the pump end.
- Comprehensive Protection Features: Includes safeguards against dry-run (no additional float sensor required), reverse polarity, phase loss, over-voltage, low-voltage, over-current, over-load, over-power, over-temperature, and stall, with an error display for easy diagnostics.
- High Performance: Delivers a Max Head of 22m and a Max Flow of 5.1 m³/h, suitable for various water transfer and irrigation needs.
- Soft Start Functionality: Contributes to a longer system lifespan by reducing mechanical stress during startup.
- Thrust Bearing System: Enhances the motor’s durability and efficiency.
- Digital Display: The controller displays voltage, current, and power for convenient monitoring.
- Certifications: Holds CE, TUV, SUD, UL, ISO9001, and ISO14001 certifications, ensuring compliance with international quality and safety standards.
Technical Specifications:
- Model Number: ARL-3SPW2-3
- Power: 300WÂ /Â 0.40Â Hp
- Power Type: DC
- Max Head: 22m
- Max Flow: 5.1m³/h
- Outlet Size: 1.25Â inches
- Impeller Type: Centrifugal
- Impeller Material: Stainless Steel 304
- Pump Body Material: Stainless Steel 304
- Pump Length: 0.4m
- Motor Type: BLDC motor, Water-Filled, PMSM, Encapsulated
- Motor Material: AISI 304
- Max. Motor Current: 15AÂ (DC)
- Max. Submersion: 150m
- Max. Water Temperature: 40°C
- Motor Efficiency: Max. 85%
- Motor Insulation Class: F
- Motor Enclosure Class: IPX8
- Required Cooling Flow (Motor): 0.5L/s
- Controller Type: External
- Controller DC Voltage Range: 20-40V
- Controller MPPT Efficiency: Max. 98%
- Controller Enclosure Class: IP65
- Minimum Well Diameter: 3Â inches
- Pump Discharge: Rp 1.25
- Warranty: 2 years
Physical Dimensions & Weight (Pump+Controller):
- Gross Weight: 10.5Â KG
- Net Weight: 8.5Â KG
- Dimension (Controller): 61×36×16 MM
- Length: 0.4Â M
What’s Included:
- 1 x 3-inch DC solar centrifugal pump with 1 x 1.5m cable
- 1 x Pump controller with MPPT function
- 1 x Electric float switch for water tank
- 1 x Waterproof adhesive tape
- 1 x PVC electrical adhesive tape
- 1 x PTFE tape
Not Included (Self-Prepare):
- Suitable solar panels. Check on Instructions for recommendations.
- A stainless steel wire (safety cable) to hold pump in bore.
- Poly pipe from pump to water tank.
- Pump outlet joint connector.
- Wire power cable (2 wires plus earth).
