DC Solar Centrifugal Pump ARL-4SPN3-9P

DC Solar Centrifugal Pump ARL-4SPN3-9P

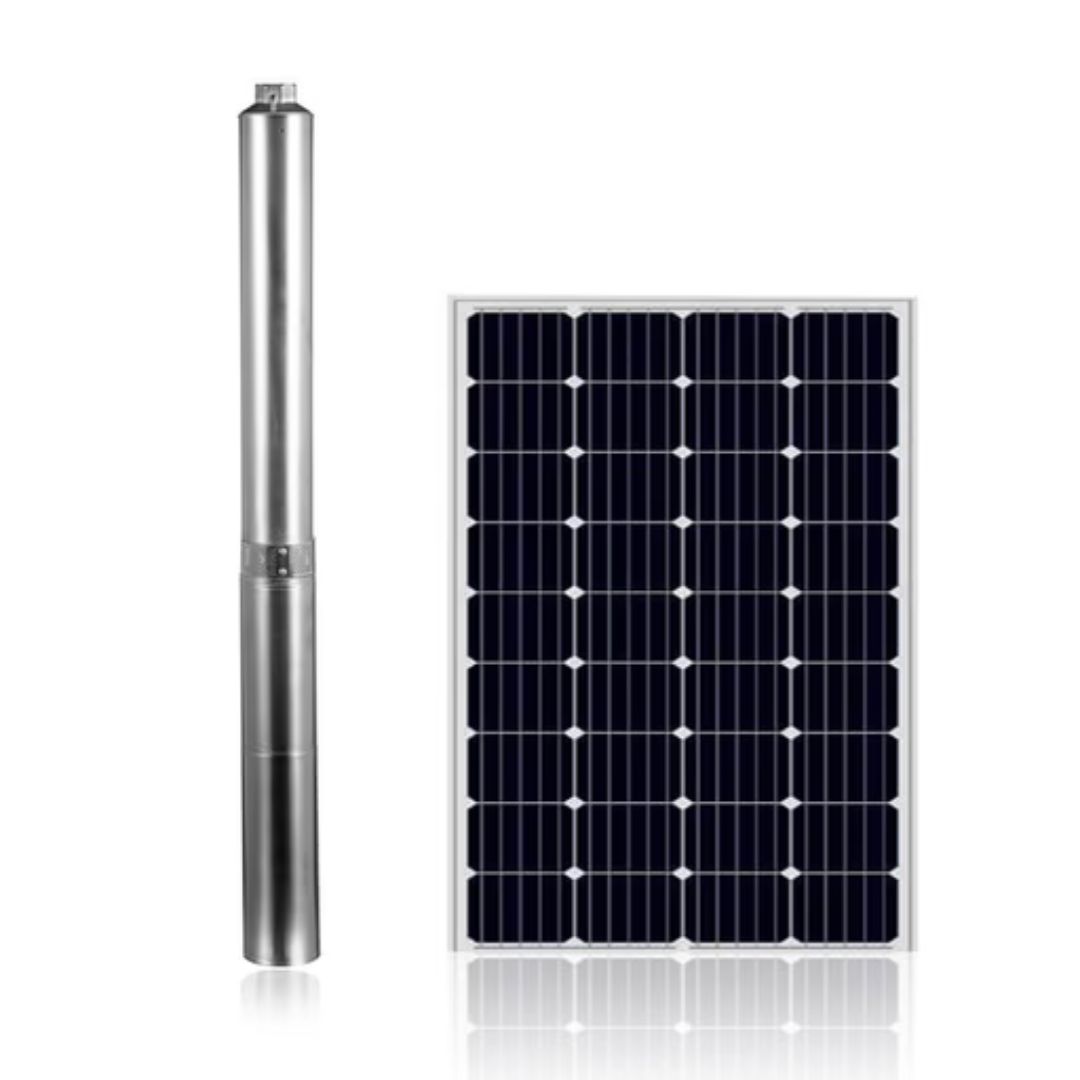

The DC Solar Centrifugal Pump ARL-4SPN3-9P is a high-efficiency DC solar centrifugal pump system designed for reliable water supply. Featuring a robust stainless steel 304 pump body and a 2200W BLDC high-efficiency motor with an internal MPPT controller, this pump is ideal for various applications. It offers a soft-start function for extended system life and comprehensive protection features, ensuring dependable performance.

Key Features:

• Stainless Steel-AISI 304 pump body (316 optional)
• BLDC High Efficiency Motor
• Internal MPPT Controller
• Powered by DC Power Only
• Voltage/Current/Power/Speed Display
• Encapsulated water-filled motor (no pollution risk)
• Soft start function for extended system life
• Thrust bearing system
• Positive and negative pole reverse connection alarm
• Comprehensive protection: Over-load, Over-current, Over-voltage, Low-voltage, Dry protection (no additional float sensor required), Phase Loss, Over-Power, Over-Temperature, Stall, Reverse
• A wide range of accessories included Technical Specifications:

System Overview:

• Max Head: 160m
• Max Flow: 7.4m³/h
• Recommended Max Input: Max. 0.6kW
• Minimum Well Diameter: Min 3 inch
• Pump Discharge: Rp 1.25
• Efficient Max: 98%
• DC Voltage Range: 60-380V
• Outlet Size: 2 inches
• Impeller Material: Plastic
• Impeller Type: Centrifugal
• Pump Length: 0.8m
• Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001
• Warranty: 2 Years

Motor Data:

• Power: 2200W / 2.95HP
• Material: AISI 304
• Type: BLDC motor, Water-Filled, PMSM
• Feature: Encapsulated water filled
• Bearing: Thrust bearing system
• Current: Max. DC 15A
• Submersion: Max. 150m
• Water Temp: Max. 40°C
• Efficiency: Max. 85%
• Insulation Class: F
• Max Voltage: DC Max. VOC 100V
• Optimal Voltage: DC Best. Vmp 40-90V
• Max Speed (Plastic): 4500 RPM
• Max Speed (SS304): 4000 RPM
• Max Speed (Helical): 4000 RPM
• Enclosure Class: IPX8
• Required Cooling Flow: 0.5L/s

Controller Data:

• Type: Internal
• Voltage: 40-90Vmp/100Voc
• MPPT Efficiency: Max. 98%
• Enclosure Class: IP65
• Protection Type: Dry-Run, Reverse, Phase Loss, Over-Voltage, Low-Voltage, Over-Current, Over-Load, Over-Power, Over-Temperature, Stall (All ‘On’ / ‘Active’)

Dimensions & Weight (Pump+Controller):

• Gross Weight: 10.5 KG
• Net Weight: 8.5 KG
• Dimension: 61*36*16 MM
• Length: 0.8m

What’s Included:

• 1* 3inch DC solar centrifugal pump with 1* 1.5m cable
• 1* Pump controller with MPPT function
• 1* Electric float switch for water tank
• 1* Waterproof adhesive tape
• 1* PVC electrical adhesive tape
• 1* PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels.
• A stainless steel wire (safety cable) to hold pump in bore.
• Poly pipe from pump to water tank.
• Pump outlet joint connector
• Wire power cable (2 wires plus earth).

Important Notes:

• Recommend using 550W solar panels in series.
• The Controller is IP 65 Rated; however, it is recommended that it is not mounted in direct sunlight.
• VOC (V) refers to Volts open circuit (nothing connected); Vmp (V) refers to Volts maximum power point under load.
• Exceeding limits may cause serious harm or irreparable damage.
