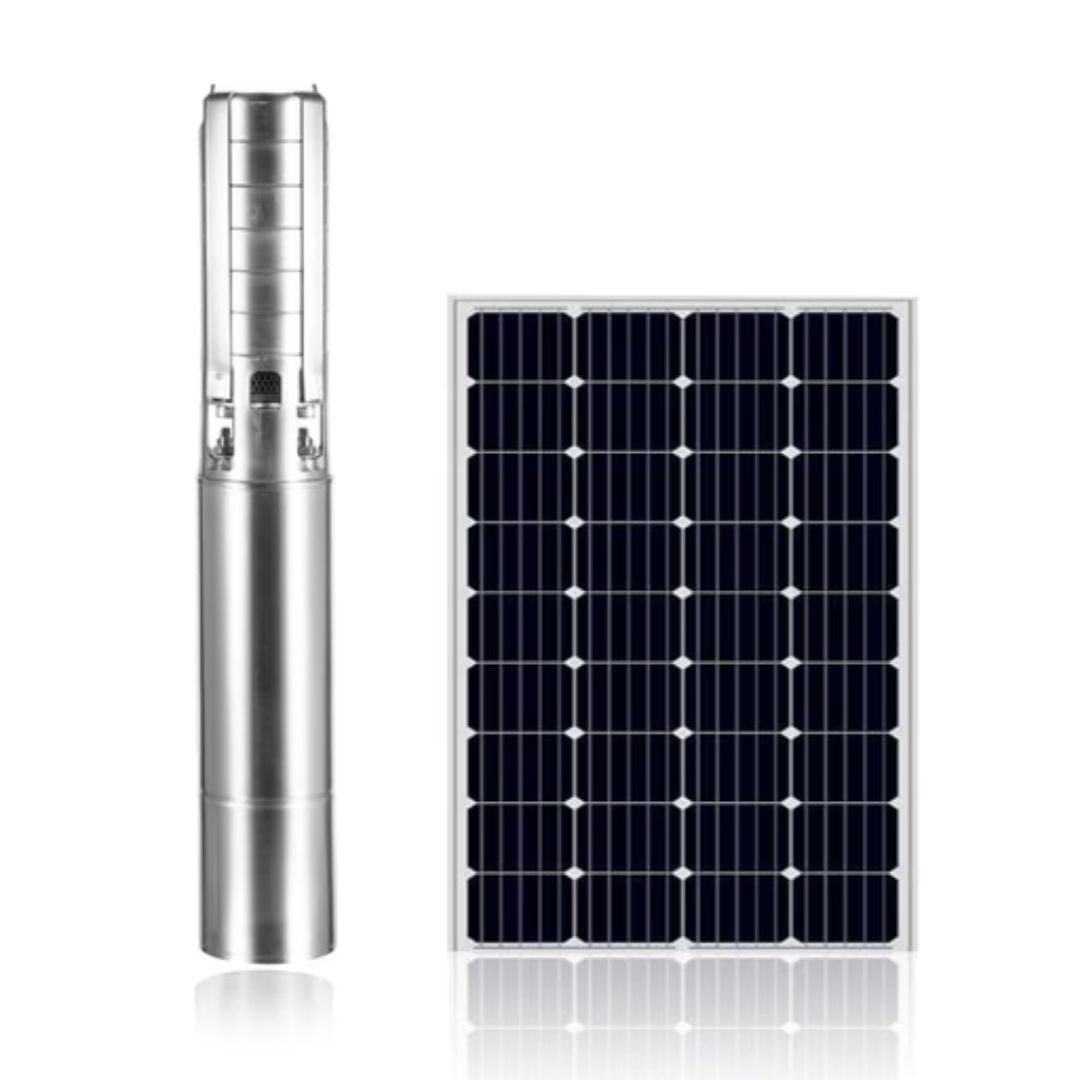

DC Solar Centrifugal Pump ARL-4SPN8-8

DC Solar Centrifugal Pump ARL-4SPN8-8

The DC Solar Centrifugal Pump ARL-4SPN8-8 is a powerful and efficient DC solar centrifugal pump, featuring a durable Stainless Steel 304 pump body and a high-efficiency BLDC motor with an internal controller. Engineered for reliable water transfer, this pump delivers an impressive maximum head of 90 meters and a flow rate of 15.7 cubic meters per hour. Its encapsulated water-filled motor design ensures no pollution risk, while a comprehensive suite of protection features guarantees extended system life and safe operation.

Key Features:

• Stainless Steel-AISI 304 (316 Optional) construction for durability and corrosion resistance.
• High-efficiency BLDC motor with encapsulated water-filled design to prevent pollution.
• Internal controller with advanced MPPT function for optimal solar energy harvesting.
• Soft start running capability to prolong the system’s operational lifespan.
• Comprehensive protection mechanisms: Dry-run, Reverse, Phase Loss, Over-Voltage, Low-Voltage, Over-Current, Over-Load, Over-Power, Over-Temperature, and Stall protection.
• Thrust bearing system for stable and reliable performance.
• Integrated display for real-time monitoring of Voltage, Current, Power, and Speed.
• Designed for DC power input, making it ideal for solar photovoltaic systems.
• Features a positive and negative pole reverse connection alarm for enhanced safety during installation.
• Comes with a wide range of essential accessories for immediate setup.

Technical Specifications:

• Power: 3000W / 4.02HP
• Max Head: 90m
• Max Flow: 15.7m³/h
• Controller Type: Internal
• MPPT Efficiency: Max. 98%
• Enclosure Class (Controller): IP65
• Enclosure Class (Motor): IPX8
• Impeller Material: Stainless Steel
• Impeller Type: Centrifugal
• Pump Body Material: Stainless Steel 304
• DC Voltage Range: 60-380V
• Optimal Voltage (Vmp): 40-90V
• Max. VOC: 100V
• Insulation Class: F
• Max Submersion: 150m
• Max Water Temperature: 40°C
• Recommended Max Input: Max. 0.6kW
• Minimum Well Diameter: Min. 3 inches
• Pump Discharge: Rp 1.25
• Outlet Size: 2 inches
• Pump Length: 0.72
• Gross Weight: 10.5 KG
• Net Weight: 8.5 KG
• Dimensions: 61*36*16 MM
• Warranty: 2 Years
• Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001

What’s Included:

• 1 x 3-inch DC solar centrifugal pump with 1.5m cable
• 1 x Pump controller with MPPT function
• 1 x Electric float switch for water tank
• 1 x Waterproof adhesive tape
• 1 x PVC electrical adhesive tape
• 1 x PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels.
• A stainless steel wire (safety cable) to hold pump in bore.
• Poly pipe from pump to water tank.
• Pump outlet joint connector
• Wire power cable (2 wires plus earth).

Note:

• Recommend using 550W solar panels in series.
• The Controller is IP 65 Rated; however, it is recommended that it is not mounted in direct sunlight.
• VOC (V) Volts open circuit nothing connected; Vmp (V) Volts maximum power point under load.
• Exceeding limits may cause serious harm or irreparable damage.
