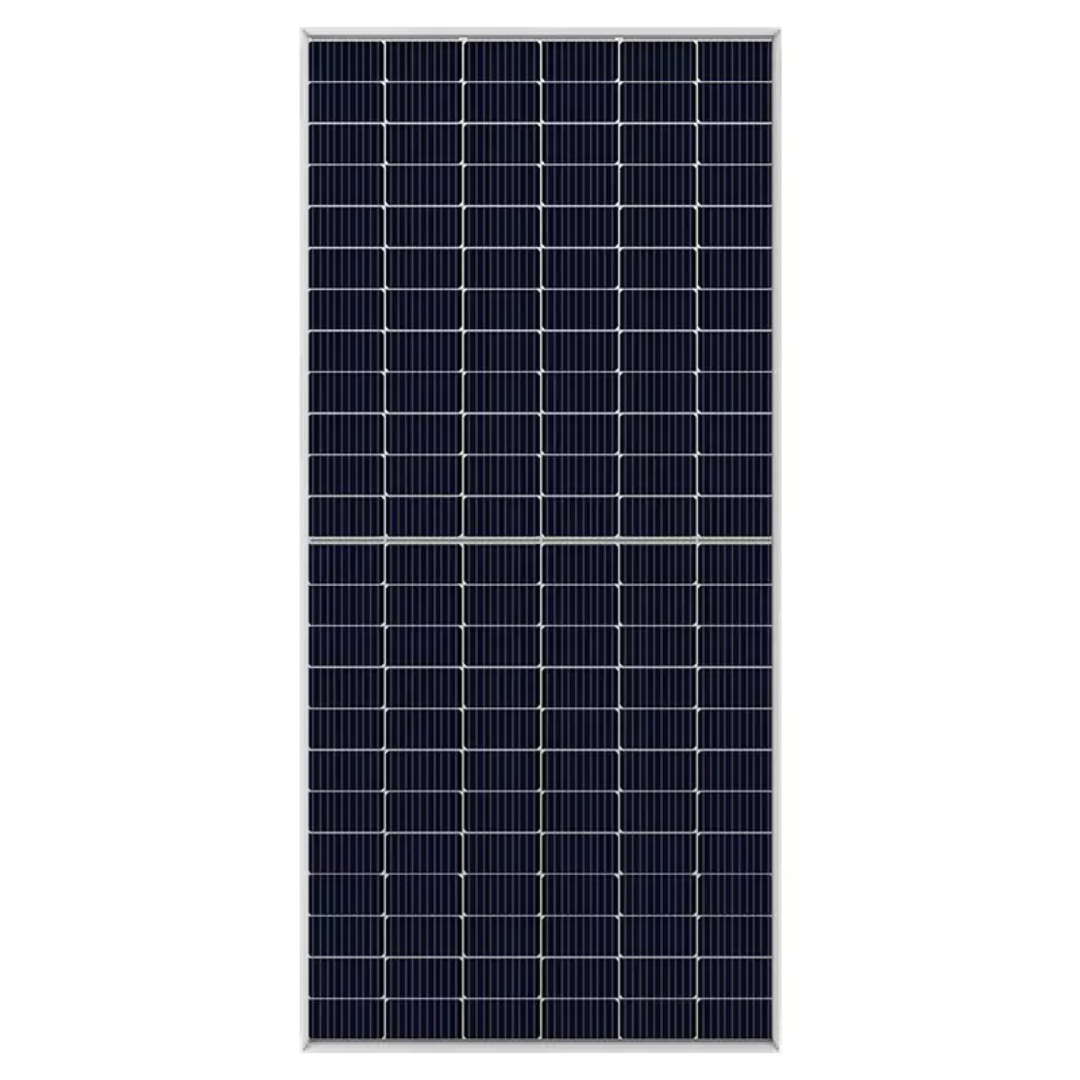

Double Glass Bifacial Mono PERC Solar Module 530W-550W ARL-PNGMH72-DGB8 Series

Double Glass Bifacial Mono PERC Solar Module 530W-550W ARL-PNGMH72-DGB8 Series

Double Glass Bifacial Mono PERC Solar Module 530W-550W ARL-PNGMH72-DGB8 Series. The ARLPNGMH72-DGB8 series offers high-performance double-glass bifacial monocrystalline PV modules with a power output from 530W to 550W. These modules feature 182mm cells and are designed to capture sunlight from both the front and rear sides, significantly enhancing energy generation. This bifacial technology makes them particularly suitable for installations where reflected light can be captured, such as on floating solar systems or over grassy areas. The manufacturer focuses on delivering quality and professional turnkey solutions, making these panels a cost-effective and reliable choice for various projects.

Key Features:

• Focus on Quality & Service: The product is backed by a commitment to quality and professional service.
• Professional Turnkey Solutions: These modules are part of a complete solution, providing a seamless experience for solar projects.
• Cost-effective and Reliable: Designed as a cost-effective and dependable component for solar energy systems.
• Bifacial Technology: Capable of generating power from both sides, increasing the overall energy yield.
• Double Glass Construction: The durable dual-glass design provides enhanced protection and durability against environmental factors.
• High Efficiency: Module efficiency is up to 21.28% under standard test conditions, with the potential for additional gain from the rear side.

Electrical Specifications (by Module Type):

Module Type: ARL-PNGMH72-DGB8-530

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 530
• Voltage at Max. Power (Vmp/V): 41.3
• Current at Max. Power (Imp/A): 12.82
• Open Circuit Voltage (Voc/V): 49.0
• Short Circuit Current (Isc/A): 13.65
• Module Efficiency(%): 20.54%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 398
• Voltage at Max. Power (Vmp/V): 38.9
• Current at Max. Power (Imp/A): 10.14
• Open Circuit Voltage (Voc/V): 46.3
• Short Circuit Current (Isc/A): 10.83

Module: ARL-PNGMH72-DGB8-535

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 535
• Voltage at Max. Power (Vmp/V): 41.5
• Current at Max. Power (Imp/A): 12.9
• Open Circuit Voltage (Voc/V): 49.4
• Short Circuit Current (Isc/A): 13.71
• Module Efficiency(%): 20.72%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 401
• Voltage at Max. Power (Vmp/V): 38.9
• Current at Max. Power (Imp/A): 10.27
• Open Circuit Voltage (Voc/V): 46.6
• Short Circuit Current (Isc/A): 10.94

ARL-PNGMH72-DGB8-540

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 540
• Voltage at Max. Power (Vmp/V): 41.7
• Current at Max. Power (Imp/A): 12.96
• Open Circuit Voltage (Voc/V): 49.5
• Short Circuit Current (Isc/A): 13.84
• Module Efficiency(%): 20.91%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 404
• Voltage at Max. Power (Vmp/V): 39.2
• Current at Max. Power (Imp/A): 10.30
• Open Circuit Voltage (Voc/V): 46.8
• Short Circuit Current (Isc/A): 10.97

Model: ARL-PNGMH72-DGB8-545

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 545
• Voltage at Max. Power (Vmp/V): 41.9
• Current at Max. Power (Imp/A): 13.03
• Open Circuit Voltage (Voc/V): 49.7
• Short Circuit Current (Isc/A): 13.91
• Module Efficiency(%): 21.09%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 407
• Voltage at Max. Power (Vmp/V): 39.4
• Current at Max. Power (Imp/A): 10.35
• Open Circuit Voltage (Voc/V): 47.0
• Short Circuit Current (Isc/A): 11.01

Module Type: ARL-PNGMH72-DGB8-550

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 550
• Voltage at Max. Power (Vmp/V): 42.1
• Current at Max. Power (Imp/A): 10.08
• Open Circuit Voltage (Voc/V): 49.9
• Short Circuit Current (Isc/A): 13.97
• Module Efficiency(%): 21.28%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 411
• Voltage at Max. Power (Vmp/V): 39.6
• Current at Max. Power (Imp/A): 10.39
• Open Circuit Voltage (Voc/V): 47.2
• Short Circuit Current (Isc/A): 11.05

Bifacial Output – Rear-Side Power Gain:

Reference 5% Gain:

• Maximum Power (Pmax) and Module Efficiency STC(%)
• 551.25W (21.57%)
• 556.5W (21.77%)
• 561.75W (21.98%)
• 567W (22.18%)
• 572.25W (22.39%)

15% Gain:

• Maximum Power (Pmax) and Module Efficiency STC(%)
• 603.75W (23.62%)
• 609.5W (23.85%)
• 615.25W (24.07%)
• 621W (24.30%)
• 626.75W (24.52%)

Reference 25% Gain:

• Maximum Power (Pmax) and Module Efficiency STC(%)
• 656.25W (25.67%)
• 662.5W (25.92%)
• 668.75W (26.16%)
• 675W (26.41%)
• 681.25W (26.65%)

General Specifications:

• Power Tolerance (W): 0~+5

Mechanical Specifications:

• Cell Type: 10BB BIFACIAL MONO 182×91mm
• No. of Cells: 144 (6×24)
• Dimension: 2279x1134x35mm
• Weight: 32.3kg
• Glass: Dual glass, 2.0mm coated tempered glass
• Frame: Anodized Aluminium Alloy
• Junction Box: IP68, 3 diodes
• Output Cables: 4mm², Length 300mm or customized
• Connector type: MC4 compatible

Temperature Characteristics:

• NOCT Temperature: 44∘C±2∘C
• Temperature Coefficient (Pmax): $-0.36$%/℃
• Temperature Coefficient (Voc): $-0.28$%/℃
• Temperature Coefficient (Isc): $0.05$%/℃

Maximum Ratings:

• Maximum System Voltage (IEC): 1500V DC
• Snow / Wind: 5400Pa / 2400Pa
• Operating Temperature: −40∘C∼+85∘C
• Maximum Series Fuse Rating: 25A
