ExOn 3A | Hand welding extruder | High-Output Industrial Extrusion Welder

ExOn 3A | Hand welding extruder | High-Output Industrial Extrusion Welder

At a Glance: ExOn 3A | Hand welding extruder | SKU: ARL-DX306

Primary Use: High-capacity industrial welding for thick plastic sheets (5–40 mm), heavy-duty water tanks, and large-scale HDPE geomembrane projects.

Key Benefit: Delivers a powerful maximum output of 3 kg/h using Ø 4 or 5 mm welding rods, significantly increasing productivity for large-scale fabrication.

Built For: Heavy-duty field applications and workshop environments requiring extreme durability, Swiss precision, and a high-volume material melt.

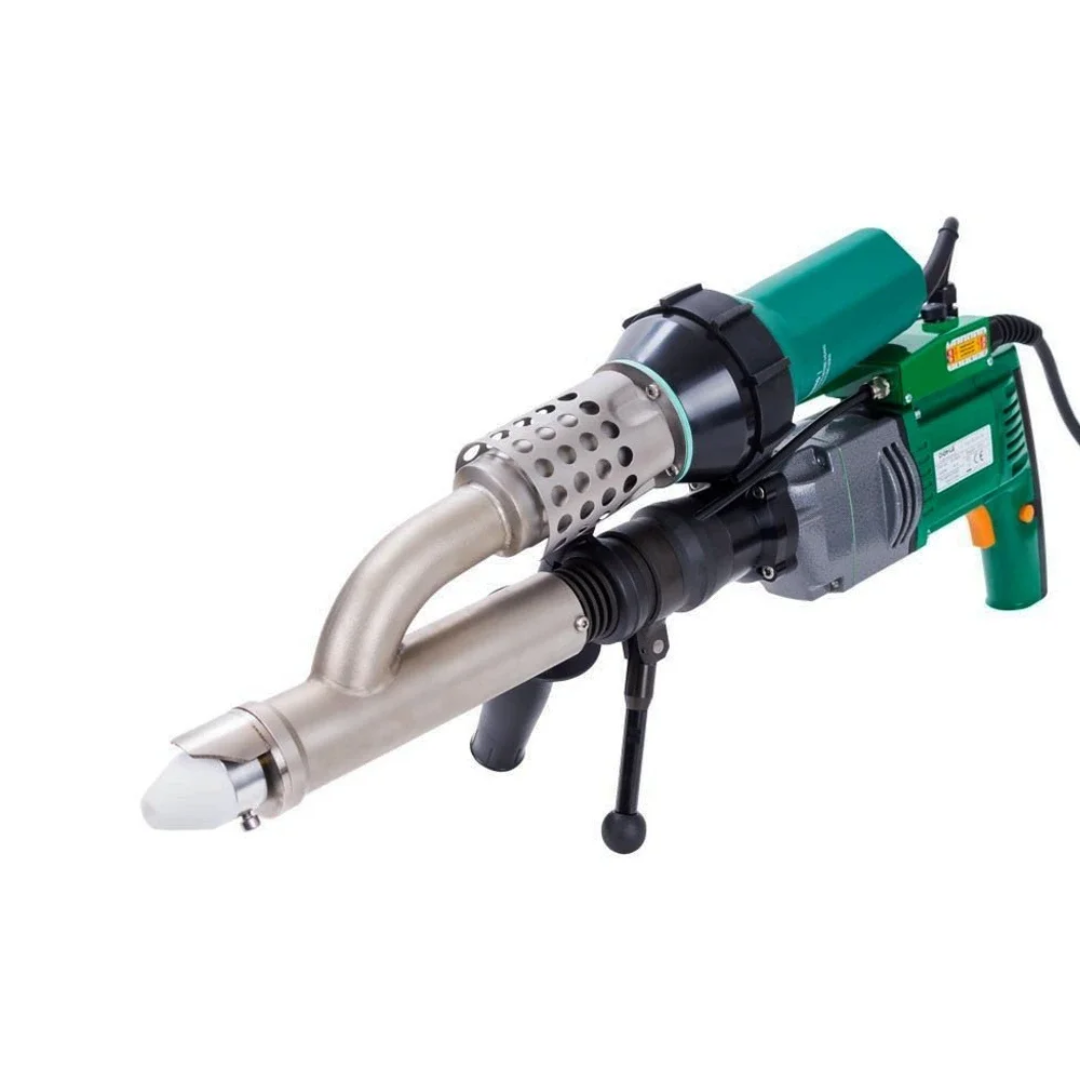

High-Capacity Fabrication with the ExOn 3A | Hand welding extruder

Features that Drive Performance: The ExOn 3A | Hand welding extruder is a professional-grade tool engineered by BAK Technology Switzerland for demanding industrial applications that require high material throughput. With over 30 years of industry expertise, the ExOn 3A | Hand welding extruder combines a robust single-heating system with advanced Flicker Regulation Technology to ensure stable performance under continuous load. This model features a main screw and barrel crafted from tempered steel, ensuring a significantly longer service life than conventional extruders while maintaining the precision required to meet strict DVS German Welding Standards.

Product Specifications (Model: ExOn 3A)

• SKU: ARL-DX306

• Maximum Output: 3 kg/h

• Welding Rod Compatibility: PP and PE (Ø 4 mm or Ø 5 mm)

• Material Thickness: Optimized for 5–40 mm thick thermoplastic sheets

• Construction: Tempered steel main screw and barrel

• Safety System: Integrated Cold Start Protection and thermal motor protection

Ideal for Industries & Applications

• Large-Scale Infrastructure: Welding heavy-duty water tanks, chemical storage containers, and thick-walled PE/PP pipes.

• Environmental Engineering: Extensive HDPE geomembrane installation, landfill lining, and wastewater pond projects.

• Heavy Fabrication: Structural plastic assembly and maintenance of large-scale industrial components.

• High-Volume Production: Field jobs requiring rapid weld speeds and consistent, high-output material delivery.

Key Features of the ExOn Series

• Precision Temperature Monitoring: Features a patented system with a thermocouple positioned directly inside the melt barrel outlet for exceptional accuracy.

• 360° Revolving Head: Includes an integrated preheat nozzle and rotatable handle, allowing for smooth operation in any welding direction or confined space.

• Wear-Reduced Rod Feed: Specifically designed to handle thicker Ø 4–5 mm rods with minimal mechanical wear, extending the life of the internal components.

• Digital Read-Out: Provides a real-time display of the actual temperature, ensuring the operator maintains full control over the weld integrity.

Frequently Asked Questions (FAQ)

What is the maximum welding speed of the ExOn 3A | Hand welding extruder? While speed depends on the joint type, the ExOn 3A | Hand welding extruder provides a maximum material output of 3 kg/h, which is nearly triple the capacity of entry-level hand extruders.

Can the ExOn 3A | Hand welding extruder handle Ø 5 mm welding rods? Yes. This unit is specifically engineered to consume either Ø 4 mm or Ø 5 mm PP and PE welding rods to achieve its high-output performance.

Is the ExOn 3A | Hand welding extruder suitable for thin sheets? While it can weld sheets as thin as 5 mm, it is primarily optimized for heavier applications up to 40 mm thick where high-volume material deposition is required.
