Fully Black Mono PERC Solar Panel 395W-420W ARL-PNGMH54-B8 Series

Fully Black Mono PERC Solar Panel 395W-420W ARL-PNGMH54-B8 Series

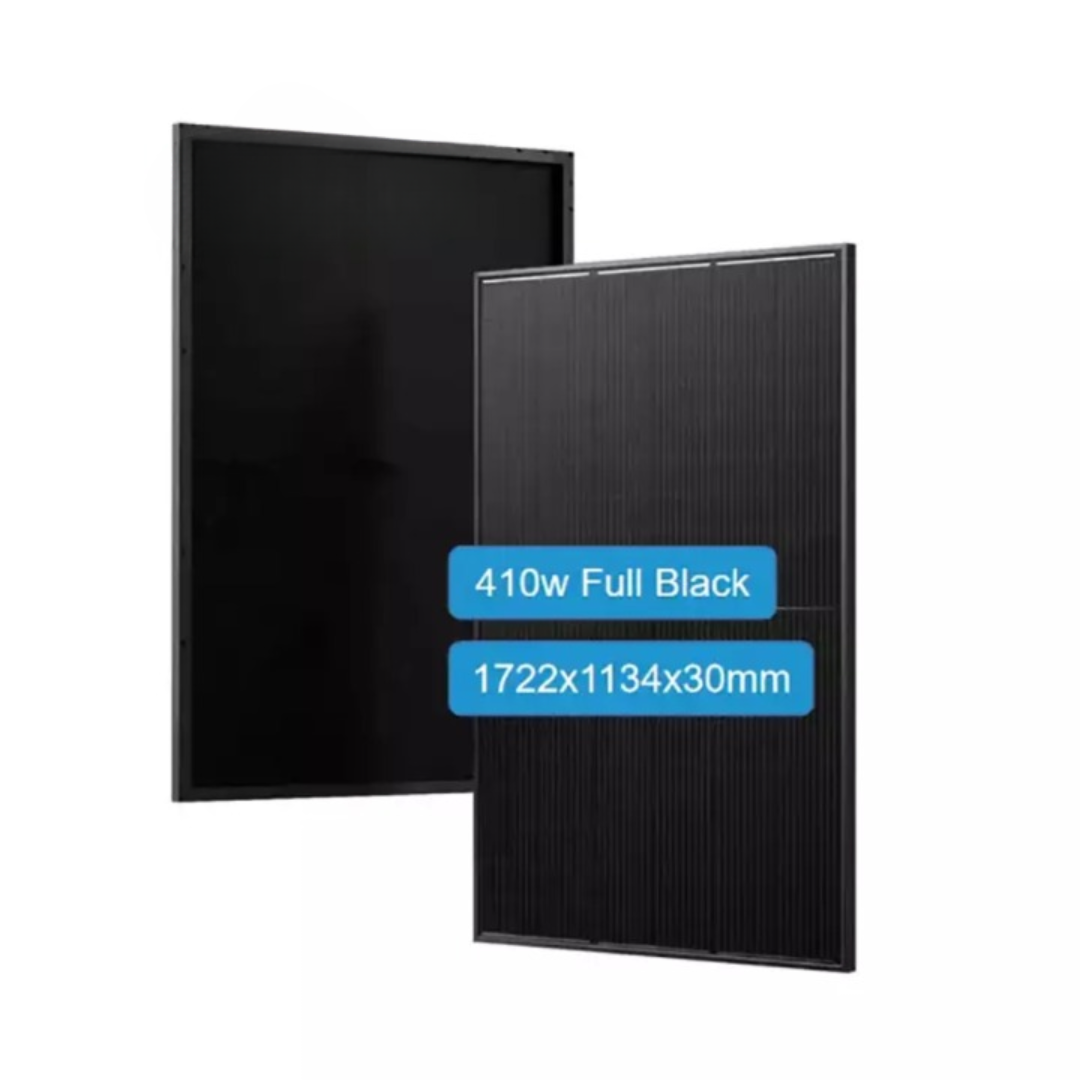

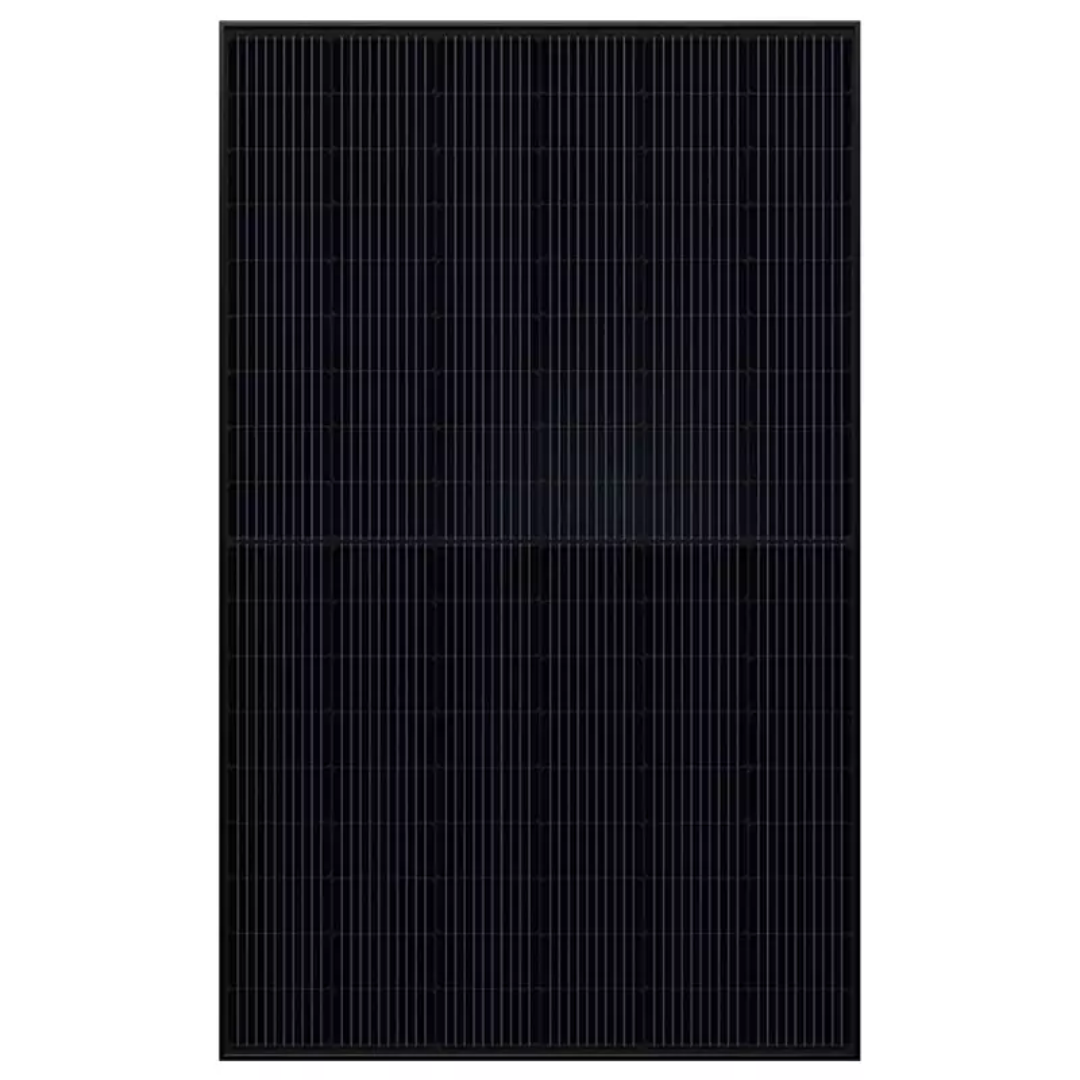

Fully Black Mono PERC Solar Panel 395W-420W ARL-PNGMH54-B8 Series. The ARL Solar ARL-PNGMH54-B8 series offers high-performance fully black monocrystalline half-cell PV modules, ranging from 395W to 420W, designed for exceptional efficiency and aesthetic appeal. These 182mm 108-cell modules are visually striking and boast superior energy production, converting more sunlight into electricity to maximize energy output and reduce reliance on traditional power sources. Widely utilized for both residential and commercial applications, these photovoltaic modules are built for durability and reliable performance, backed by a robust design for various environmental conditions.

Key Features:

• Fully Black Aesthetic: Visually striking design for seamless integration into modern architecture.
• High Power Output: Available in a range of 395W to 420W, maximizing energy generation.
• Exceptional Efficiency: Converts more sunlight into electricity for optimized energy production.
• Monocrystalline Half-Cell Technology: Enhances performance and durability.
• Durable Construction: Features low-iron tempered glass and an anodized aluminum alloy frame.
• IP68 Junction Box: Ensures protection against dust and water ingress.
• Wide Application: Suitable for both residential and commercial solar installations.

Technical Specifications:

Electrical Specifications:

Module Type: ARL-PNGMH54-B8-395

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 395
• Voltage at Max. Power (Vmp/V): 30.9
• Current at Max. Power (Imp/A): 12.81
• Open Circuit Voltage (Voc/V): 37.0
• Short Circuit Current (Isc/A): 13.68
• Module efficiency (%): 20.25%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 297
• Voltage at Max. Power (Vmp/V): 29.0
• Current at Max. Power (Imp/A): 10.23
• Open Circuit Voltage (Voc/V): 34.8
• Short Circuit Current (Isc/A): 10.93

ARL-PNGMH54-B8-400

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 400
• Voltage at Max. Power (Vmp/V): 31.1
• Current at Max. Power (Imp/A): 12.88
• Open Circuit Voltage (Voc/V): 37.1
• Short Circuit Current (Isc/A): 13.77
• Module efficiency (%): 20.50%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 301
• Voltage at Max. Power (Vmp/V): 29.2
• Current at Max. Power (Imp/A): 10.31
• Open Circuit Voltage (Voc/V): 34.9
• Short Circuit Current (Isc/A): 11.01

Module : ARL-PNGMH54-B8-405

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 405
• Voltage at Max. Power (Vmp/V): 31.2
• Current at Max. Power (Imp/A): 12.97
• Open Circuit Voltage (Voc/V): 37.2
• Short Circuit Current (Isc/A): 13.86
• Module efficiency (%): 20.76%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 305
• Voltage at Max. Power (Vmp/V): 29.4
• Current at Max. Power (Imp/A): 10.38
• Open Circuit Voltage (Voc/V): 35.1
• Short Circuit Current (Isc/A): 11.10

ARL-PNGMH54-B8-410

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 410
• Voltage at Max. Power (Vmp/V): 31.4
• Current at Max. Power (Imp/A): 13.05
• Open Circuit Voltage (Voc/V): 37.4
• Short Circuit Current (Isc/A): 13.95
• Module efficiency (%): 21.01%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 309
• Voltage at Max. Power (Vmp/V): 29.6
• Current at Max. Power (Imp/A): 10.45
• Open Circuit Voltage (Voc/V): 35.3
• Short Circuit Current (Isc/A): 11.17

Model: ARL-PNGMH54-B8-415

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 415
• Voltage at Max. Power (Vmp/V): 31.6
• Current at Max. Power (Imp/A): 13.14
• Open Circuit Voltage (Voc/V): 37.6
• Short Circuit Current (Isc/A): 14.04
• Module efficiency (%): 21.25%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 313
• Voltage at Max. Power (Vmp/V): 29.8
• Current at Max. Power (Imp/A): 10.52
• Open Circuit Voltage (Voc/V): 37.8
• Short Circuit Current (Isc/A): 11.26

ARL-PNGMH54-B8-420

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 420
• Voltage at Max. Power (Vmp/V): 31.8
• Current at Max. Power (Imp/A): 13.19
• Open Circuit Voltage (Voc/V): 37.8
• Short Circuit Current (Isc/A): 14.13
• Module efficiency (%): 21.01%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 317
• Voltage at Max. Power (Vmp/V): 30.0
• Current at Max. Power (Imp/A): 10.59
• Open Circuit Voltage (Voc/V): 35.7
• Short Circuit Current (Isc/A): 11.34

General Electrical Characteristics:

• Power Tolerance (W): 0~+5W
• Standard Test Condition (STC) Reference: Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
• Nominal Module Operating Temperature (NOCT) Reference: Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s

Mechanical Specifications:

• Cell Type: MBB MONO 182x91mm
• No. of Cells: 108 (6×18)
• Dimension: 1722x1134x30mm
• Weight: 21.5kg
• Glass: 3.2mm, Low Iron Tempered Glass
• Frame: Anodized Aluminium Alloy
• Junction Box: IP68, 3 diodes
• Output Cables: 4mm², Length 300mm or customized
• Connector type: MC4 compatible

Temperature Characteristics:

• NOCT Temperature: 44°C ±2°C
• Temperature Coefficient (Pmax): -0.36%/°C
• Temperature Coefficient (Voc): -0.28%/°C
• Temperature Coefficient (Isc): 0.05%/°C

Maximum Ratings:

• Maximum system voltage (IEC): 1500V DC
• Snow / Wind: 5400Pa / 2400Pa
• Operating Temperature: -40℃ ~ +85℃
• Maximum series fuse rating: 25A
