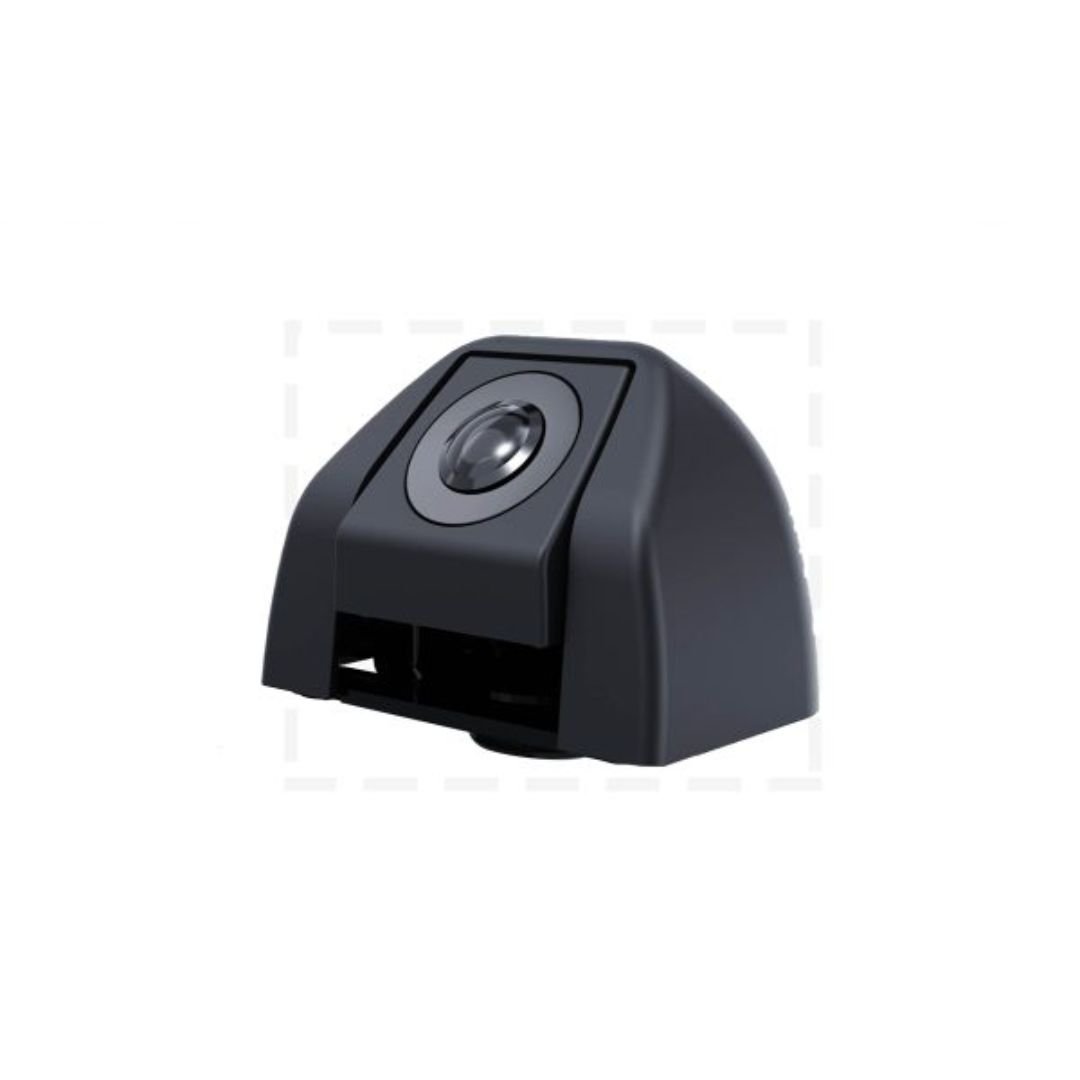

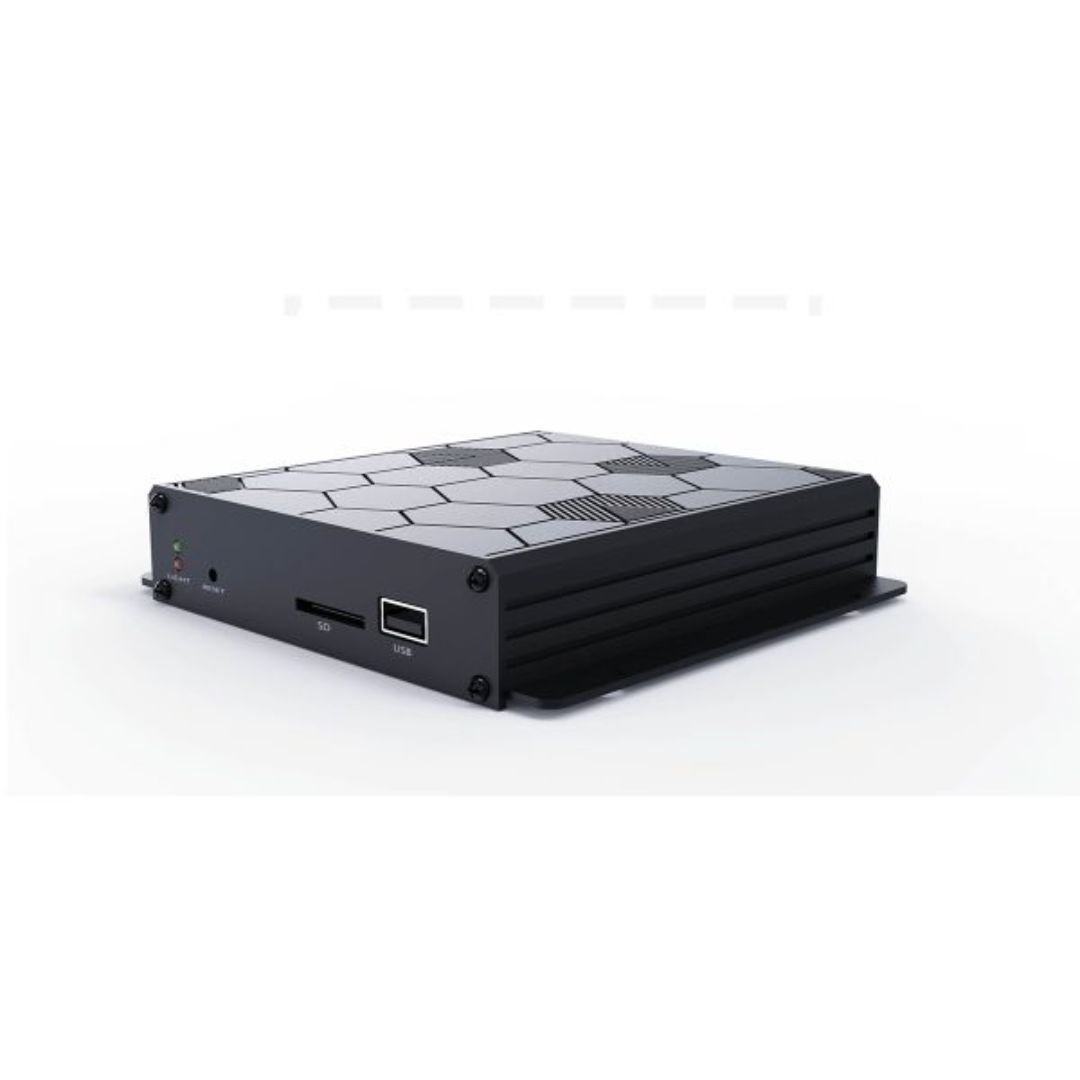

HD 3D 360° Panoramic System ARL-MS-620

HD 3D 360° Panoramic System (MS-620)

The HD 3D 360° Panoramic System provides a comprehensive 360° bird’s-eye view, effectively eliminating blind spots and ensuring enhanced driving safety. This advanced system allows drivers to intuitively observe the vehicle’s position and surrounding obstacles, enabling confident maneuvering and navigation through complex road conditions. By providing a complete visual perspective, it significantly reduces the risk of scratches, collisions, and traffic accidents.

Key Features:

• HD 360 Panoramic System: Offers a clear and comprehensive bird’s-eye view of the vehicle’s surroundings.
• 2D/3D Optional View: Provides flexible viewing modes to suit driver preference and situation.
• Versatile Camera Input: Supports 4-channel or 6-channel 720/1080P AHD camera input at 25/30fps, compatible with NTSC/PAL systems.
• Flexible Video Output: Offers AHD/CVBS video output in NTSC/PAL formats.
• Cost-Effective Calibration: Utilizes an A3 size calibration cloth for low-cost, portable, and easy installation.
• Simplified Calibration: Features one-key calibration, eliminating the need for manual data input, and supports both manual and automatic calibration.
• Seamless 360° Aerial View: Achieves seamless image stitching, eliminating blind spots for enhanced safety.
• Touch Display Interaction: Allows users to zoom in/out, adjust the viewing angle, and switch display screens after calibration via the touch interface.
• Intelligent Angle Adjustment: Built-in CAN and I/O cable enable automatic view angle changes based on steering and reversing signals, with manual touch screen control also available.
• Integrated DVR Function: Records video footage for review and evidence.
• Convenient System Management: Supports USB system upgrades, file import and export, and infrared remote control operation.
• Customizable Startup: The startup screen can be personalized.
• Multi-Vehicle & Language Support: Can be configured for various vehicle models and supports multiple languages.

Technical Specifications:

• View: 360° Panoramic
• Display: 2D/3D Optional
• Video Input: 4-channel or 6-channel 720/1080P AHD (25/30fps, N/P)
• Video Output: AHD/CVBS (N/P)
• Calibration: A3 Size Cloth, One-Key Calibration, Manual & Automatic Support
• Connectivity: Built-in CAN, I/O Cable
• Control: Steering/Reversing Signal Trigger, Touch Screen Control
• DVR: Built-in
• System Management: USB Upgrade, File Import/Export, Infrared Remote Control
• Customization: Startup Screen, Vehicle Models, Multi-language

Warranty and Support:

• 18 months warranty.
• Prompt and full set after-sales service.

This HD 3D 360° Panoramic System offers a robust and user-friendly solution for enhancing vehicle safety and maneuverability in a wide range of applications.
