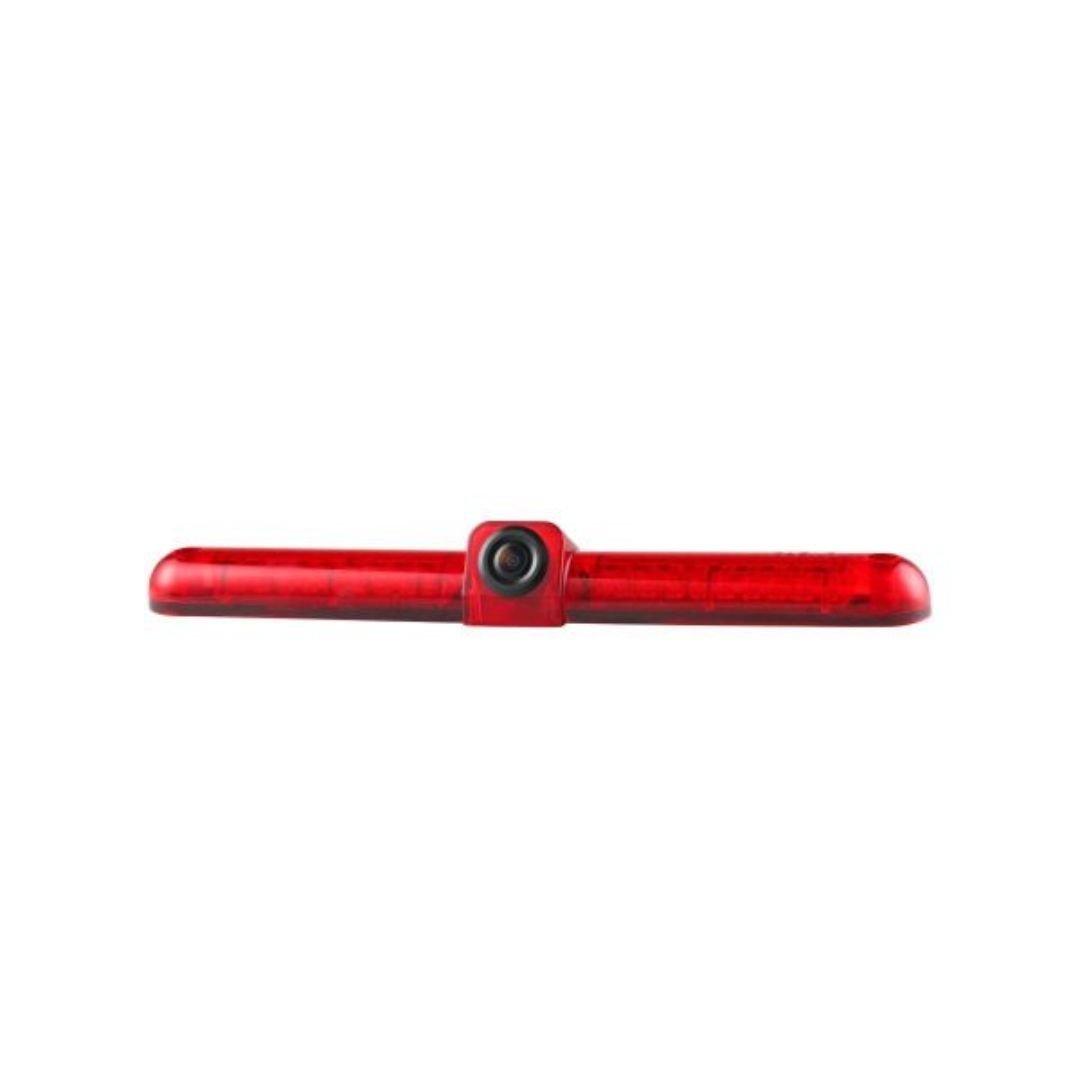

    High Brake Light Camera for General Models (ARL-MS-323)

    The ARL-MS-323 is a versatile high brake light camera designed for general vehicle applications. High Brake Light Camera for General Models (ARL-MS-323) provides a clear rear view with a resolution of 540 TV Lines and excellent low-light performance with a minimum illumination of 0.5Lux. It features automatic gain control (AGC) and backlight compensation (BLC) to optimize image clarity in various lighting conditions. With a signal-to-noise ratio exceeding 48dB, it ensures a clean video output of 1Vp-p at 75Ω. The camera operates on a standard DC 12V power supply and consumes only 1.5W. Its wide 150-degree viewing angle offers a comprehensive perspective of the area behind the vehicle. Designed for flexible installation, it can be mounted onto any flat surface.

    Key Features:

    • General Model Compatibility: Suitable for a wide range of vehicles.
    • High Mounting Position: Designed as a high brake light camera.
    • High Resolution: 540 TV Lines for clear image quality.
    • Excellent Low Light Performance: 0.5Lux minimum illumination.
    • Automatic Image Adjustment: AGC and BLC for optimal clarity.
    • Clear Video Signal: S/N Ratio greater than 48dB.
    • Wide Viewing Angle: 150 degrees for comprehensive rear view.
    • Easy Installation: Mounts onto any flat surface.
    • Low Power Consumption: Only 1.5W.

    Technical Specifications:

    Feature Specification
    Type High Brake Light Camera
    Active Array 752(H) * 582(V)
    Resolution 540 TV Lines
    Minimum Illumination 0.5Lux
    AGC Auto
    BLC Auto
    S/N Ratio More than 48dB
    Video Output 1Vp-p 75Ω
    Power 1.5W
    Voltage DC 12V
    View Angle 150 degree
    Mounting Any flat surface
