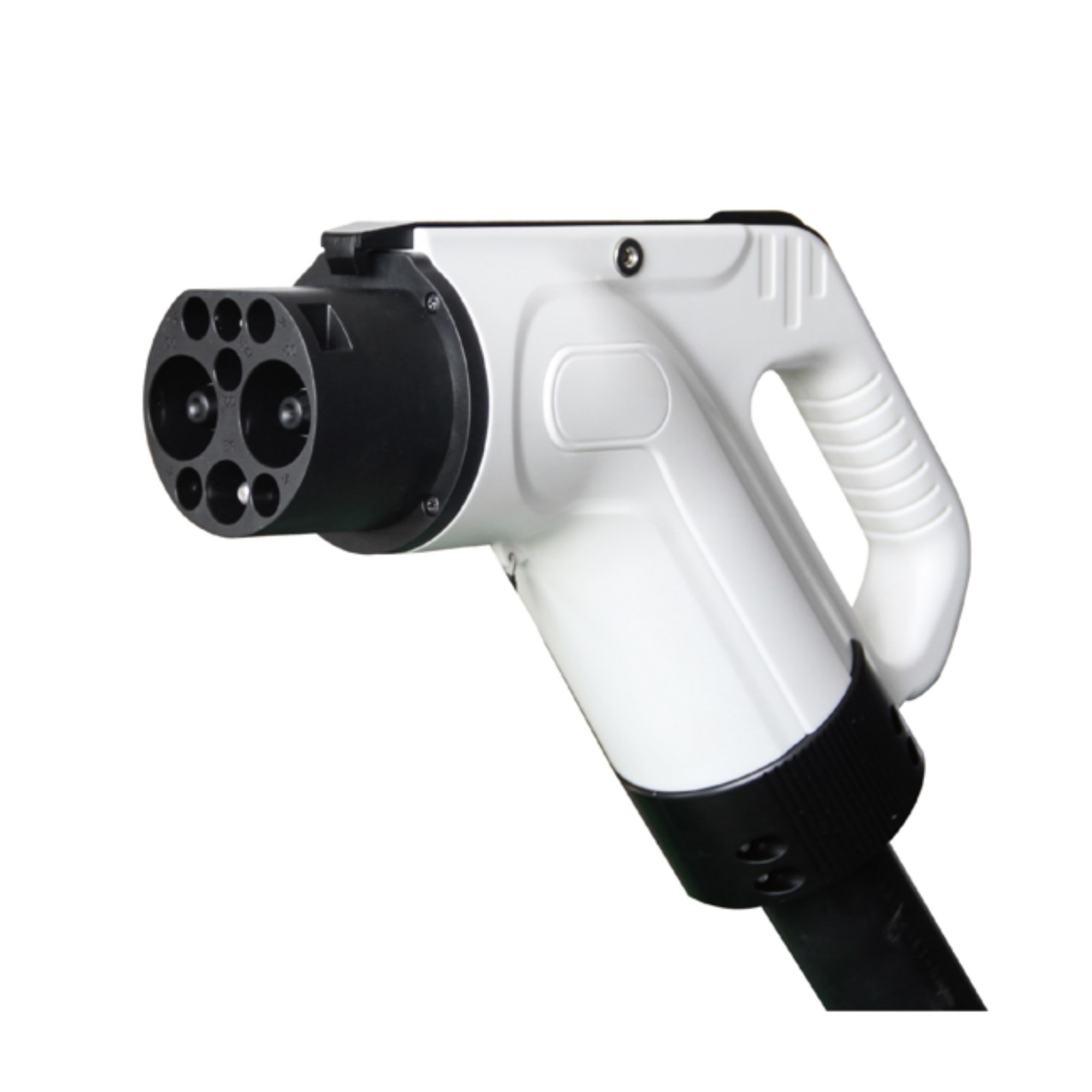

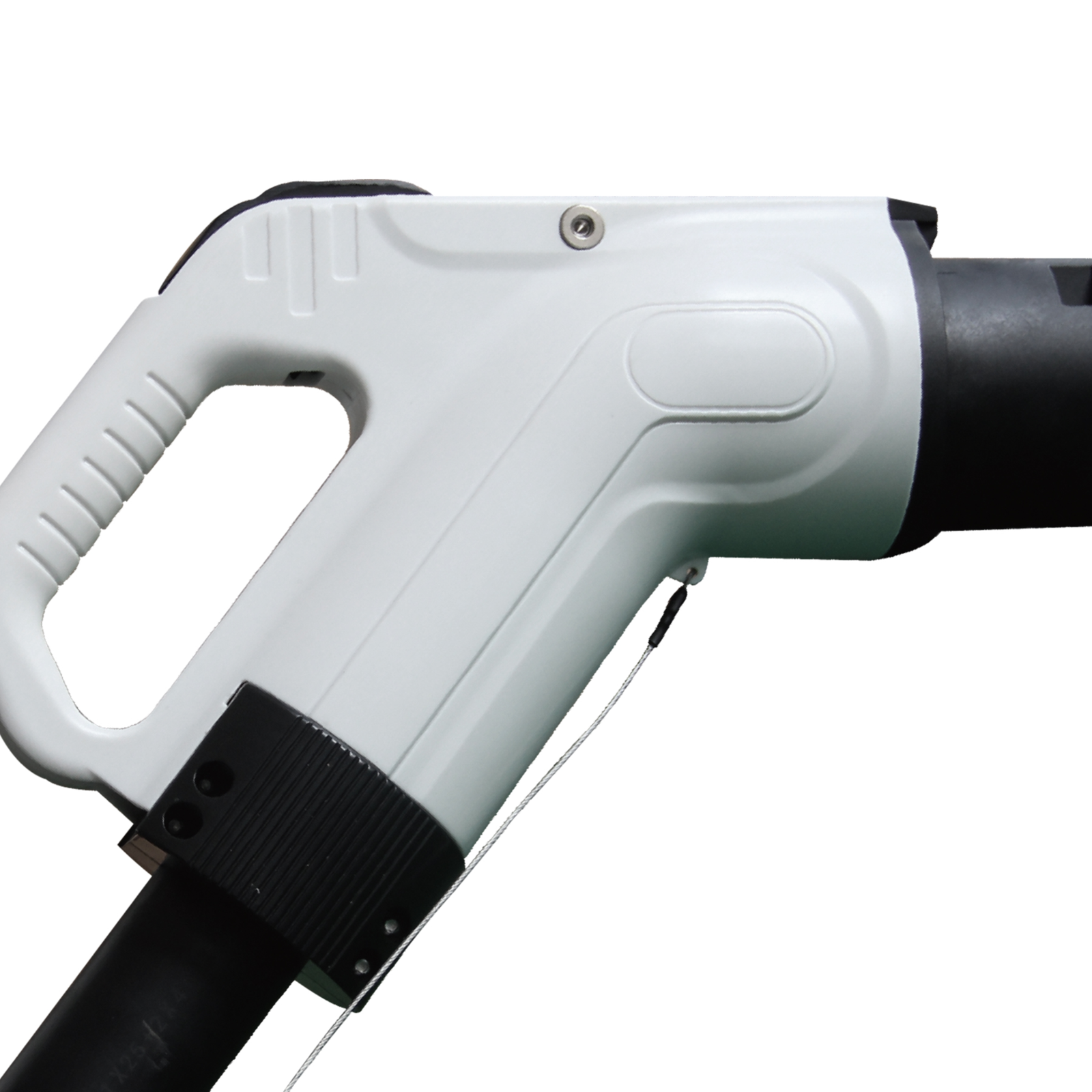

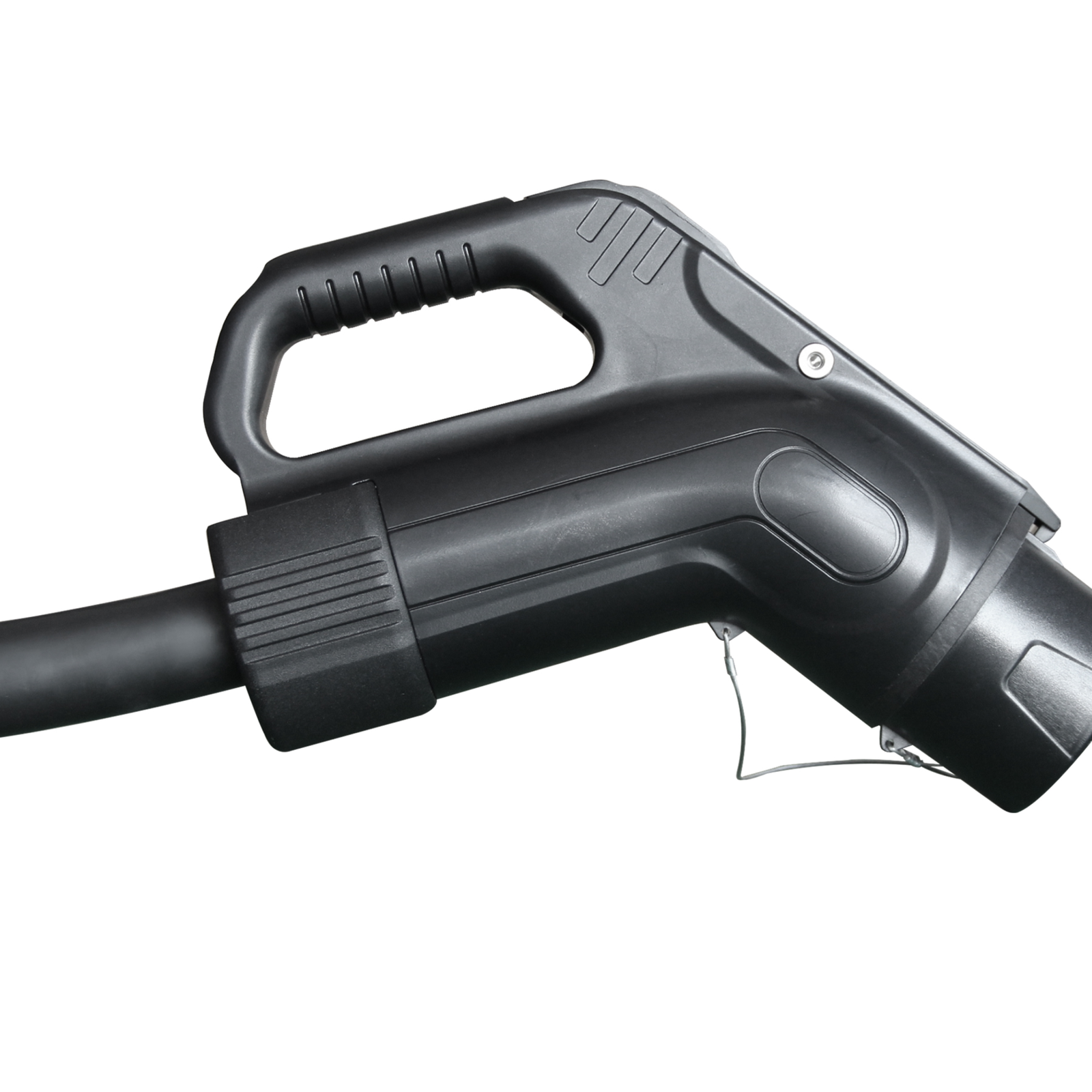

High-current 100A-250A GB/T DC Charging Plug
- Rated Current: 100A/125A/150A/200A/250A;
- Rated Voltage: 750/1000V DC;
- Insulation Resistance:＞2000MΩ (DC1000V);
- Mechanical Life: ＞10000 times of unloaded plug in/off;
- Protection Level: IP55（coupled);
- Working Temperature: -30℃- +50℃;
- Warranty: 24 months
-
24/7 Support -
Quality guaranteed
-
worldwide delivery
-
Free Pick Up
High-current 100A-250A GB/T DC Charging Plug
High-current 100A-250A GB/T DC Charging Plug The pins are welded using the technology of ultrasonic terminal welding. With this technology, the contact resistance is close to zero and the temperature rise in use is lower, meaning safer charging process and longer product service life. The plug can be filled with glue for IP67 waterproofness. We are one of the few Chinese manufacturers having obtained TUV, CB.CE and UKCA certificates.
Details
Rated Current | Cable Specification |
100A | 2X25+1X25+2X4.0+P(6X1.0)+2P(2X1.0) |
125A | 2X35+1X25+2X4.0+P(6X1.0)+2P(2X1.0) |
150A | 2X50+1X25+2X4.0+P(6X1.0)+2P(2X1.0) |
200A | 2X70+1X25+2X4.0+P(6X1.0)+2P(2X1.0) |
250A | 2X80+1X25+2X4.0+P(6X1.0)+2P(2X1.0) |
- Rated Current: 100A/125A/150A/200A/250A;
- Rated Voltage: 750/1000V DC;
- Insulation Resistance:＞2000MΩ (DC1000V);
- Mechanical Life: ＞10000 times of unloaded plug in/off;
- Protection Level: IP55（coupled);
- Working Temperature: -30℃- +50℃;
- Warranty: 24 months
