High Limit Anti-collision Warning System ARL-MS-1065

High Limit Anti-collision Warning System (ARL-MS-1065)

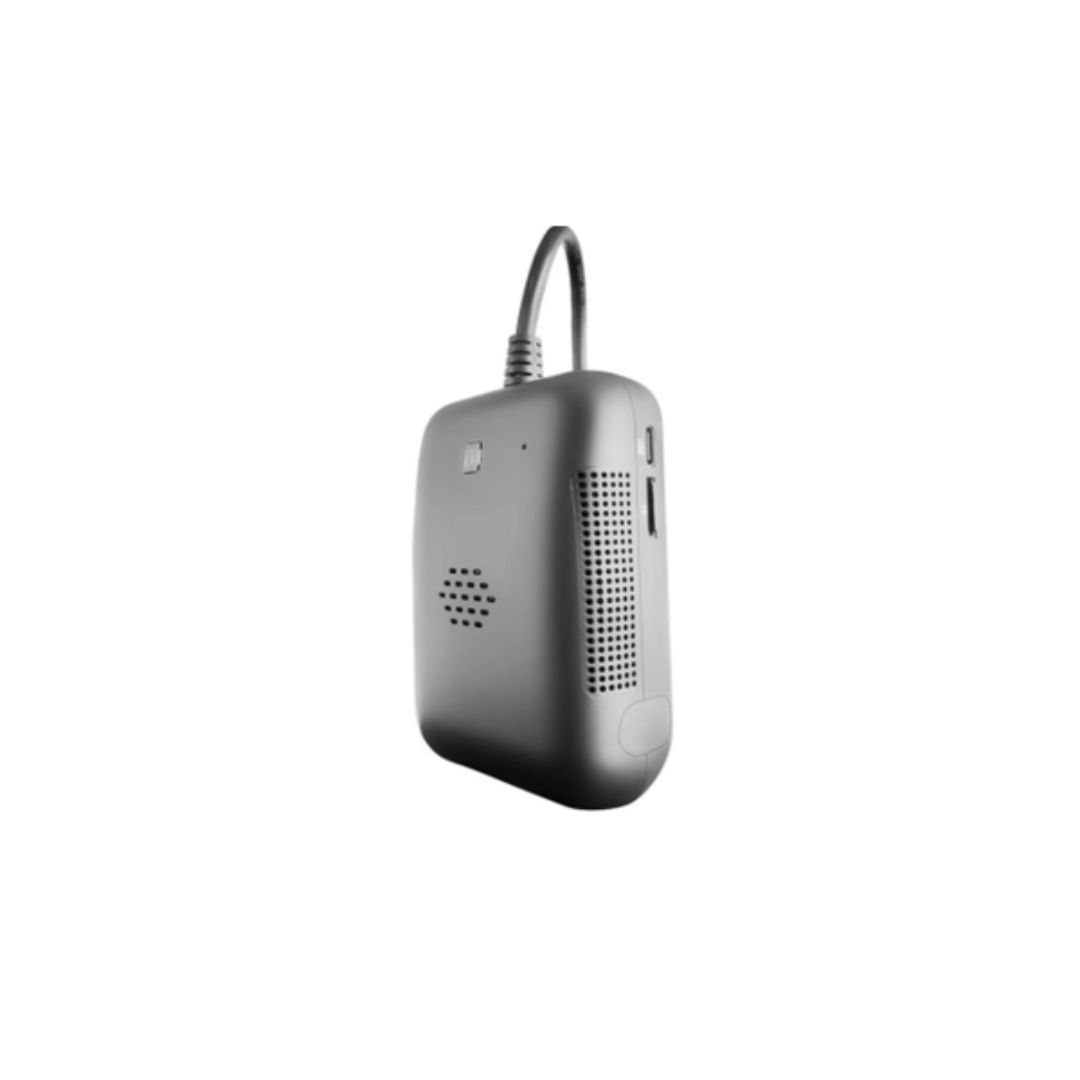

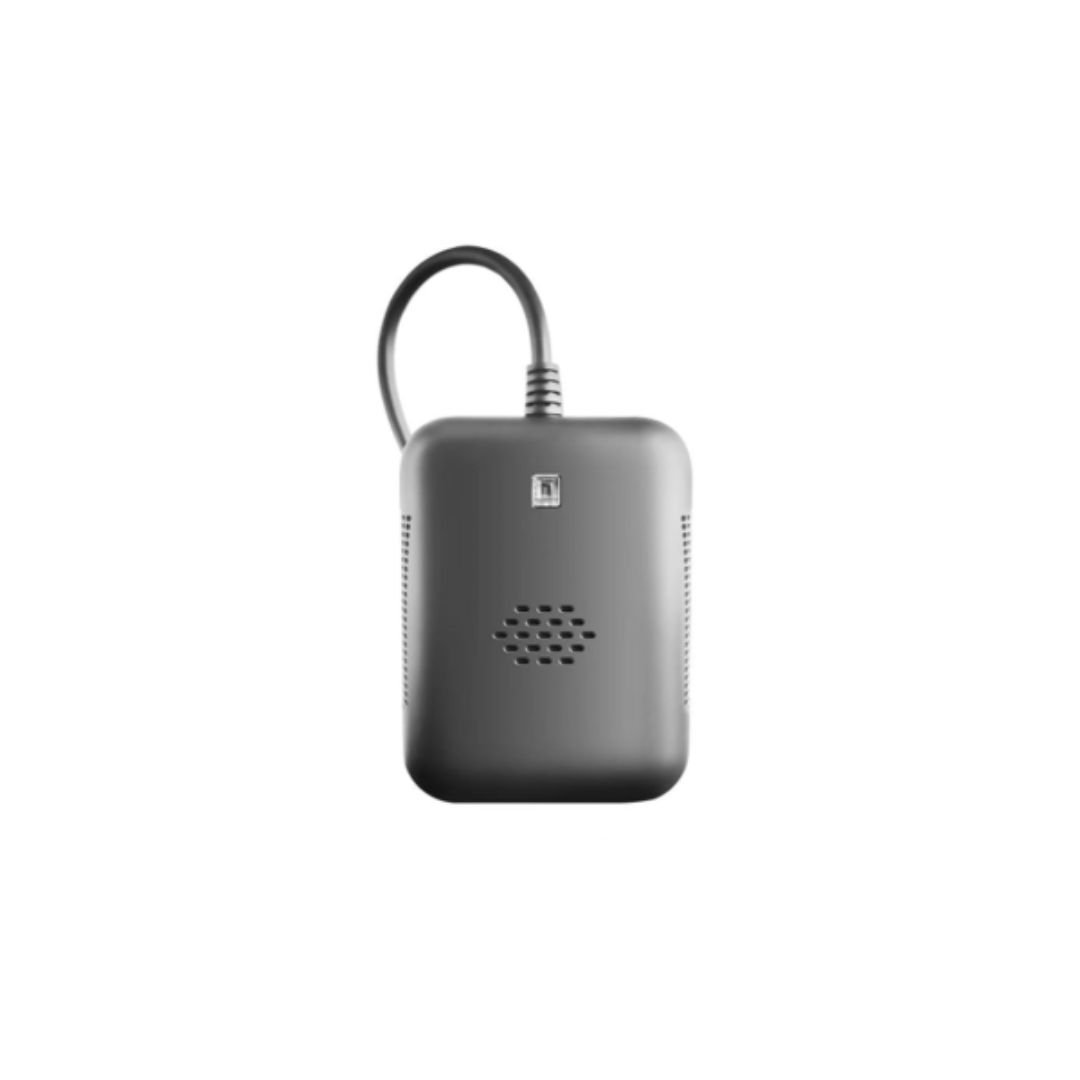

The High Limit Anti-collision Warning System is an integrated monocular camera designed for in-vehicle installation. It provides real-time monitoring of the height and distance of overhead obstacles in front of the vehicle during driving. When the system detects a potential collision risk with a height limit obstacle, it issues timely audible and visual warnings, enabling the driver to take evasive action and prevent accidents. This system is crucial for vehicles navigating areas with low clearances, such as tunnels, bridges, and overpasses.

Key Features:

• Real-time Height and Distance Monitoring: Continuously tracks overhead obstacles.
• Early Collision Warning: Provides timely alerts when a collision risk is detected.
• Audible and Visual Warnings: Clear alerts to the driver through both sound and visual cues.
• Wide Detection Range: Maximum detection distance of up to 60 meters.
• Wide Detection Height Range: Detects obstacles with heights between 1.5 and 5.5 meters.
• High Measurement Accuracy: ±10cm accuracy for distances less than 20m, and ±20cm accuracy for distances less than 35m.
• Detectable Targets: Standard height limit poles, height limit plates, and tunnel entrances.
• Height Limit Pole Detection: Capable of detecting poles with a diameter greater than 5cm and a width greater than 1.5m.
• CAN2.0 Communication Interface: For seamless integration with vehicle systems.
• Height Limit Alerting: Flashing YELLOW visual warning and an audible alert when the detected height limit is lower than the set threshold.
• Height Limit Collision Warning: Flashing RED visual warning and an audible alert when a collision with an object lower than the set threshold is imminent.
• Easy Installation: Integrated monocular camera designed for in-car mounting.
• Applicable to Various Vehicle Types: Suitable for trucks, RVs, buses, and special vehicles.
• Compact Size: Dimensions of 98 * 73.9 * 36.5mm.
• Lightweight Design: Weighs only 175g.

Technical Specifications:

• Operating Voltage: DC5V
• Rated Power Consumption: Less than 5W
• Operating Temperature: -20℃ to +70℃
• Storage Temperature: -40℃ to +85℃
• Lens Focus: 6mm
• FOV (Horizontal): 54°
• FOV (Vertical): 30°
• Resolution: 1920 * 1080
• Recording: Yes
• Maximum Detection Distance: 60m
• Detection Height Range: 1.5m to 5.5m
• Measure High Accuracy:
  • ±10cm (Distance less than 20m)
  • ±20cm (Distance less than 35m)
• Detectable Targets: Standard height limit pole, height limit plate, tunnel entrance
• Height Limit Pole Detection: Diameter >5cm, width >1.5m
• Warning Mode: Audible and visual warning
• Communication Interface: CAN2.0
• Warning Status Description:
  • Height Limit Alerting: Flashing YELLOW and warning (height limit lower than set threshold).
  • Height Limit Collision Warning: Flashing RED and warning (object lower than set threshold, collision risk).
• Packaging List: Host, Power Harness + GPS Antenna, Cigarette Lighter Plug
• Applicable Models: Truck, RVs, Bus, Special Vehicle
• Size: 98 * 73.9 * 36.5mm
• Weight: 175g

This High Limit Anti-collision Warning System provides a vital safety feature for drivers navigating areas with overhead obstacles, significantly reducing the risk of collision damage.
