High Power DC EV Fast Charging Station 360KW
- ODM&OEM Services Available；
- Charging standards support: GBT, CCS, CHAdeMO；
- Max 360KW output；
- Working temperature: -40℃~50℃；
- Russian language support；
- 2-year warranty；
-
24/7 Support -
Quality guaranteed
-
worldwide delivery
-
Free Pick Up

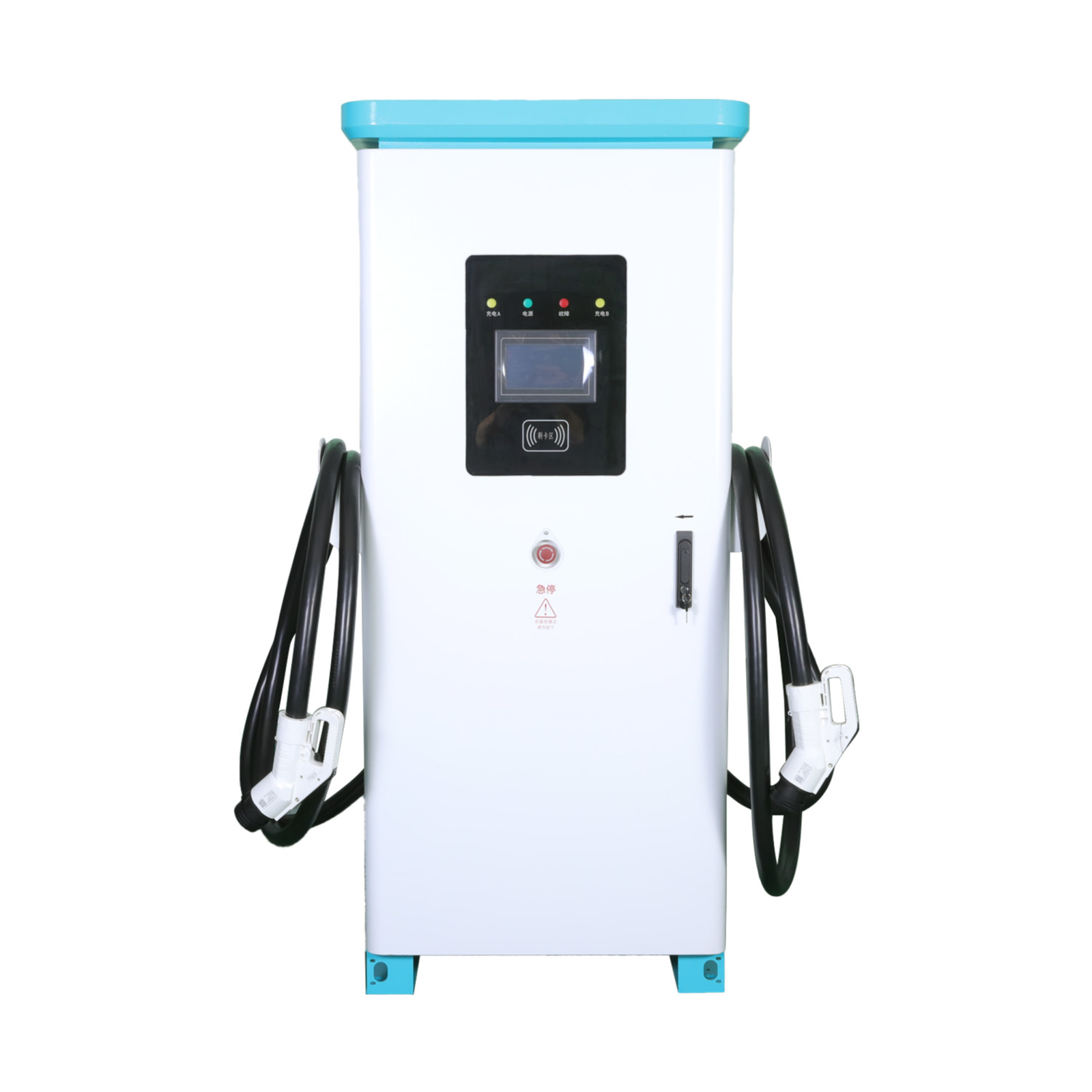

High Power DC EV Fast Charging Station 360KW
High Power DC EV Fast Charging Station 360KW The fastest electric car charging option provides up to 250 miles of range per hour, depending on the car and charging equipment.
It can charge up to 80% typically in about 20 to 30 minutes.
Used to facilitate longer distance driving or road trips or for a quick recharge.
We use a resistive screen to ensure that the product can be used at low temperatures.
The charger comes with OCPP1.6j.
250Amps output current for each charging plug.
Details
Rated Power | 360KW |
DC connectors | Dual DC connectors(GBT+GBT)(GBT+CCS2) |
Input voltage | 380/400 VAC (+/-10%) |
Input frequency | 50 Hz/ 60Hz |
Output Current | 0-250A (GBT), 0-200A (CCS1&CCS2) |
Output Voltage | 200-1000Vdc |
System Efficiency | Full load≥94% |
Power factor | ≥0.99 |
Harmonic current | ≤3% (under rated operation condition) |
Output Current accuracy | ≤±0.5% |
Output Voltage accuracy | ≤±0.5% |
Grounding detection | ≤30mA |
Protection | Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection |
Charging Gun | 5M length |
Communication Interface | 4G, RS485, CAN, ETHERNET |
OCPP | OCPP1.6J |
Interface Language | English/Russian |
Noise | ≤65dB (norminal input/output power, the environment temperature is 25°C.) |
Minimum Ingress protection | IP54 |
Operating Temperature | -40℃~50℃ |
Humidity | <95%, non-condensing |
Cooling method | Forced air cooling |
Case material | galvanised sheet metal |
