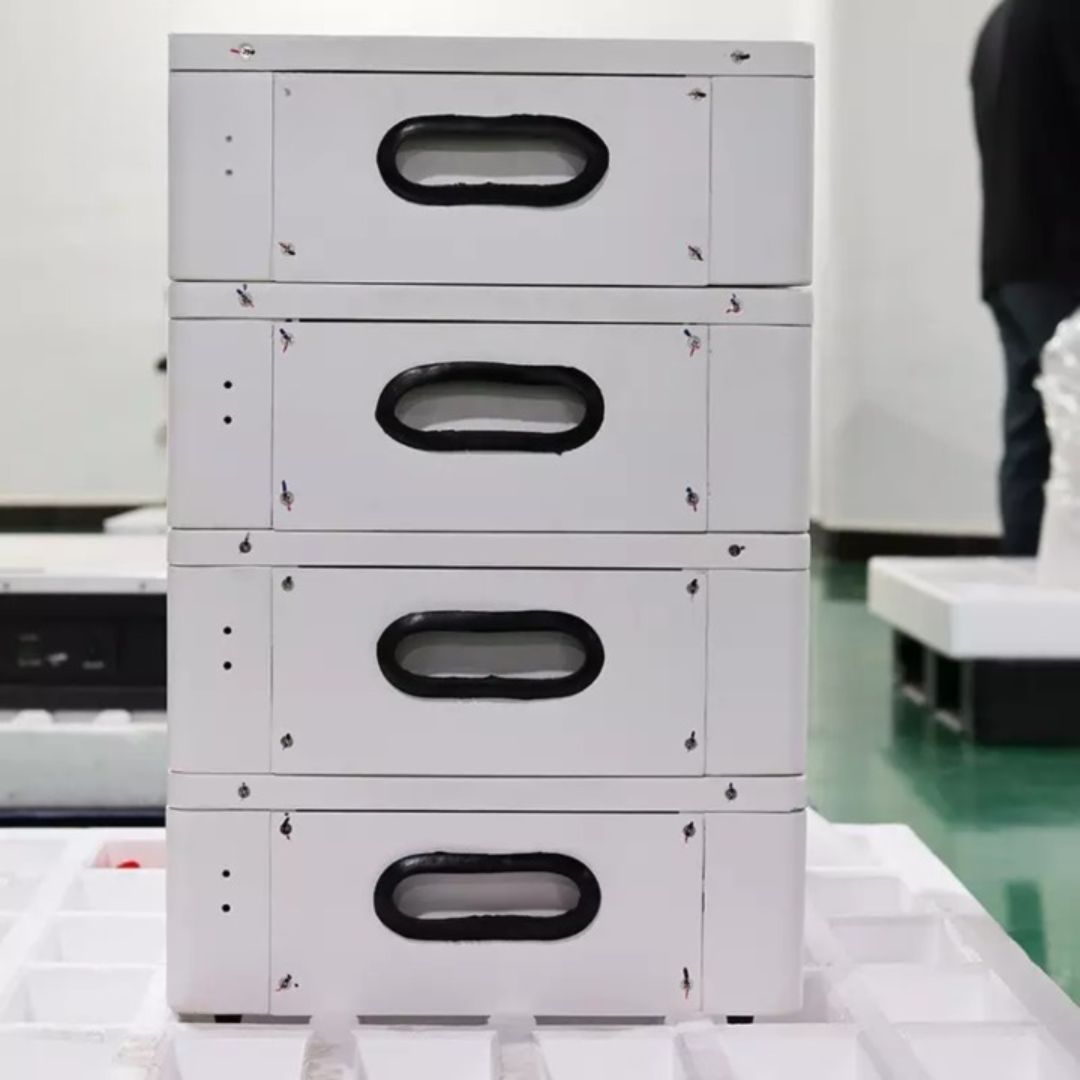

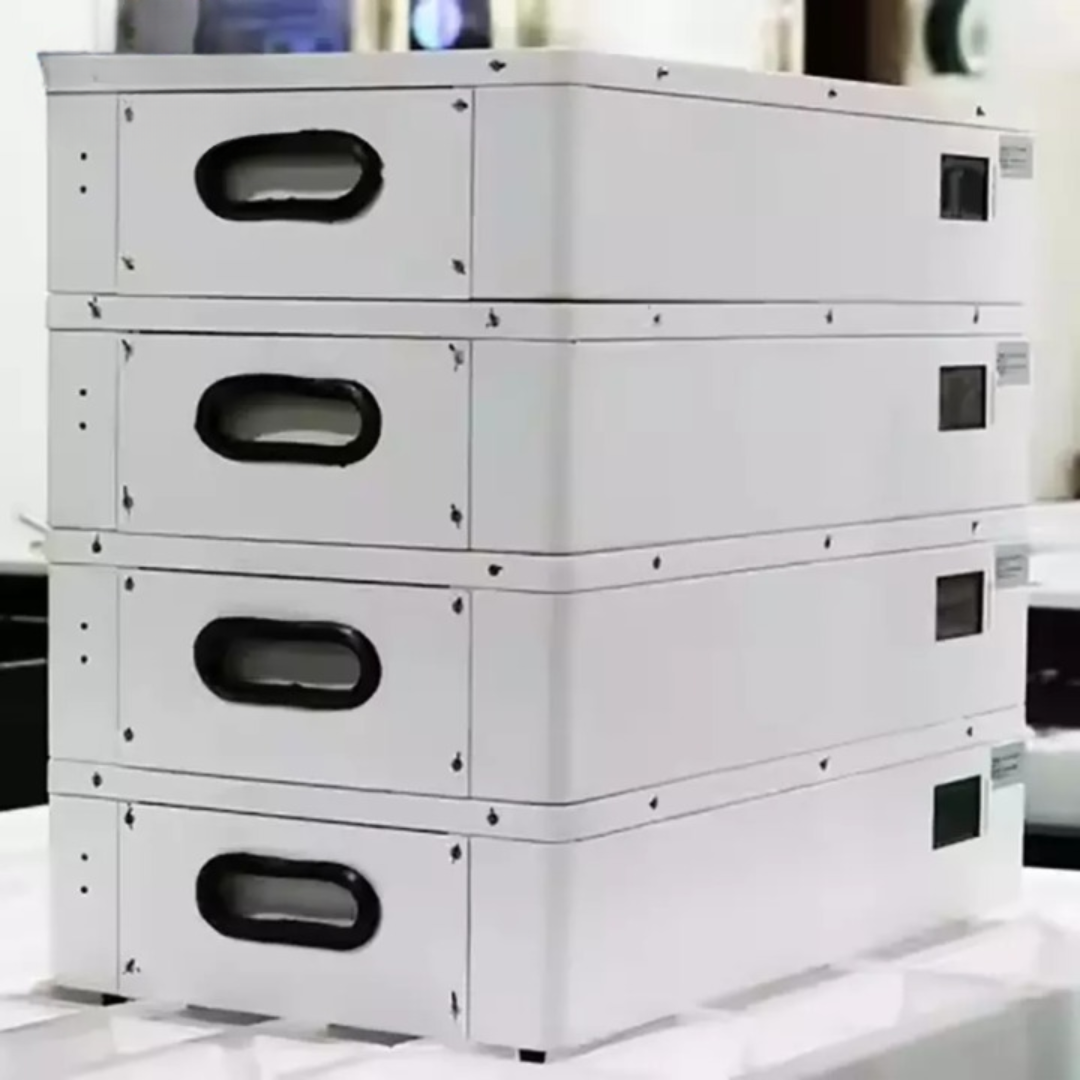

High Voltage Stackable Lithium Battery Pack 51.2V 100AH 15KWH-40KWH

High Voltage Stackable Lithium Battery Pack 51.2V 100AH 15KWH-40KWH

High Voltage Stackable Lithium Battery Pack 51.2V 100AH 15KWH-40KWH. A high-voltage, stackable lithium battery pack designed for household energy storage. This product utilizes LiFePO4 technology for a high-performance, long-lasting, and safe power solution. With its stackable design, it offers a flexible capacity range from 15KWH to 40KWH.

Key Features:

• High Performance: A single 100Ah LiFePO4 battery offers performance comparable to a 200Ah lead-acid battery.
• Safest Technology: Utilizes LiFePO4 technology, known for its safety.
• Long Service Life: Designed for a prolonged operational life with low self-discharge.
• High Discharge Current: Capable of high discharge rates for demanding applications.
• Light Weight: The battery pack is lightweight for easier handling and installation.

Technical Specifications:

General System Parameters:

• Cell Type: EVE-LFP prismatic battery cell (3.2V 100Ah)
• Nominal Voltage (Single Module): 51.2V
• Nominal Capacity: 100AH
• Protection Class: IP54 (for indoor use)
• Cooling Mode: Free cooling
• Depth of Discharge (DOD): ≥90%
• Ambient Temperature:
• Charge: 0℃ to 55°℃
• Discharge: -20℃ to 60℃
• Storage: -10℃ to 45℃
• Installation: Stackable
• Cycle Life: ≥6000 times
• Warranty: 5+5 years
• Communication: CAN, RS485
• Certificates: UN38.3, MSDS, CE

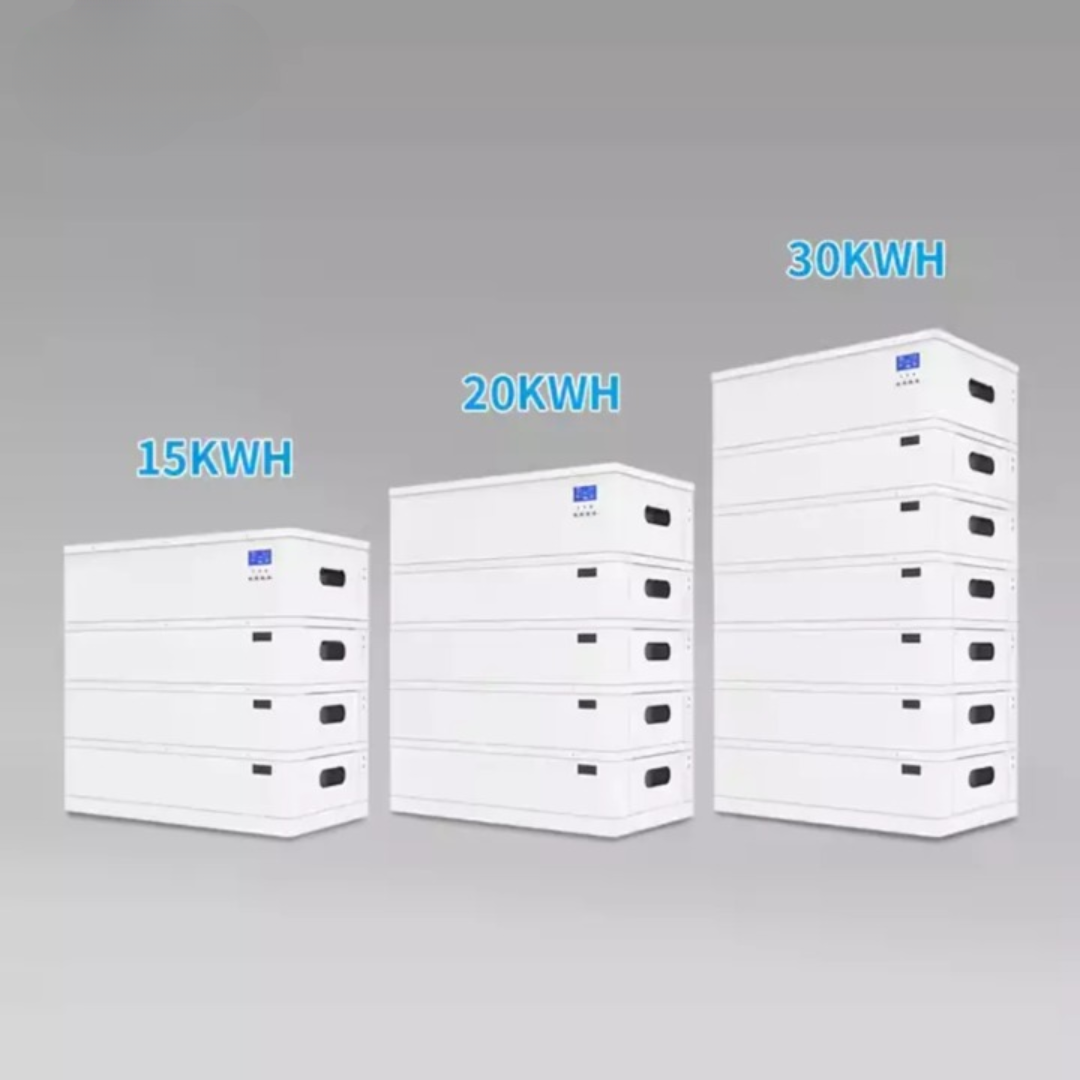

Model-by-Model Specifications:

15.36KWH Model: ARL-PNGER153100-HV

• Nominal Energy: 15.36KWH
• Voltage Range: 153.6V
• Max. Charge Voltage: 175.2V
• Min. Discharge Voltage: 120V
• Weight (battery/control box): 126kg
• Size (LWH): 675*375*480mm

20.48KWH Model: ARL-PNGER204100-HV

• Nominal Energy: 20.48KWH
• Voltage Range: 204.8V
• Max. Charge Voltage: 233.6V
• Min. Discharge Voltage: 160V
• Weight (battery/control box): 168kg
• Size (LWH): 675*375*640mm

25.6KWH Model: ARL-PNGER256100-HV

• Nominal Energy: 25.6KWH
• Voltage Range: 256V
• Max. Charge Voltage: 292V
• Min. Discharge Voltage: 200V
• Weight (battery/control box): 210kg
• Size (LWH): 675*375*800mm

30.72KWH Model: ARL-PNGER307100-HV

• Nominal Energy: 30.72KWH
• Voltage Range: 307.2V
• Max. Charge Voltage: 350.4V
• Min. Discharge Voltage: 240V
• Weight (battery/control box): 252kg
• Size (LWH): 675*375*960mm

35.84KWH Model: ARL-PNGER358100-HV

• Nominal Energy: 35.84KWH
• Voltage Range: 358.4V
• Max. Charge Voltage: 408.8V
• Min. Discharge Voltage: 280V
• Weight (battery/control box): 294kg
• Size (LWH): 675*375*1120mm

40.96KWH Model: ARL-PNGER496100-HV

• Nominal Energy: 40.96KWH
• Voltage Range: 409.6V
• Max. Charge Voltage: 467.2V
• Min. Discharge Voltage: 320V
• Weight (battery/control box): 336kg
• Size (LWH): 675*375*1280mm
