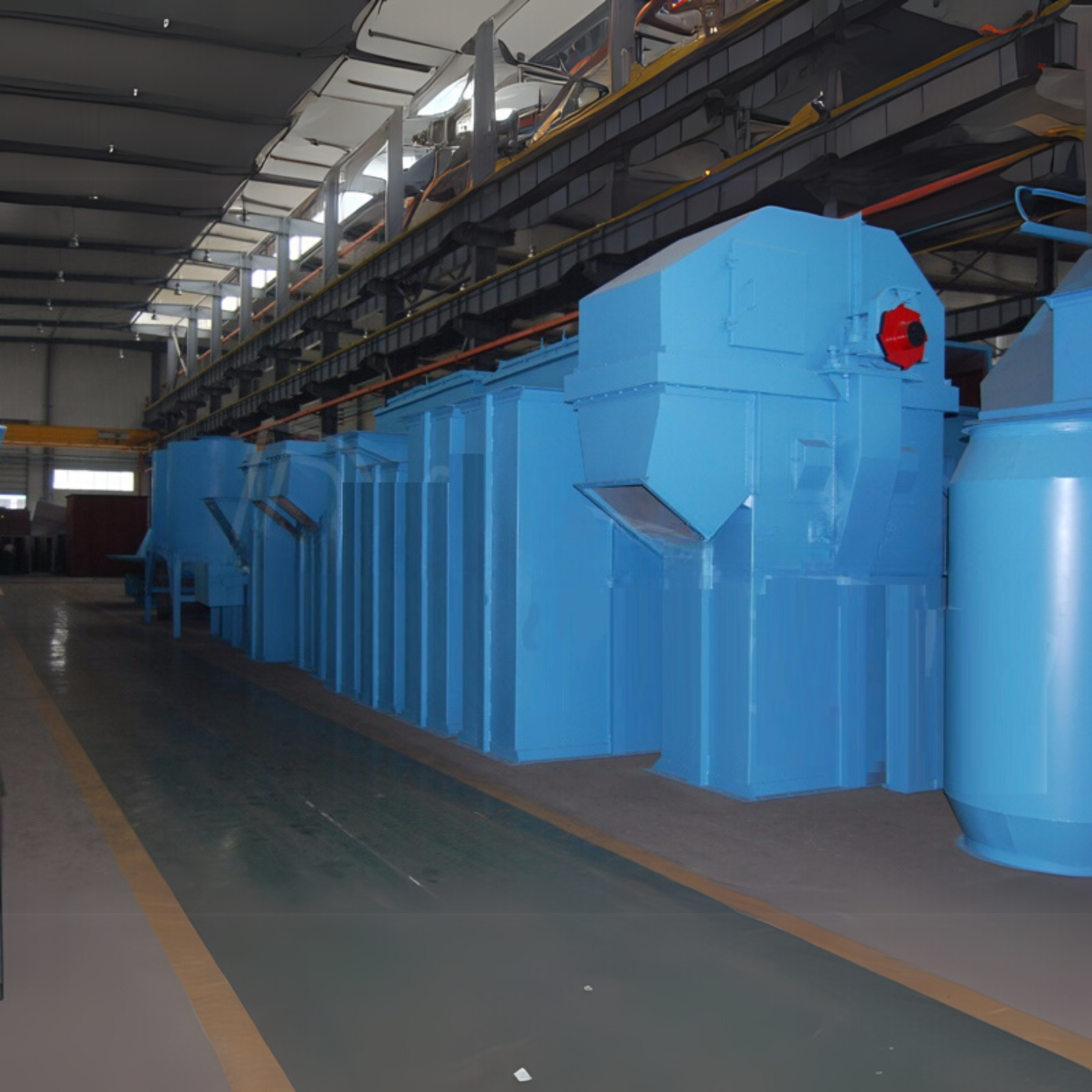

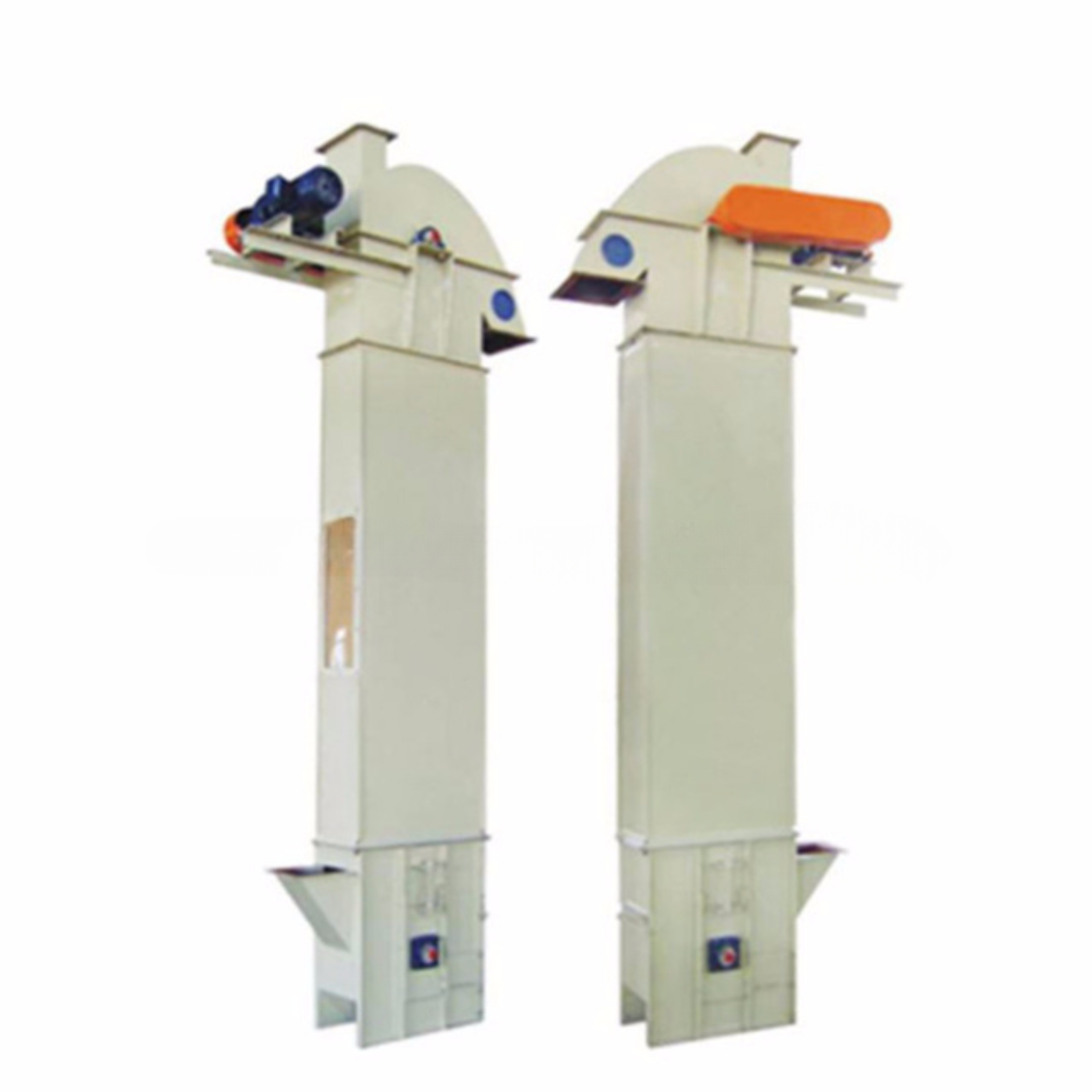

Product Description: The HN Series NE Plate Chain Bucket Lifting Elevator is a robust and efficient solution for vertical conveying of granular, powdered, and small block materials. Designed for high-capacity transport and high elevation, this elevator ensures stable operation and a long working life, making it ideal for industries such as coal, grain, cement, and mining. The elevator can handle materials with temperatures up to 250°C when equipped with a special chain structure and can achieve lifting heights up to 40 meters. Its design minimizes material scattering during feeding and discharging, reducing mechanical wear and environmental pollution. With features like low power consumption, effective feeding and discharge, and excellent sealing, the HN Series Bucket Elevator provides reliable and efficient material handling.
Key Features:
- High Conveying Capacity: Handles a wide range of materials and capacities (see technical parameters).
- High Elevation: Achieves lifting heights up to 40 meters.
- Temperature Resistance: Can handle materials up to 250°C with special chain.
- Stable Operation: Advanced design and processing for reliable performance.
- Durable Construction: Reduces material scattering and mechanical wear.
- Good Sealing: Minimizes environmental pollution.
- Low Power Consumption: Efficient design reduces energy costs.
- Versatile Application: Suitable for various materials, including powder, grain, and lumps.
Technical Parameters:
| Item | Conveying Capacity (m³/h) | Hopper Volume (L) | Bucket Chain Pitch (mm) | Hopper Width (mm) | Bucket Speed (m/s) | Max Aggregate Diameter (mm) | Spindle Speed (r/s) | Material Bulk Density (t/m³) | Max Hoisting Height (m) | Power (kW) |
|---|---|---|---|---|---|---|---|---|---|---|
| HN15 | 10-15 | 2.5 | 203.2 | 250 | 0.5 | 40 | 15.54 | 0.6-2.0 | 35 | 1.5-4 |
| HN30 | 18.5-31 | 7.8 | 304.8 | 300 | 0.5 | 55 | 16.45 | 0.6-2.0 | 50 | 1.5-11 |
| HN50 | 35-60 | 14.7 | 304.8 | 300 | 0.5 | 60 | 16.45 | 0.6-2.0 | 45 | 1.5-18.5 |
| HN100 | 75-110 | 35 | 400 | 400 | 0.5 | 70 | 14.13 | 0.6-2.0 | 45 | 5.5-30 |
| HN150 | 112-165 | 52.2 | 400 | 600 | 0.5 | 90 | 14.13 | 0.6-2.0 | 45 | 5.5-45 |
| HN200 | 170-220 | 84.6 | 500 | 600 | 0.5 | 100 | 10.9 | 0.6-1.8 | 40 | 7.5-55 |
| HN300 | 230-340 | 127.5 | 500 | 600 | 0.5 | 125 | 10.9 | 0.6-1.8 | 40 | 11-75 |
| HN400 | 340-450 | 182.6 | 600 | 700 | 0.5 | 130 | 8.3 | 0.6-1.8 | 30 | 18.5-90 |
| HN500 | 450-550 | 260.9 | 700 | 700 | 0.5 | 140 | 7.1 | 0.6-1.8 | 30 | 30-110 |
| HN600 | 550-660 | 330.2 | 700 | 700 | 0.5 | 150 | 7.1 | 0.6-1.8 | 30 | 37-132 |
| HN800 | 680-830 | 501.3 | 800 | 800 | 0.5 | 165 | 6.2 | 0.6-1.8 | 30 | ~160 |

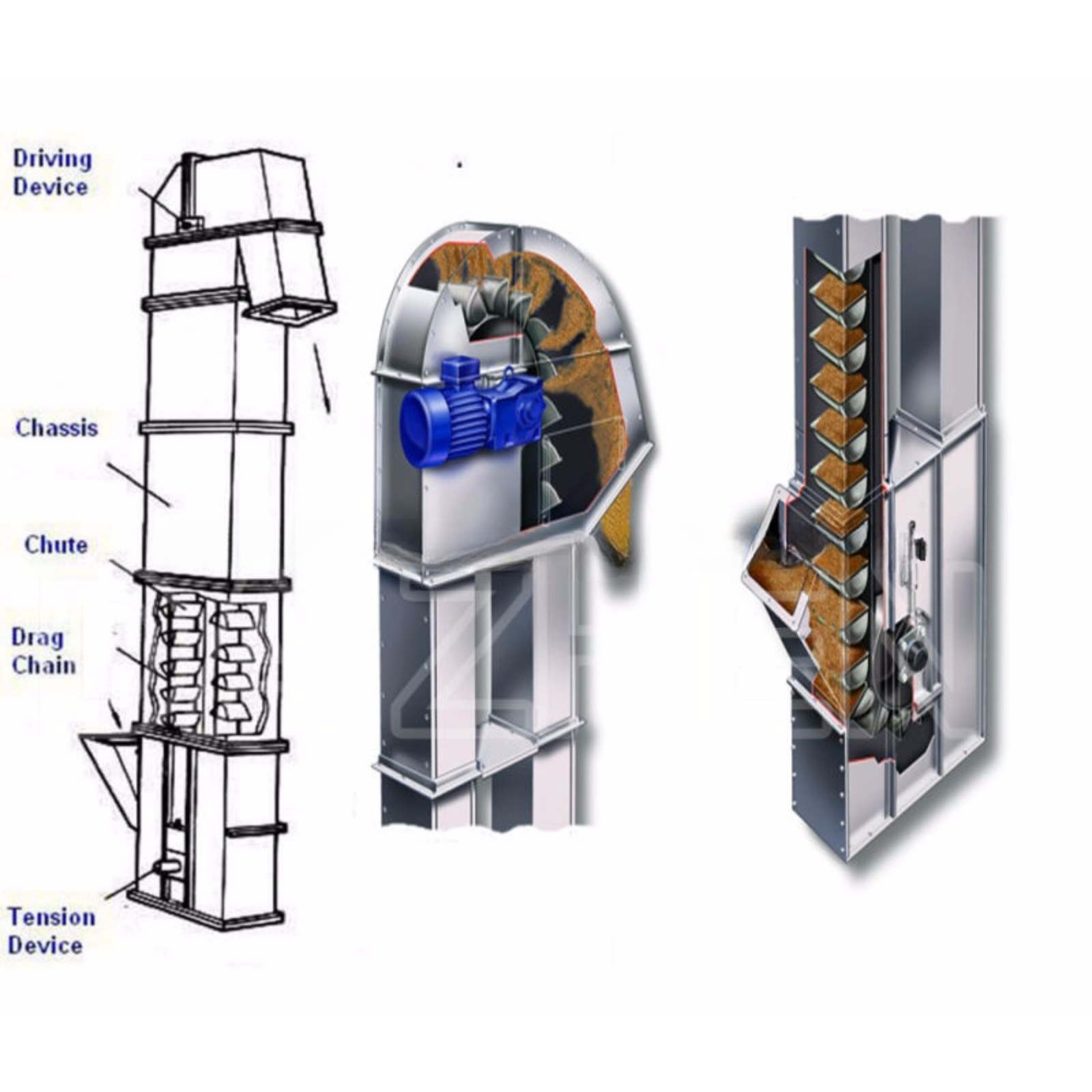

Working Principle:
Material is fed into an inlet hopper. Buckets dig into the material and convey it up to and over the head sprocket/pulley, then discharge the material through the discharge throat. The empty buckets return to the boot to repeat the cycle.
Applications:
- Coal industry
- Grain processing
- Cement production
- Mining operations
- Material handling in various industrial settings
Certifications:
- ISO Certified
- Stable Operation
