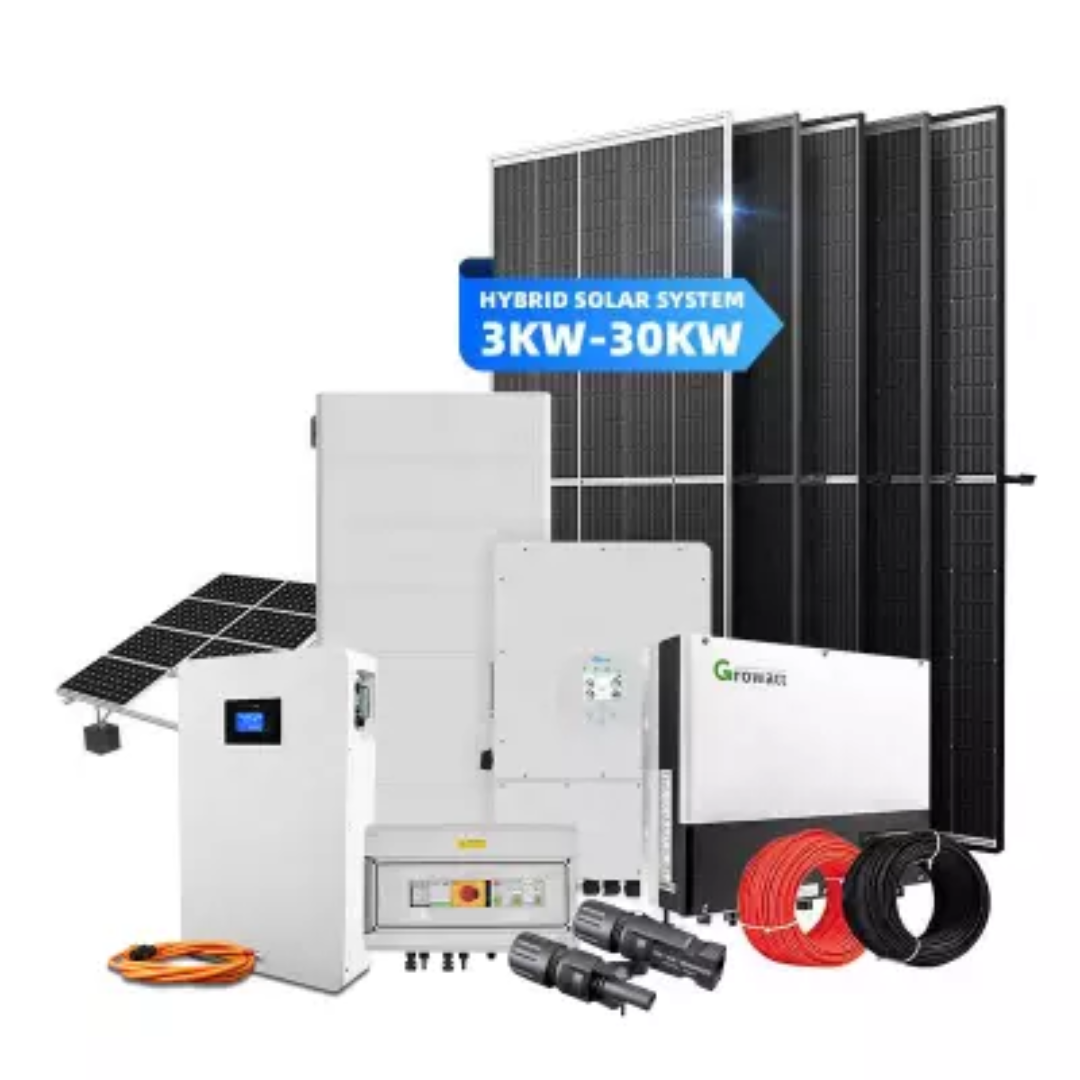

Hybrid Solar Power Storage System for Home Use. A high-quality solar hybrid system available in 15KW and 18KW configurations, designed for residential use and projects. This system combines a powerful lithium battery with a hybrid inverter and all necessary cables and structures, providing a complete solution for home power storage. It offers a reliable and efficient way to maximize energy independence and reduce reliance on the grid.

Key Features:

• Premium Solar Panels: The system uses Tier 1 brand N-type Topcon photovoltaic modules that are 100% A+ grade and come with certifications including IEC, ISO, and MCS.
• Advanced Hybrid Inverter: Features a smart Deye inverter with a colorful touch LCD, IP65 protection, and the ability to operate up to 16 units in parallel for both on-grid and off-grid scenarios.
• Reliable Lithium Battery: The lithium battery utilizes A-grade cells from top manufacturers, offering a long cycle life of over 6000 times and a 5-year warranty.
• Comprehensive Protection: The grid-connected cabinet includes protection against lightning, short-circuit, over-current, earth-leakage, and anti-islanding.
• Durable Mounting System: A solar mounting bracket made from hot-dip galvanized carbon steel or aluminum alloy is compatible with various roof types and ground installations.
• Complete Components: The system includes all necessary components like cables, connectors, and accessories for a full installation.

Technical Specifications:

Photovoltaic Module (Jinko 580W N type Topcon):

• General Module Specifications:
• Brands: TW solar, Astronergy, Jinko, JA, Longi and others.
• Certifications: IEC61215/IEC61730, ISO9001, ISO14001, ISO45001, MCS, FIDE, RETIE.
• Features: P/N type mono-facial or bifacial available, PID-Free, Anti-salt mist corrosion and Anti-Amonia.
• Warranty: 12 years materials and processing, 25 years 80% power output.
• Performance (STC):
• Max. Power (Pmax): 580W
• Open Circuit Voltage (Voc): 42.37V
• Short Circuit Current (Isc): 13.69A
• Voltage at Max. Power (Vmp): 51.02V
• Current at Max. Power (Imp): 14.47A
• Module Efficiency: 22.45%

Hybrid Inverter (Deye High-Voltage ARL-SUN-15K-SG01HP3-EU-AM2):

• Battery Input Data:
• Battery Type: Lithium-ion
• Battery Voltage Range: 160-700V
• Max. Charging/Discharging Current: 37A

PV String Input Data:

• Max. DC Input Power: 19500W
• Max. DC Input Voltage: 1000V
• MPPT Range: 150-850V
• Number of MPPT Trackers: 2
• AC Output Data:
• Rated AC Output Power: 15000W
• Max. AC Output Power: 16500W
• Peak Power (off grid): 1.5 times of rated power, 10 seconds.

General Data:

• Max. Efficiency: 97.60%
• Operating Temperature Range: -40 to +60°C (>45°C derating)
• Cooling: Smart cooling
• Noise: ≤55 dB
• Weight: 30.5 kg
• Protection Degree: IP65
• Warranty: 5 years/10 years

Lithium Battery (Wall-mounted Energy Storage):

Model ARL-PNG-W5:

• Capacity: 5.2KWH (51.2V, 102AH)
• Max. charging/discharging current: 100A
• Net Weight: 48kg
• Dimensions: 695 x 440 x 155mm

Model ARL-PNG-W10:

• Capacity: 10.5KWH (51.2V, 204AH)
• Max. charging/discharging current: 100A
• Net Weight: 90kg
• Dimensions: 850 x 530 x 140mm

General Battery Specifications:

• Working Voltage: 44.8V~57.6V
• Parallel Connection: Up to 15 packs can be connected.
• Cycle Times: 6000 times (at 0.5C, 25℃)
• Warranty: 5 years
• Operating Temperature: Charging 0℃ ~45℃, Discharging -20℃ ~45℃
• Communication: RS232, RS485, CAN
• Protection Class: IP26

Other Components:

• Grid-Connected Cabinet: Breaker, SPD, and a box available in stainless steel (outdoor) or plastic (indoor), with lightning, short-circuit, and over-current protection.
• Solar Mounting System: Pitched tiled, flat roof, ground, or carport mounted structure, compatible with all sizes of solar modules. Made of hot-dip galvanized carbon steel or aluminum alloy with a 10-year warranty.
• Solar Cable (DC & AC): PV1-F 1*4mm2 & PV1-F1*6mm2 tinned copper wire for DC, and international standard cables for AC. Both have a 3-year warranty.
