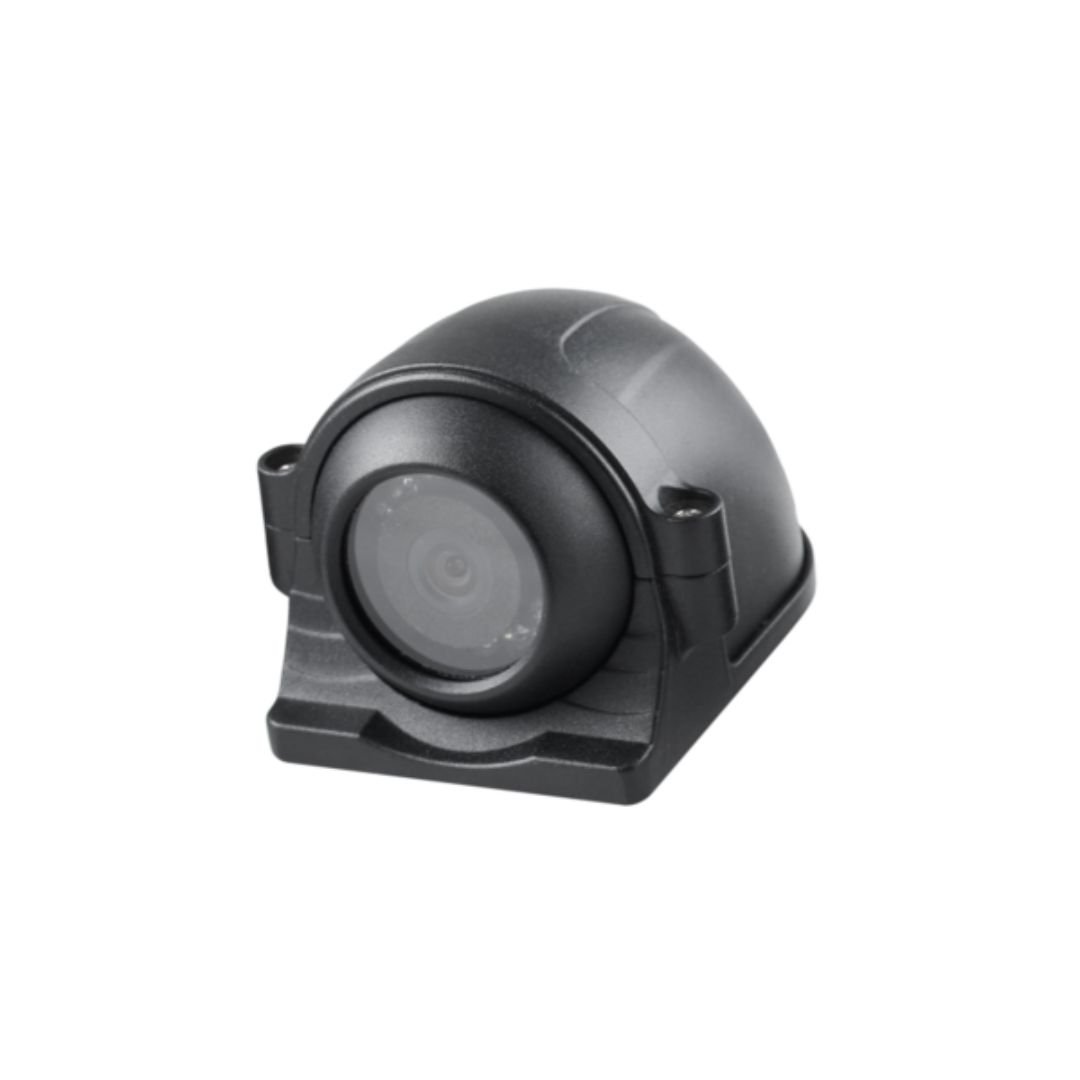

Intelligent Side View BSD Camera with Pedestrian & Vehicle Detection (ARL-MS-781XM)

Intelligent Side View BSD Camera with Pedestrian & Vehicle Detection (ARL-MS-781XM)

The ARL-MS-781XM is an intelligent side-view camera featuring advanced BSD (Blind Spot Detection) technology designed to identify various pedestrians and vehicles, including cyclists, electric scooters, and hikers. Intelligent Side View BSD Camera with Pedestrian & Vehicle Detection (ARL-MS-781XM) system provides crucial pedestrian and vehicle detection with corresponding warnings to significantly enhance driver safety during lane changes and turns. It offers high-definition 720P and 1080P video output (when paired with compatible pedestrian and vehicle tracking and alarm identification boxes). The intuitive visual warning system displays color-coded alarm boxes overlaid on the video feed: gray (outside the alarm area), green, yellow, and red, indicating the proximity of detected objects.

The camera also provides audible warnings through its audio output, which can be connected to monitors or other speaker-equipped devices. The distinct ‘beep beep’ alarm sound changes its pattern (long and short beeps) based on the detected object entering the defined warning recognition area. For side-view applications, the system utilizes a three-level alarm identification line (green, yellow, red). These alarm identification lines can be adjusted in the future via the RS232 serial port for customized detection zones tailored to specific vehicle and mounting configurations.

Furthermore, the ARL-MS-781XM supports alarm IO line linkage for external sound and light alarms. When pedestrians or vehicles enter the designated alarm area, an audible beep is emitted, and the alarm IO output triggers a high-level signal that can activate external warning devices, providing an additional layer of safety.

Key Features:

• Intelligent Pedestrian & Vehicle Detection: Identifies various vulnerable road users and vehicles in the side blind spot.
• Visual Warning System: High-definition 720P/1080P video output with color-coded proximity-based alarm boxes (gray, green, yellow, red).
• Audible Warning Output: Connects to monitors or external speakers for ‘beep beep’ alarm sounds with distance-based patterns.
• Adjustable Side Recognition Lines: Three-level alarm identification lines for left and right views (green, yellow, red), adjustable via RS232.
• Alarm IO Line Linkage: Triggers external sound and light alarms upon detection.
• High-Definition Video Output: Available in both 720P and 1080P resolutions.
• Wide Dynamic Range: Supports digital wide dynamic range for improved visibility in varying lighting conditions.
• Infrared Night Vision: Provides clear visibility up to 10 meters in low-light or no-light conditions.
• Wide Viewing Angle: Up to 78°(D) / 69°(H) / 39°(V) for 720P and 86°(D) / 75°(H) / 42°(V) for 1080P.
• Wide Operating Voltage: Supports a working voltage range of 9-24V (720P) and 9-30V (1080P).
• Waterproof IP67 Rating: Ensures durability and reliable performance in harsh weather conditions.
• Alarm In Support: Can be linked with external sound and light alarms.
• Mirror Function Supported: Allows for mirrored image output.
• Reverse Line Supported: Integrated reverse line functionality (though primarily for rear view, may have limited side-view application).
• Wide Operating Temperature: -30℃ to +70℃.
• High Seismic Grade: Withstands vibrations up to 6G.
• Farthest Side View Detection Distance: Up to 15 meters.

Technical Parameters (720P):

• System Format: PAL/NTSC (optional)
• Effective Pixels: 1280(H)X720(V)
• Wide Dynamic: Support digital wide dynamic
• Infrared Fill Light: Night vision more than 10 meters
• Minimum Illumination: 0.01Lux@(F1.2,AGC ON), 0LUX with IR
• Shutter: AUTO
• Frequency: 720P@25fps/720P@30fps
• Synchronous Mode: Internal synchronization
• Video Output: 1Vp-p, 75 ohms
• Dynamic Range: 83db
• Detection Distance: 0.5-20M
• Angle: 78°(D) 69°(H) 39°(V)
• Working Voltage: Rated voltage: 12V, working range (9-24V)
• Working Current: Infrared activation approximately 160mA/DC12V
• Waterproof Level: IP 67
• Alarm In: Supported, can be linked with sound and light alarms for alarm
• Audio Frequency: Warning audio ‘beep beep beep’ will emit long and short sounds based on distance
• Mirror Function: Supported
• Reverse Line: Supported
• Operation Temperature: -30℃-+70℃, maximum humidity of 95%
• Size: 906361mm
• Net Weight: <200g
• Seismic Grade: 6G

Technical Parameters (1080P):

• System Format: PAL/NTSC (optional)
• Effective Pixels: 1920(H)X1080(V)
• Wide Dynamic: Support digital wide dynamic
• Infrared Fill Light: Night vision more than 10 meters
• Minimum Illumination: 0.01Lux@(F1.2,AGC ON), 0LUX with IR
• Shutter: AUTO
• Frequency: 1080P@25fps/1080P@30fps
• Synchronous Mode: Internal synchronization
• Video Output: 1Vp-p, 75 ohms
• Dynamic Range: 74db
• Detection Distance: 0.5-20M
• Angle: 86°(D) 75°(H) 42°(V)
• Working Voltage: Rated voltage: 12V, working range (9-30V)
• Working Current: Infrared activation approximately 165mA/DC12V
• Waterproof Level: IP 67
• Alarm In: Supported, can be linked with sound and light alarms for alarm
• Audio Frequency: Warning audio “beep beep beep” will emit long and short sounds based on distance
• Mirror Function: Supported
• Reverse Line: Supported
• Operation Temperature: -30℃-+70℃, maximum humidity of 95%
• Size: 906361mm
• Net Weight: <200g
• Seismic Grade: 6G

This intelligent side-view BSD camera provides a critical safety enhancement by actively monitoring the vehicle’s side blind spots and alerting drivers to the presence of vulnerable road users and other vehicles, helping to prevent accidents during lane changes and turns.
