Level 3 DC EV Charger 90kW-120kW 480V

ODM&OEM Services Available
Safety rated international standards GB/T, cULus, CE, Rohs listed
All-weather durability
Easy to install and use
3-year warranty, 5-year optional

Categories: COMMERCIAL CHARGING, EV Solutions

Level 3 DC EV Charger 90kW-120kW 480V

Level 3 DC EV Charger 90kW-120kW 480V When you need power now, this future-ready innovative design delivers up to 120kW and is perfect for fleet applications and highway service centers. Faster charging means less time waiting and an enhanced user experience. The High Power EV charger is the unrivaled EV charger solution for people and businesses where time is the most valuable asset.

Details

Rated Power	120kW
120kW	Pillar mounted
Feeding method	Bottom in and bottom out
Equipment dimension	1620750560mm
Input Voltage	AC380V±15%
Input Frequency	50±1Hz
Output Voltage	200-750VDC
Output current	Constant Power:0-250A; Partial Power：0-210A
Cable length	5m
Efficiency	≥95%
Power factor	Power factor ≥0.98(above 50% load）
Human computer interface	7-inch highlight color touchscreen
charging mode	automatic charging full; Fixed power Fixed Amount; Fixed time;
Charging method	Swipe card / Scan code/password
Mode of payment	Swipe card / Scan code/password
Network way	Ethernet/4G
Safety function	Charging gun temperature detection, over-voltage protection, under voltage protection, overload protection , short circuit protection, grounding protection, over temperature protection, low-temperature protection, insulation monitoring protection, polarity reverse protection, lightning protection, emergency stop protection, leakage protection.
Working temperature	-20℃~+50℃
Working humidity	5%~95%No condensation
Altitude	<2000m

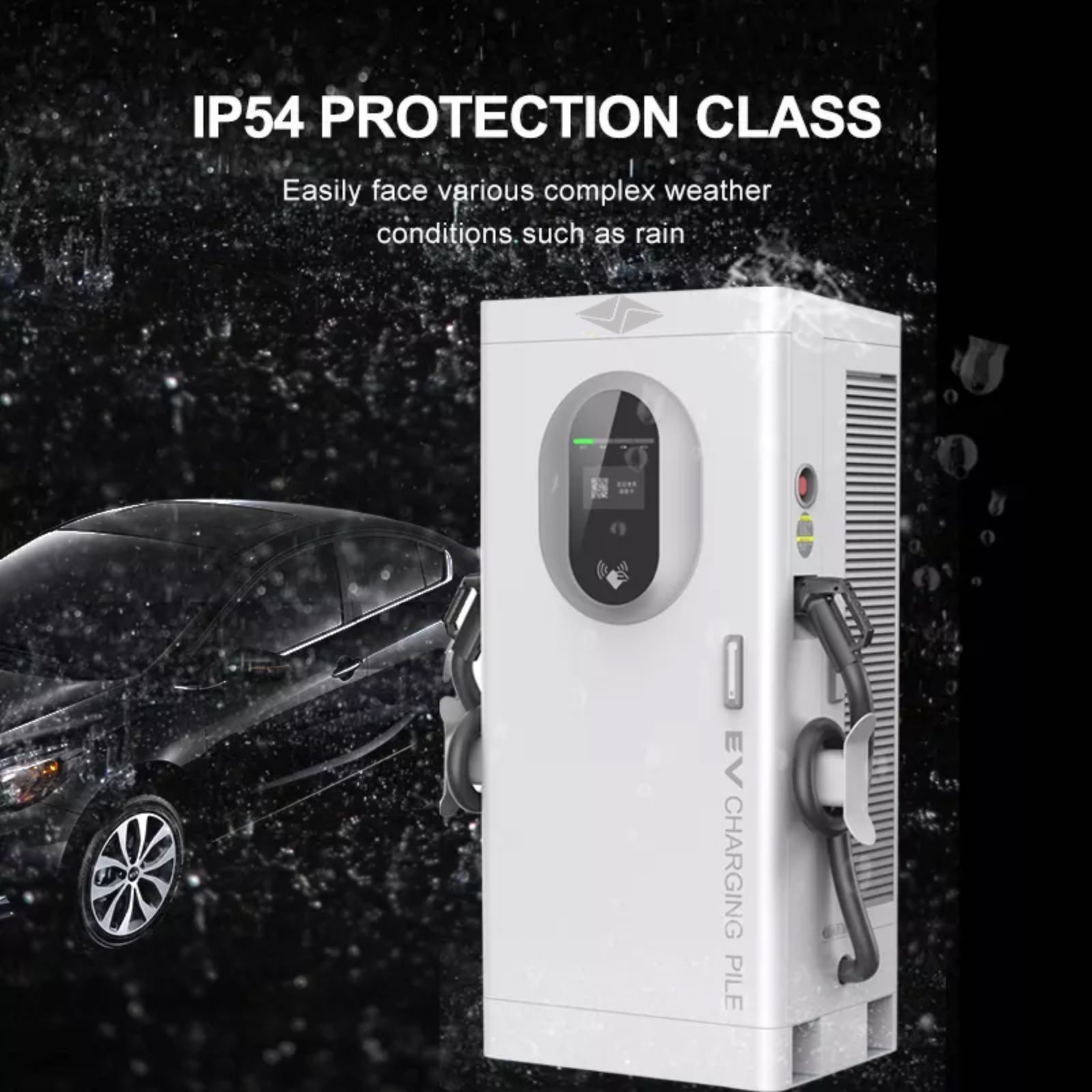

Ingress Protection	IP54
Cooling method	Air cooling
Noisy Control	≤60dB
MTBF	100,000 hours
