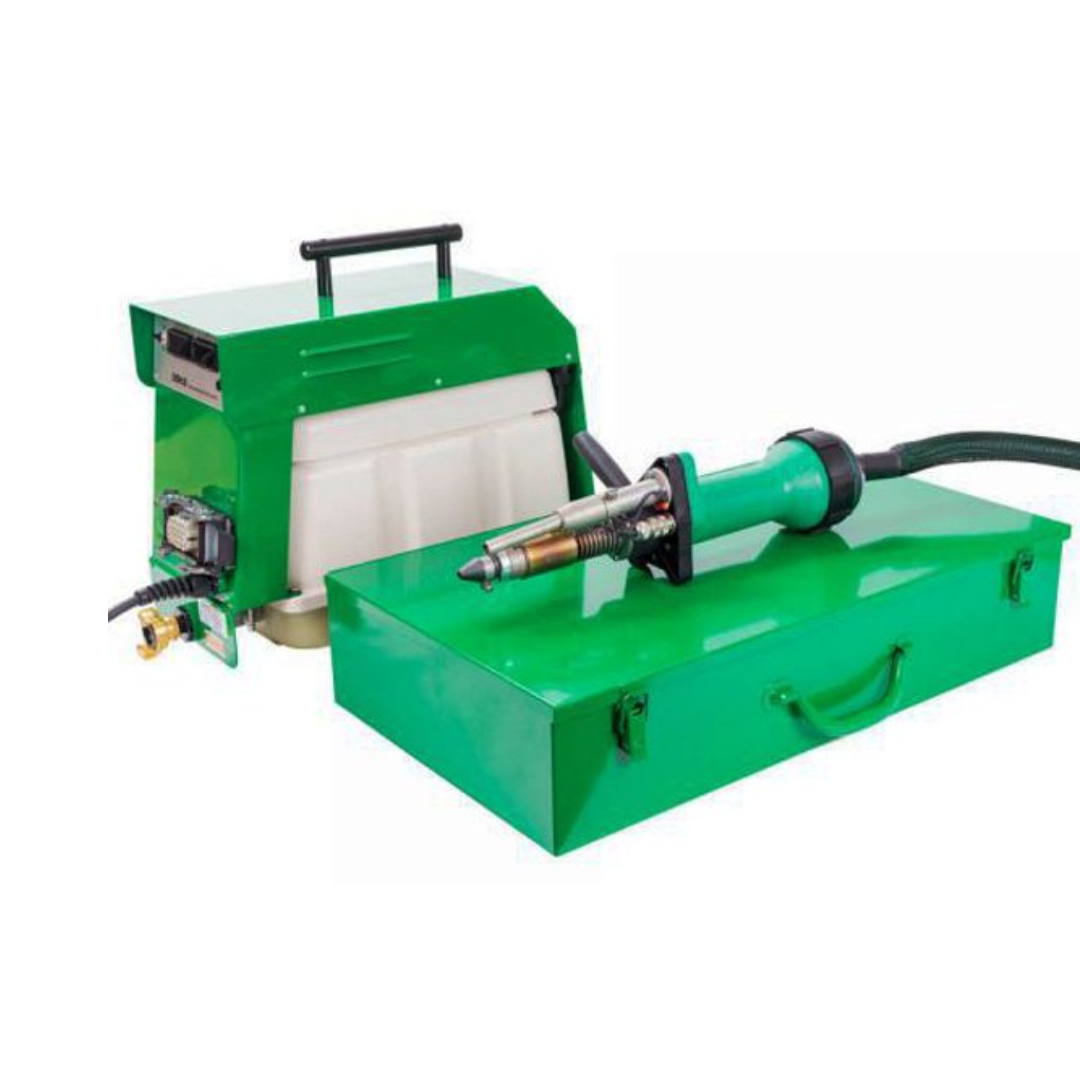

Micro | Hand welding extruder | Ultra-Lightweight Precision Extrusion Welder

Micro | Hand welding extruder | Ultra-Lightweight Precision Extrusion Welder

At a Glance: Micro | Hand welding extruder | SKU: ARL-DX283

Primary Use: High-performance precision welding for thin-to-medium HDPE sheets, as well as PE, PP, PVC, ECTFE, and PVDF components.

Key Benefit: Features an exceptionally lightweight welding head (2.3 kg) and a 7-meter hose package for unmatched maneuverability compared to standard extruders.

Built For: Delivering cleaner, stronger, and significantly faster welds than traditional hot-air blowers while complying with strict DVS 2212 standards.

Precision Plastic Joining with the Micro | Hand welding extruder

Features that Drive Performance: The Micro | Hand welding extruder is a specialized tool developed with over 30 years of Swiss and German-level engineering expertise to provide high-quality results in a compact form factor. By utilizing an E-box controller with two independent microcontrollers for temperature and air, the Micro | Hand welding extruder ensures that both the extrudate and the pre-heat air are perfectly regulated. This accuracy is further enhanced by a patented thermocouple placement located directly inside the melting chamber, which measures the actual temperature of the molten mass to prevent welding at insufficient temperatures.

Product Specifications (Model: Micro)

• SKU: ARL-DX283

• Welding Capacity: 0.1 – 0.5 kg/h for PE

• Welding Head Weight: Only 2.3 kg for reduced operator fatigue

• Rod Compatibility: PE, PP, PVC, ECTFE, and PVDF (Ø 3–4 mm)

• Control System: E-box with dual microcontrollers

• Hose Length: 7-meter hose package included

Ideal for Industries & Applications

• Precision Fabrication: Welding of high-performance plastics like ECTFE and PVDF in chemical and laboratory environments.

• HDPE Sheet Work: Optimized for welding HDPE sheets according to DVS 2212 standards.

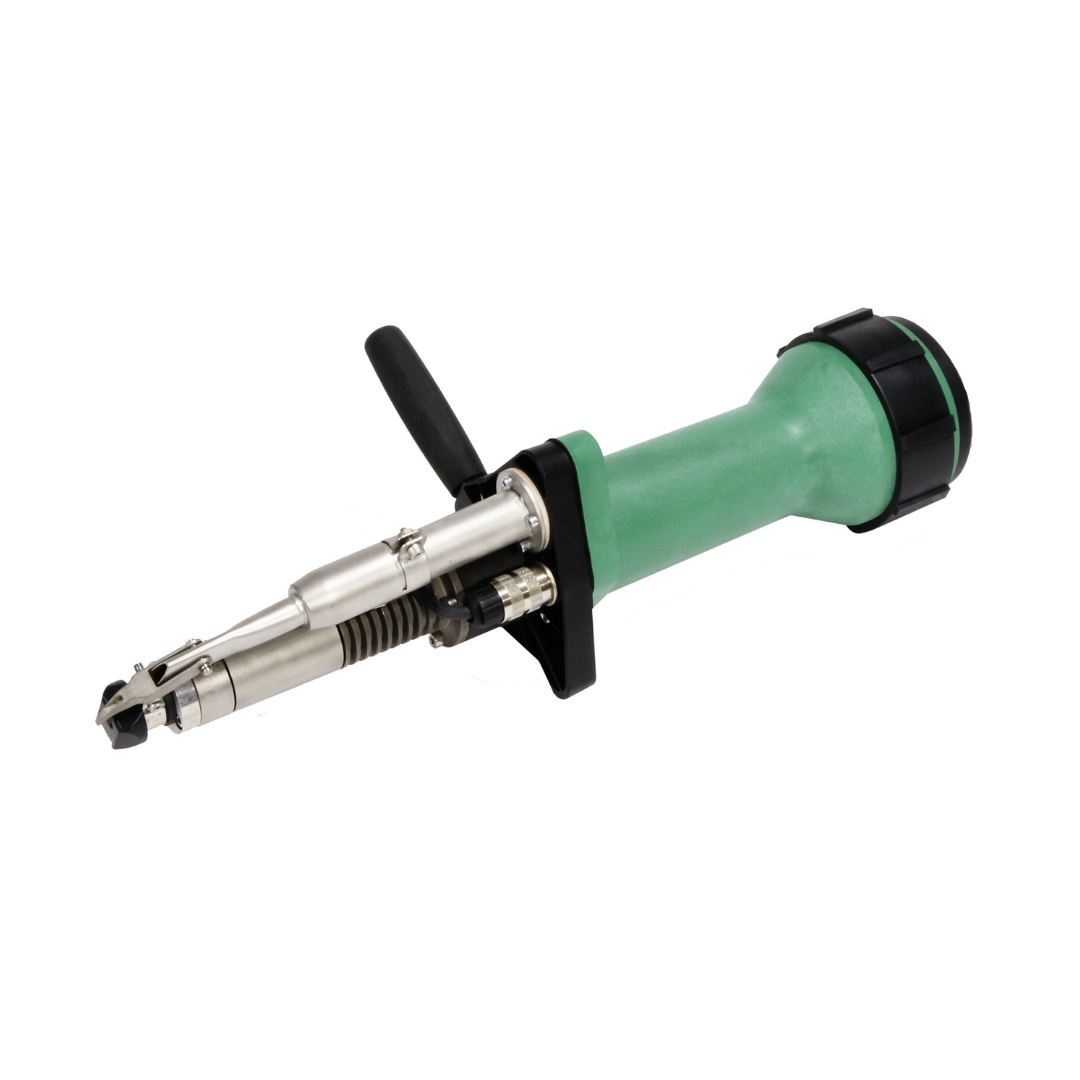

• Restricted Access Welding: The slim welding head (410 × 75 × 100 mm) is ideal for reaching tight corners where larger extruders cannot fit.

• Fabrication Maintenance: Performing quick, high-strength repairs on thermoplastic tanks and industrial components.

Key Features of the Micro Series

• Digital Temperature Control: The internal sensor in the melting chamber ensures the actual temperature always matches the set value.

• Low-Limit Safeguard: An integrated safety system protects against welding at temperatures that are too low, ensuring joint integrity.

• Versatile Nozzle Options: The unit is supplied with two nozzles of your choice to match specific joint geometries.

• Operational Efficiency: Provides a welding speed of approximately 1,570 cm per minute, significantly outperforming traditional hot-air welding.

Frequently Asked Questions (FAQ)

Is the Micro | Hand welding extruder lighter than other models? Yes. One of its primary advantages is an exceptionally lightweight design; at 2.3 kg for the welding head, it is much lighter than most handheld extruders on the market.

Can I use Ø 3 mm welding rods with this machine? Yes. While it is highly efficient with Ø 4 mm rods, the Micro | Hand welding extruder is compatible with both Ø 3 mm and Ø 4 mm thermoplastic welding rods.

What materials can the Micro | Hand welding extruder weld? It is highly versatile, supporting PE, PP, PVC, PVDF, and even specialty fluoropolymers like ECTFE.
