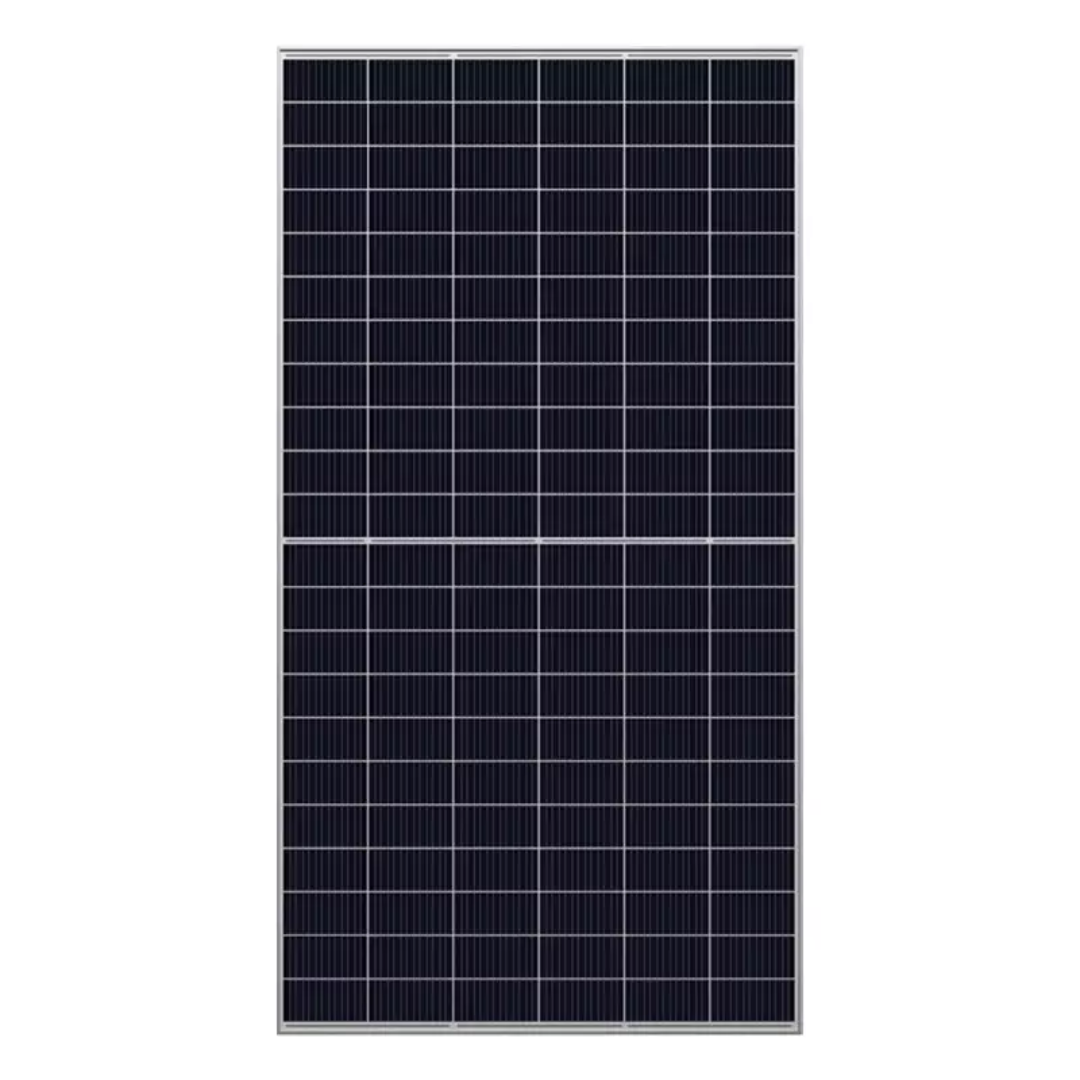

Mono PERC Solar Module 645W-670W ARL-PNGMH66-BX Series

Mono PERC Solar Module 645W-670W ARL-PNGMH66-BX Series

Mono PERC Solar Module 645W-670W ARL-PNGMH66-BX Series. The ARL-PNGMH66-BX series offers high-performance solar panels with a power output ranging from 645W to 670W. These monocrystalline PERC and half-cell modules feature 210mm solar cells for higher efficiency. The state-of-the-art engineering maximizes energy output, allowing for more power generation in less space. ARL-PNG Solar focuses on quality and service, providing professional turnkey solutions and a cost-effective, reliable partner for your solar needs.

Key Features:

• Unrivaled Efficiency: The 670W solar panels convert sunlight into electricity with extreme precision, with a module efficiency of up to 21.57%.
• Monocrystalline PERC and Half-Cell Technology: This combination enhances performance and increases energy output.
• Higher Efficiency with 210mm Cells: The large cell size contributes to a higher power output per panel.
• Quality and Service Focus: ARLPNG Solar emphasizes high-quality products and professional support.
• Professional Turnkey Solutions: The product is offered as part of a complete solution for solar energy systems.
• Cost-effective and Reliable: Designed to be an expert, reliable partner in solar power, providing a cost-effective solution without compromising on quality.
• Strength and Durability: Certified to withstand snow loads of 5400Pa and wind loads of 2400Pa.

Electrical Specifications:

Module Type: ARL-PNGMH66-BX-645

• Standard Test Condition (STC):
• Max. Power (Pmp/Wp): 645
• Voltage at Max. Power (Vmp/V): 37.2
• Current at Max. Power (Imp/A): 17.34
• Open Circuit Voltage (Voc/V): 45.0
• Short Circuit Current (Isc/A): 18.41
• Module Efficiency (%): 20.76%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmp/Wp): 488
• Voltage at Max. Power (Vmp/V): 34.7
• Current at Max. Power (Imp/A): 14.06
• Open Circuit Voltage (Voc/V): 42.4
• Short Circuit Current (Isc/A): 14.84

ARL-PNGMH66-BX-650

• Standard Test Condition (STC):
• Max. Power (Pmp/Wp): 650
• Voltage at Max. Power (Vmp/V): 37.4
• Current at Max. Power (Imp/A): 17.38
• Open Circuit Voltage (Voc/V): 45.2
• Short Circuit Current (Isc/A): 18.46
• Module Efficiency (%): 20.92%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmp/Wp): 492
• Voltage at Max. Power (Vmp/V): 34.9
• Current at Max. Power (Imp/A): 14.09
• Open Circuit Voltage (Voc/V): 42.6
• Short Circuit Current (Isc/A): 14.88

Module: ARL-PNGMH66-BX-655

• Standard Test Condition (STC):
• Max. Power (Pmp/Wp): 655
• Voltage at Max. Power (Vmp/V): 37.6
• Current at Max. Power (Imp/A): 17.42
• Open Circuit Voltage (Voc/V): 45.4
• Short Circuit Current (Isc/A): 18.50
• Module Efficiency (%): 21.09%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmp/Wp): 496
• Voltage at Max. Power (Vmp/V): 35.1
• Current at Max. Power (Imp/A): 14.13
• Open Circuit Voltage (Voc/V): 42.8
• Short Circuit Current (Isc/A): 14.92

Model: ARL-PNGMH66-BX-660

• Standard Test Condition (STC):
• Max. Power (Pmp/Wp): 660
• Voltage at Max. Power (Vmp/V): 37.8
• Current at Max. Power (Imp/A): 17.46
• Open Circuit Voltage (Voc/V): 45.6
• Short Circuit Current (Isc/A): 18.55
• Module Efficiency (%): 21.25%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmp/Wp): 499
• Voltage at Max. Power (Vmp/V): 35.3
• Current at Max. Power (Imp/A): 14.16
• Open Circuit Voltage (Voc/V): 43.0
• Short Circuit Current (Isc/A): 14.96

Module: ARL-PNGMH66-BX-665

• Standard Test Condition (STC):
• Max. Power (Pmp/Wp): 665
• Voltage at Max. Power (Vmp/V): 38.0
• Current at Max. Power (Imp/A): 17.50
• Open Circuit Voltage (Voc/V): 45.8
• Short Circuit Current (Isc/A): 18.60
• Module Efficiency (%): 21.41%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmp/Wp): 503
• Voltage at Max. Power (Vmp/V): 35.5
• Current at Max. Power (Imp/A): 14.19
• Open Circuit Voltage (Voc/V): 43.1
• Short Circuit Current (Isc/A): 15.00

ARL-PNGMH66-BX-670

• Standard Test Condition (STC):
• Max. Power (Pmp/Wp): 670
• Voltage at Max. Power (Vmp/V): 38.2
• Current at Max. Power (Imp/A): 17.54
• Open Circuit Voltage (Voc/V): 46.0
• Short Circuit Current (Isc/A): 18.6
• Module Efficiency (%): 21.57%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmp/Wp): 507
• Voltage at Max. Power (Vmp/V): 35.6
• Current at Max. Power (Imp/A): 14.22
• Open Circuit Voltage (Voc/V): 43.3
• Short Circuit Current (Isc/A): 15.04

General Specifications:

• Power Tolerance (W): 0~+5
• Standard Test Condition (STC) Reference: Irradiance 1000W/m², Cell Temperature 25℃, AM1.55
• Nominal Module Operating Temperature (NOCT) Reference: Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s

Mechanical Specifications:

• Cell Type: MBB Monocrystalline PERC 210x105mm
• No. of Cells: 132 (6×22)
• Dimension: 2384x1303x35mm
• Weight: 34.0kg
• Glass: 3.2mm, Low Iron Tempered Glass
• Frame: Anodized Aluminium Alloy
• Junction Box: IP68, 3 diodes
• Output Cables: 4mm², Length 300mm or customized
• Connector type: MC4 compatible

Temperature Characteristics:

• NOCT Temperature: 44∘C±2∘C
• Temperature Coefficient (Pmax): $-0.36$%/℃
• Temperature Coefficient (Voc): $-0.28$%/℃
• Temperature Coefficient (Isc): $0.05$%/℃

Maximum Ratings:

• Maximum system voltage (IEC): 1500V DC
• Snow / Wind Load: 5400Pa / 2400Pa
• Operating Temperature: −40∘C∼+85∘C
• Maximum series fuse rating: 30A
