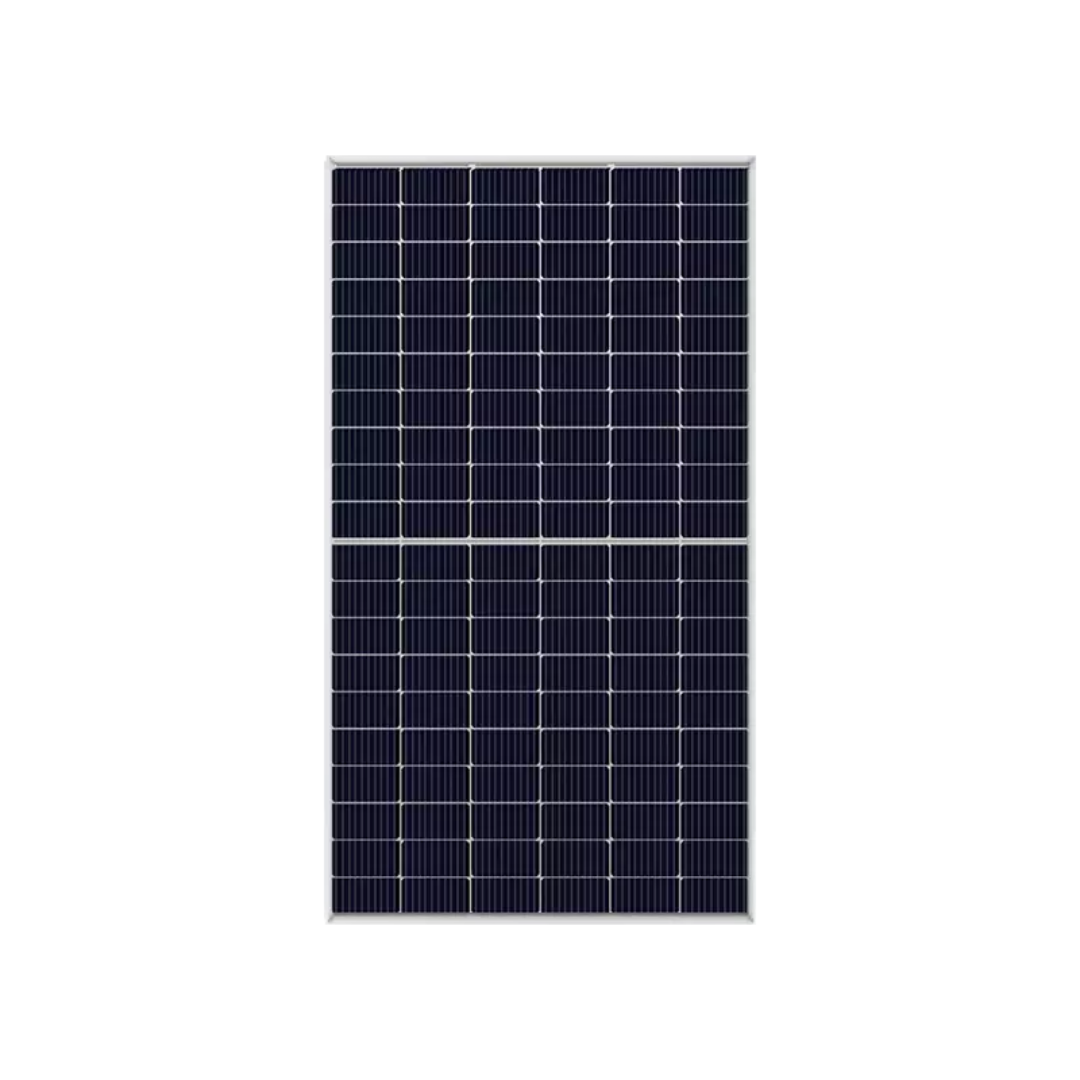

Mono Solar Panel with CE Certification 435W-455W 182mm ARL-PNG120M Series

Mono Solar Panel with CE Certification 435W-455W 182mm ARL-PNG120M Series

Mono Solar Panel with CE Certification 435W-455W 182mm ARL-PNG120M Series. The ARLPNG120M series offers high-efficiency monocrystalline solar modules with a power output ranging from 435W to 455W. These modules feature 182mm, 120-cell half-cell technology and are widely used in residential and commercial applications. Crafted with advanced monocrystalline cells, these panels achieve outstanding energy conversion rates, capturing an impressive amount of sunlight to ensure maximum power output and optimized performance. The product is also certified with CE, ensuring it meets relevant safety and quality standards

Key Features:

• Astounding Efficiency: Achieves high energy conversion rates and maximum power output through advanced monocrystalline cells.
• Optimized Performance: Carefully crafted design ensures optimized performance and reliable energy production.
• Versatile Application: Ideal for a wide range of residential and commercial solar installations.
• High-Grade Cells: Utilizes 182mm half-cell technology for enhanced performance.
• Durable Construction: Built with a low-iron tempered glass and an anodized aluminum alloy frame for robust, long-lasting use.
• CE Certified: Meets the required safety and quality standards for its class.

Electrical Specifications (by Module Type):

Module Type: ARL-PNG120M-435

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 435
• Voltage at Max. Power (Vmp/V): 33.76
• Current at Max. Power (Imp/A): 12.89
• Open Circuit Voltage (Voc/V): 40.8
• Short Circuit Current (Isc/A): 13.34
• Module Efficiency (%): 20.04%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 326
• Voltage at Max. Power (Vmp/V): 31.19
• Current at Max. Power (Imp/A): 10.46
• Open Circuit Voltage (Voc/V): 37.61
• Short Circuit Current (Isc/A): 11.11

Module: ARL-PNG120M-440

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 440
• Voltage at Max. Power (Vmp/V): 33.91
• Current at Max. Power (Imp/A): 12.98
• Open Circuit Voltage (Voc/V): 40.95
• Short Circuit Current (Isc/A): 13.41
• Module Efficiency (%): 20.27%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 330
• Voltage at Max. Power (Vmp/V): 31.34
• Current at Max. Power (Imp/A): 10.54
• Open Circuit Voltage (Voc/V): 37.76
• Short Circuit Current (Isc/A): 11.19

Model: ARL-PNG120M-445

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 445
• Voltage at Max. Power (Vmp/V): 34.06
• Current at Max. Power (Imp/A): 13.07
• Open Circuit Voltage (Voc/V): 41.10
• Short Circuit Current (Isc/A): 13.52
• Module Efficiency (%): 20.50%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 334
• Voltage at Max. Power (Vmp/V): 31.49
• Current at Max. Power (Imp/A): 10.62
• Open Circuit Voltage (Voc/V): 37.91
• Short Circuit Current (Isc/A): 11.28

ARL-PNG120M-450

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 450
• Voltage at Max. Power (Vmp/V): 34.21
• Current at Max. Power (Imp/A): 13.16
• Open Circuit Voltage (Voc/V): 41.25
• Short Circuit Current (Isc/A): 13.62
• Module Efficiency (%): 20.73%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 338
• Voltage at Max. Power (Vmp/V): 31.64
• Current at Max. Power (Imp/A): 10.69
• Open Circuit Voltage (Voc/V): 38.06
• Short Circuit Current (Isc/A): 11.36

Module Type: ARL-PNG120M-455

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 455
• Voltage at Max. Power (Vmp/V): 34.36
• Current at Max. Power (Imp/A): 13.25
• Open Circuit Voltage (Voc/V): 41.40
• Short Circuit Current (Isc/A): 13.72
• Module Efficiency (%): 20.96%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 342
• Voltage at Max. Power (Vmp/V): 31.79
• Current at Max. Power (Imp/A): 10.77
• Open Circuit Voltage (Voc/V): 38.21
• Short Circuit Current (Isc/A): 11.45

General Specifications:

• Power Tolerance (W): 0~+5
• Standard Test Condition (STC) Reference: Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
• Nominal Module Operating Temperature (NOCT) Reference: Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s

Mechanical Specifications:

• Cell Type: 10BB Monocrystalline PERC 182×91mm
• No. of Cells: 120 (6×20)
• Dimension: 1910×1134×35mm
• Weight: 24kg
• Glass: 3.2mm, Low Iron Tempered Glass
• Frame: Anodized Aluminum Alloy
• Output Cables: 4mm², Length 300mm or customized
• Connector type: MC4 compatible

Temperature Characteristics:

• NOCT Temperature: 44∘C±2∘C
• Temperature Coefficient (Pmax): $-0.36$%/℃
• Temperature Coefficient (Voc): $-0.28$%/℃
• Temperature Coefficient (Isc): $0.05$%/℃

Maximum Ratings:

• Maximum System Voltage (IEC): 1500V DC
• Snow / Wind Load: 5400Pa / 2400Pa
• Operating Temperature: −40∘C∼+85∘C
• Maximum Series Fuse Rating: 20A
