Open Frame Display 10.1 inch

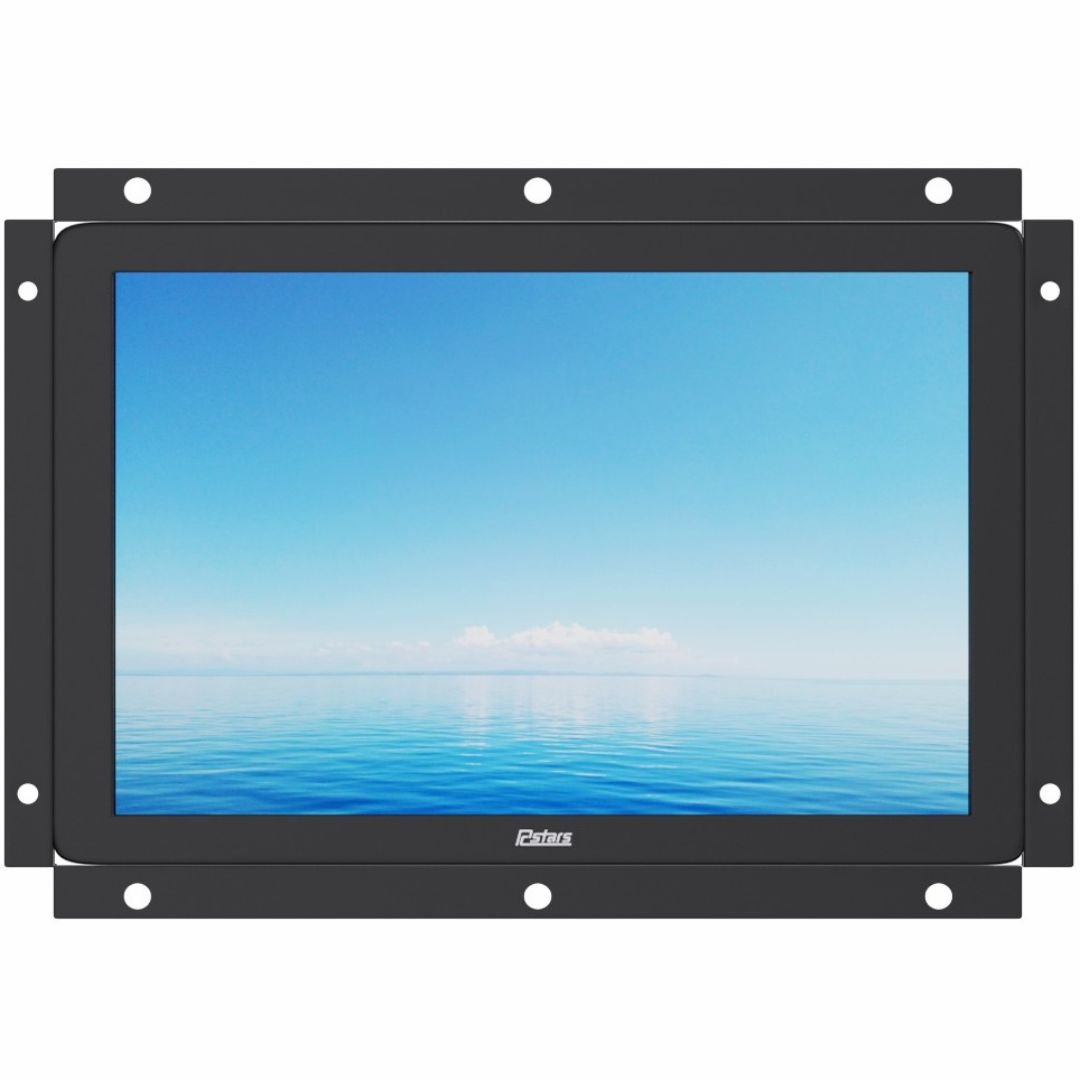

Open Frame Display 10.1 inch ARL-RCS-101OP

Open Frame Display 10.1 inch. The Open Frame Display ARL-RCS-101OP to RCS-980OP is a versatile wall-mounted monitor featuring an open-bezel design, engineered for continuous 24/7/365 operation. Open Frame Display, It offers a selectable screen brightness ranging from 500 nits to a brilliant 4000 nits, ensuring clear visibility in various indoor scenes. With optional capacitive or infrared touch functionality and a sliding screen function that supports pictures, music, and video up to 1080p, this display allows for simultaneous playback of music and images, making it an ideal solution for diverse indoor applications.

Key Features:

• Ultra-thin body with extremely narrow bezel (30.7 mm)
• Tempered glass screen protection
• Silver aluminum profile and metal back for heat dissipation
• Available in Matte Black and High Gloss White (customizable colors available)
• Four Optional Operating Systems: Android, LCD Monitor, Plug & Play, Windows
• Touch Screen Optional: Capacitive touch, IR touch
• Free to choose horizontal or vertical screen orientation
• Standard VESA Holes for Easy Installation
• 4 Optional Mounting Brackets available
• High Quality Ultra-thin Design Wall Mount Display
• Wide range of screen brightness: 500-2000 nits

Technical Specifications:

Model Range: ARL-RCS-101OP to ARL-RCS-980OP

ARL-RCS-101OP

• Panel Model: 10.1 inch TFT LED
• Max Resolution: 1280×800
• Aspect Ratio: 16:10
• Pixel Pitch: 0.1659×0.1659
• Viewing Angle: 85/85/85/85
• Contrast Ratio: 800:1
• Brightness (cd/m²): 500
• Display Area (mm): 216.96×135.60
• Panel Size (mm): 241.86×161.6×5.2

ARL-RCS-104OP

• Panel Model: 10.4 inch TFT LED
• Max Resolution: 800×600
• Aspect Ratio: 4:3
• Pixel Pitch: 0.264×0.264
• Viewing Angle: 70/70/50/60
• Contrast Ratio: 500:1
• Brightness (cd/m²): 500
• Display Area (mm): 211.2×158.4
• Panel Size (mm): 243×181.6×12.2

ARL-RCS-120OP

• Panel Model: 12 inch TFT LED
• Max Resolution: 800×600
• Aspect Ratio: 4:3
• Pixel Pitch: 0.204×0.204
• Viewing Angle: 70/70/50/60
• Contrast Ratio: 450:1
• Brightness (cd/m²): 500
• Display Area (mm): 246×184.5
• Panel Size (mm): 276×209×11

ARL-RCS-150OP

• Panel Model: 15 inch TFT LED
• Max Resolution: 1024×768
• Aspect Ratio: 4:3
• Pixel Pitch: 0.297×0.297
• Viewing Angle: 80/80/65/80
• Contrast Ratio: 800:1
• Brightness (cd/m²): 500
• Display Area (mm): 304.128×228.096
• Panel Size (mm): 326.5×253.5×9.6

ARL-RCS-156OP

• Panel Model: 15.6 inch TFT LED
• Max Resolution: 1920×1080
• Aspect Ratio: 16:9
• Pixel Pitch: 0.17925×0.17925
• Viewing Angle: 85/85/85/85
• Contrast Ratio: 800:1
• Brightness (cd/m²): 250
• Display Area (mm): 344.16×193.59
• Panel Size (mm): 359.5×223.8×3.2

ARL-RCS-170OP

• Panel Model: 17 inch TFT LED
• Max Resolution: 1280×1024
• Aspect Ratio: 5:4
• Pixel Pitch: 0.264×0.264
• Viewing Angle: 85/85/80/80
• Contrast Ratio: 1000:1
• Brightness (cd/m²): 500
• Display Area (mm): 337.92×270.336
• Panel Size (mm): 358.5×296.5×10.5

ARL-RCS-185OP

• Panel Model: 18.5 inch TFT LED
• Max Resolution: 1366×768
• Aspect Ratio: 16:9
• Pixel Pitch: 0.300×0.300
• Viewing Angle: 89/89/89/89
• Contrast Ratio: 1000:1
• Brightness (cd/m²): 500
• Display Area (mm): 409.8×230.4
• Panel Size (mm): 430.4×254.6×10.5

ARL-RCS-190OP

• Panel Model: 19 inch TFT LED
• Max Resolution: 1440×900
• Aspect Ratio: 16:10
• Pixel Pitch: 0.2835×0.2835
• Viewing Angle: 85/85/80/80
• Contrast Ratio: 1000:1
• Brightness (cd/m²): 500
• Display Area (mm): 408.24×255.15
• Panel Size (mm): 428×278×11

ARL-RCS-220OP

• Panel Model: 21.5 inch TFT LED
• Max Resolution: 1920×1080
• Aspect Ratio: 16:9
• Pixel Pitch: 0.24795×0.24795
• Viewing Angle: 89/89/89/89
• Contrast Ratio: 1000:1
• Brightness (cd/m²): 500
• Display Area (mm): 476.064×267.786
• Panel Size (mm): 495.6×292.2×10.7

ARL-RCS-240OP

• Panel Model: 23.8 inch TFT LED
• Max Resolution: 1920×1080
• Aspect Ratio: 16:9
• Pixel Pitch: 0.2745×0.2745
• Viewing Angle: 89/89/89/89
• Contrast Ratio: 1000:1
• Brightness (cd/m²): 500
• Display Area (mm): 572.04×296.46
• Panel Size (mm): 543×317.4×11.6

ARL-RCS-270OP

• Panel Model: 27 inch TFT LED
• Max Resolution: 1920×1080
• Aspect Ratio: 16:9
• Pixel Pitch: 0.31125×0.31125
• Viewing Angle: 89/89/89/89
• Contrast Ratio: 1000:1
• Brightness (cd/m²): 500
• Display Area (mm): 597.888×336.312
• Panel Size (mm): 630×368.2×11.8

ARL-RCS-320OP

• Panel Model: 32 inch TFT LED
• Max Resolution: 1920×1080
• Aspect Ratio: 16:9
• Pixel Pitch: 0.36375×0.36375
• Viewing Angle: 89/89/89/89
• Contrast Ratio: 1400:1
• Brightness (cd/m²): 500
• Display Area (mm): 698.4×392.85
• Panel Size (mm): 725.2×422.7×22.4

ARL-RCS-430OP

• Panel Model: 43 inch TFT LED
• Max Resolution: 1920×1080
• Aspect Ratio: 16:9
• Pixel Pitch: 0.4903×0.4903
• Viewing Angle: 89/89/89/89
• Contrast Ratio: 1200:1
• Brightness (cd/m²): 500
• Display Area (mm): 941.184×529.416
• Panel Size (mm): 969×563.9×26

ARL-RCS-490OP

• Panel Model: 49 inch TFT LED
• Max Resolution: 1920×1080
• Aspect Ratio: 16:9
• Pixel Pitch: 0.27963×0.27963
• Viewing Angle: 89/89/89/89
• Contrast Ratio: 1200:1
• Brightness (cd/m²): 50
• Display Area (mm): 1073.78×604
• Panel Size (mm): 109.5×62.9×29.6

ARL-RCS-550OP

• Panel Model: 55 inch TFT LED
• Max Resolution: 1920×1080
• Aspect Ratio: 16:9
• Pixel Pitch: 0.63×0.63
• Viewing Angle: 89/89/89/89
• Contrast Ratio: 1400:1
• Brightness (cd/m²): 500
• Display Area (mm): 1209.6×680.4
• Panel Size (mm): 1244.6×720.9

ARL-RCS-650OP

• Panel Model: 65 inch TFT LED
• Max Resolution: 3840×2160
• Aspect Ratio: 16:9
• Pixel Pitch: 0.372×0.372
• Viewing Angle: 89/89/89/89
• Contrast Ratio: 1400:1
• Brightness (cd/m²): 500
• Display Area (mm): 1428.48×803.52
• Panel Size (mm): 1459.2×830×16

ARL-RCS-750OP

• Panel Model: 75 inch TFT LED
• Max Resolution: 3840×2160
• Aspect Ratio: 16:9
• Pixel Pitch: 0.429×0.429
• Viewing Angle: 89/89/89/89
• Contrast Ratio: 1200:1
• Brightness (cd/m²): 500
• Display Area (mm): 1649.66×927.936
• Panel Size (mm): 1675.2×953.6×11.9

ARL-RCS-860OP

• Panel Model: 86 inch TFT LED
• Max Resolution: 3840×2160
• Aspect Ratio: 16:9
• Pixel Pitch: 0.4935×0.4935
• Viewing Angle: 89/89/89/89
• Contrast Ratio: 1200:1
• Brightness (cd/m²): 500
• Display Area (mm): 1895.04×1065.96
• Panel Size (mm): 1922.2×1093.2×16.14

ARL-RCS-980OP

• Panel Model: 98 inch TFT LED
• Max Resolution: 3840×2160
• Aspect Ratio: 16:9
• Pixel Pitch: 0.5622×0.5622
• Viewing Angle: 89/89/89/89
• Contrast Ratio: 1300:1
• Brightness (cd/m²): 500
• Display Area (mm): 2158.85×1214.35
• Panel Size (mm): 2187.8×1242.8×68.6
