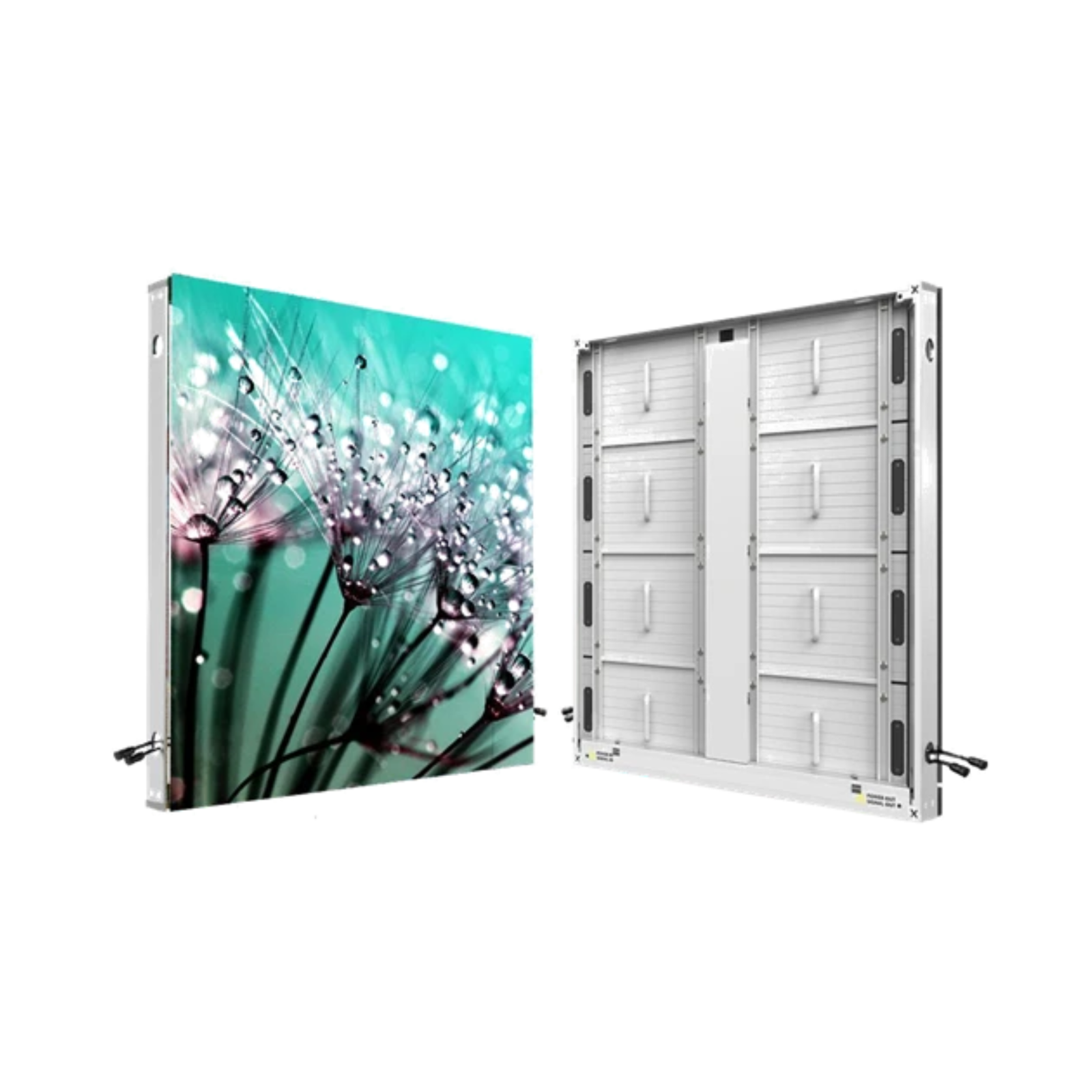

Outdoor Front Access LED Display FA2 MAX
Outdoor Front Access LED Display FA2 MAX
| Item | P2.9 | P3.9 | P4.8 |
|---|---|---|---|
| Pixel Pitch | 2.9mm | 3.9mm | 4.8mm |
| LED Type | SMD1415 | SMD1921 | SMD1921 |
| Module Resolution | 84dots×84dots | 64dots×64dots | 52dots×52dots |
| Driving Mode | 1/14scan | 1/8scan | 1/7scan |
| Module Pixels | 7056dots | 4096dots | 2704dots |
| Module Size | 250mm×250mm | 250mm×250mm | 250mm×250mm |
| Cabinet Size(mm) | 500×500×82/500×750×82/500×1000×82 | 500×500×82/500×750×82/500×1000×82 | 500×500×82/500×750×82/500×1000×82 |
| Cabinet Resolution | 168dots×336dots | 128dots×256dots | 104dots×208dots |
| Pixel Density | 112,896dots/㎡ | 65,536dots/㎡ | 43,264dots/㎡ |
| Minimum Viewing Distance | ≥2.9 m | ≥3.9 m | ≥4.8 m |
| Brightness | 4500nits ~ 5500nits | 5500nits- 6000nits | 5500nits- 6000nits |
| IP Grade | IP66 | IP66 | IP66 |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Gray Scale | 14bits~22bits | 14bits~22bits | 14bits~22bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 620W/m² | 620W/m² | 620W/m² |
| Average Power Consumption | 160W/m² | 160W/m² | 160W/m² |
| Input Voltage | AC110V-220V@ 50Hz/60Hz | AC110V-220V@ 50Hz/60Hz | AC110V-220V@ 50Hz/60Hz |
| Operating Temperature | ﹣20℃～60℃ | ﹣20℃～60℃ | ﹣20℃～60℃ |
| Operating Humidity | 10%~90% | 10%~90% | 10%~90% |
| Cabinet Material | Aluminum | Aluminum | Aluminum |
| Cabinet Weight | 23kg/sqm | 23kg/sqm | 23kg/sqm |
| Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
